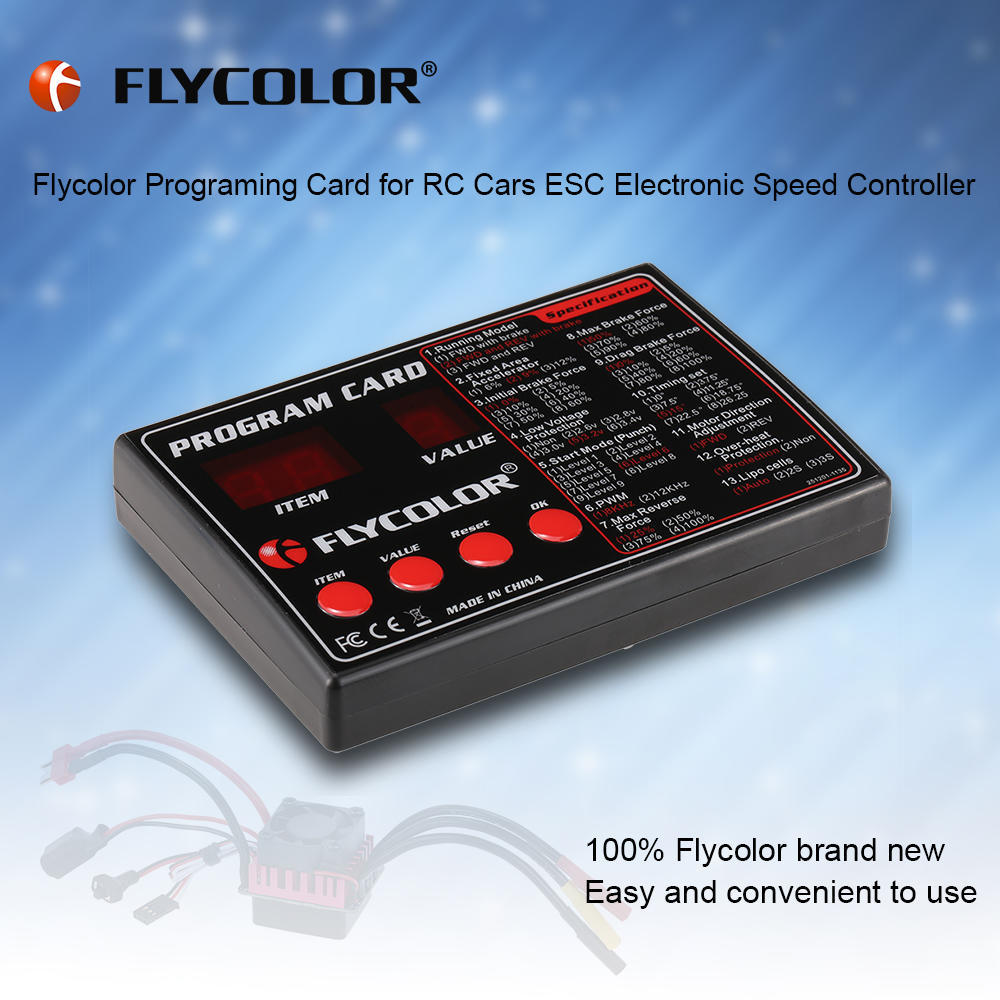

Flycolor 4 Buttons Programing Card for RC Cars Electronic Speed Controller

Using Flycolor programing card to programming is the most convenient choice, only need to insert the signal cable of ESC into the programming card. Press the [ITEM] button to select the item you want, and press [VALUE] button to select the value of this item, then press the [OK] button, the VALUE window displays "S" which means this item was stored. (To restore the factory default value press the [RESET], then press [OK] ).

Features: 100% brand new Easy and convenient to use Made of good material High quality and durable in performance Suit for RC cars ESC programing

Specifications: Brand: Flycolor Item name: Programing Card Running mode: FWD with brake / FWD and REV with brake / FWD and REV Fixed area accelerator: 6% / 9% / 12% Initial brake force: 0% / 5% / 10% / 20% / 30% / 40% / 50% / 60% Low voltage protection: Non / 2.6V / 2.8V / 3.0V / 3.2V / 3.4V Start mode (punch): Level 1 / Level 2 / Level 3 / Level 4 / Level 5 / Level 6 / Level 7 / Level 8 / Level 9 PWM: 8KHz / 12KHz Max reverse force: 25% / 50% / 75% / 100% Max brake force: 50% / 60% / 70% / 80% / 90% Drag brake force: 0% / 5% / 10% / 20% / 40% / 60% / 80% / 100% Timing set: 0 degrees / 3.75 degrees / 7.5 degrees / 11.25 degrees / 15 degrees / 18.75 degrees / 22.5 degrees / 26.25 degrees Motor direction adj.: FWD / REV Over-heart protection: Protection / Non Lipo cells: Auto / 2S / 3S Item dimensions: 95 * 650 * 150mm (deviation due to manual measurement) Item weight: 44.5g Package Information: Package size: 10 * 7 * 2cm / 3.9 * 2.8 * 0.8in Package weight: 50g / 1.8oz Polybag package

Package List: 1 * Programing Card
