Features:
* Precise Charge/Discharge Control: This controller module supports a DC voltage range of 10–110V. It features 10A bidirectional current sensing, allowing for load management and battery protection through charge/discharge settings. Built-in high bidirectional 10A current sampling chip, a powerful 48-pin MCU controller, and a coulomb counter for ensureaccurate control.

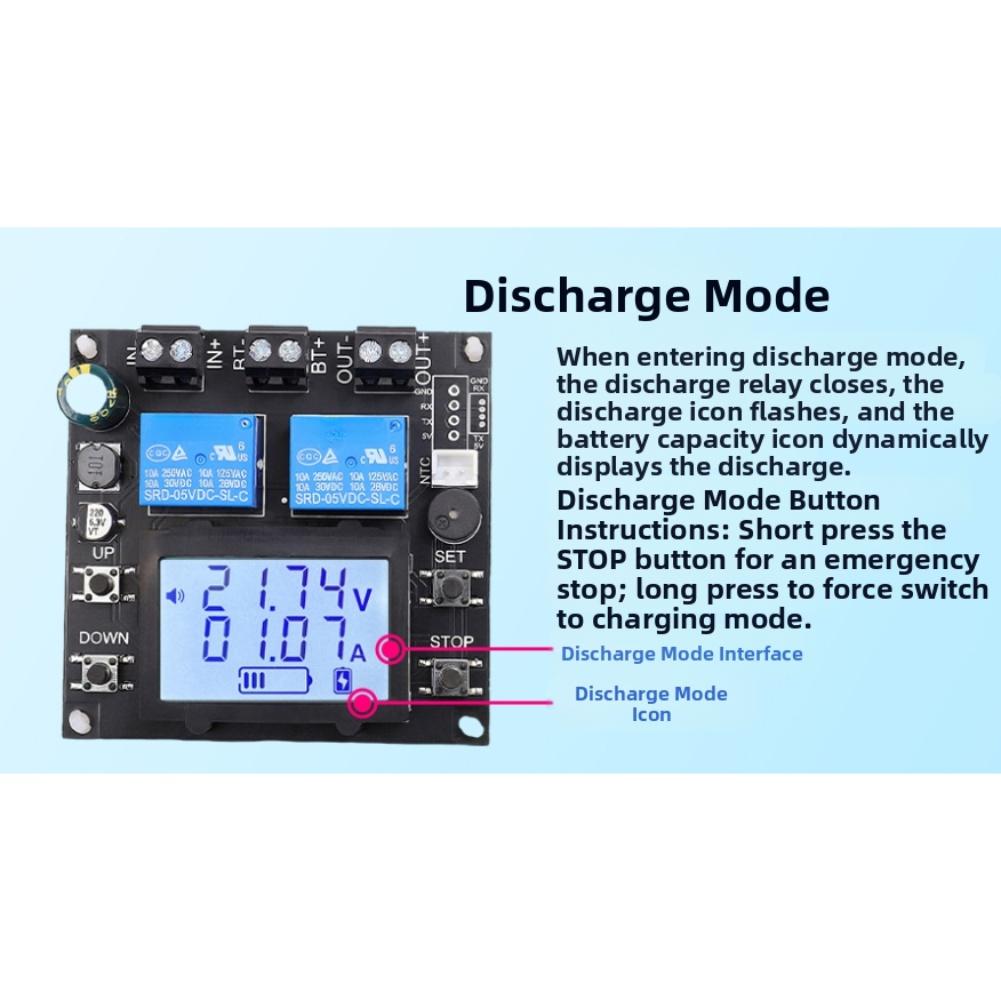

* Three Control Modes, Flexible Adjustment: The coulomb counter module offers charging, discharging, and uninterruptible power supply (UPS) modes. The newly added UPS mode allows the charger to simultaneously charge the battery and power the load. The charging relay does not disconnect after the battery is fully charged, meeting your diverse usage needs.
* Equipped with LCD Display and Buzzer: Unlike other LED display modules, this protection module features a high-resolution LCD display that clearly shows real-time battery voltage, current, power, and operating mode. A built-in buzzer alerts users when problems occur, proper use.
* Multiple Protections, Safe and Reliable: This switching module features overvoltage protection (OVP), undervoltage protection (UVP), overcurrent protection , low battery alarm, overtemperature protection, and alarm reminder functions. Widely compatible with most rechargeable batteries on the market, making use more convenient and safer.
*To for ensurenormal product operation, the total capacity and remaining capacity of the battery need to be known.
Therefore, when using the device for the first time or replacing the battery, the actual effective capacity of the battery needs to be correctly set.
Since the remaining battery capacity is unknown, active device calibration is required. Therefore, based on the known battery capacity, two calibration methods are available for users to choose from: 1. Unknown battery capacity; 2. Known battery capacity.
Specifications:

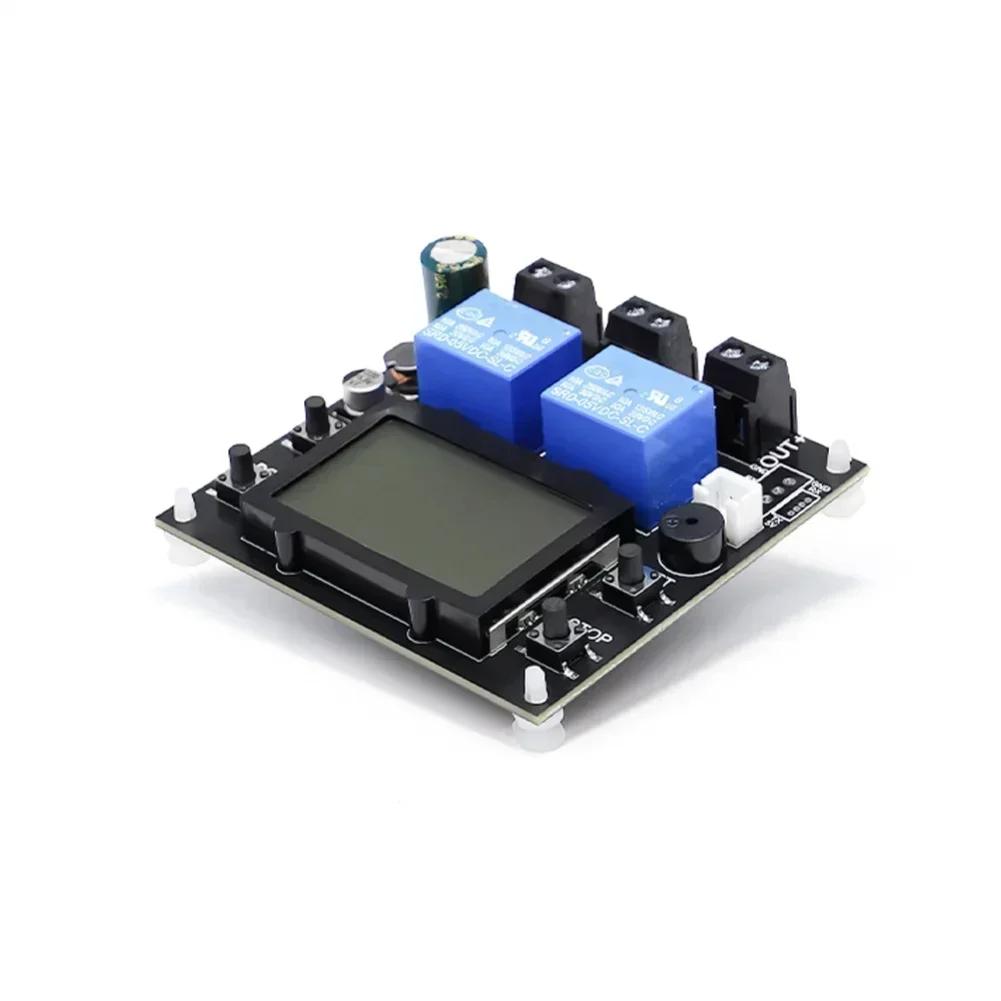

Product Name:10A Fully Automatic Battery Charge and Discharge Management
Material: Metal, Plastic
Color: Black
size: 73*70*22mm
Package Content:
1*10A Fully Automatic Battery Charge and Discharge Management
Note:
1. The real color of the item may be slightly different from the pictures shown on the website due to many factors such as the brightness of your monitor and light.
2. Please allow slight manual measurement deviation for the data.
