Feature:
1. Powerful Performance: Industrial panel computer adopts for Android A40 quad core 1.0GHZ processor, the resolution is 1024 x 600, the screen ratio is 16:9, the output voltage is DC 12V.
2. Excellent Stability: Industrial panel computer adopts industrial grade main board, strong and stable performance, faster and smoother operation, with anti interference, anti static, wide temperature and wide voltage and other characteristics. Meet the operating requirements of complex and harsh environments.
3. Fanless Design: The aluminum alloy fuselage has good thermal conductivity, and dissipates heat efficiently. The rear cover grid is designed to be non slip and anti solid, and at the same time, it increases the heat dissipation area. Industrial panel PC has a fanless silent design and an ultra energy saving silent solution to reduce environmental noise.
4. Various Installations: Industrial all in one panel PC has various installation forms, including embedded snap installation, embedded installation, wall mounted installation, vertical installation, horizontal shutter installation, desktop installation.
5. Wide Application: Industrial panel computer is suitable for touch display of various types of cabinets, meeting the demand for fully embedded design in modern industry, new commercial intelligent terminal equipment, and other industries. It is widely used in the automation field of Industry 4.0, automatic distribution cabinets, industrial production lines, industrial manufacturing environments, numerical control equipment, certification halls, entertainment, transportation, catering, hotels, shopping malls, and other industries.
Specification:

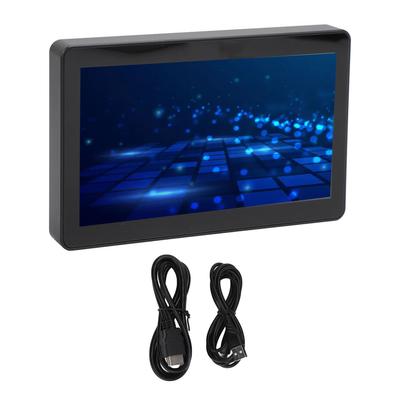

Item Type: Industrial Panel Computer
Model: G070 ANB
Material: ABS and aluminium alloy
Display Color: 16.7M
Brightness: 300cdm2
Panel Type: Industrial control screen
Response Time: 5ms
Contrast Ratio: 1000:1
Backlight Type: LED backlight
Pixel Spacing: 0.24 x 0.24mm (h x v)
Viewing Angle: 85,85,85,85 (L,R,U,D)
Power Input: DC12V to 5A
Overall Power Consumption: less than 24W
Standby Power Consumption: less than 10W
Working Temperature: 10 celsius to 60 celsius
Storage Temperature: 20 celsius to 80 celsius
Relative Temperature: 20 to 95percent (non condensing)
Operation Vision: 7 x 24 hours long operation
Processor: INT68770UFG
Input Interface: High definition multimedia interface
Key Function: Supported
Horn Function: Optional
Power Output: supported
Menu Function: DC12 4A
Processor: For Allwinner A40 or for Rockchip RK3288
Memory: 1G DDR3 (upgradeable 2G or 4G)
Hard Disk: 16G (upgradeable 32G or 64GeMMC)
System: For Android 7.1 (scalable version)
COM: COM x 2 RS232 (or RS485 or TTL)
Power Output: DC12 4A
Adapter Voltage: AC110 to 240V.
Package List:
1 x Industrial Panel Computer1 x Power Adapter4 x Screws4 x Nuts4 x Installation AccessoriesPowerful Performance: Industrial panel computer adopts for Android A40 quad core 1.0GHZ processor, the resolution is 1024 x 600, the screen ratio is 16:9, the output voltage is DC 12V.
Excellent Stability: Industrial panel computer adopts industrial grade main board, strong and stable performance, faster and smoother operation, with anti interference, anti static, wide temperature and wide voltage and other characteristics. Meet the op
Fanless Design: The aluminum alloy fuselage has good thermal conductivity, and dissipates heat efficiently. The rear cover grid is designed to be non slip and anti solid, and at the same time, it increases the heat dissipation area. Industrial panel PC h
Various Installations: Industrial all in one panel PC has various installation forms, including embedded snap installation, embedded installation, wall mounted installation, vertical installation, horizontal shutter installation, desktop installation.
Wide Application: Industrial panel computer is suitable for touch display of various types of cabinets, meeting the demand for fully embedded design in modern industry, new commercial intelligent terminal equipment, and other industries. It is widely use
