Features: brand new and high quality
Made of high-quality materials,

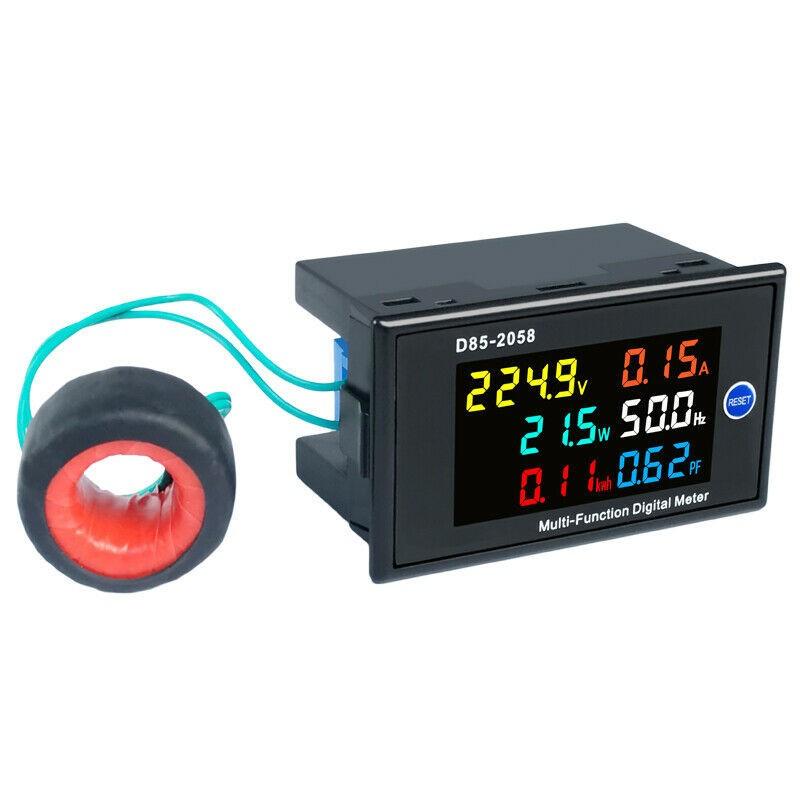

Digital LCD AC Panel Meter Voltage Ampere Frequency Energy Power 40-300V 0-100A

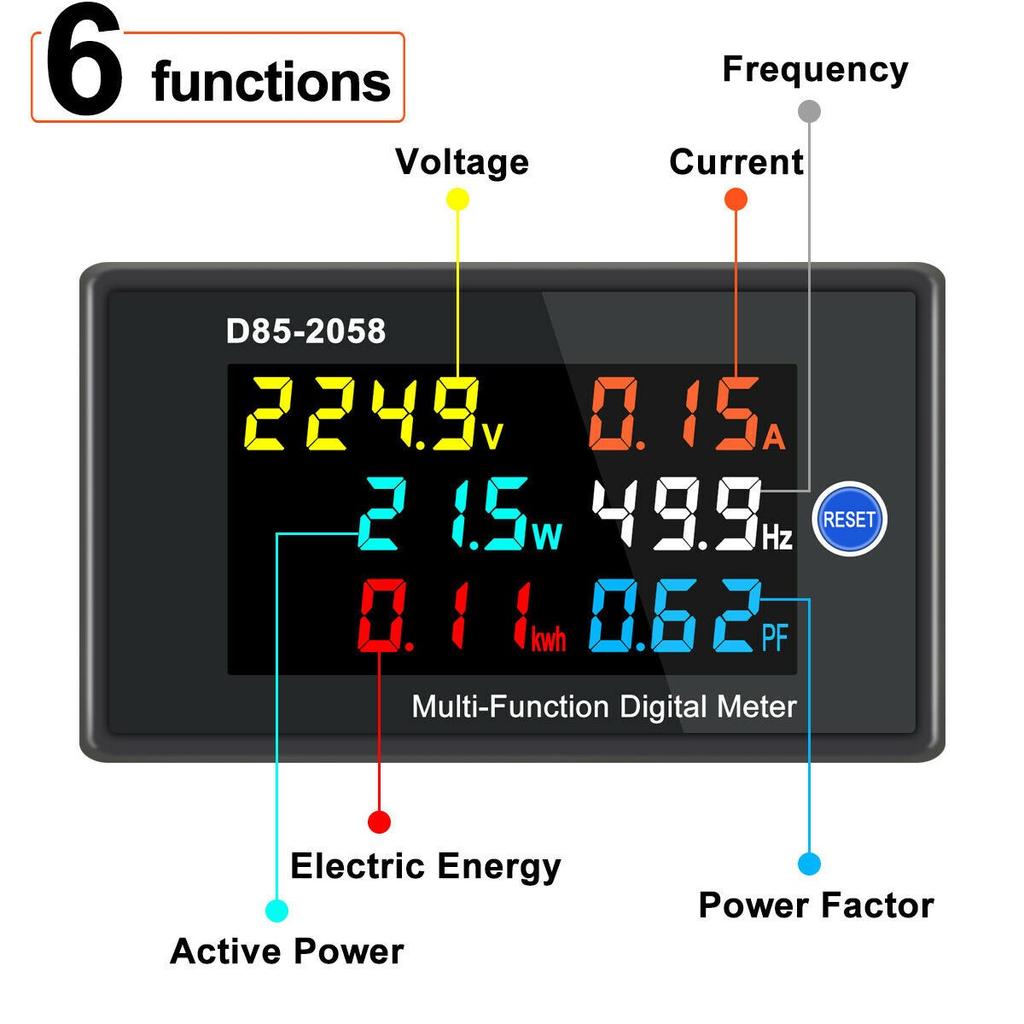

The meter can measure AC voltage, AC current, active power, power factor, power frequency and electrical energy. HD LCD has
Adopt two-way module
Product parameters:
Model: D85-2058
AC voltage: AC 40.0-300.0V / 200.0-450.0V (optional)
Alternating current: AC 0-99.99A, the minimum resolution is 0.01A
Power frequency: 45.0Hz-65.0Hz
Power factor: 0.00-1.00PF
Active power: 0-45000W, when the power is between 0 and 9999.9W, the display accuracy is 0.1W
Electricity: 0-9 99999kwh. When the electric energy is between 0 and 999.99kwh, the display accuracy is 0.01kwh.
Between 10000.0-9999.9kwh, the display accuracy is 0.1kwh, when it is between 10000.0 and 999999kwh, the cumulative display is 1kwh
Speed: 2 times per second

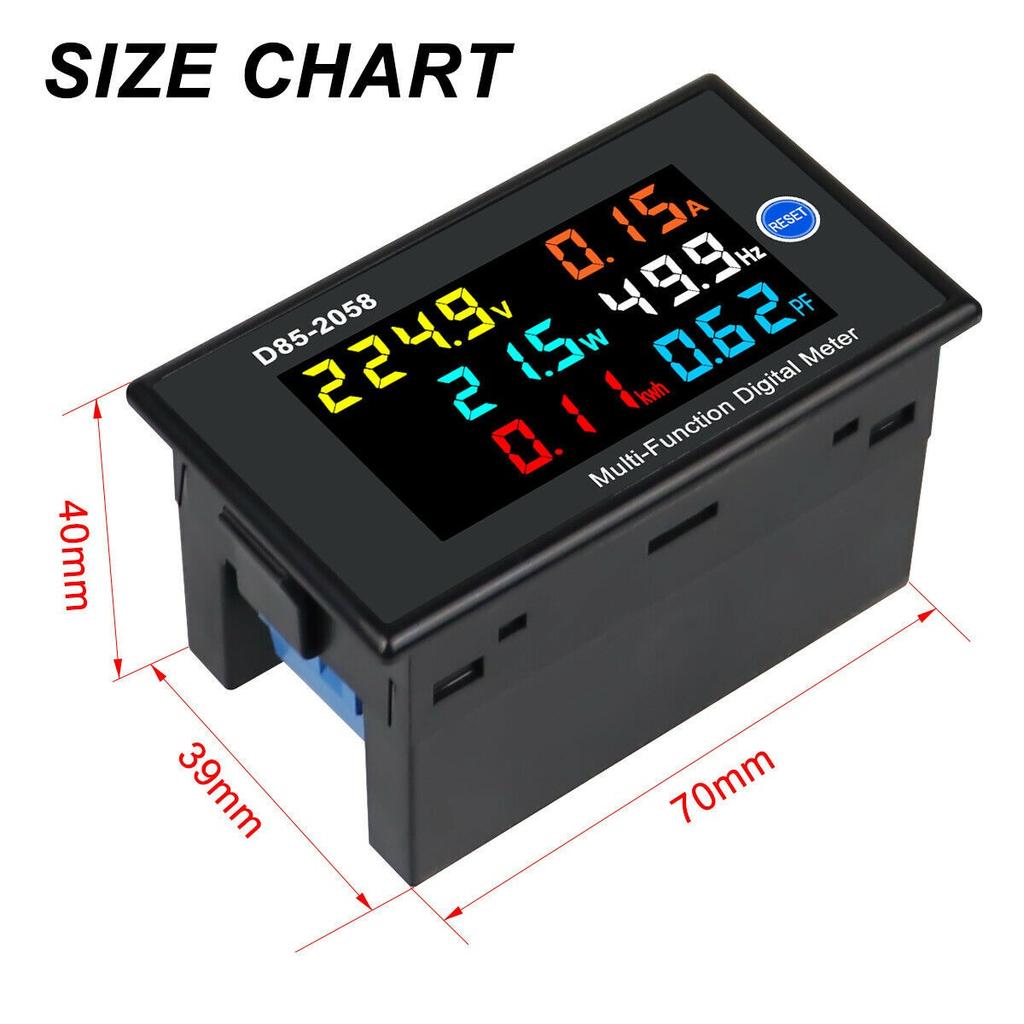

Size: 70 * 39 * 40mm / 2.76 * 1.54 * 1.57 inches
Installation size: 68 * 38mm / 2.68 * 1.50 inches
Automatic energy saving: energy will be saved when the power is off
Feature:

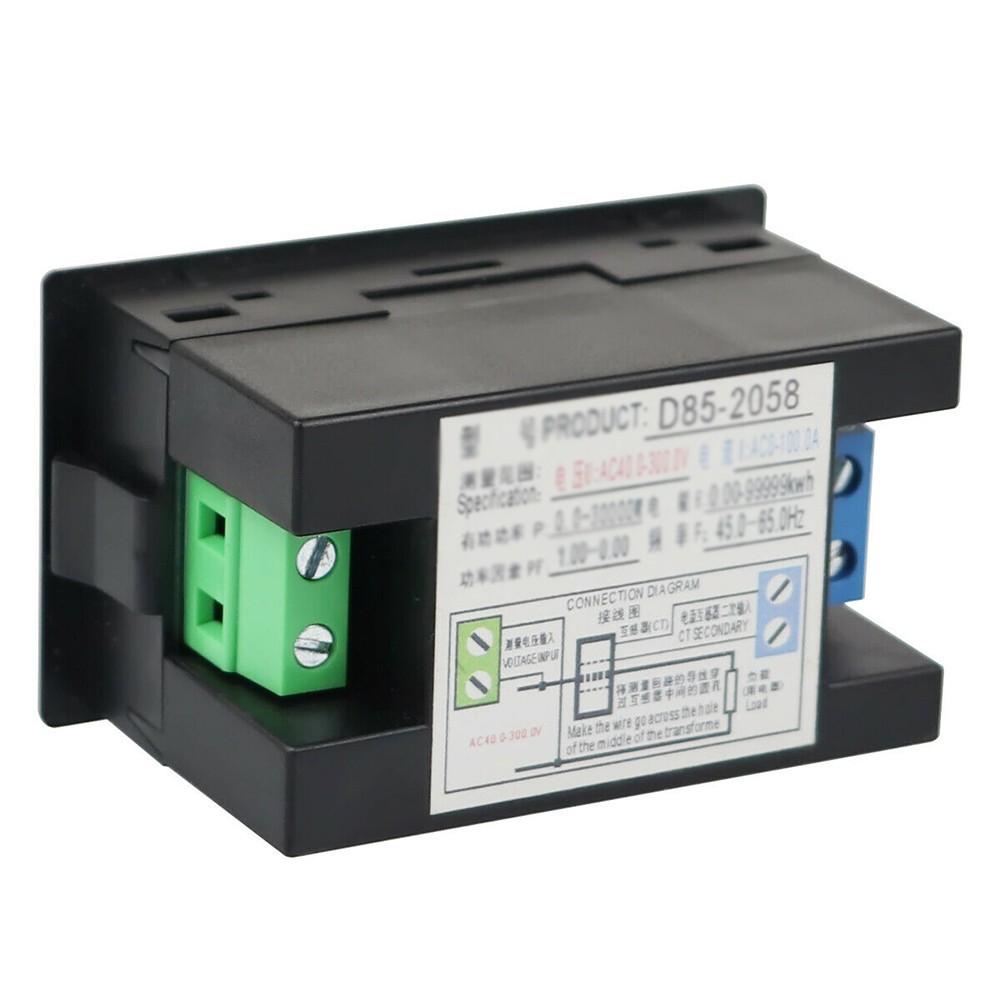

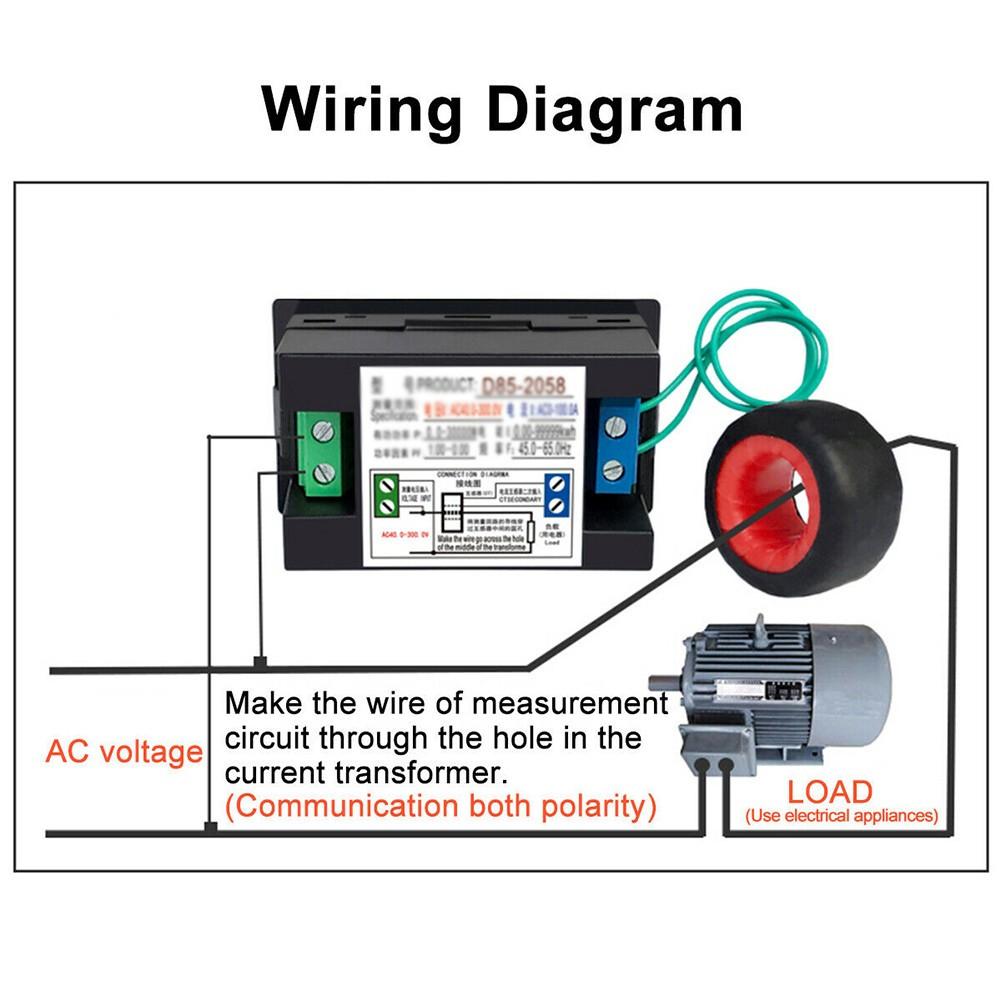

1. According to the wiring diagram, connect the green wire of the secondary current transformer to the blue terminal of the meter
And make the wire of the measuring circuit pass through the hole in the current transformer.
2. Supply power and start measuring and displaying results
3. Keep pressing the button for 5 seconds, the power is zero
note:
1. Using the wrong connection will damage the meter
2. The meter can only be used to measure 45-65Hz alternating current for input (green terminal) and
Secondary current transformer (blue terminal), square wave, inverter output and sine wave correction
Package Included:
1 * AC panel meter
1 *Manual
Note:
1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2.Please allow slight manual measurement deviation for the data.
