Feature:
1. High Torque Rotor: 4 pole 12 slot high torque rotor design, low friction, low noise, high accuracy, strong torque and stable output power.
2. Applicable Model: Universal installation, 3.175mm shaft, suitable for all 110 brushless cars, M3 screw multiple installation methods.
3. Good Perforamnce: High hardness aluminum CNC shell, high temperature resistant copper coil, 0.35mm thickness silicon steel sheet, high magnetic permeability, high silicon content, good insulation and heat resistance.
4. Rotor Output Shaft and Bearings: Explosion proof rotor, high toughness stainless steel output shaft, high accuracy bearings make the motor super durable.
5. Detachable Structure: Convenient for cleaning and maintenance, effectively prolonging the service life of the motor and improving work efficiency.
6. Overheating Protection: The motor has a built in temperature sensor and interface, which can be used with the ESC to realize the motor overheating protection function.
Specification:

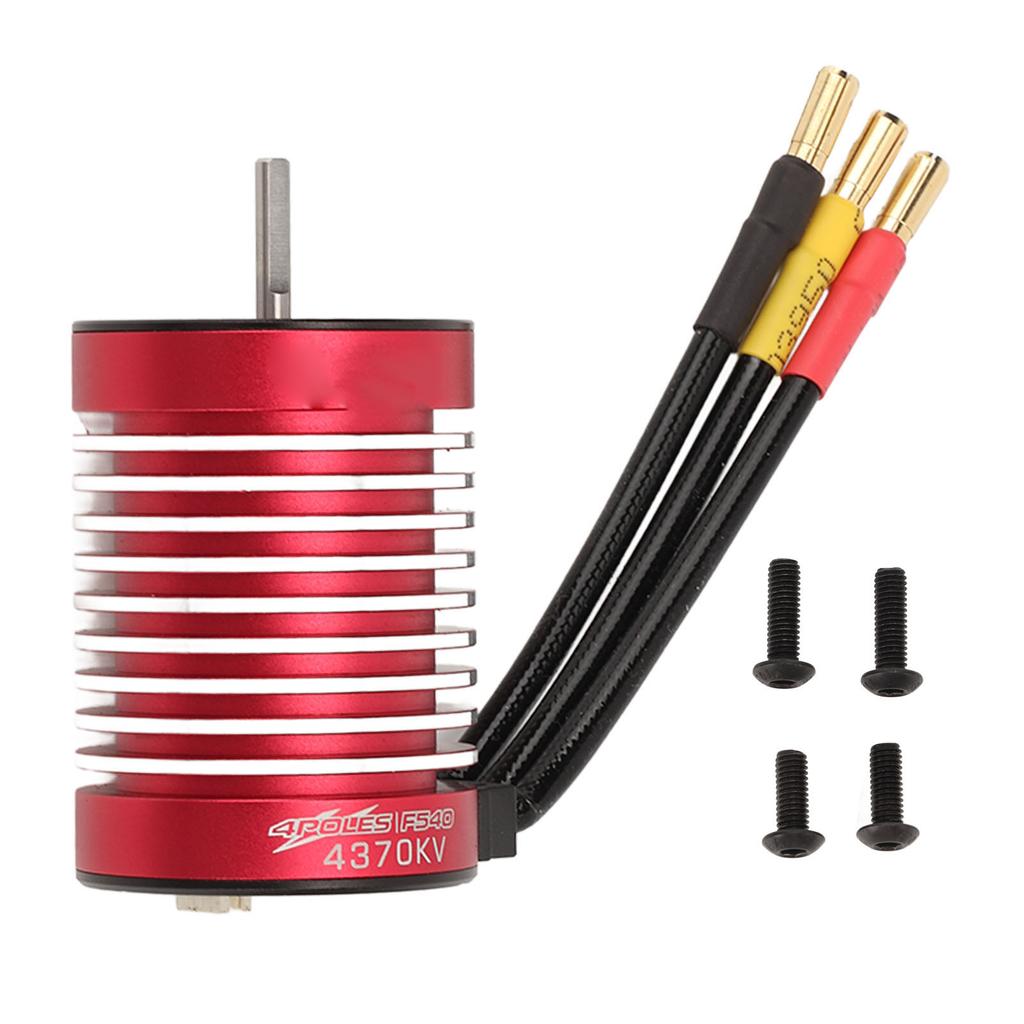

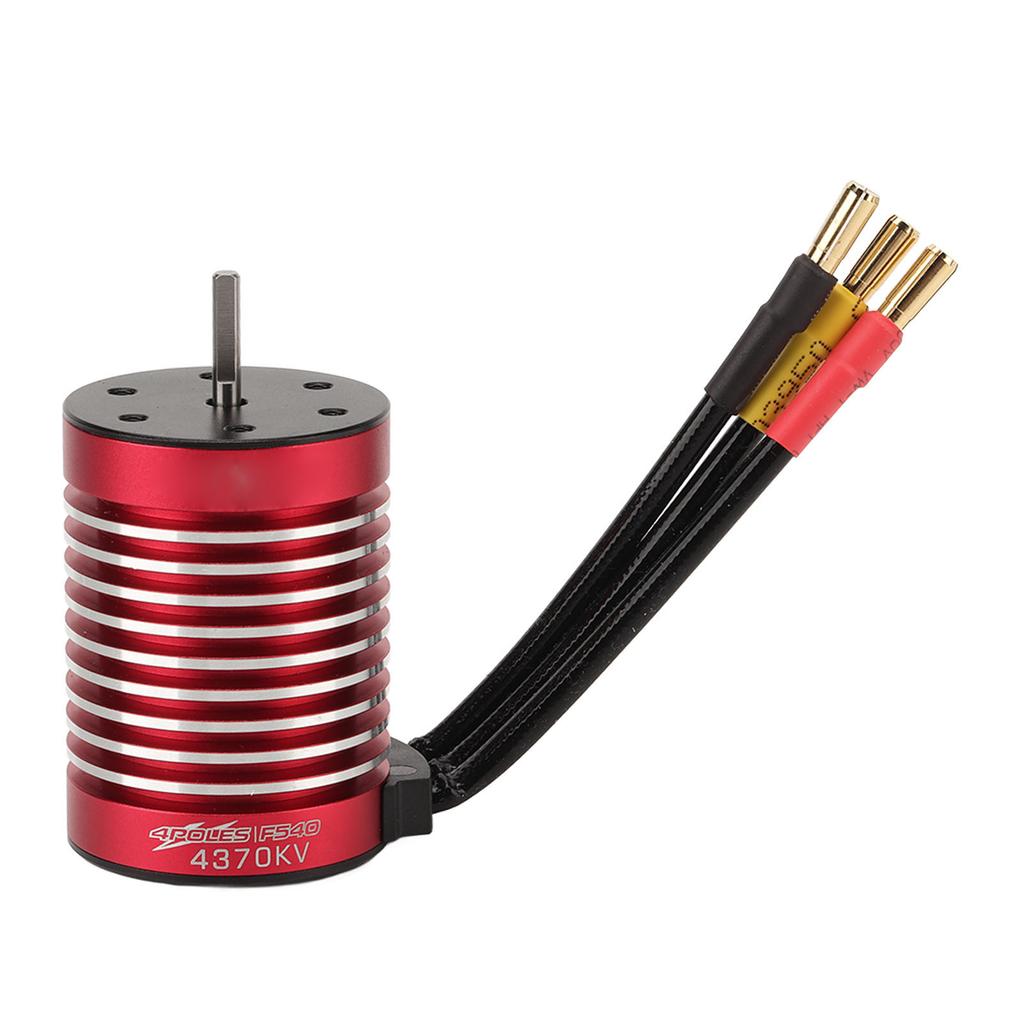

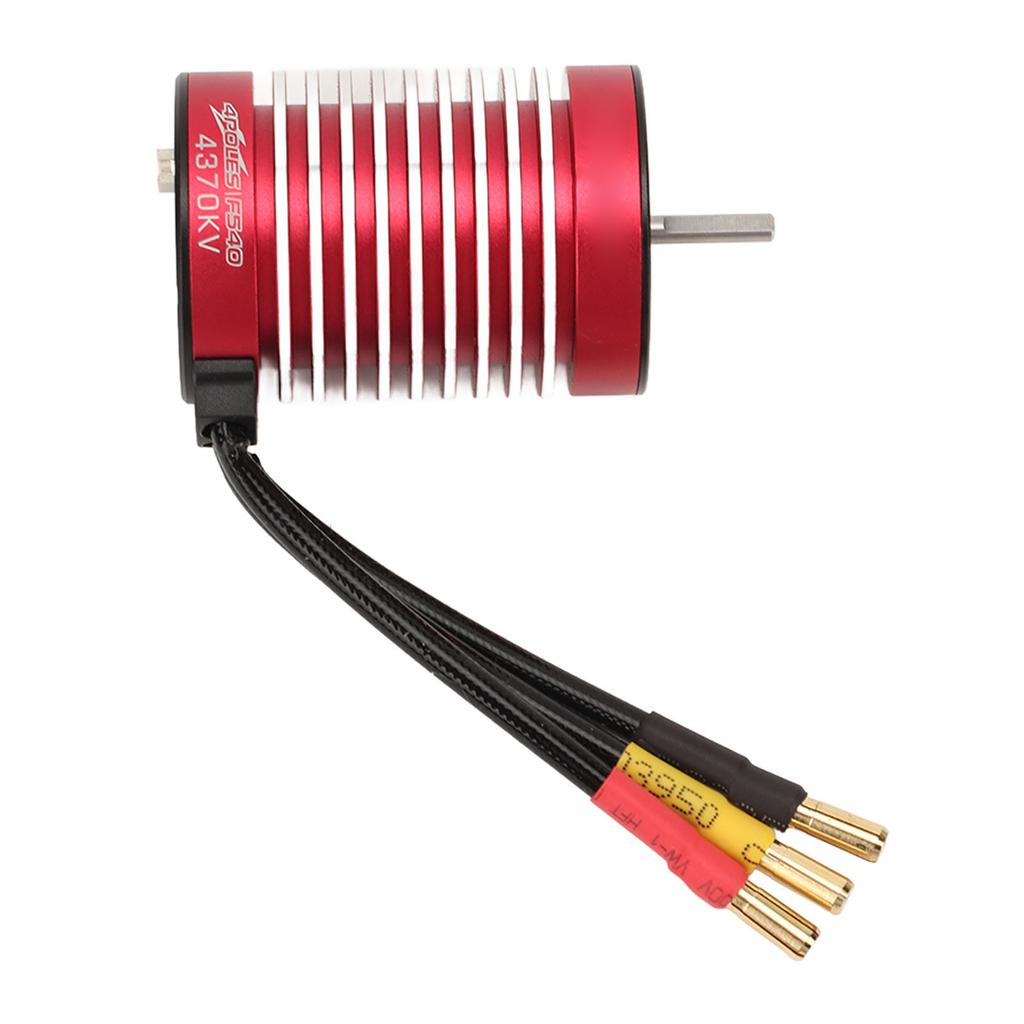

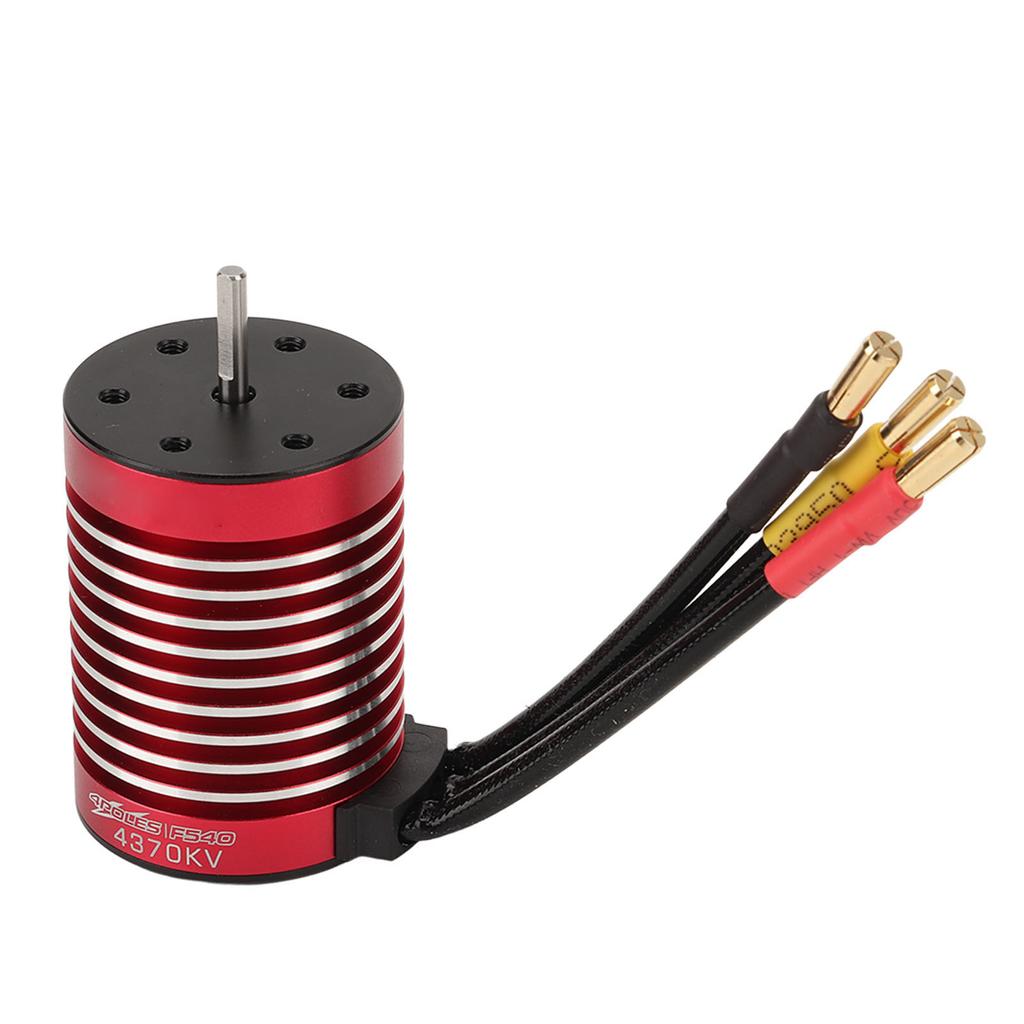

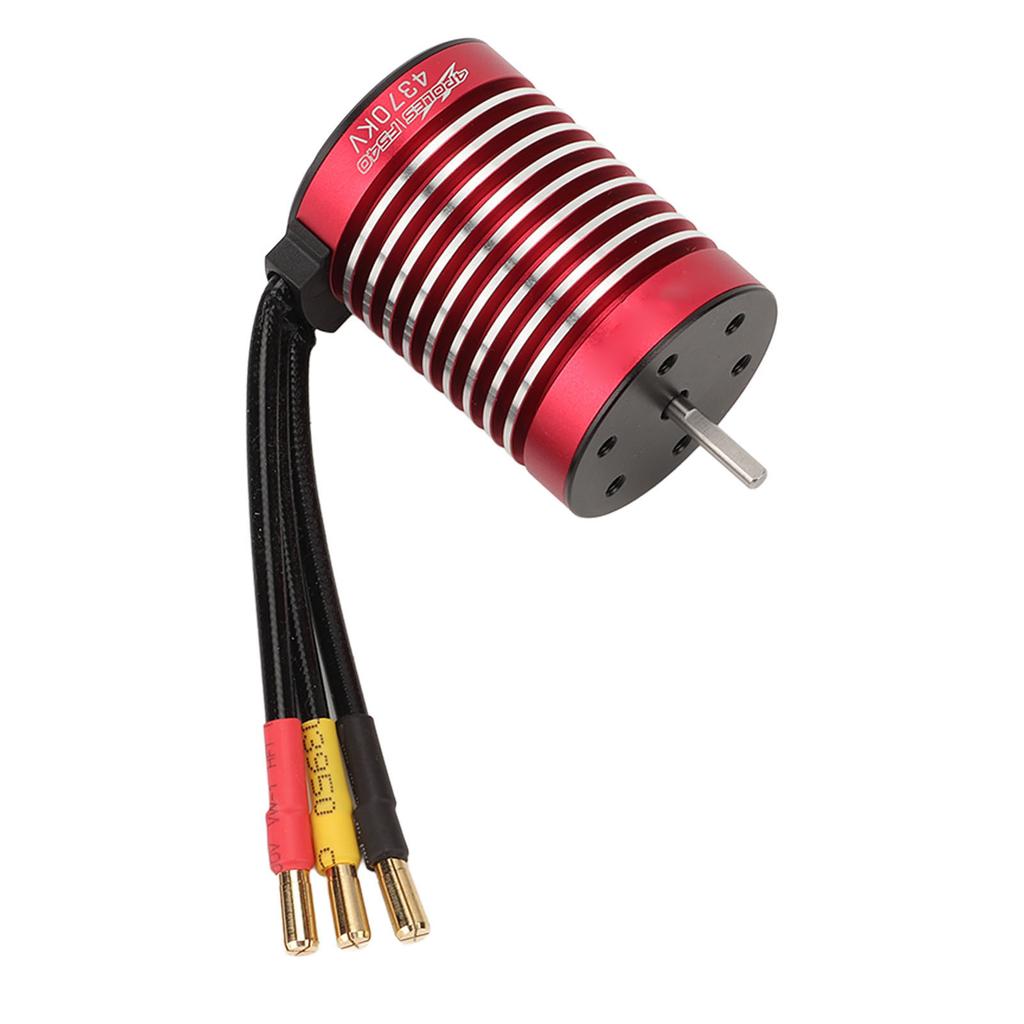

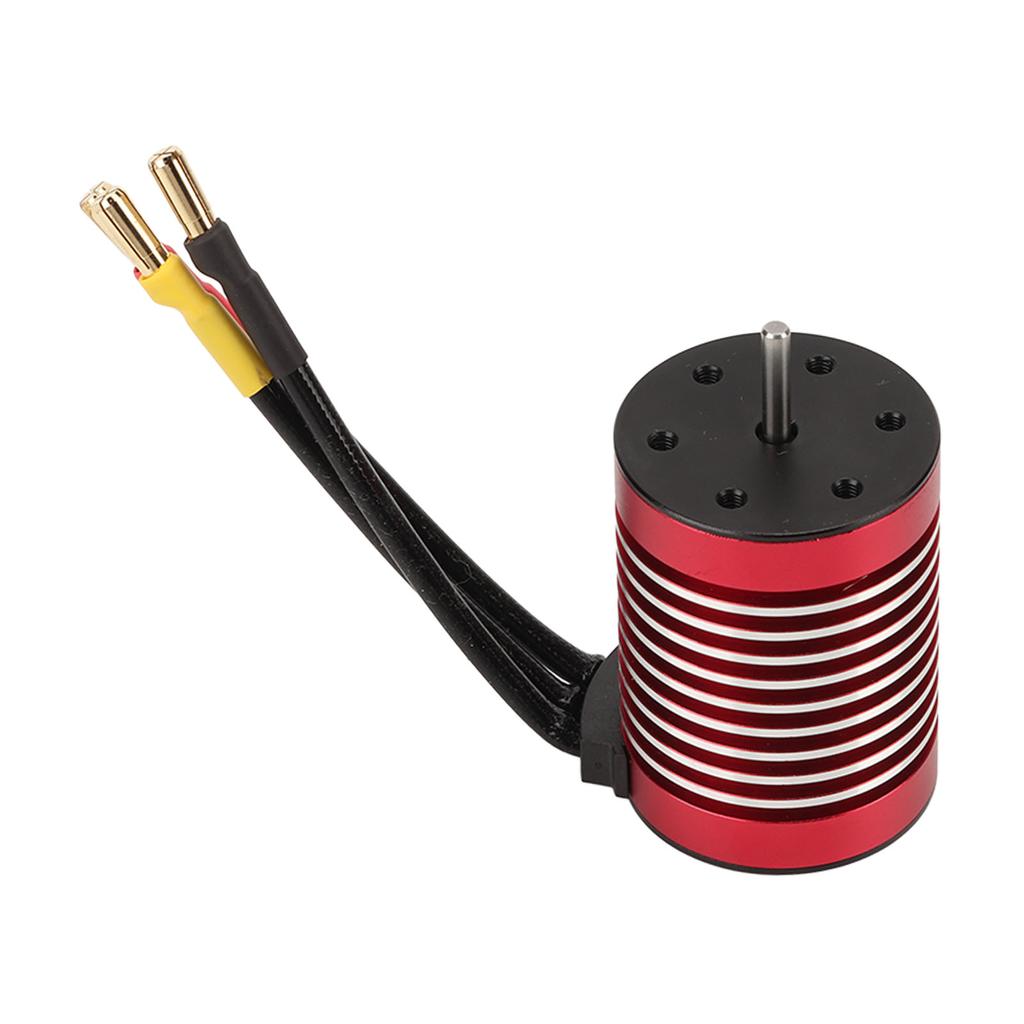

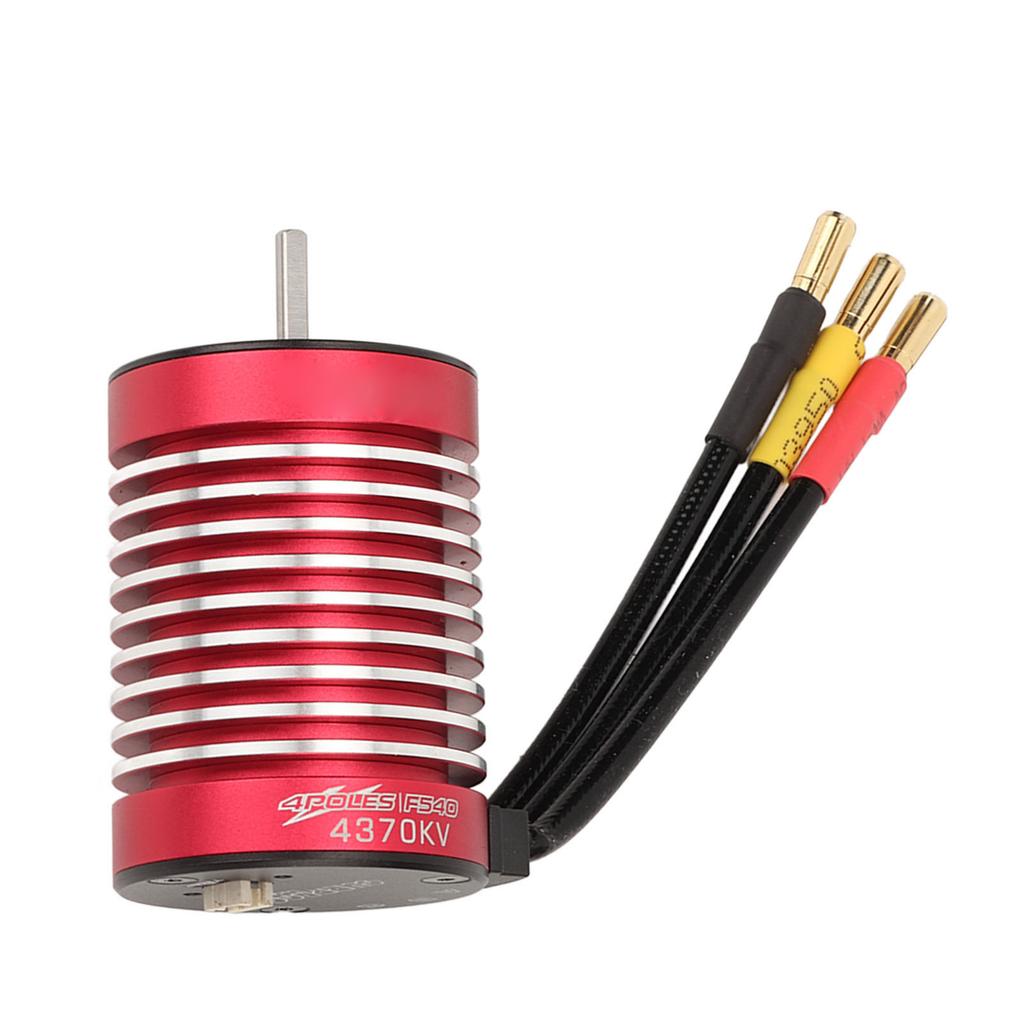

Item Type: F540 Sensorless Brushless Motor
Model: F540
Material: Aluminum Alloy, Copper, Steel
Color: Black Red
Weight: Approx. 187g 6.6oz
KV (RPMVolt): 4370KV
Output Power: 820W
Maximum Voltage: <12V
Maximum Current: 68A??
Number of Motor Poles: 4
IO: 3.5A
Resistance ( Ohm ): 0.0198
Maximum Speed: 50000
Motor Diameter: Approx. 35.8mm 1.4in
Motor Length: Approx. 50mm 2.0in (Without Shaft)
Shaft Diameter: Approx. 3.175mm 0.1in
Shaft Length: Approx. 15mm 0.6in
Application: Suitable for All 110 Brushless Cars
.
Package List:
1 x F540 Sensorless Brushless Motor4 x Screws1 x Manual
Note:
1. Due to manual measurement, please allow 1‑3mm error, thank you!2. Due to the difference between different monitors, the picture may not reflect the actual color of the item.High Torque Rotor: 4 pole 12 slot high torque rotor design, low friction, low noise, high accuracy, strong torque and stable output power.
Applicable Model: Universal installation, 3.175mm shaft, suitable for all 110 brushless cars, M3 screw multiple installation methods.
Good Perforamnce: High hardness aluminum CNC shell, high temperature resistant copper coil, 0.35mm thickness silicon steel sheet, high magnetic permeability, high silicon content, good insulation and heat resistance.
Rotor Output Shaft and Bearings: Explosion proof rotor, high toughness stainless steel output shaft, high accuracy bearings make the motor super durable.
Detachable Structure: Convenient for cleaning and maintenance, effectively prolonging the service life of the motor and improving work efficiency.
