Features:
1. Double way USBCAN II Debugger with 2 Road CAN interface, PC can be connected to a standard CAN network through the USB bus, the construction of Field bus testing laboratory, industrial control, intelligent building, data processing, automotive electronics and other fields in data acquisition, CAN core control unit of data communication network.
2. Double way USBCAN II debugger can be used as a standard CAN bus, CAN bus is CAN bus equipment product development, testing, a powerful tool for data analysis; at the same time, the USBCAN debugger has the characteristics of small volume, convenient installation, but also the best choice for portable users of the system.
3. Double way USBCANII The debugger can use the USBCAN tools provided by our shop, directly to the CAN bus configuration, send and receive. Users can also refer to the store to provide the DLL dynamic link library, routines to write their own applications, to facilitate the development of CAN system application software products.
4. Double way USBCAN II The debugger equipment, CAN bus circuit adopts DCDC power module, industrial grade magnetic coupling isolation chip CAN bus isolation, the interface adapter has a strong anti jamming capability, greatly improve the reliability of the system for use in harsh environments.
5. Compatible universal USBCAN device.
6. Single channel maximum reception capacity more than 14000 frames per second, the highest transmission capacity of 3000 frames per second,Do not crash, do not lose frame.
7. Dual channel at the same time when receiving the highest reception capacity of 8500 frames per second.
8. Support CAN relay function, realize the 2 CAN channel data at different baud rate under transparent transmission.
9. Intuitive, fast hardware filter settings.
10. Added USB protection, CAN bus protection circuit.
11. Support VC++, C#, VB, Labview and other two development interface functions
12. Systems support for WIN98, for WIN200, for XP, for WIN7, for WIN8, for WIN10.
Specification:
Condition: 100percent Brand New
Model: USBCAN II
Protocol Conversion Between USB and CAN Cable
USB Interface Supports USB2.0, Compatible With USB1.1
Support CAN2.0A and CAN2.0B Protocols, Support Standard Frames and Extended Frames
Supports Two Way CAN Channel Bidirectional Transmission, CAN Transmission, CAN Reception
Support Data Frame, Remote Frame Format
The CAN Controller Baud Rate: 5Kbps and 1Mbps(optional), and the CAN Register Is Configured to Set the Special Baud Rate.
Industrial Grade Magnetically Coupled Isolation Chip for CAN Transceiver With 2500V Isolation Voltage
CAN Controller With 32 Hardware FIFO Receive Buffers, Single Channel Maximum Receive Capability Up To 14000 Frames Sec
USB Cable Directly Powered
System Running Platform: for WinXP, for Win7, for Win8, for Win10
Working Temperature: 40 to 85 celsius
Weight: Approx. 195g 6.9oz
Size: Approx. 98 x 78 x 30mm 3.9 x 3.1 x 1.2in
Package List:

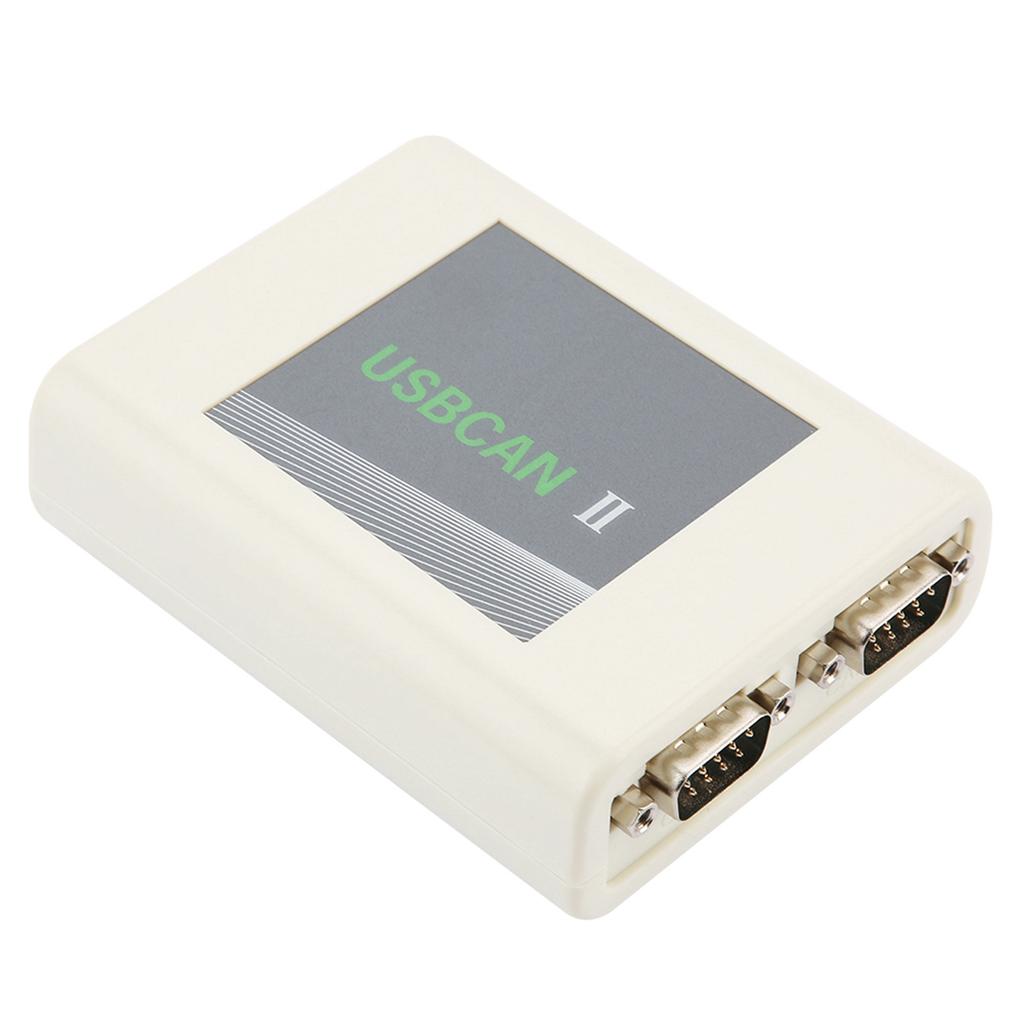

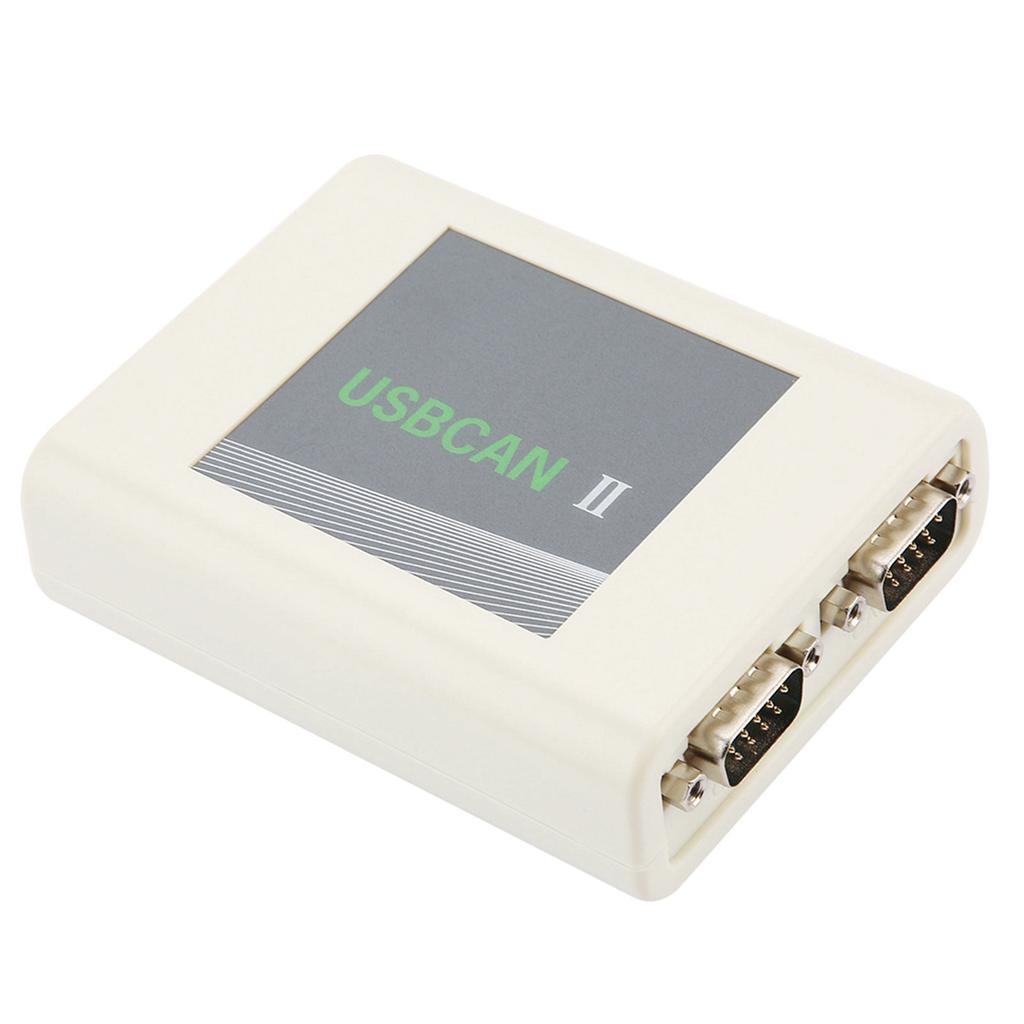

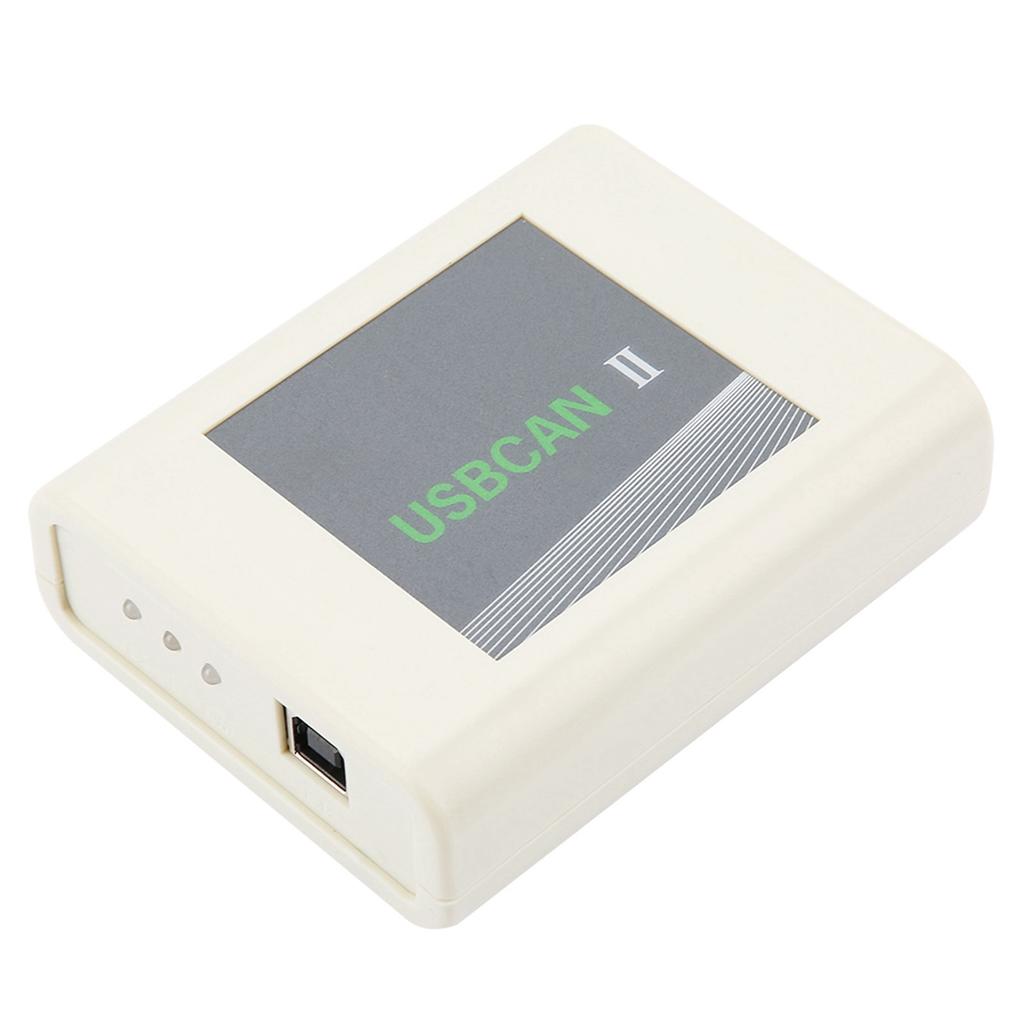

1 x Dual Channel II USBCAN Debugger
2 x CAN Adapter Plates
1 x USB Cable
