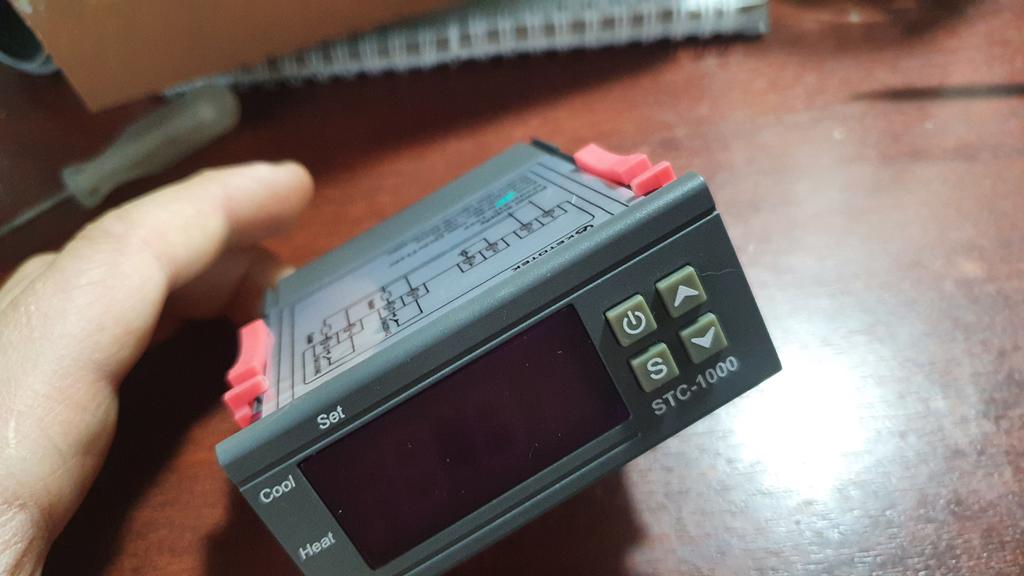

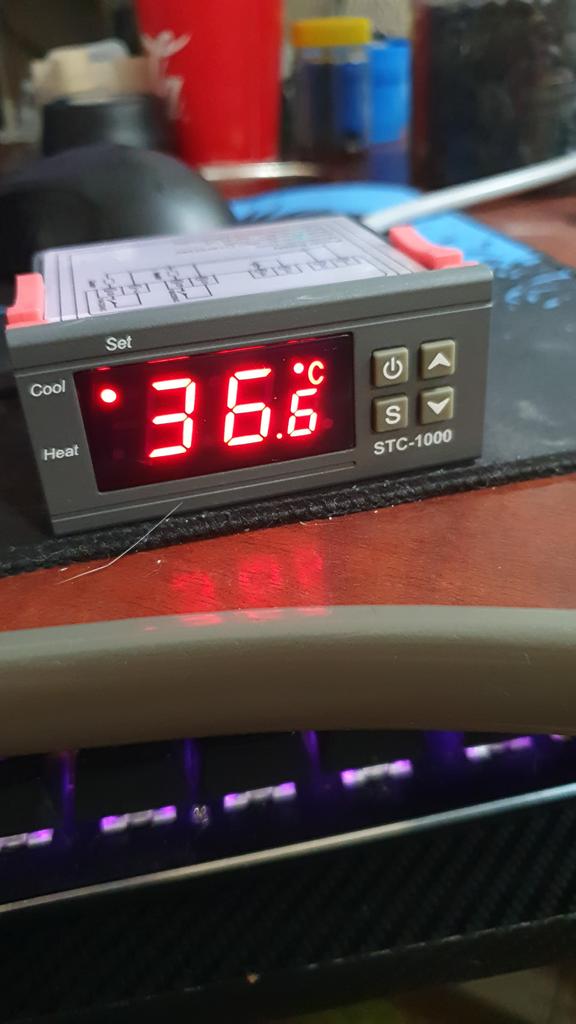

Digital LCD Temperature Controller Thermostat STC-1000 Thermostat Regulator Heater Cooler Two Relay Output

STC-1000 230VAC, ° C display with 2m waterproof sensor, more stable

Switch the modes between cool and heat;

Control temperature by setting the temperature setting value and the difference value;

Temperature calibration;

Refrigerating control output delay protection;

Alarm when temperature exceeds temperature limit or when sensor error.

All parameters setting can be saved when power off.

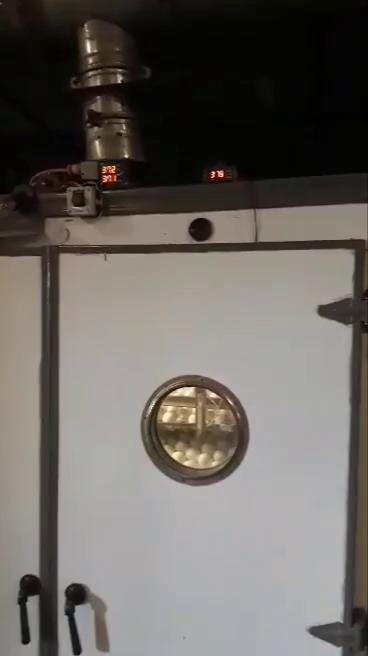

Can be used for domestic freezer, water tanks, refrigerator,industrial chiller, steamer, industrial equipment and other temperature control applications.

Display: ° C Temperature measuring range : -50 ° C 99 ° C Return difference Value: 0.3 10.0°C Resolution : 0.1 ° C Accuracy : +/- 1° C (-50 ° C 70 ° C) Power supply : 110-220VAC 50/60Hz,  12VDC , 24VDC ，230VAC

Power Consumpption : <3W

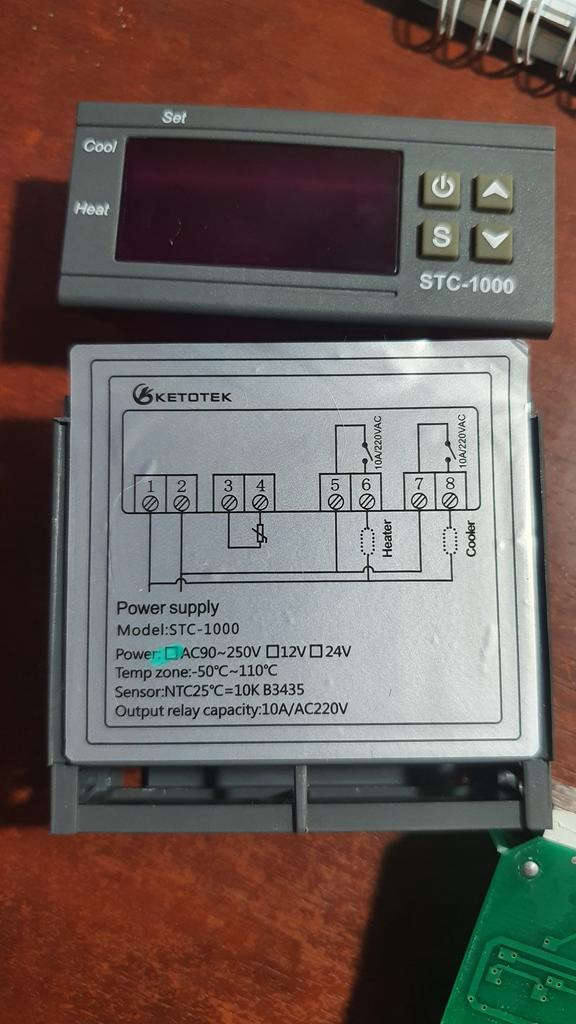

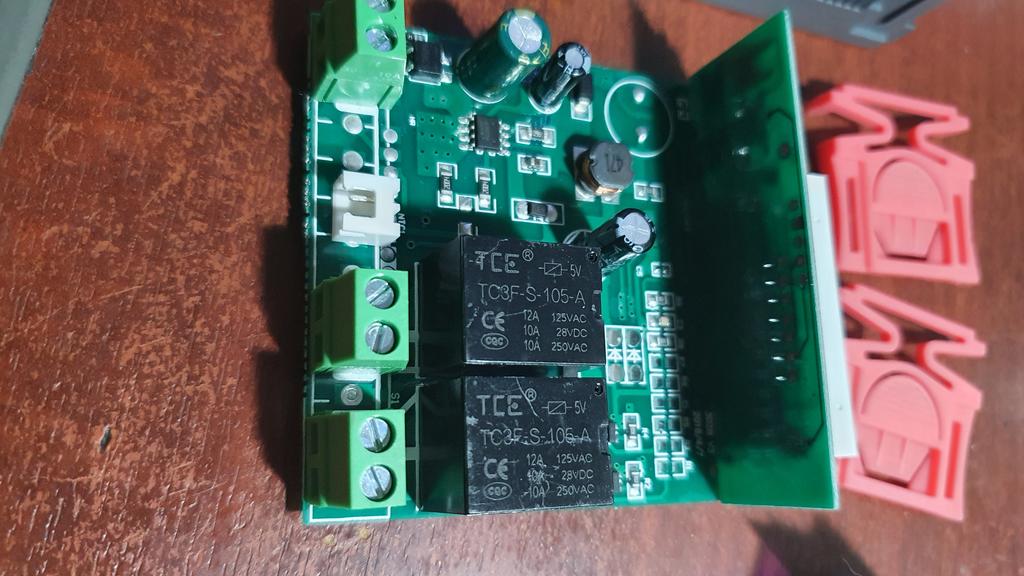

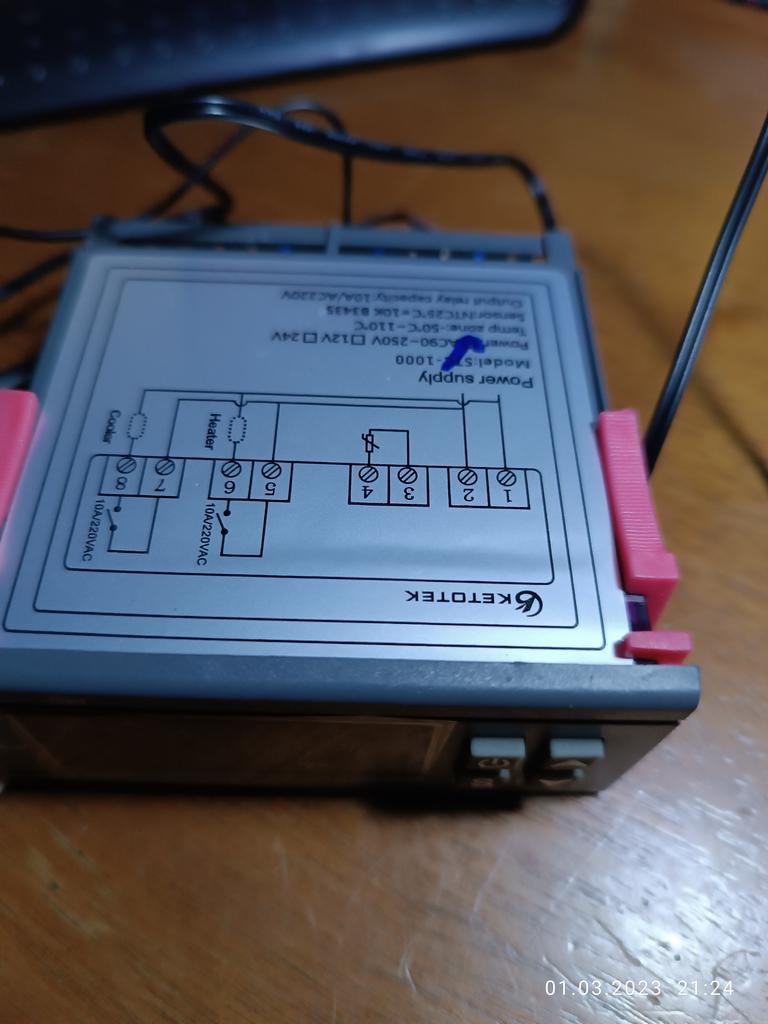

Sensor error delay : 1 minute Output Relay : Two Relay Cool 10A/220VAC; Heat 10A/220VAC NTC sensor : 1m Delay start and temperature calibration : Yes Size : 75mm(L)*34mm(W)*85mm(Depth) Mounting Size : 71(L)*29(W)mm

Package include:

1 * Temperature Controller

1 * Temperature sensor

1 * Instruction Manual
