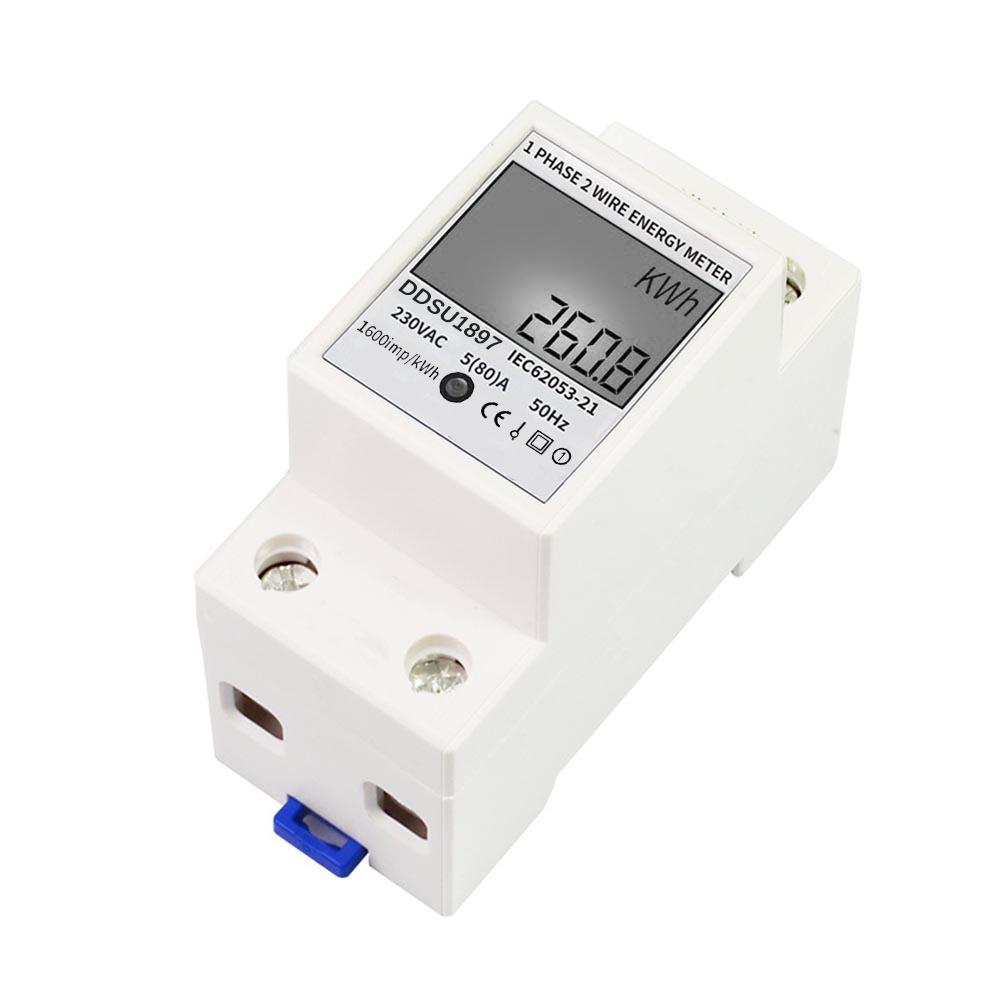

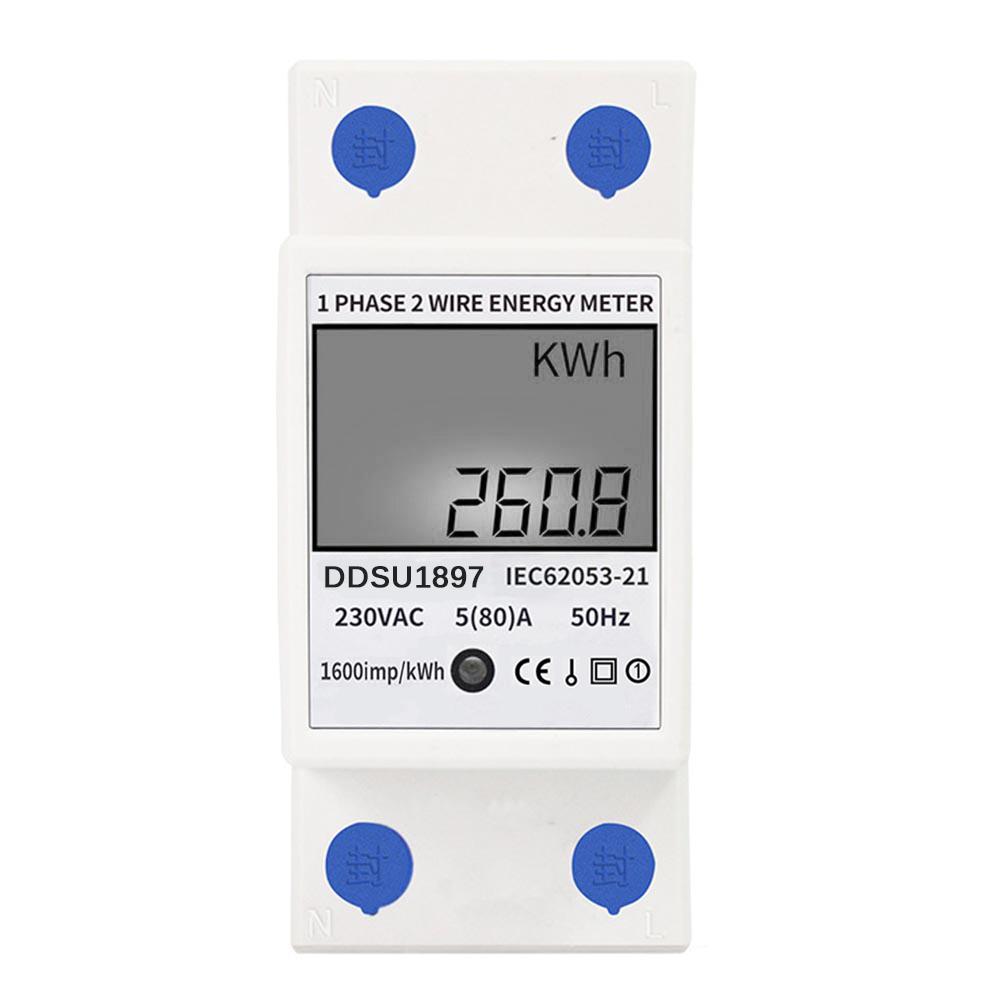

Digital Electric Energy Meter Single Phase DIN Rail Electricity Meter One Phase Two Wire

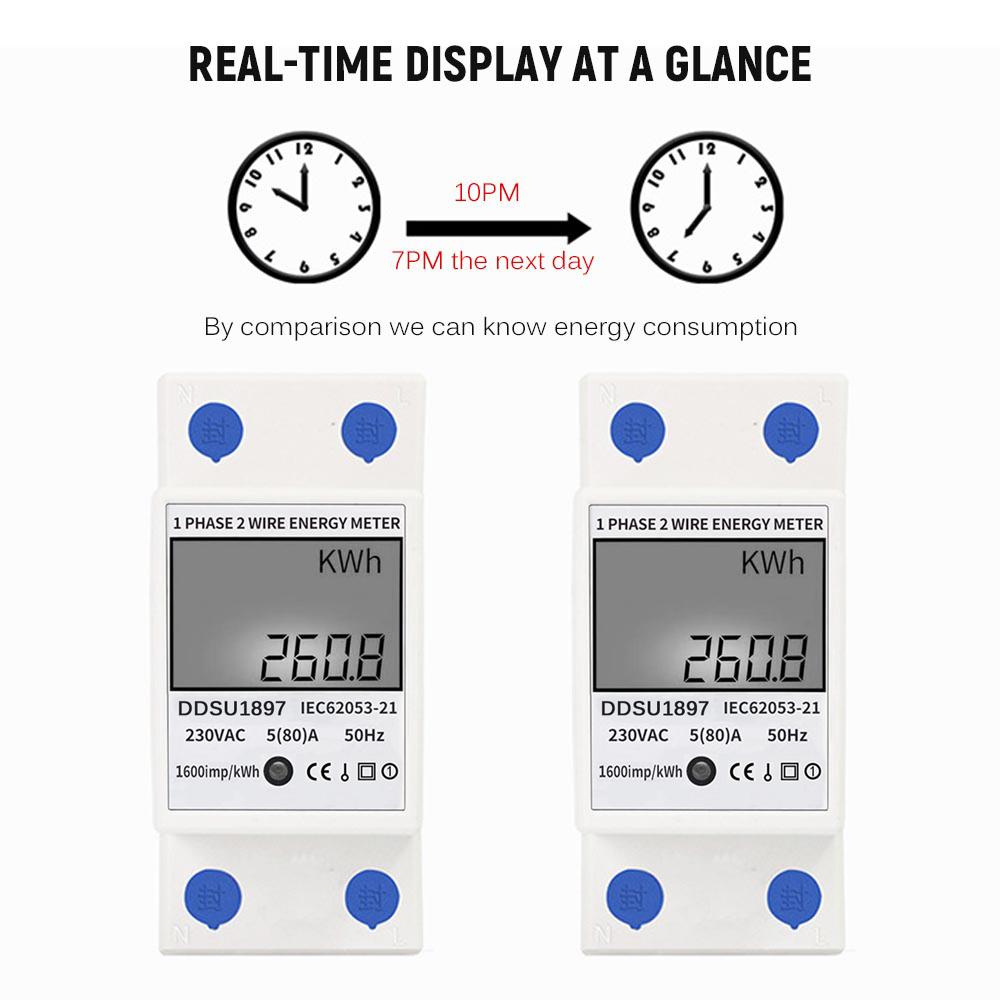

This energy meter can measure electrical parameters such as energy, voltage, current and power, and auto loop display the readings. Its compact and easy to install, safe to use.

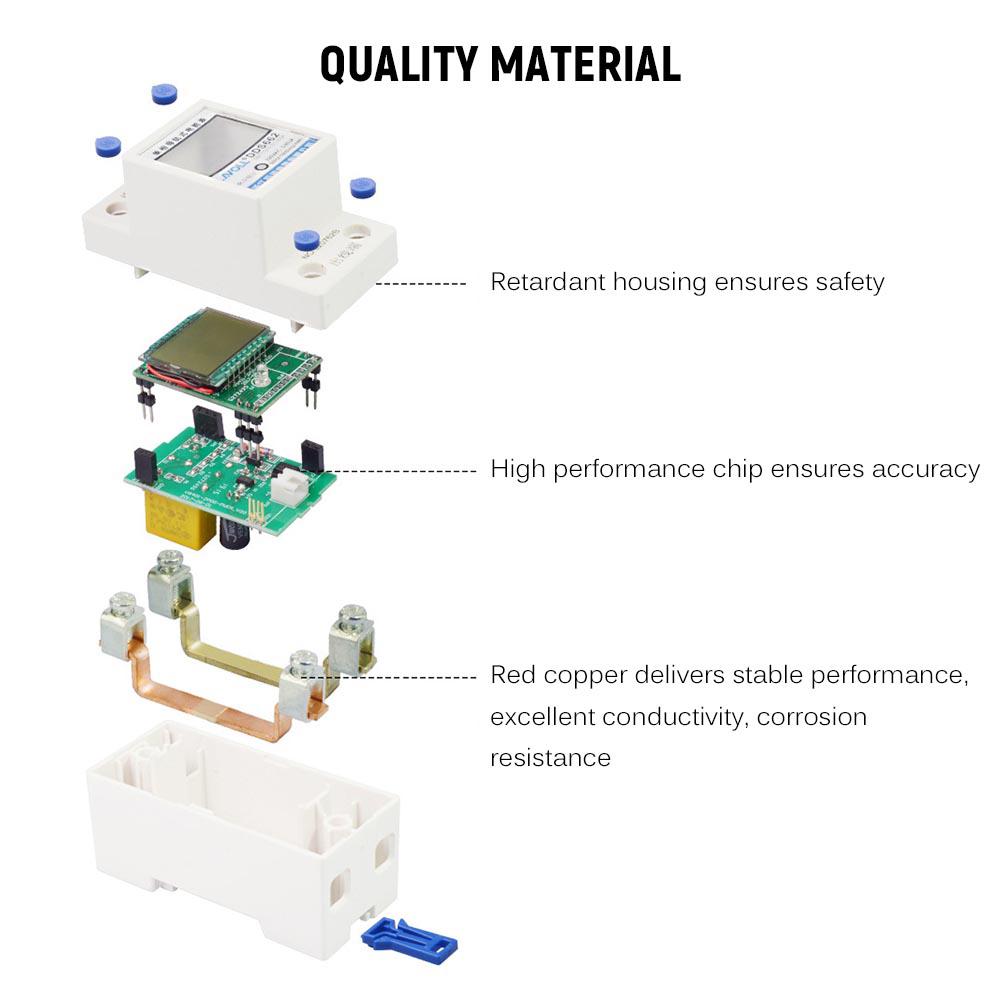

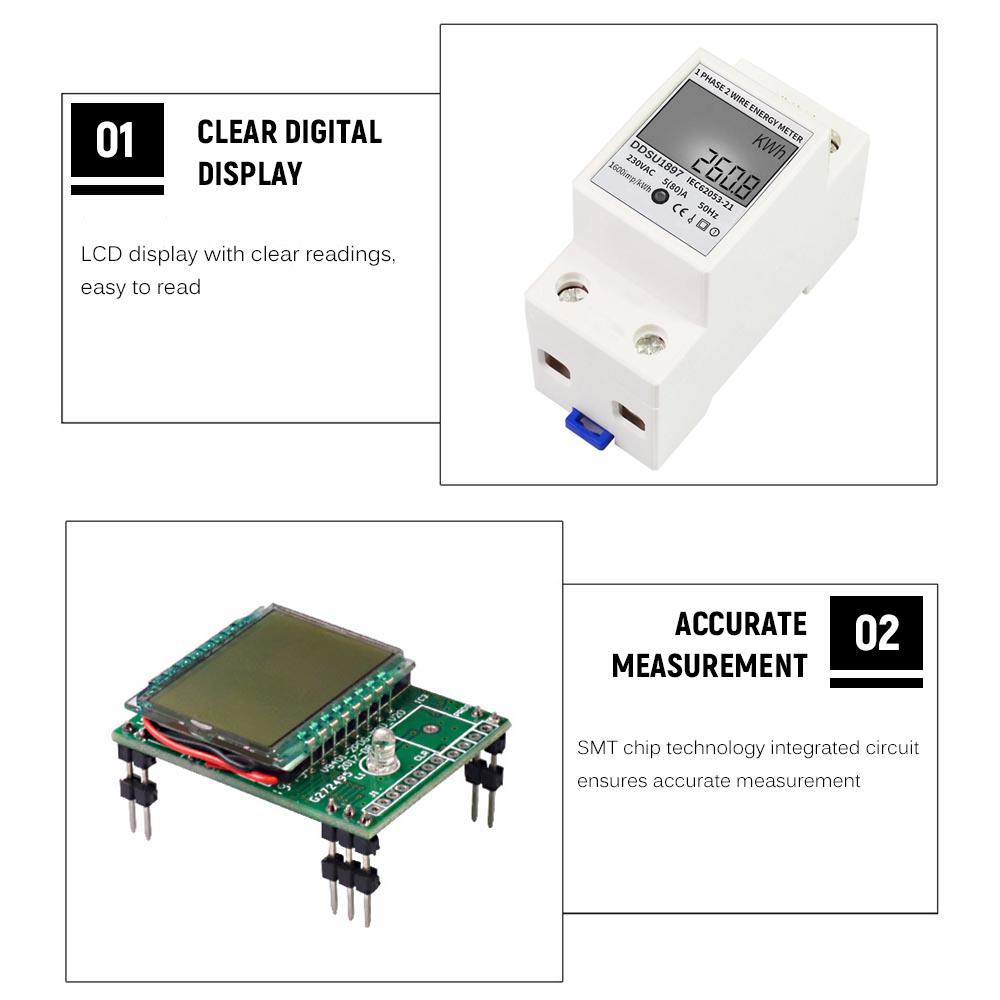

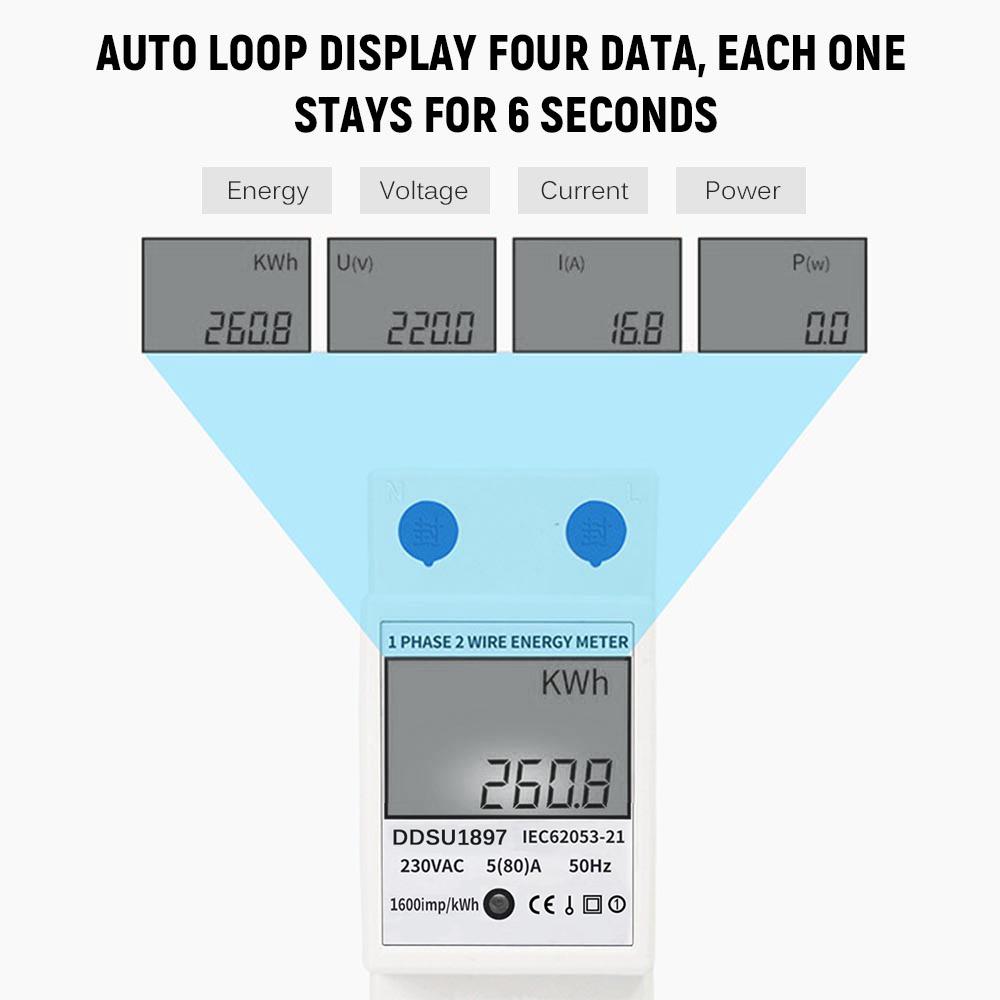

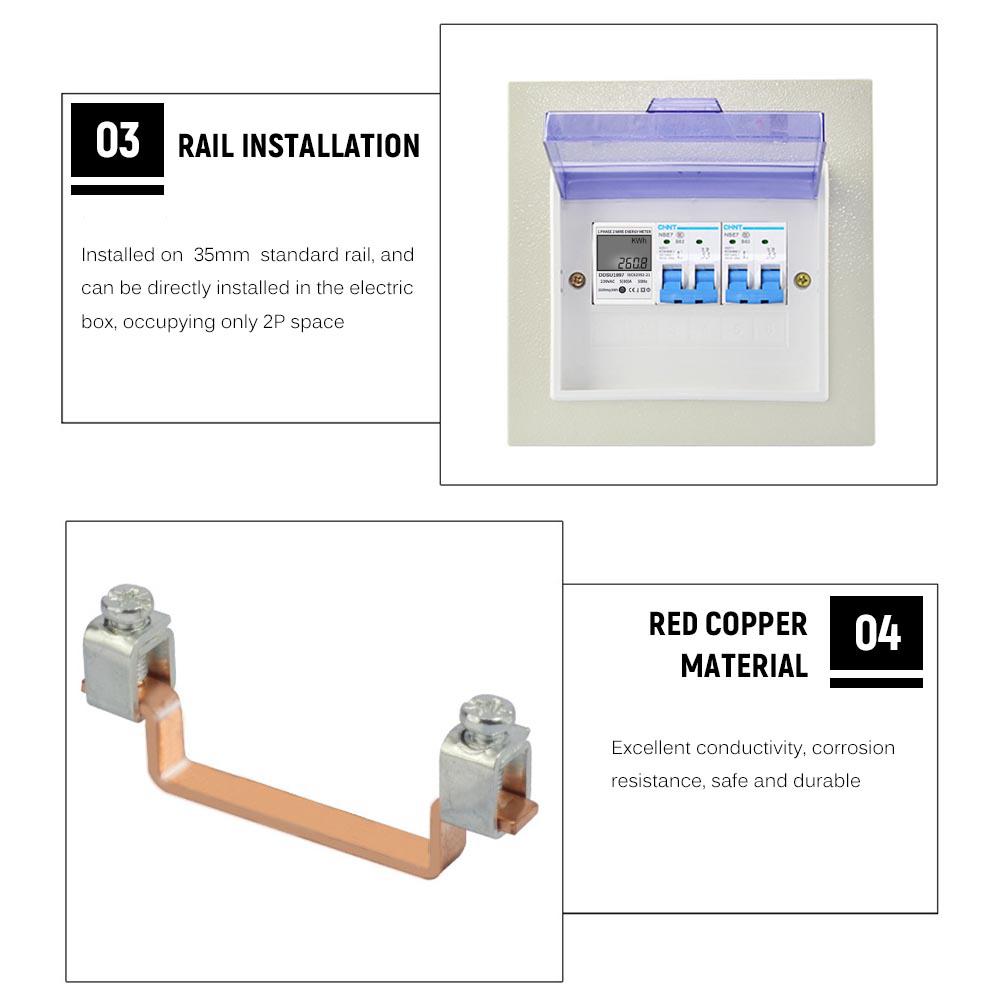

Features: LCD display:equipped with a LCD screen displayingdigital readings, which is easy to read. Auto loop display four data: the readings of energy consumption, voltage, current and power will be automatically switched in the screen, each one stays for 6 seconds. Quality material and high accuracy: retardant housing to ensure safety, SMT chip technology integrated circuit provides accurate measurement, excellent conductivity, corrosion resistance, and stable performance. Compact and user-friendly: 35mm rail for installation, and can be directly installed in the electric box, occupying only 2P position.

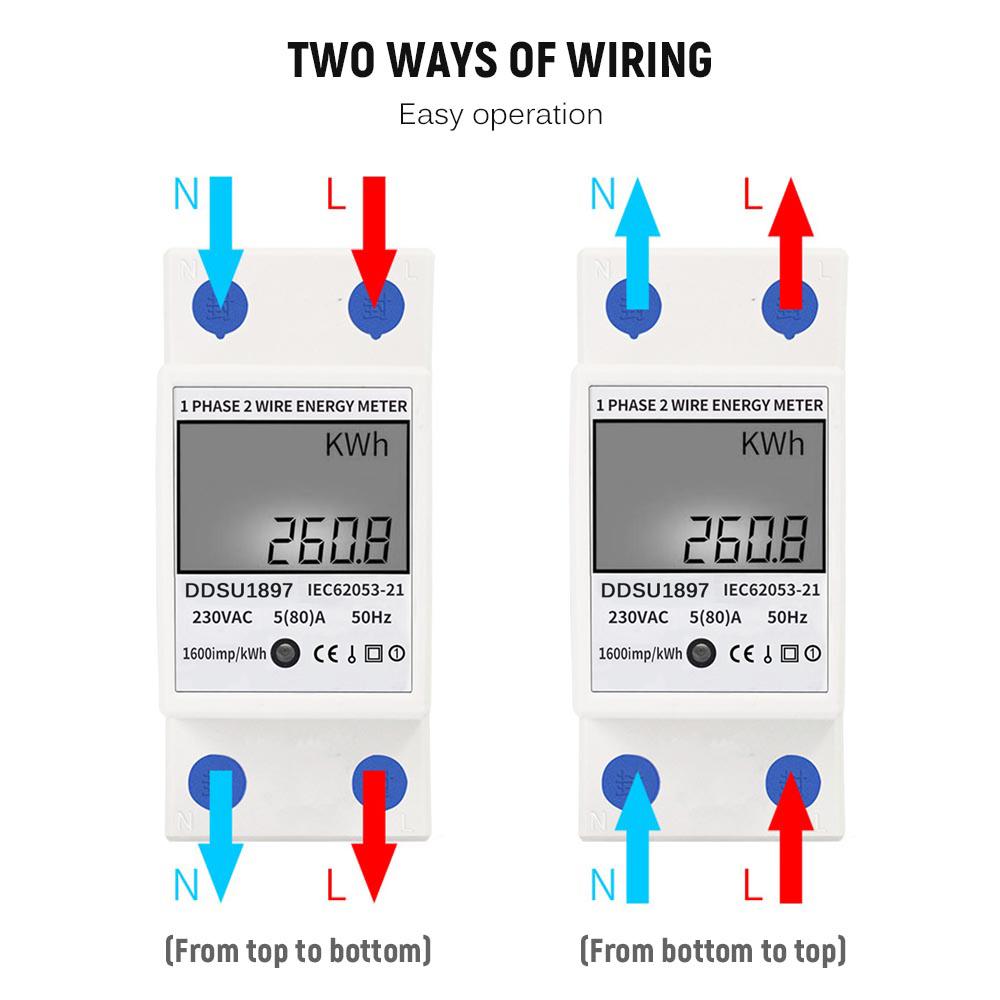

Specifications: Material: ABS Model: DDSU1897 Display: LCD Backlight / LCD without Backlight (Optional) Wiring: top points for input and bottom points for output, or vice versa Current: 5(60)A/5(80)A Voltage: 220VAC/50Hz Power: 17000W Mounting: Distribution box / DIN rail Display: LCD Operating Temperature: -20 celsius ~55 celsius Item Size: 7.85 * 3.65 * 4.3cm / 3.09 * 1.43 * 1.69in Item Weight: 100g / 3.52oz Package Weight: 135g / 4.76oz Package Size: 8 * 5 * 5cm / 3.14 * 1.96 * 1.96in Packing List: 1 * Energy Meter 1 * User Manual
