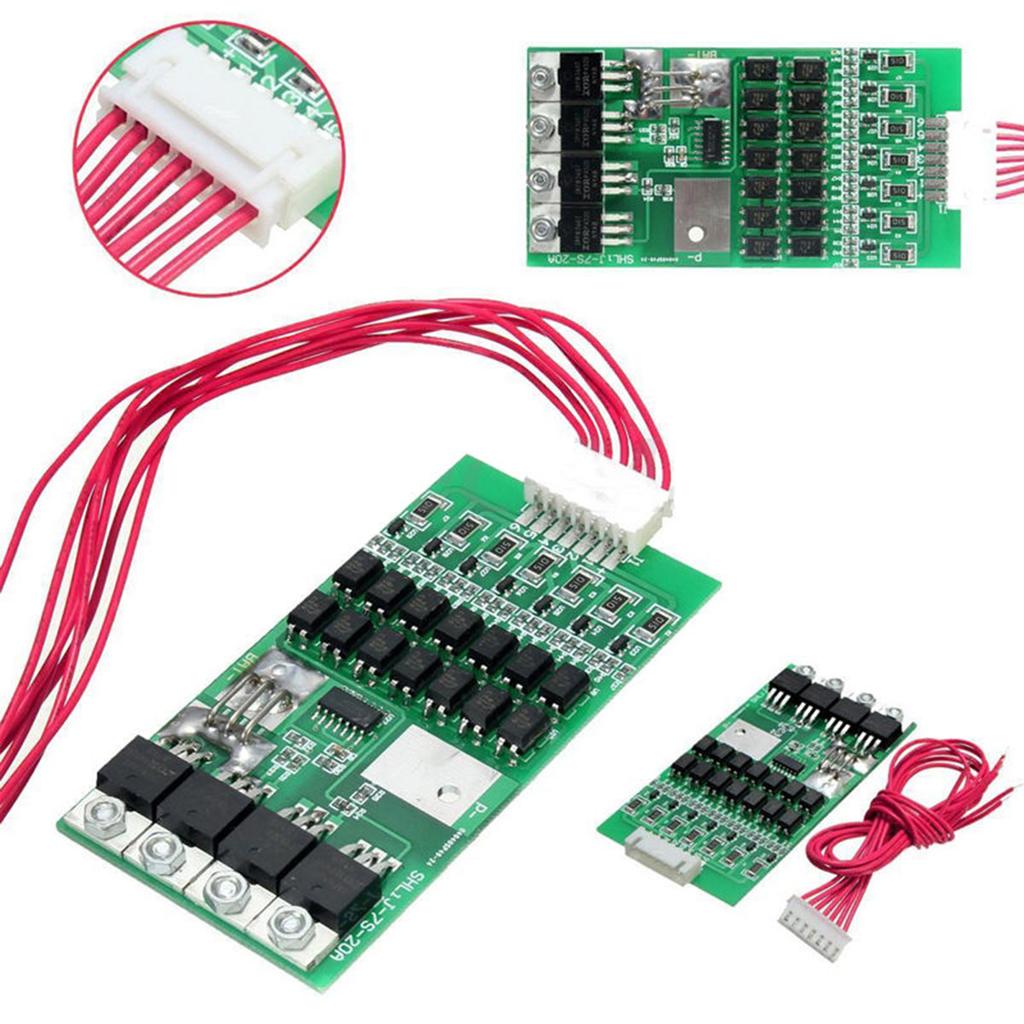

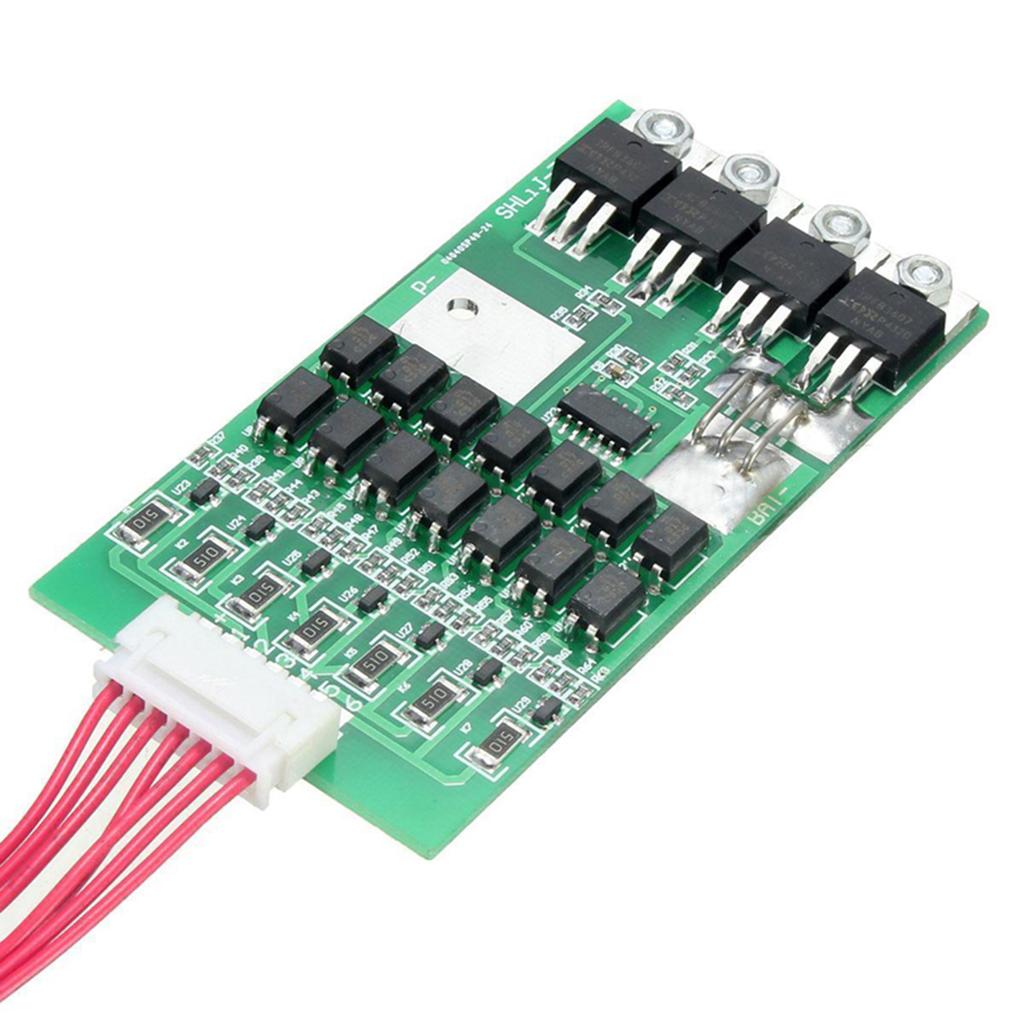

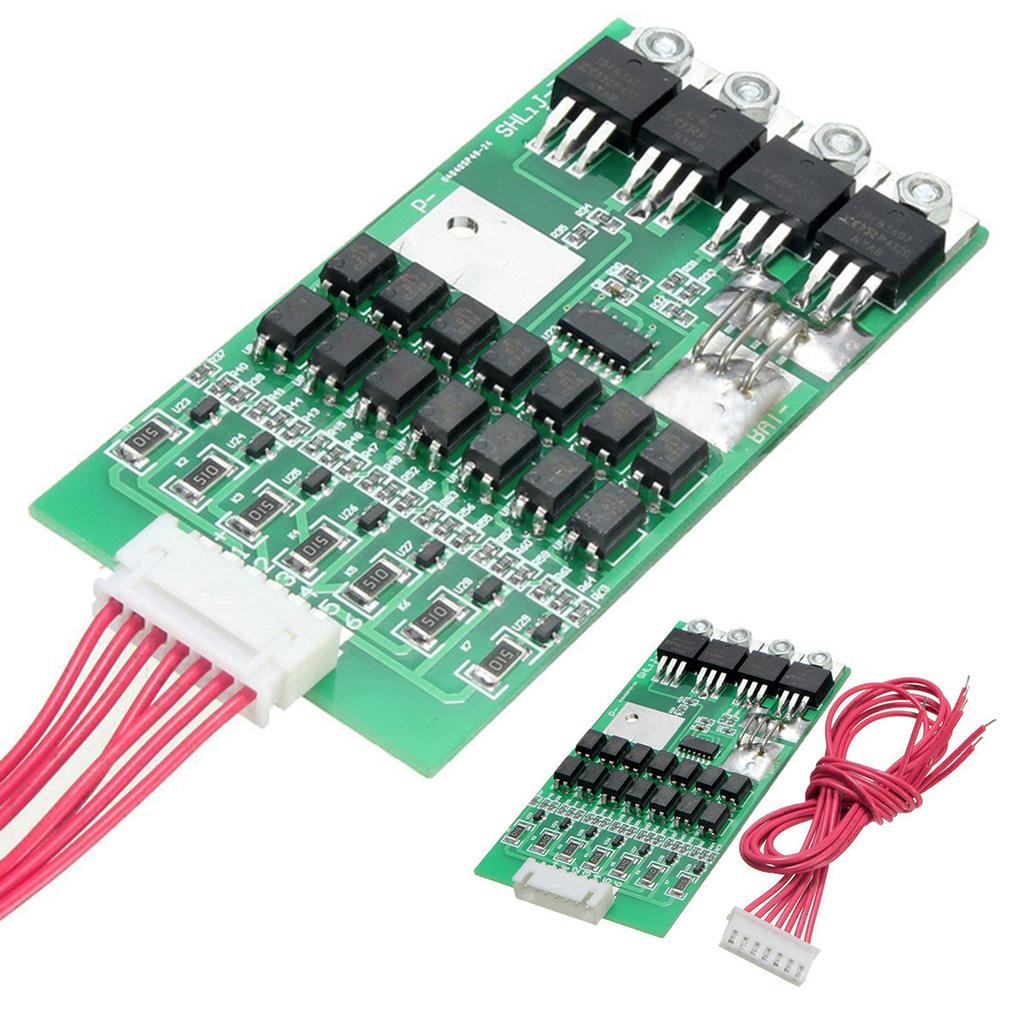

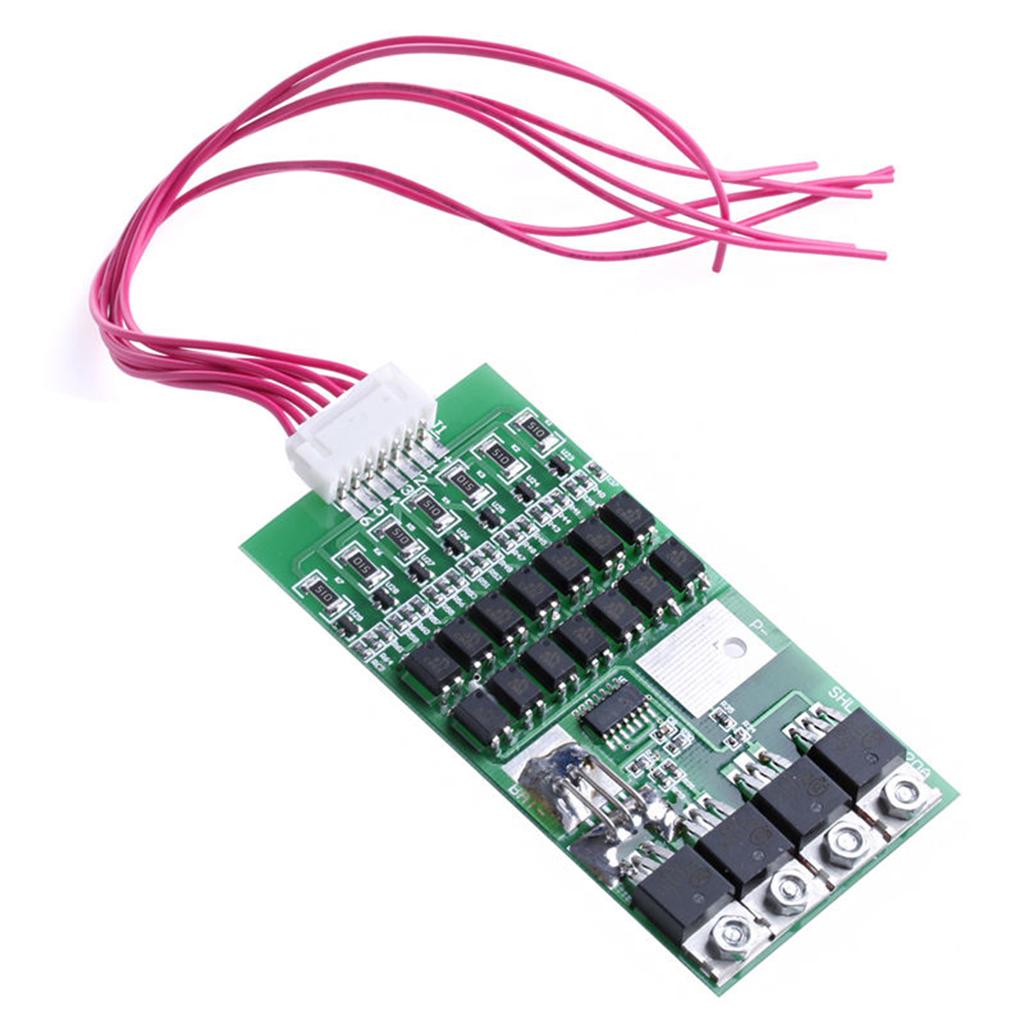

7S Cell 24V 20A 18650 Li-ion Lithium Battery BMS Protection Board With Balancing

Specification:

Brand new

Material: electrical components

Color: as shown in picture

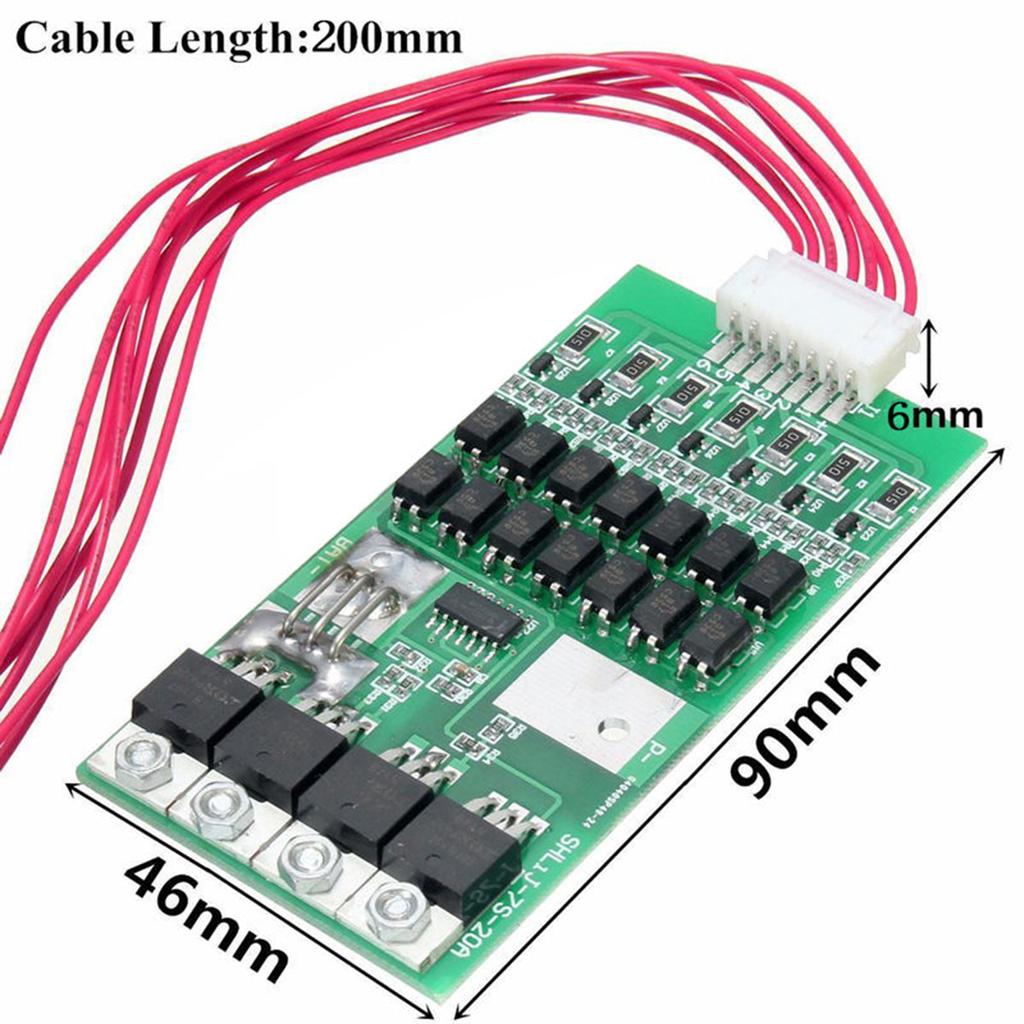

Size: approx.90*46mm

Cable length: approx.200mm

Working current: 20 A

Static power:＜500uA

Equilibrium current: 80 mA (VCELL=4.20V)

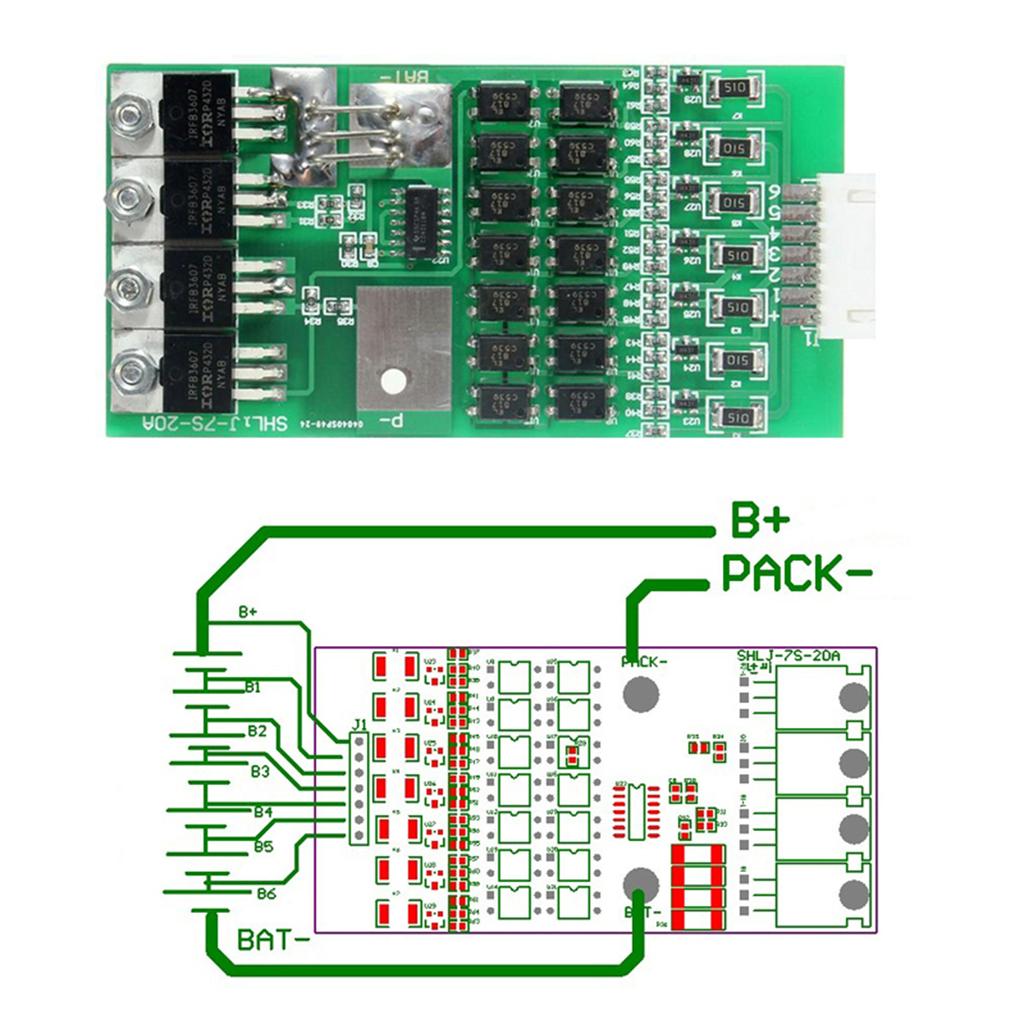

Supported battery type: 7 cells 4.2V lithium ion battery

Balancing the locus of control: 4.18±0.03 V

Overcharge threshold: 4.3±0.05 V

Overcharge time delay: 75mS

Overcharge release: 4.1±0.05 V

Discharge threshold: 2.4±0.08 V

Discharge delay: 5mS

Over current threshold: 30 A

Overcharge protection function: yes

Discharge protection function: yes

Over current protection function: yes

Balanced protection function: yes

Over-current release: disconnect the load release

Short circuit protection function: yes（Disconnect the load can be recovery.）

Feature:

This lithium ion battery protection PCB protect single lithium ion batteries. 20A continous current.

Small in size.

Stable performance.

Fine workmanship and durable.

Suitable for electric drills, motors, or aircraft models which require heavy current load.

Package included:

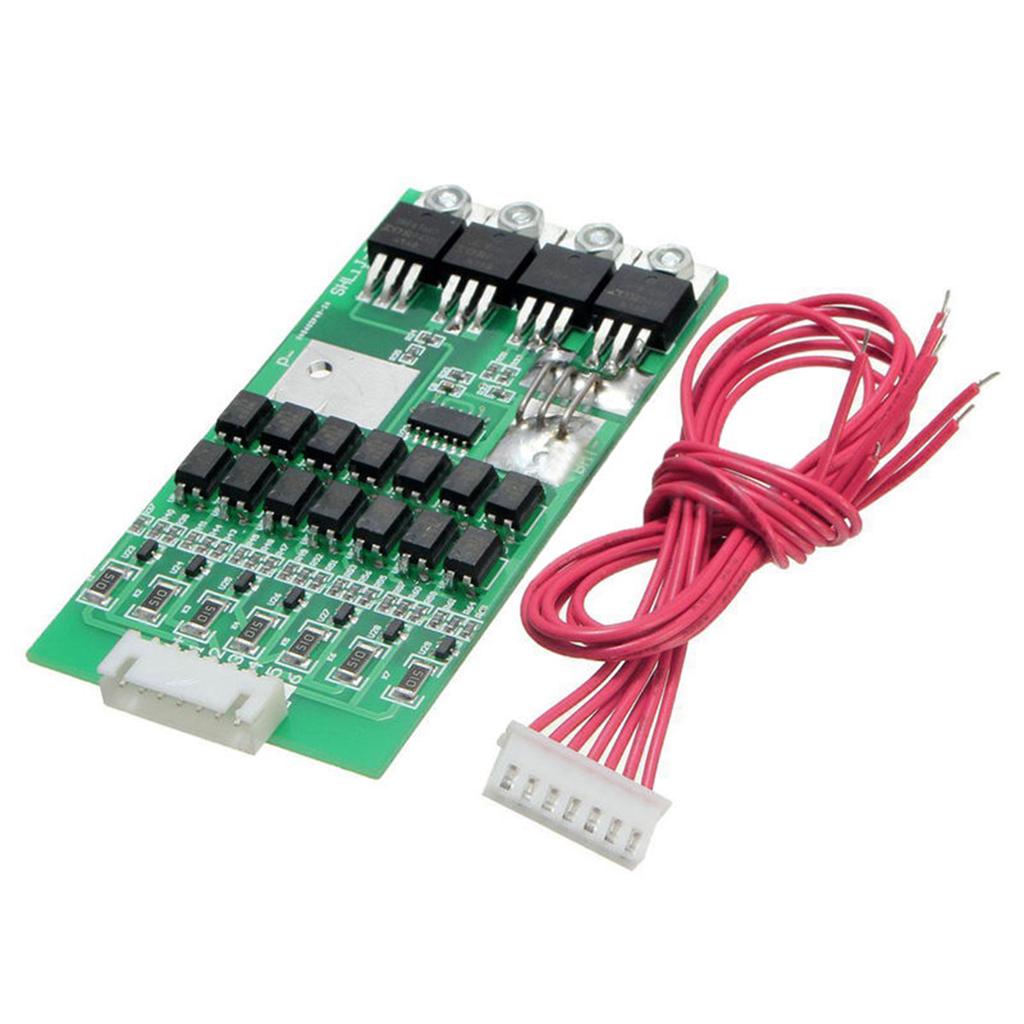

1pc x protection board with cable

Note:

Please allow 1-5mm errors due to manual measurement.

Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
