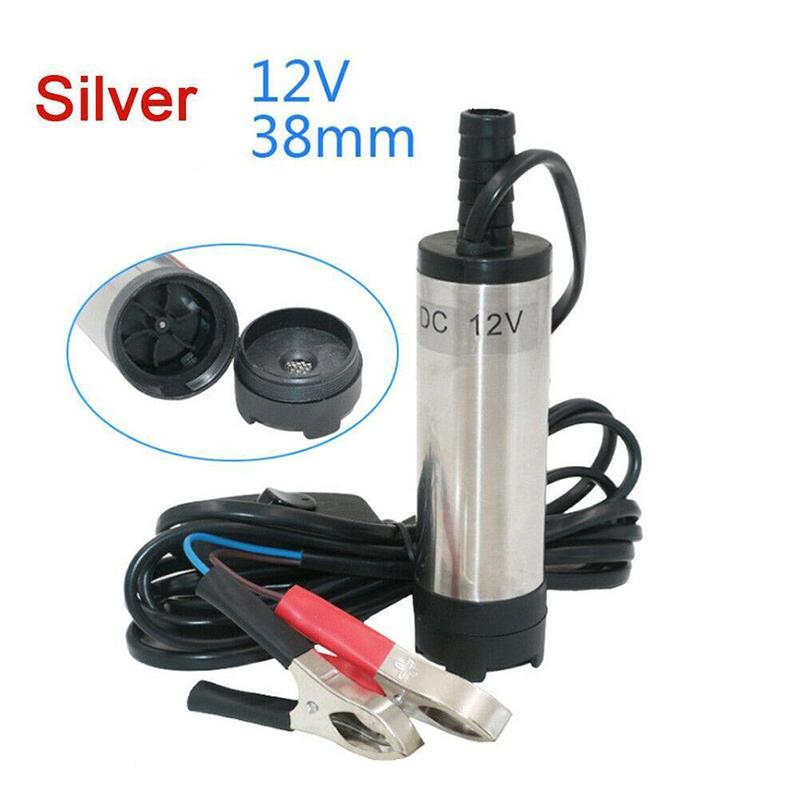

Characteristics:
Voltage: DC 12V
Maximum load current: 1.5 A
Flow: 12 l/min
Head: 2m
Case material: stainless steel
Pump body diameter: 3.8cm
Export diameter: 1.6cm
Cable length: 300 cm
Speed: 8500 rpm
Applicable types: diesel fuel, water (gasoline, alcohol and other flammable substances are strictly prohibited!)

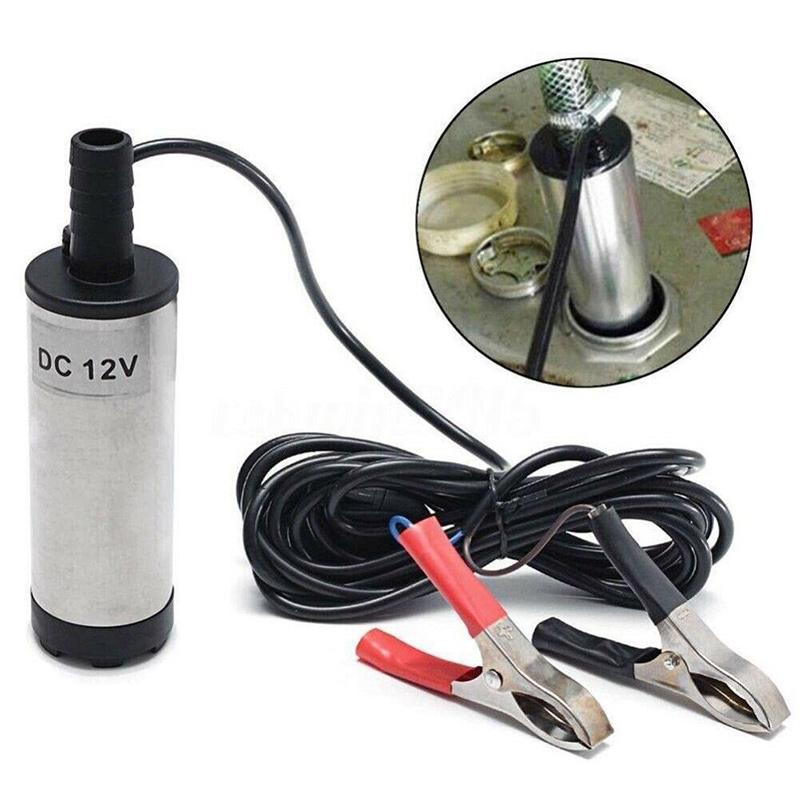

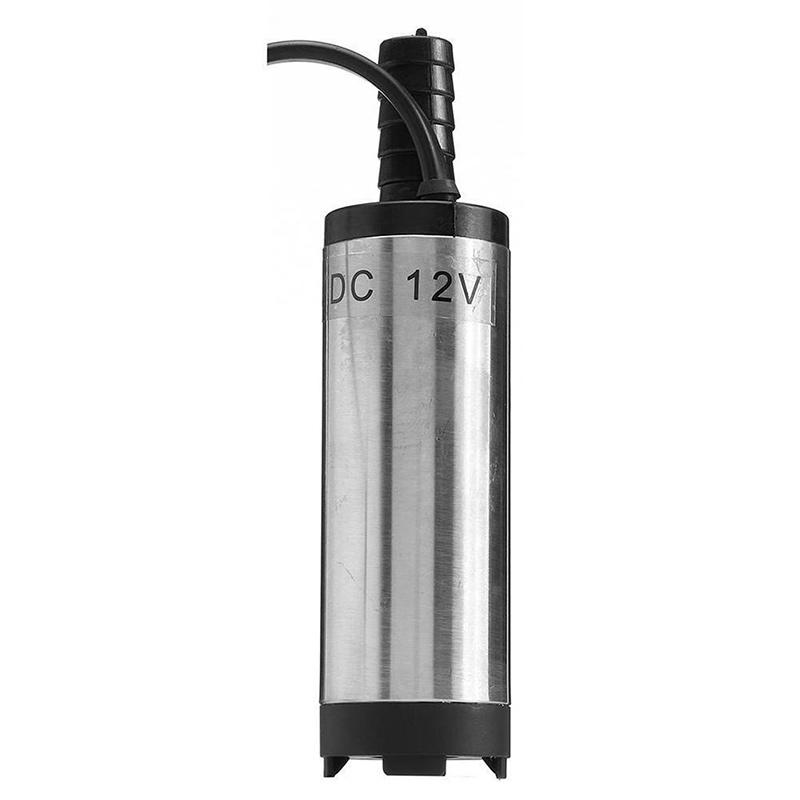

Portable 12V submersible diesel fuel pump with stable performance. Completely sealed device, insulated state. This product is small in size. Lightweight for easy installation and portability. The length of the wire is about 3 meters, the diameter of the pump pipe is 16 mm, the pipe is self-adjusting.
It is suitable for combines, large agricultural machinery, construction equipment, large wheeled tractors and other vehicles that are inconvenient for refueling in the field, as well as equipment and machinery that cannot reach a gas station for refueling.
1. The oil well pump uses 12V DC motor, which has low noise and high speed.
2. The oil pump has good sealing performance and uses multiple seals to prevent leakage and increase service life.
3. The oil pump adopts a stainless steel body, which makes the body thicker, making the body more durable, not deformed, and can effectively prevent the body from rusting and clouding.

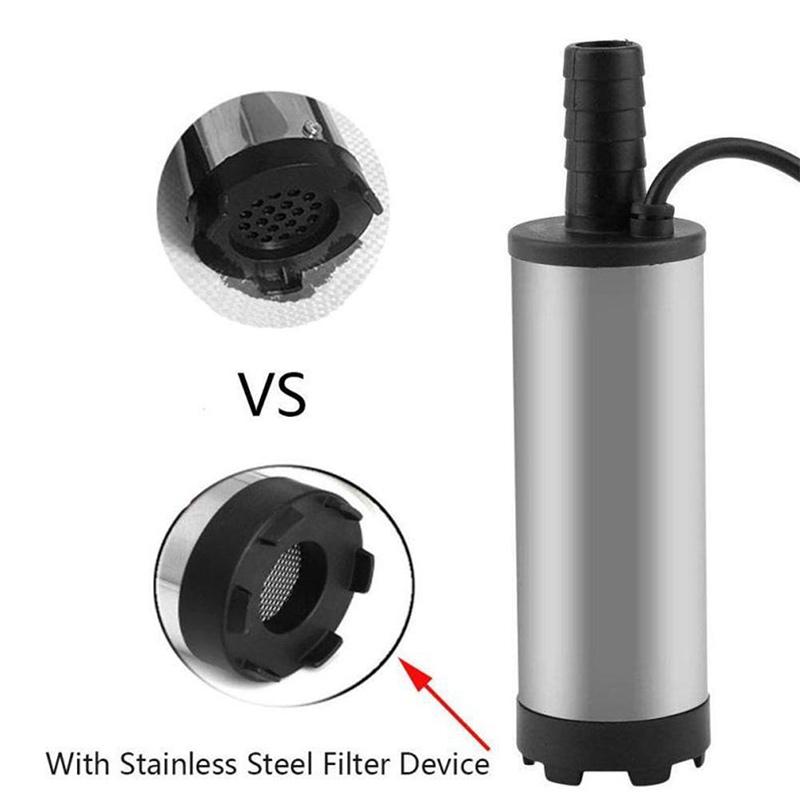

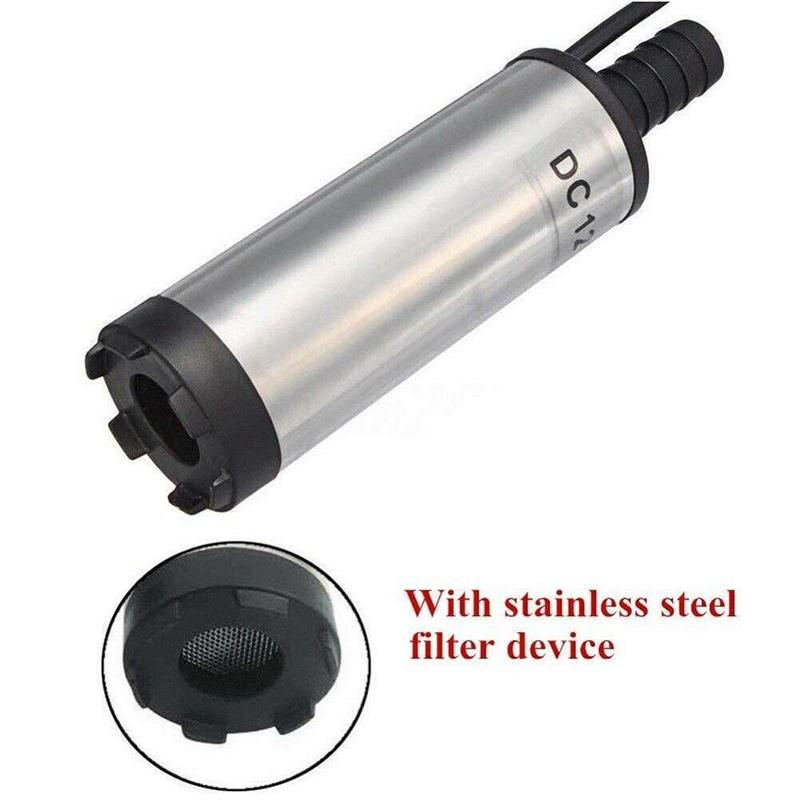

4. The bottom filter of the pump is equipped with a stainless steel filter mesh, which makes the extracted diesel fuel (or water) cleaner. The bottom filter is equipped with a threaded connection, which is convenient for disassembly, maintenance and replacement. can achieve the purpose of reuse.

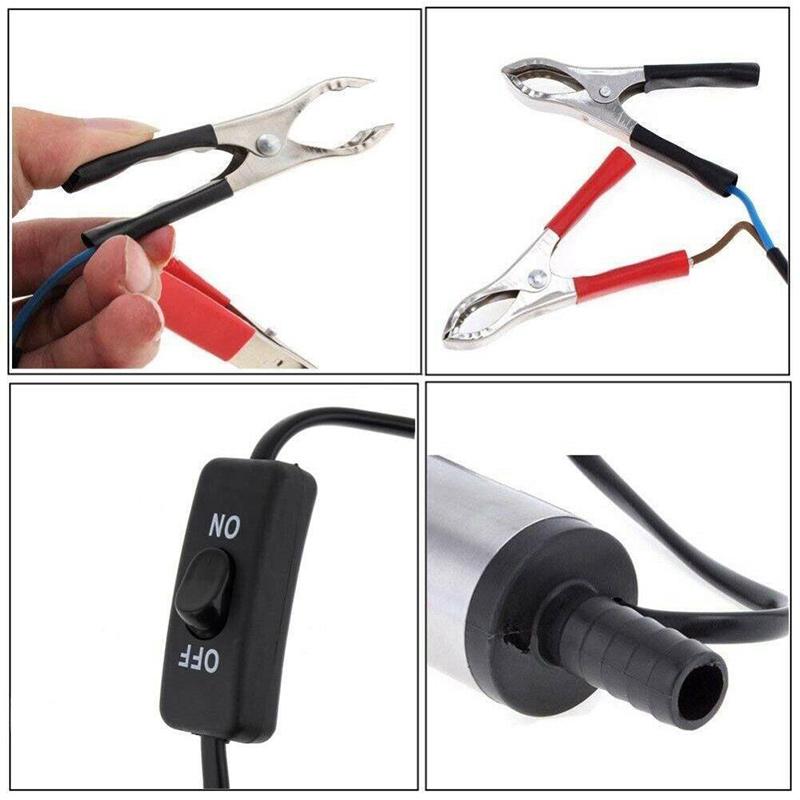

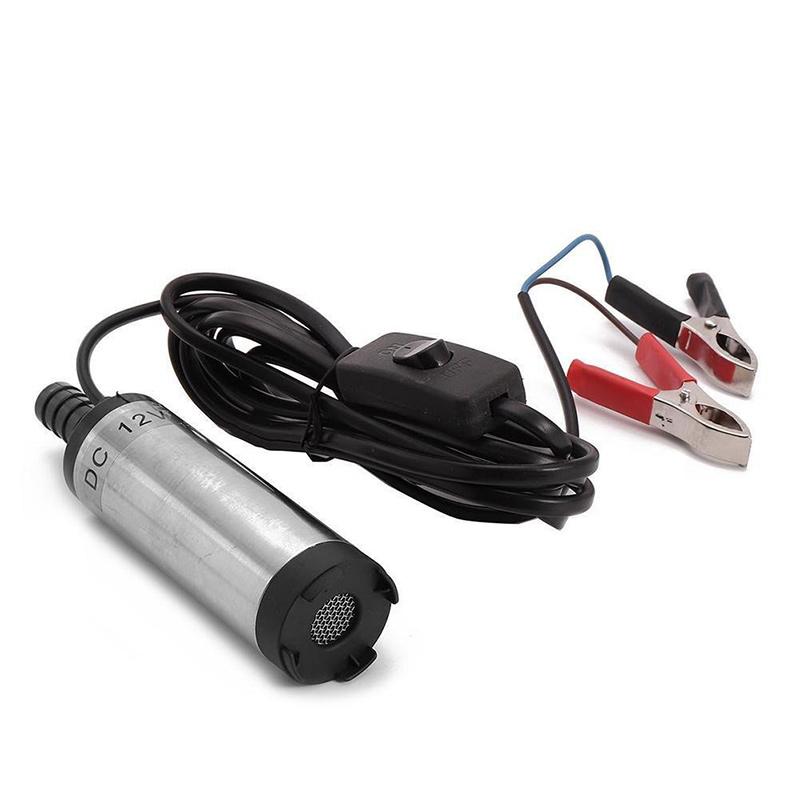

5. There is an intermediate switch on the oil pump power line, which is convenient for operation.
6. The capacity of this oil pump is about 12L/min.
7. After the oil well pump is used, it should be taken out of the oil (or water) in time.

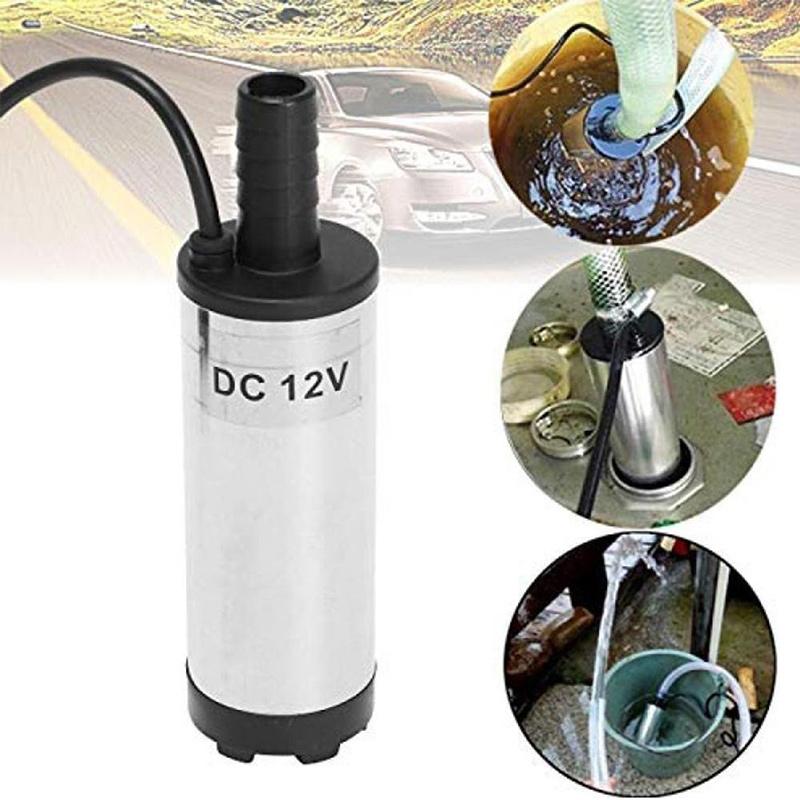

8. When the oil well pump pumps oil, first connect the independent oil outlet hose, and then put the entire oil well pump into clean oil (or water).

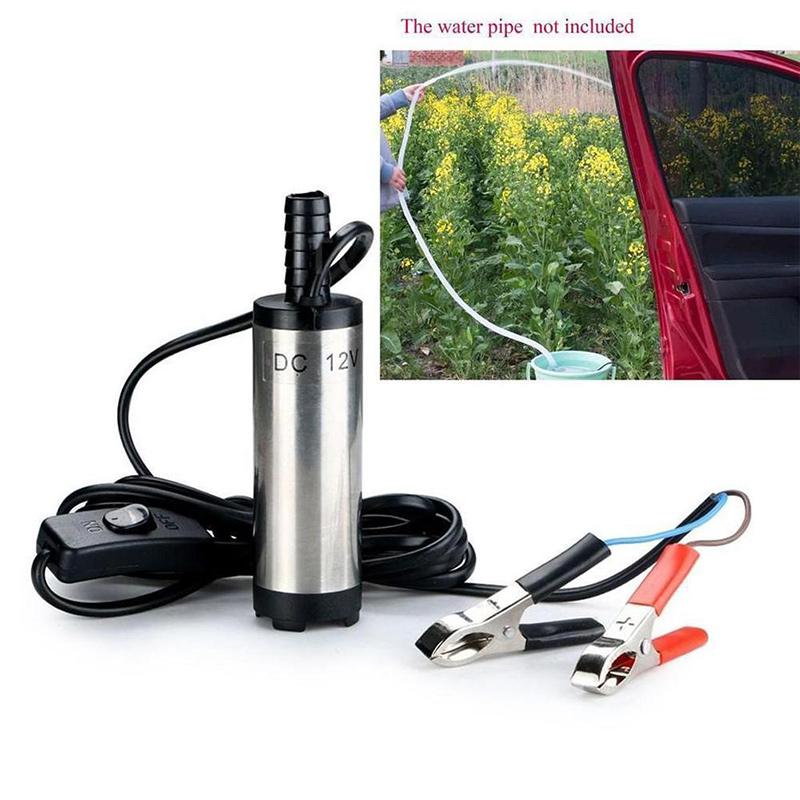

9. Prepare the oil drain hose yourself.
Precautionary measures:
1. The pump is strictly prohibited from pumping gasoline, alcohol and other flammable substances! Idling and dry pumping are not permitted.
2. The oil pump should be operated intermittently (that is, it cannot be used for more than 20 minutes each time, and then continue to be used after stopping for 10-15 minutes), and be careful not to operate continuously for a long time. .
3. Make sure the power supply voltage matches the specified oil pump voltage, the voltage tolerance is ±5%, and pay attention to the positive and negative poles.
Withstand temperature: within 50℃ of normal temperature
