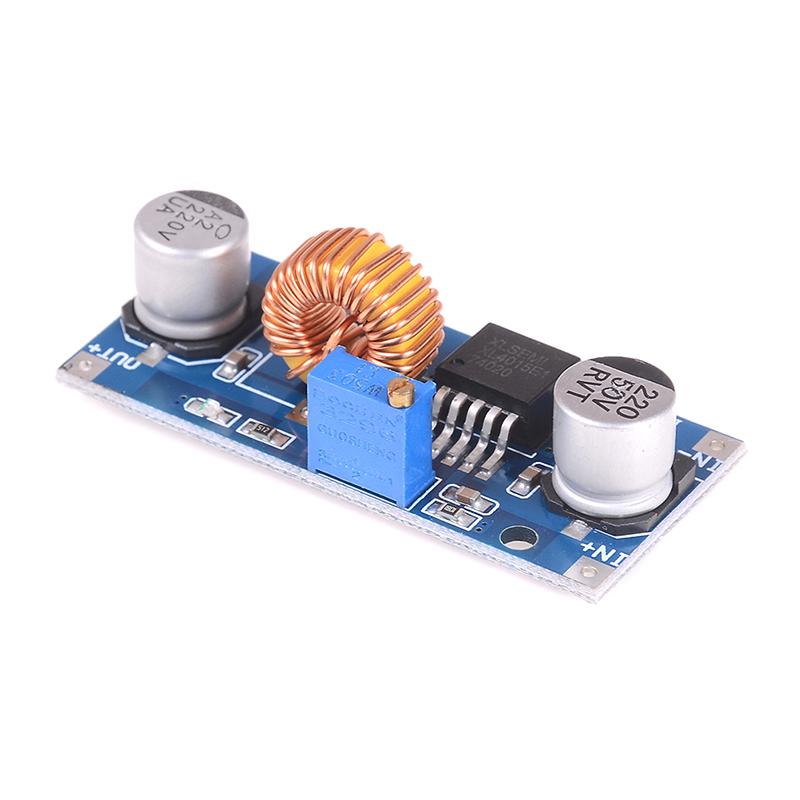

Dc-Dc Buck 4V-38V To 3.3V 12V 24V 5A Converter Regulator

Product instructions:

color: blue Material: Brass Size: 5.4*2.4cm

Module nature: Non-isolated Buck Module (BUCK) Input voltage: 4-38V (Please try not to exceed 38V as input) Output voltage: 1.25-36V continuously adjustable Output current: 0-5A, recommended for use within 4.5A Output power: It is recommended to use within 75W. Working temperature: -40~+85 degrees Working frequency: 180KHz Conversion efficiency: up to 96% (efficiency related to input, output voltage, current, voltage difference) Load adjustment rate: S(I) Less than or equal to 0.8% Voltage adjustment rate: S(u) Less than or equal to 0.8% Power indicator: Yes Short circuit protection: Yes (limited current 8A) Over temperature protection: Yes (automatically turn off the output after over temperature) Input reverse connection protection: None, (If necessary, please input a large current diode in the input string) Installation method: 2 3mm silk Wiring method: welding, V-IN is input, V-OUT is output Module size: length 54mm width 23mm height 18mm

Packing Listings: 1 Pc The merchant warrants that their products comply with all applicable laws, and are offered only if they comply with Joom's policies and EU Product Safety and Compliance laws.
