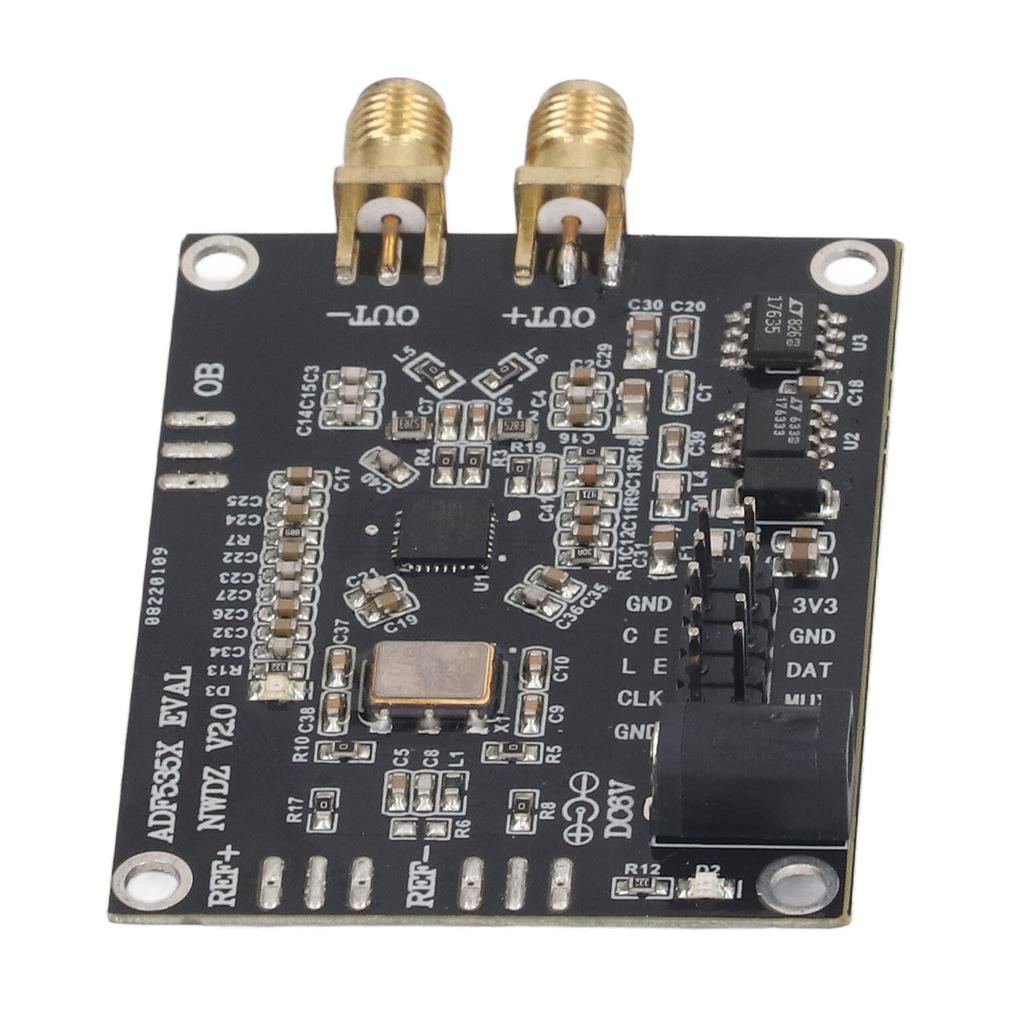

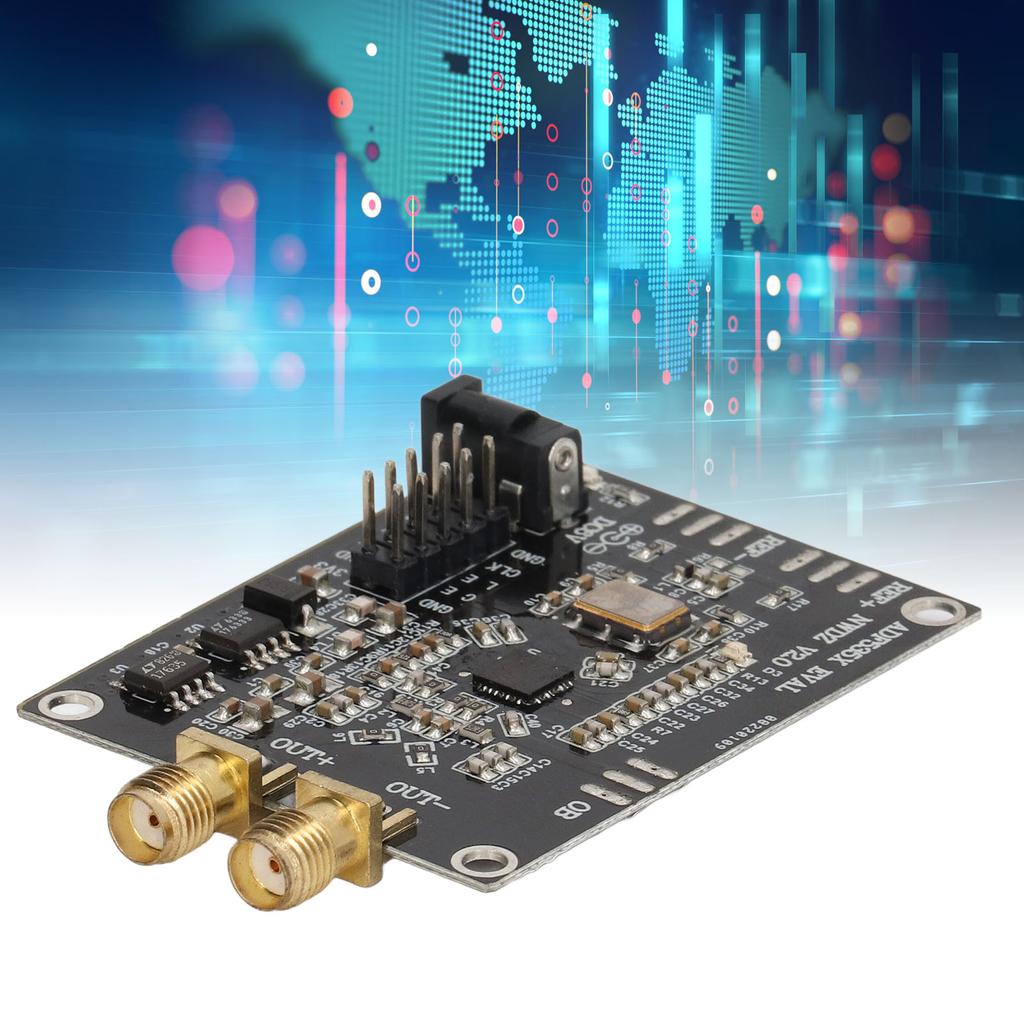

ADF 5355 Development Board Signal Generator Module Phase Locked Loop RF PLL Output 54M To 13.6GHZ

Feature: 1. LDO Power Supply: The development board is powered by an ultra low noise LDO regulator, which is able to reduce spurious and noise to a greater extent. 2. High Common Mode Rejection: The development board uses a accuracy low noise 25M differential crystal with higher common mode rejection and phase discrimination frequency. 3. External Clock Interface: The development board is equipped with an external clock interface, which allows the user to solder a clock of the appropriate frequency according to their needs. 4. Multifunctional Development Board: The development board has programmable output power, RF output muting function, analogue and digital lockout detection. 5. Wide Application: The development board can be used in wireless infrastructure, point to point or point to multipoint microwave links, satellite or V SAT, test equipment or instrumentation and clock generation. Specification: Item Type: Development Board Material: PCB Model: ADF5355 RF Output Frequency Range: 54 MHz to 13.6 GHz Fractional N division frequency synthesizer and integer N division frequency synthesizer High resolution 38 bit modulo Frequency Discriminator (PFD) operating at frequencies up to 125 MHz Reference frequencies up to 600 MHz Frequency locking maintained over the -40°C to +85°C range Low phase noise voltage controlled oscillator (VCO) Programmable 1/2/4/8/16/32/64 crossover outputs Programmable Dual Mode Prescaler: 4/5 or 8/9 Programmable output power RF output squelch function Analogue and digital lockout detection Module applications: Wireless infrastructure (W CDMA, TD SCDMA, WiMAX, GSM, PCS, DCS, DECT) Point to point, point to multipoint microwave links Satellite, V SAT Test equipment, instrumentation Clock generation Package List: 1 x Development Board 3 x Accessory
