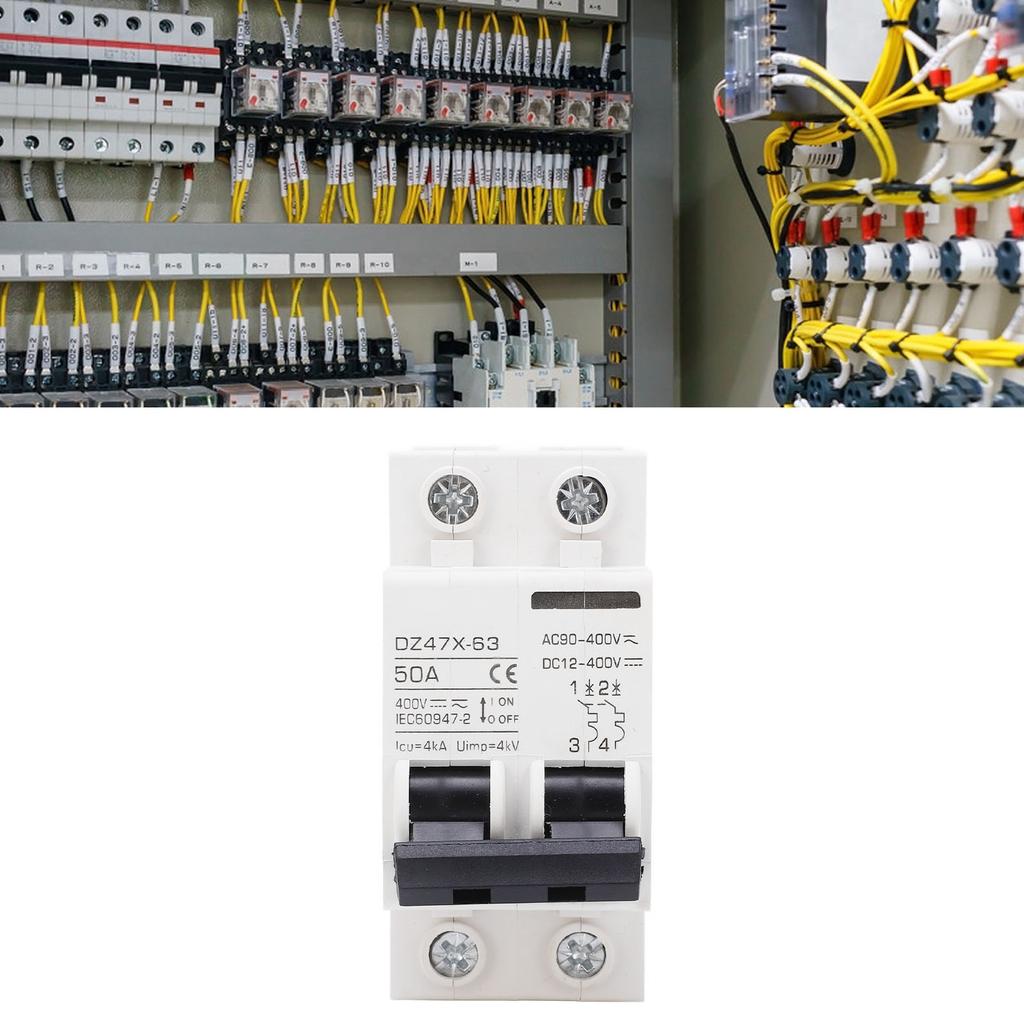

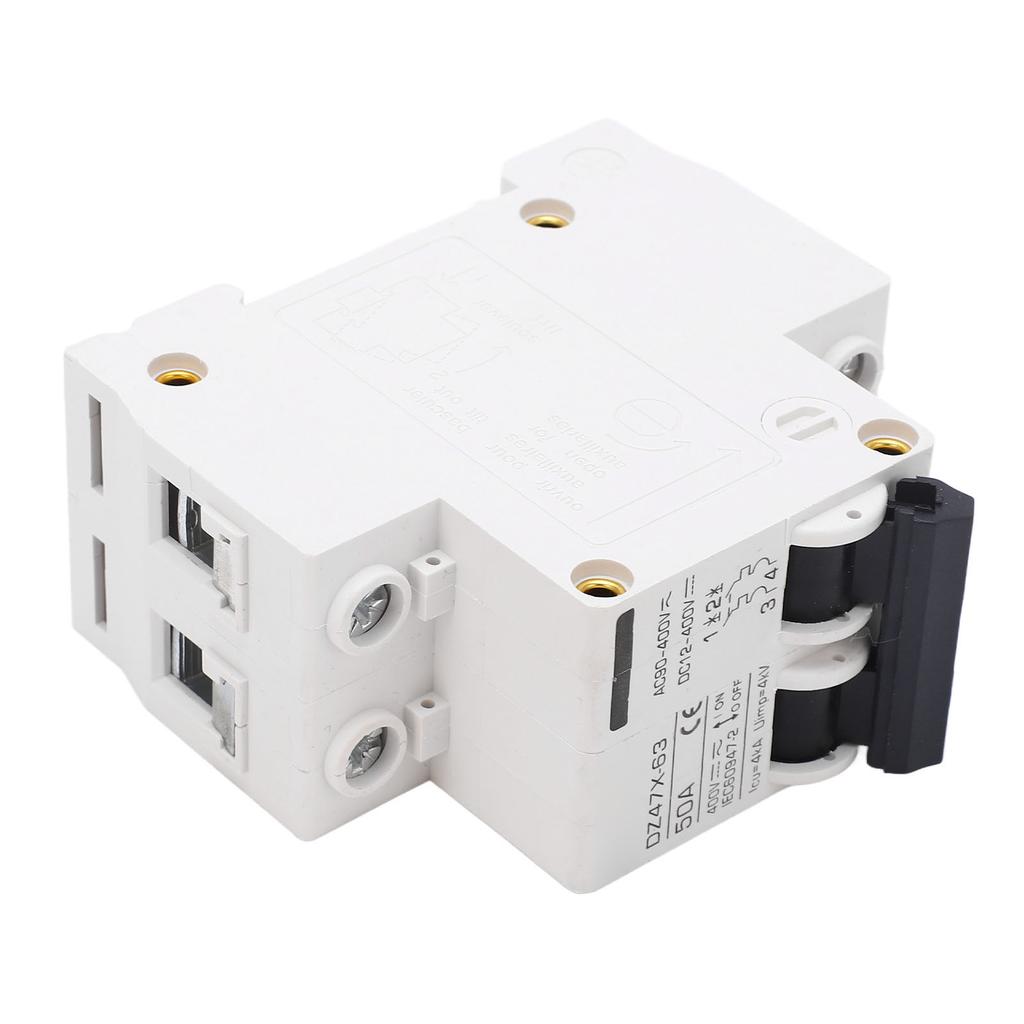

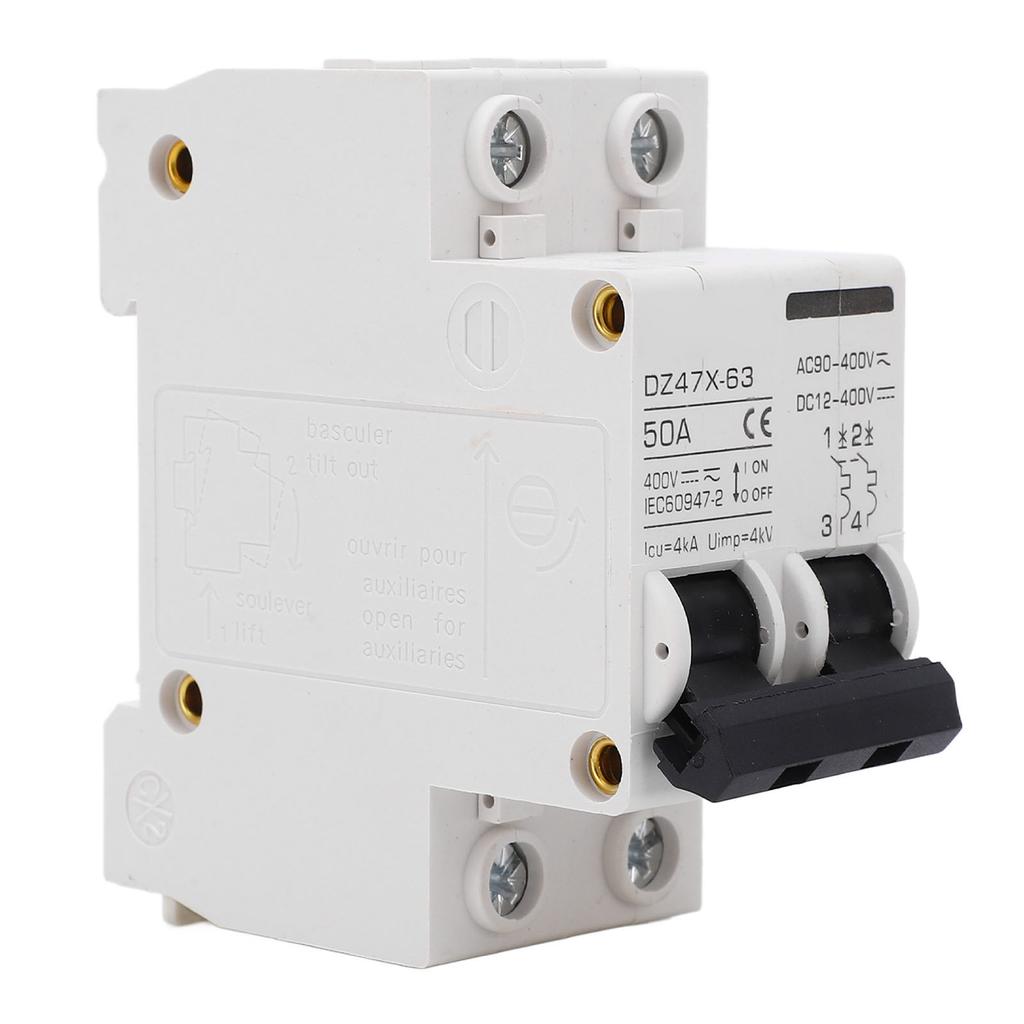

AC DC Circuit Breaker 50A 4KA 2P Electromagnetic Tripping 35mm DIN Installation Solar PV Safety Circ

Feature: 1. Rated Voltage: This PV circuit breaker has the rated voltage of DC12V to 400V for protection of positive and negative poles, AC90V to 400V for protection L and N poles. 2. Good Protection: This circuit breaker is mainly used for overload and short circuit protection, prevents power distribution facilities being damaged, and can also be used for household 240V circuit on off. 3. Electromagnetic System: With electromagnetic system, which could trip immediately when short circuit, effectively protect the circuit safe. 4. Wide Usage: The protective device can be used for solar system, battery, UPS, inverter, mains power, DC power system, marine power system, solar photovoltaic system, etc. 5. Simple Installation: This PV AC DC circuit breaker is easy to install on the distribution box, with simple modular structure and 35mm DIN rail structure. Specification: Item Type: AC DC Circuit Breaker Material: Pa66 Rated Current: 50A Rated Ultimate Short Circuit Breaking Capacity (Household Icn): 4000A Purpose: Solar photovoltaic, electric motorcycle, electric vehicle Mechanical Life: 20000 times Applicable Temperature: -35℃ to +70℃ Package List: 1 x AC DC Circuit Breaker
