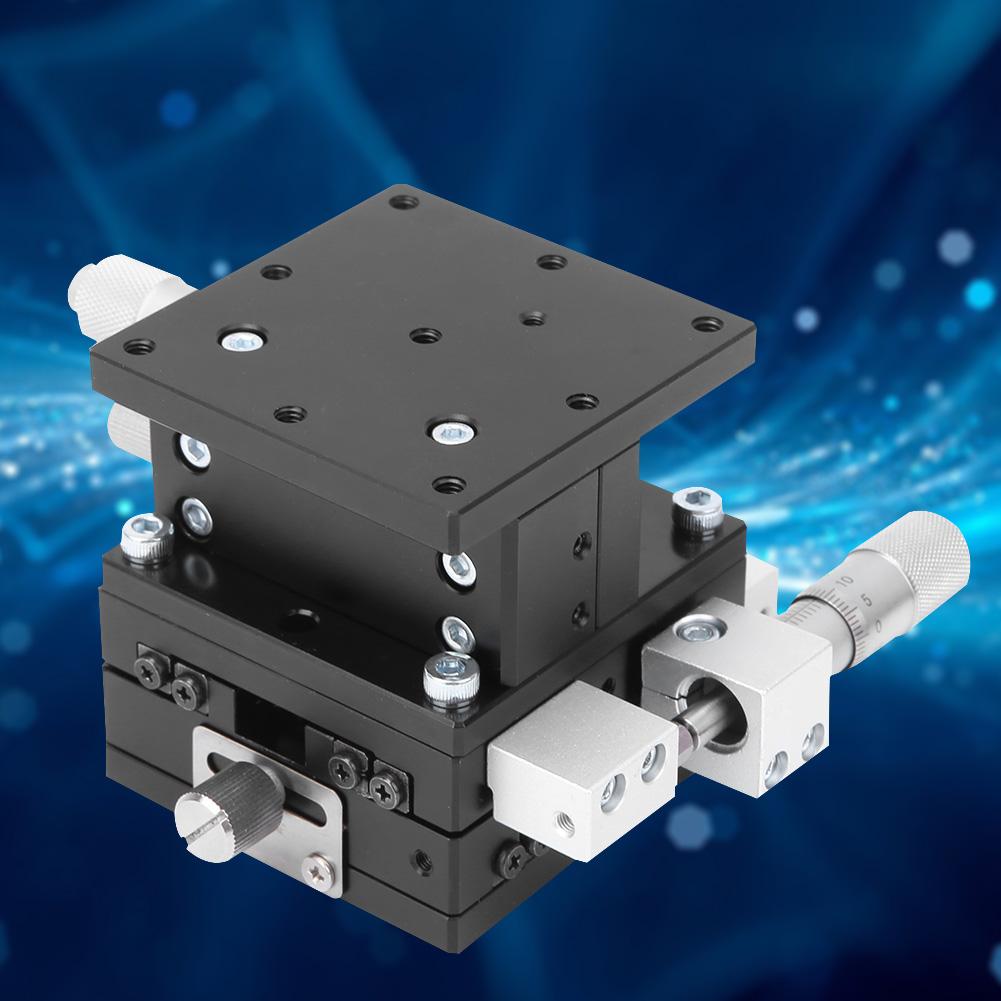

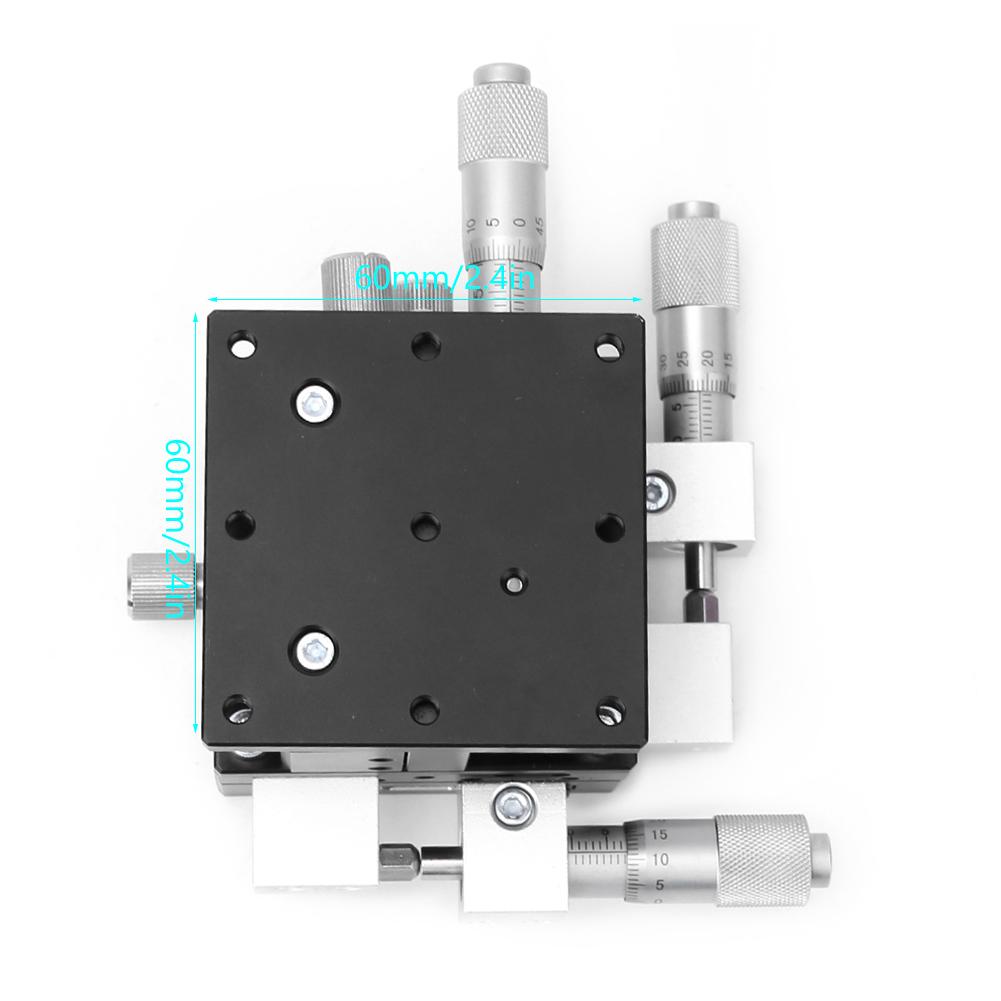

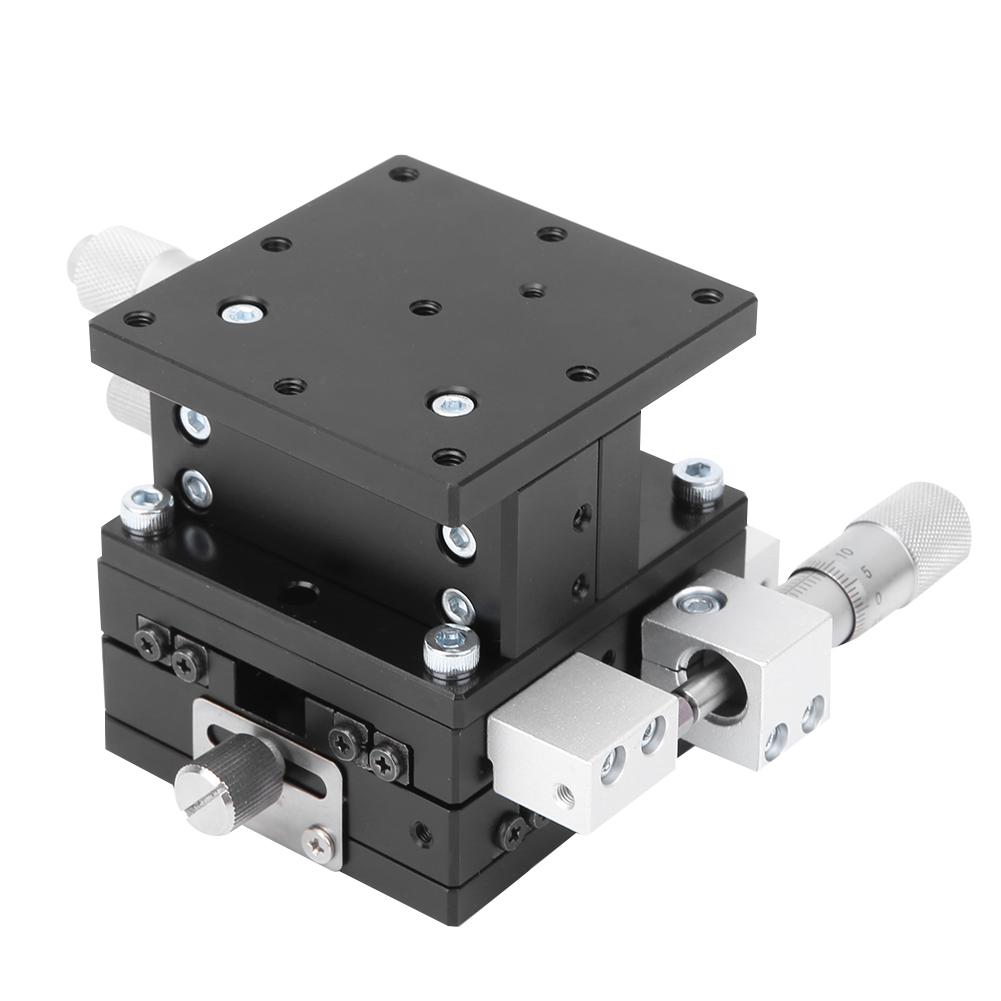

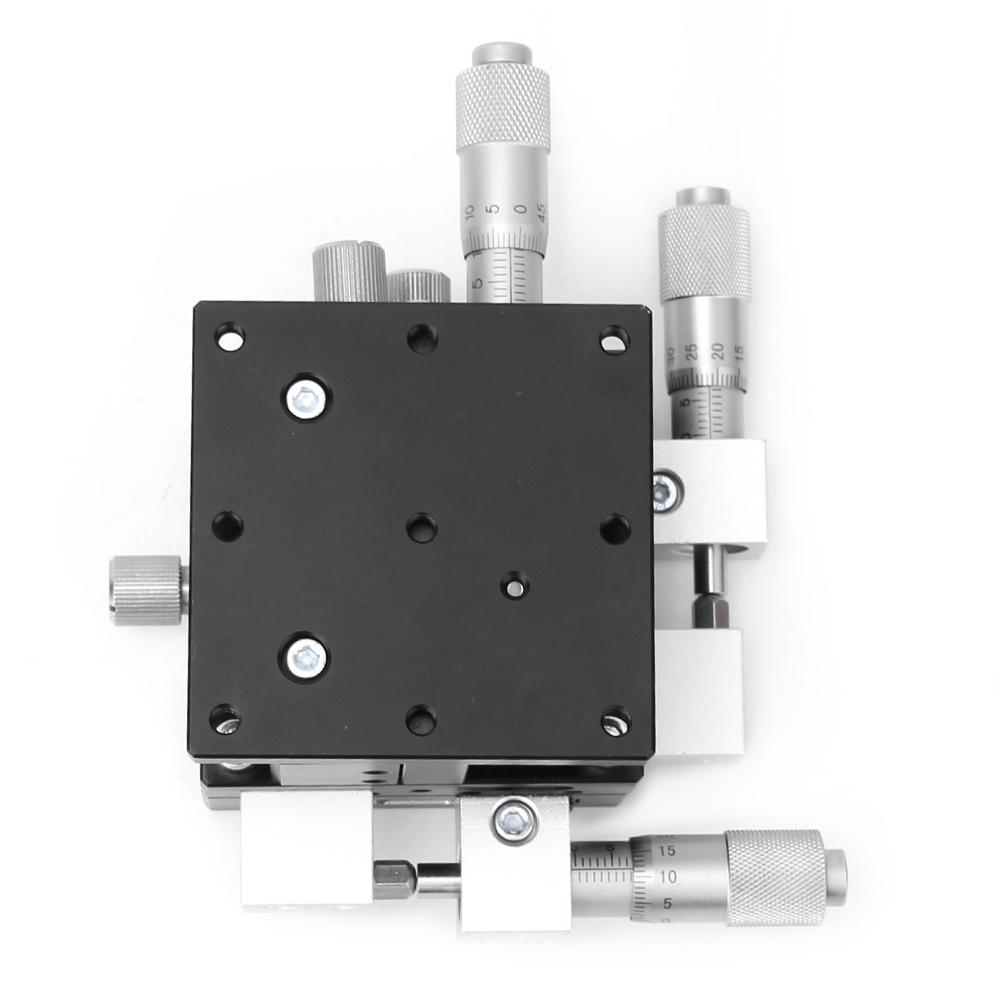

LD60LM XYZ 3Axes Manual Linear Stage Trimming Platform Tuning Sliding Table 60 X 60mm

Feature: 1. Widely used in production machinery, testing equipment, optical experimental measurement, finetuning displacement, precision positioning, quantitative movement and so on. 2. XYZ 3Axes DOF can be adjusted, internal cross rail, high precision, strong load bearing. 3. Nickel plated locking screw, nickel plated fine adjustment knob. 4. Carbide side head, tighter lock, no rust in complex environment, more durable, corrosion resistant. 5. It adopts highstrength bearing steel cross guide rail, which has strong bearing capacity, stable work and better wear resistance. 6. The surface of the guide rail is electroplated and can be used in complex environments, corrosion resistant and rust resistant. 7. Micrometer driving method with an accuracy of 0.03mm. Specification: Item Type: Linear Stage Trimming Platform Model: LD60LM Material: Aluminum Alloy (black anodized surface) Table Size: Approx. 60 x 60mm 2.4 x 2.4in Overall Height: Approx. 65mm 2.6in Moving Rail: Cross rail Drive Mode: Micrometer Direction of Movement: XYZ 3Axes DOF XY Axes Travel: +6.5mm Z Axes Travel: 10mm Load: 24.5N (3kgf) Minimum Scale: 0.01mm Accuracy: 0.03mm Parallelism: 0.03mm Scope of application: Production machinery, testing equipment, optical experimental measurement, finetuning displacement, precision positioning, quantitative movement and so on.. Package List: 1 x Linear Stage Trimming PlatformWidely used in production machinery, testing equipment, optical experimental measurement, finetuning displacement, precision positioning, quantitative movement and so on. XYZ 3Axes DOF can be adjusted, internal cross rail, high precision, strong load bearing. Nickel plated locking screw, nickel plated fine adjustment knob. Carbide side head, tighter lock, no rust in complex environment, more durable, corrosion resistant. It adopts highstrength bearing steel cross guide rail, which has strong bearing capacity, stable work and better wear resistance.
