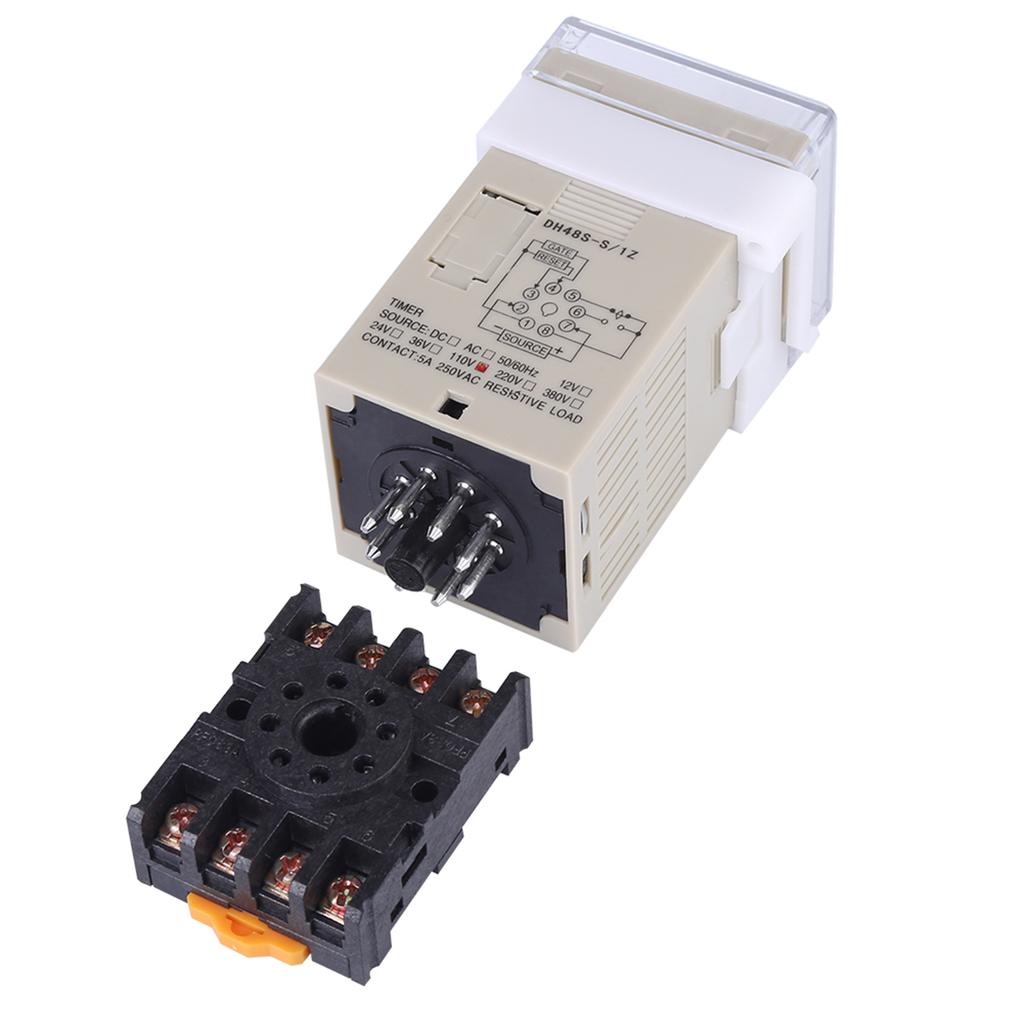

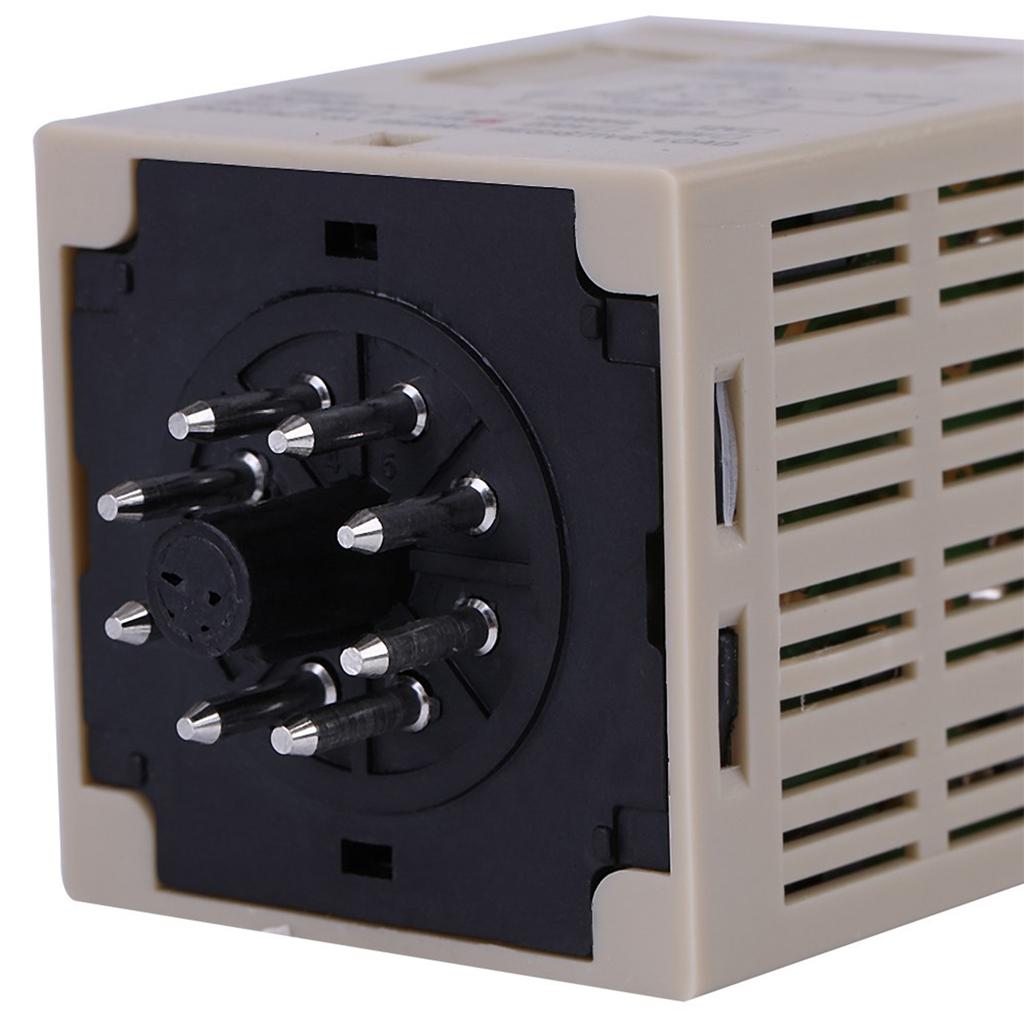

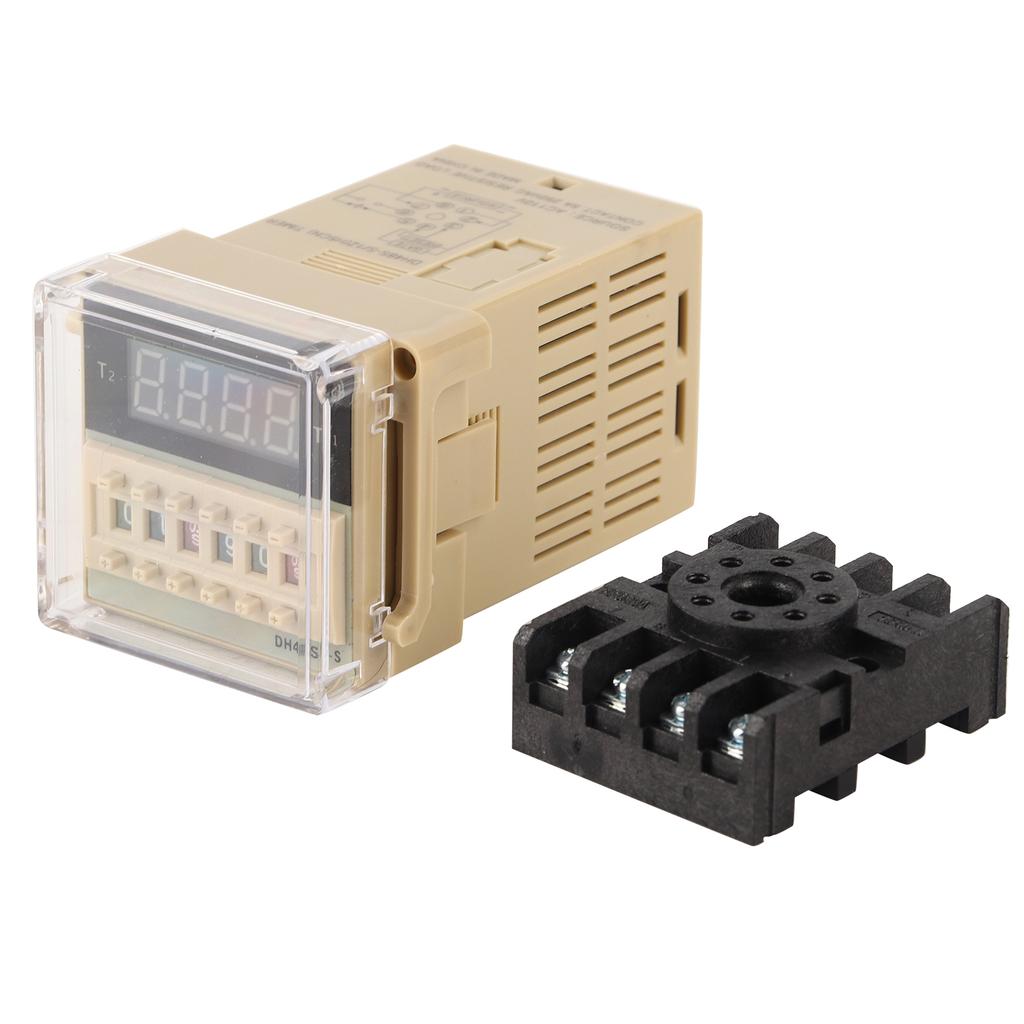

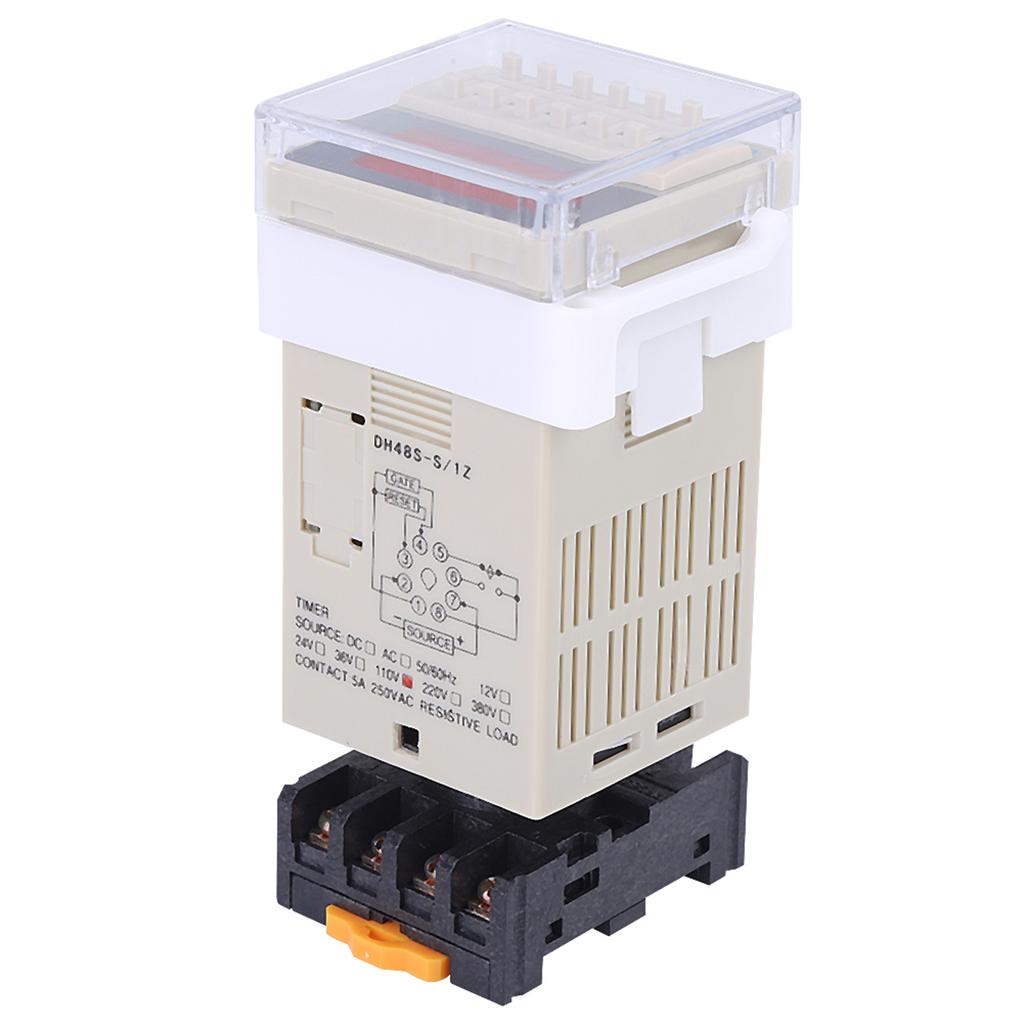

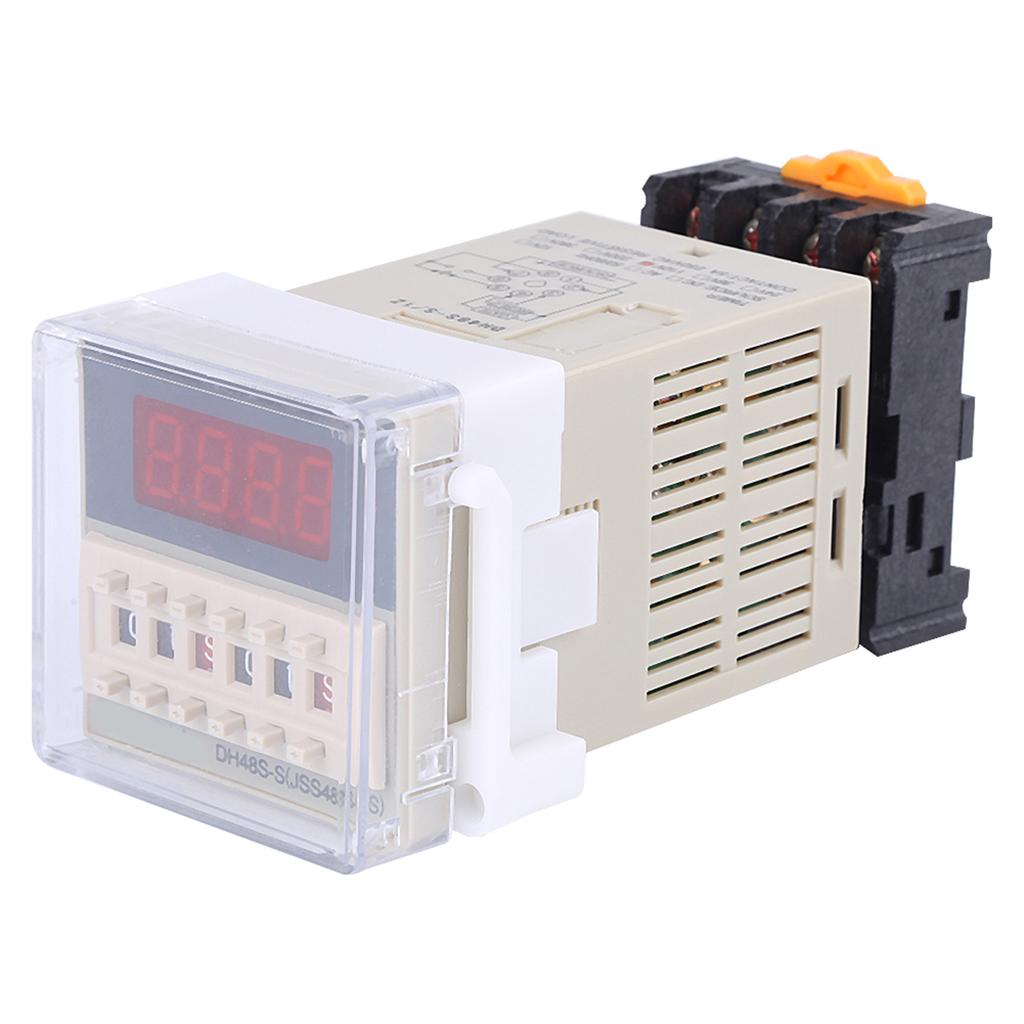

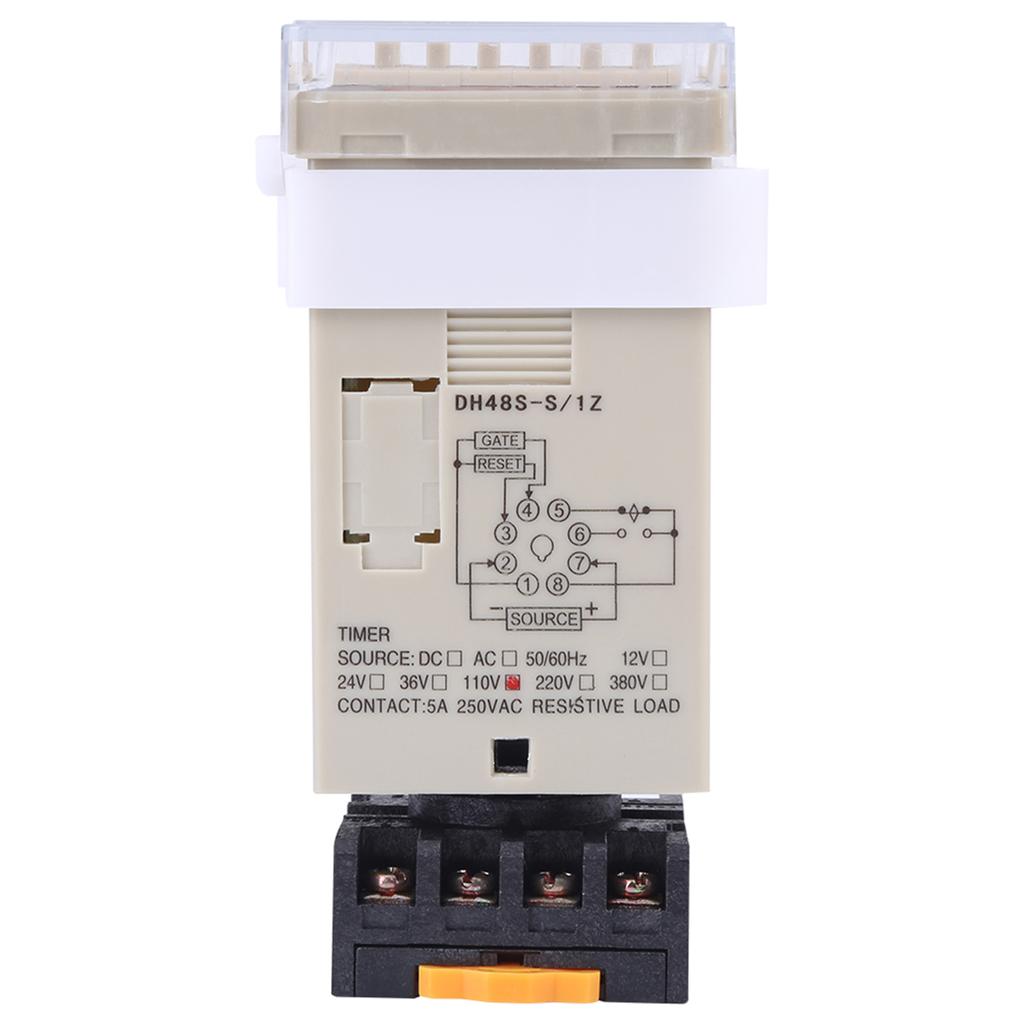

110V AC DH48S S 0.1s~99h Cycle Control Digital Display Time Relay with Base

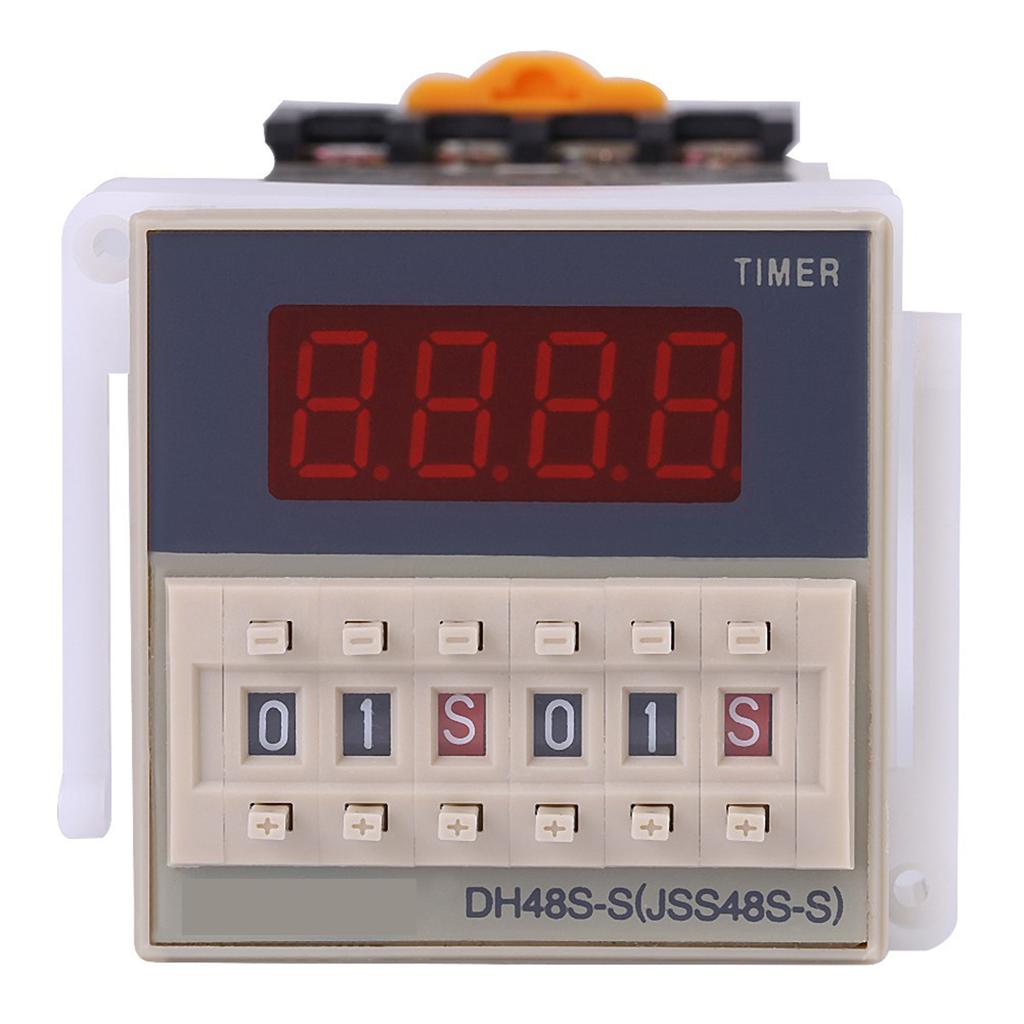

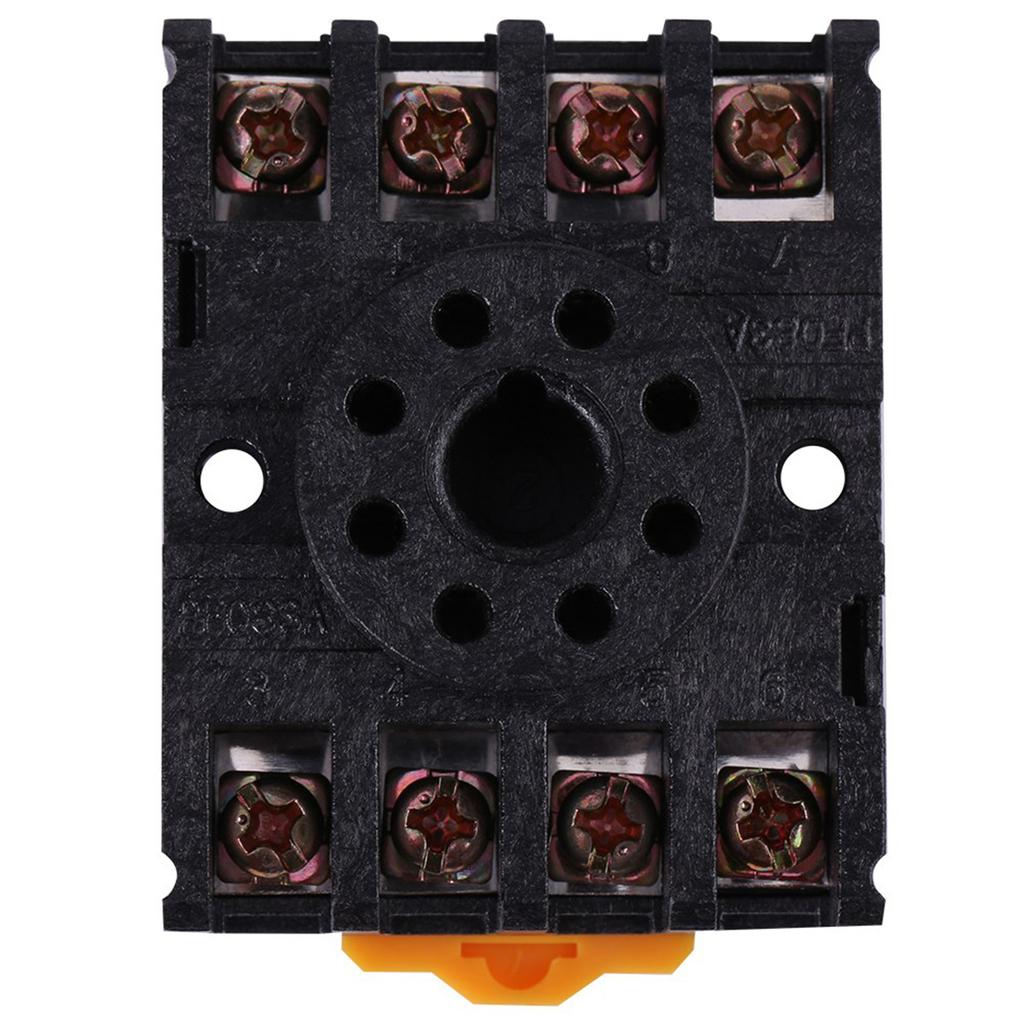

Features: This time relay is applied in advertising lamp, industrial mining, mechanical equipment. LED display: high brightness, high clear LED digital tube display, it can be can be seen clearly no matter day or night. Flexible adjust button: elastic button, suitable for wide spacing, quick adjustment, easy to operate. Relay and transformer: both adopted of pure copper wire material. The relay is closely connected with the base, and the conductivity is excellent. The relay control time is 0.1s less than T less than 99H, and with s mall power consumption, less than 5W. Specifications: Model: DH48SS Power consumption: less than 5W Voltage: AC110V Current: 5A Error: less than 0.3percent +0.05s Control time: 0.1s less than T less than 99H Rated power: 5060HZ Ambient temperature:10 to 50 celsius Weight: 213g Product picture: Install diagram: 1. Pull out the base 2. Unscrew the connection screw 3. Connect the conductor according to the serial number of the base, and tighten the wire screw 4.Panel type assembly: place the relay into the panel 5.Panel type assembly: mount the base, the convex platform should aim at the groove of the base 6.Panel type disassembly: Pull out the base 7. Panel type disassembly: Pull out the relay 8. Guide rail type assembling: mount the base, the convex platform should aim at the groove of the base 9. Guide rail type assembling: make the product buckle into the guide rail in accordance with the direction as shown, 10. Guide rail type disassembly: Pull out the relay 11. Guide rail type disassembly: Pull out the base Package Included: 1 x time relay Note: Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering. .This time relay is applied in advertising lamp, industrial mining, mechanical equipment LED display: high brightness, high clear LED digital tube display, it can be can be seen clearly no matter day or night Flexible adjust button: elastic button, suitable for wide spacing, quick adjustment, easy to operate Relay and transformer: both adopted of pure copper wire material The relay is closely connected with the base, and the conductivity is excellent
