Description:
This security system is ideal for businesses, offices, factories, and communities. As a guard to ensure the safety of your home. Equipped with the advanced GSM digital signal process technology, Features are very practical, cost-effective, completed configuration and ease of use, six LED display alarm can integrate with a lot of other accessories to build a powerful security setup.
Features:
Super GSM wireless signals, voice prompt, ease of use. Can install GSM SIM card.
Two sets of scheduled arm/disarmed function, each time disarmed you can select the included period of time and different zone, eliminating of need of the manual procedure, realizing the beauty of automatic controls.
Wireless or wired appliance control, wireless siren selection, 4-way cable, 6-way wireless zone.
6 groups voice alarm telephone number, 3 groups for SMS messaging, SMS notification for AC power outage will be sent to 3 groups SMS number and dial the 6th group voice alarm phone number.
Built-in artificial intelligence digital voice, artificial intelligence Chinese SMS, alarm messages can be freely defined, more humane.
AC, DC dual-use, 24-hour non-stop normal alert, E2PROM information protection, power outage information is never lost.
Support ISD automatic voice mailbox for playback message upon alert.
Specifications:
Wired Siren :
Standby current: 55mA
Alarm current <450ma
Wireless frequency: 433.92mhz 2262 / 4.7M Ohm
GSM frequency: 900/1800 / 1900MHz.
4 hours after power cut-off battery backup.
Magnetic Sensor:
Power: 12V / 23A a battery
Quiescent current: less than 20mA
Transmission current: less than 15mA
Transmission frequency: 433mhz +/- 0.5 mhz
Transmission distance of about: 30m
Internal distance: 15 mm
Working conditions temperature: -10 degrees to +40 degrees.
Humidity: less than 90percent rh
Battery life: about 6 months
Motion Detector:
Power: DC9v (6F22 battery)
Transmission current: less than 20ma
Quiescent current: less than 10ma
Wireless frequency: 433mhz +/- 0.5 mhz
Transmission distance: about 30m.
Detective speed: 0.3 - 3.0m/s
Reconnaissance distance: 5 - 1200 meters
Detective range: horizontal 110 degrees , vertical 60 degrees
Battery life: about 6 months
Working conditions temperature: -10 degrees to +40 degrees.
Humidity: less than 90 rh
Remote Control:
Quiescent current: 0
Emission current: less than 15mA
Transmission frequency: 433mhz +/- 0.5 mhz
Launch speed: t less than 1 second
Launch distance: about 30 meters

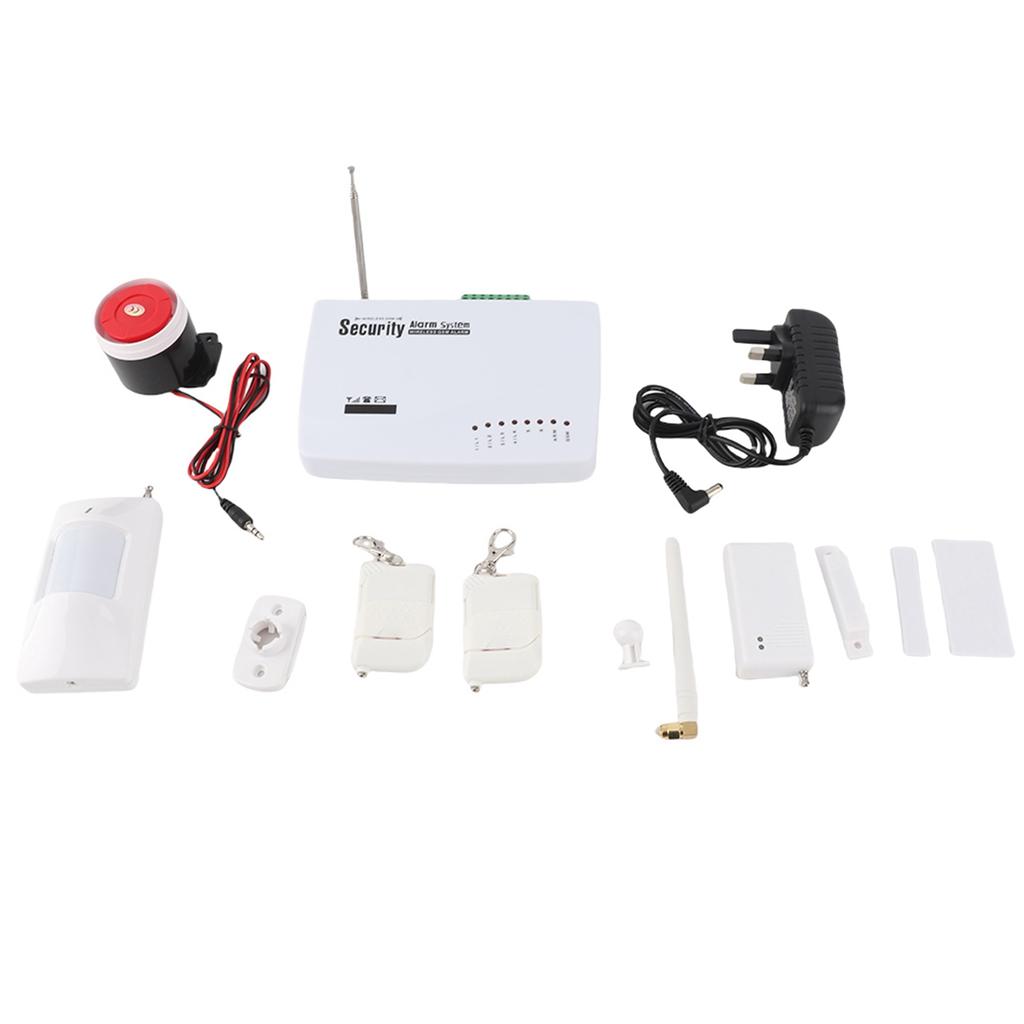

Package List:

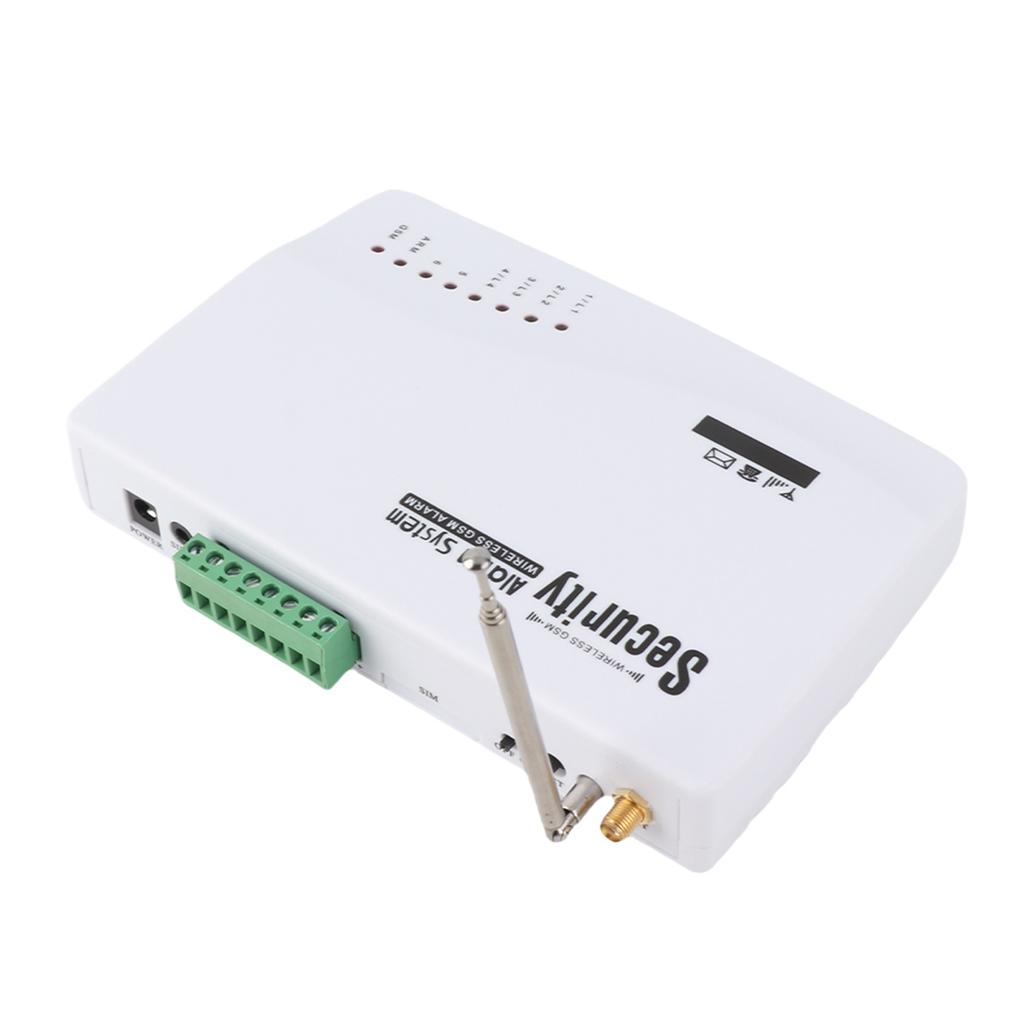

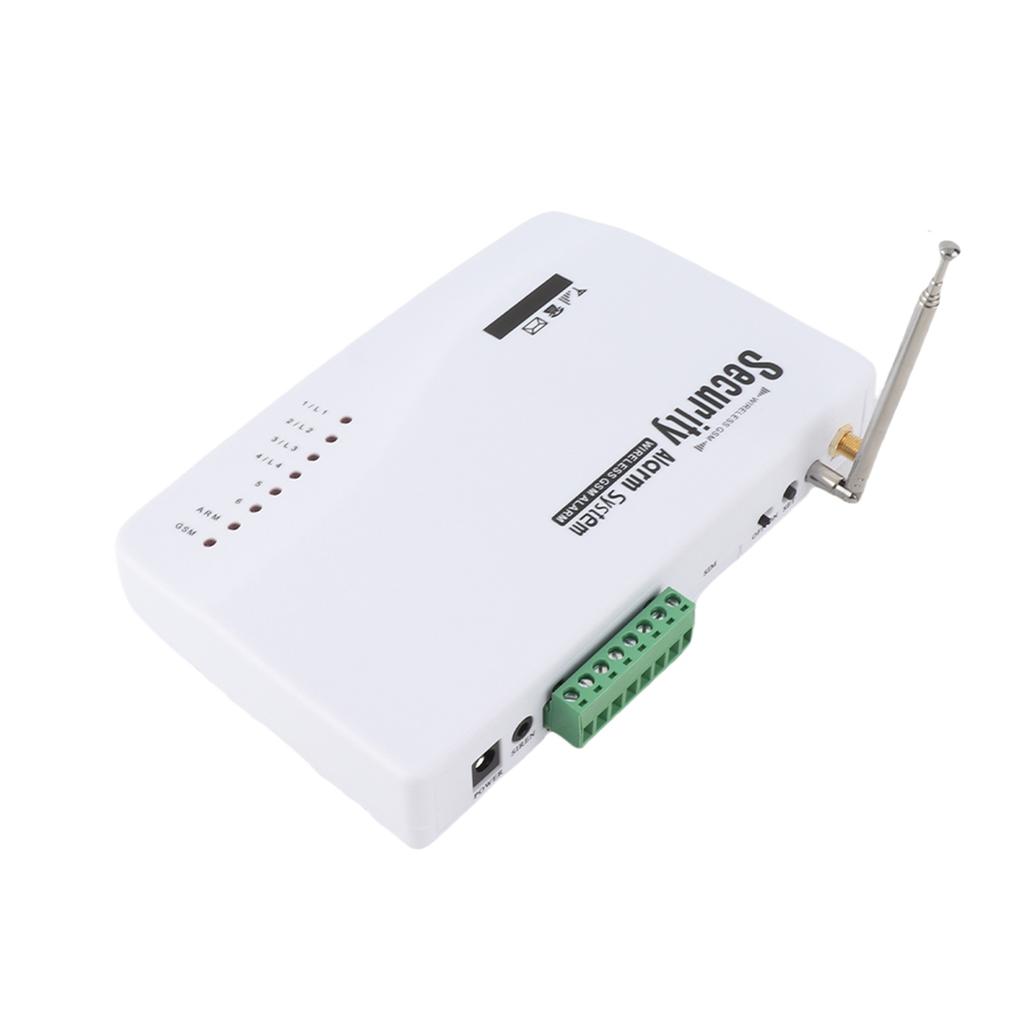

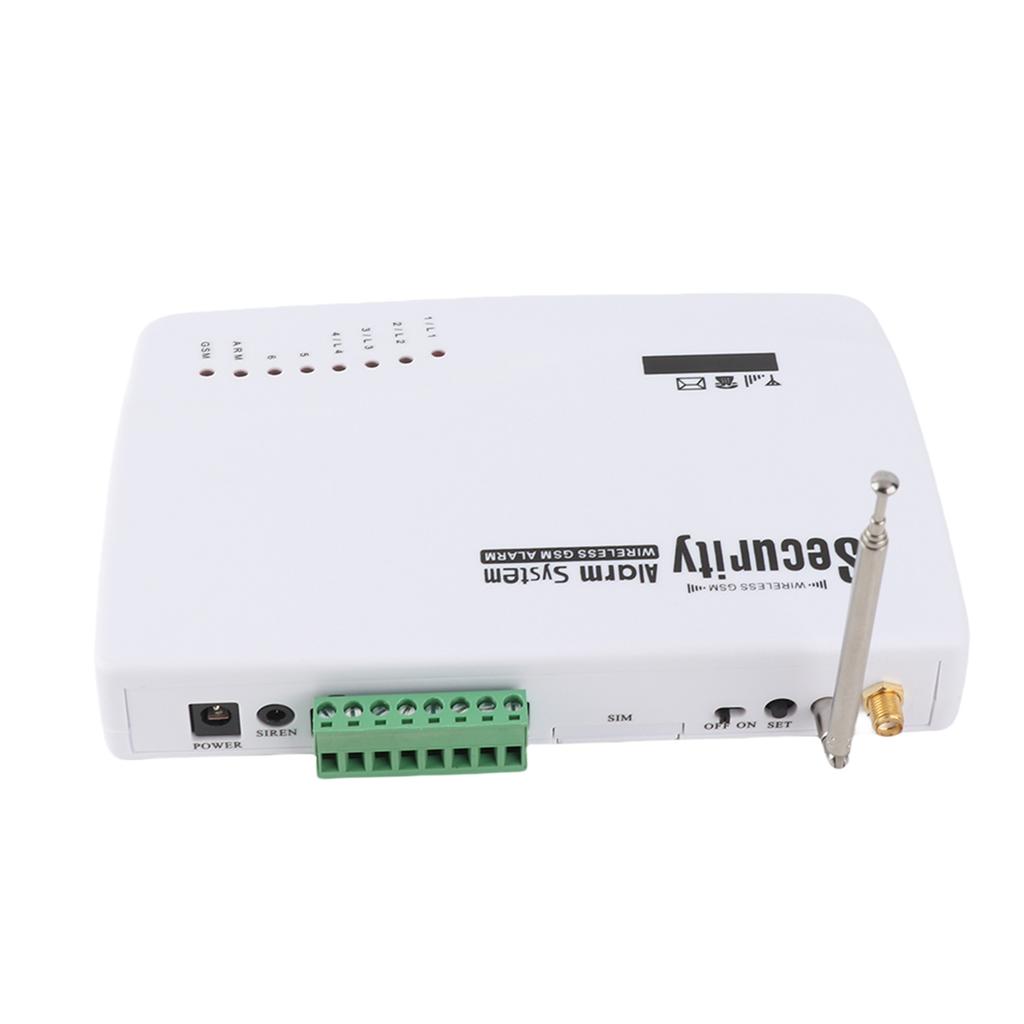

1 * GSM Alarm Panel
1 * Magnetic Sensor
1 * Motion Detector
1 * Wired Siren
2 * Remote Control
1 * User Manual
.
