Feature:
1. PID TECHNOLOGY: PID temperature controller adopts industrial grade professional self tuning PID technology, with fast temperature control, fast response, small overshoot and high accuracy.
2. LONG SERVICE LIFE: PID thermostat temperature controller has a long service life, the probe is made of stainless steel housing and resin sealing treatment, waterproof and rust free.
3. INTELLIGENT TEMPERATURE CONTROL: Chicken house temperature controller is easy to operate, intelligent temperature control, that is, to help the operator to get good results, very practical.
4. SPECIAL DESIGN: Digital thermostat temperature controller has a dedicated microprocessor switching power supply and SMT, multi functional to meet your different needs.
5. APPLICATION SCENARIOS: Digital temperature controller for farm is widely used in farm breeding, chicken house, electric power, chemical, injection molding, food, incubator, oven and other equipment.
Specification:
Item Type: PID Thermostat Temperature Controller
Material: Plastic
Model: For REX C100FK02 V x AN
Measurement Error: 1percent + 1 Word, 0.5percent +/- 1 Word, 0.2percent +/- 1 Word Three Grades
Additional Cold End Compensation Error: Within The Range Of 0-50 celsius , less than +/- 2 celsius , Temperature Coefficient less than 0.05percent celsius
Resolution: 14 Bits
Sampling Period: 0.5 Seconds
Process Value (PV), Set Value (SV)
PIN Control (Including ON OFF, Step PID And Continuous PID)
Thyristor Trigger Bur Number: 15 40Microsecond Or Rated 100mA, Instantaneous 1A (Self Triggering)
Solid State Relay Output Signal: 15, 3V 3 0mA
Measurement Digital Display Range: -1999-9099, -199-9999
Proportional Band (P): 0 - Full Range (ON OFF Control Set To 0 When)
Detection Temperature Range: 0-400 celsius
Insulation Resistance: > 500M Ohm (500V DC)
Insulation Resistance: 1500V AC Per Min
Insulation Resistance: Power Consumption <10VA
Service Environment: 0-50 celsius
Non Corrosive Gas Environment 30-85percent RH
Appearance Size: Approx. 48x48x110mm / 1.9x1.9x4.3in
Scope Of Application: Electric Power, Chemical Industry, Injection Molding, Packaging, Food, Incubator, Oven, Heater Control, Etc.
K Type Thermocouple Probe Cable
Length: Approx. 1m/3.3ft
Sensor Diameter: Approx. 4.5mm/0.2in
Temperature Range: 0-400 celsius
Inner Insulation: Glass Fiber
External Shield: Insulation Shield
Solid State Relay.
Package List:

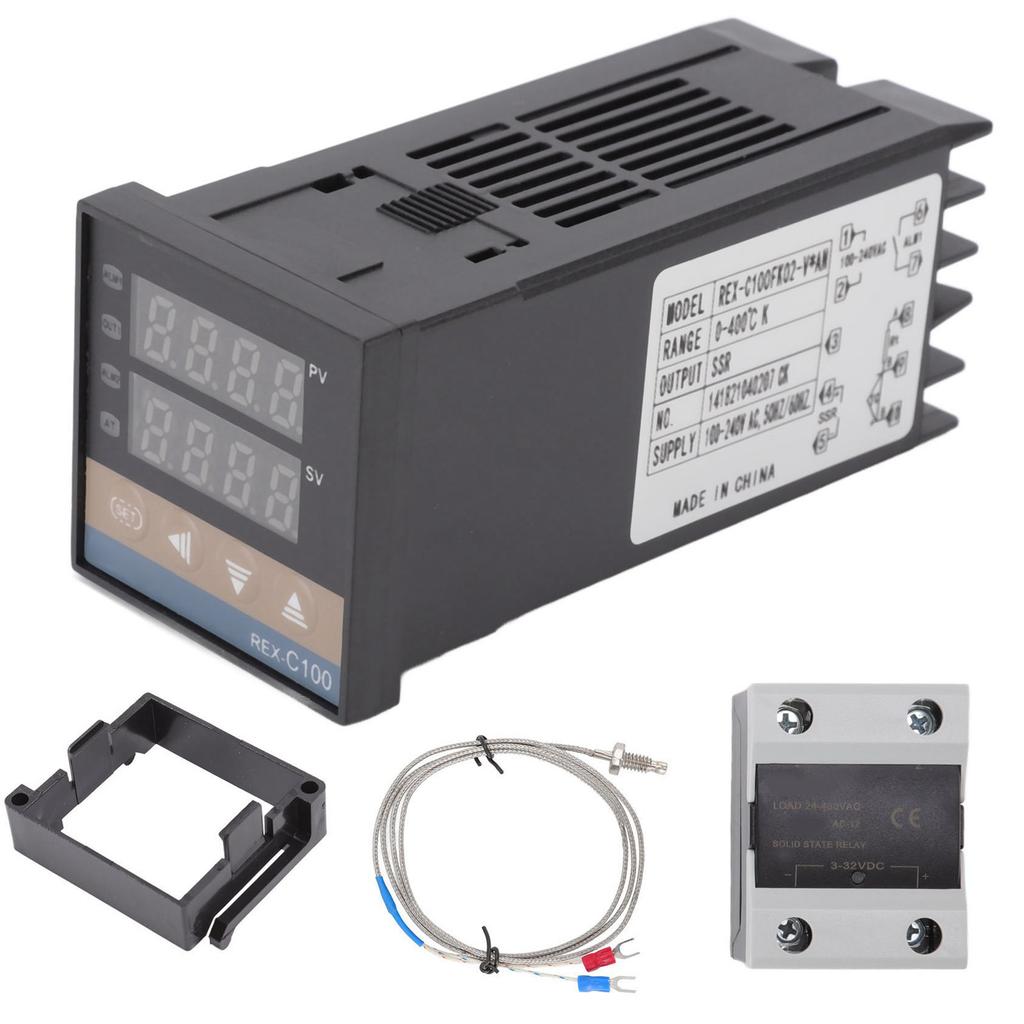

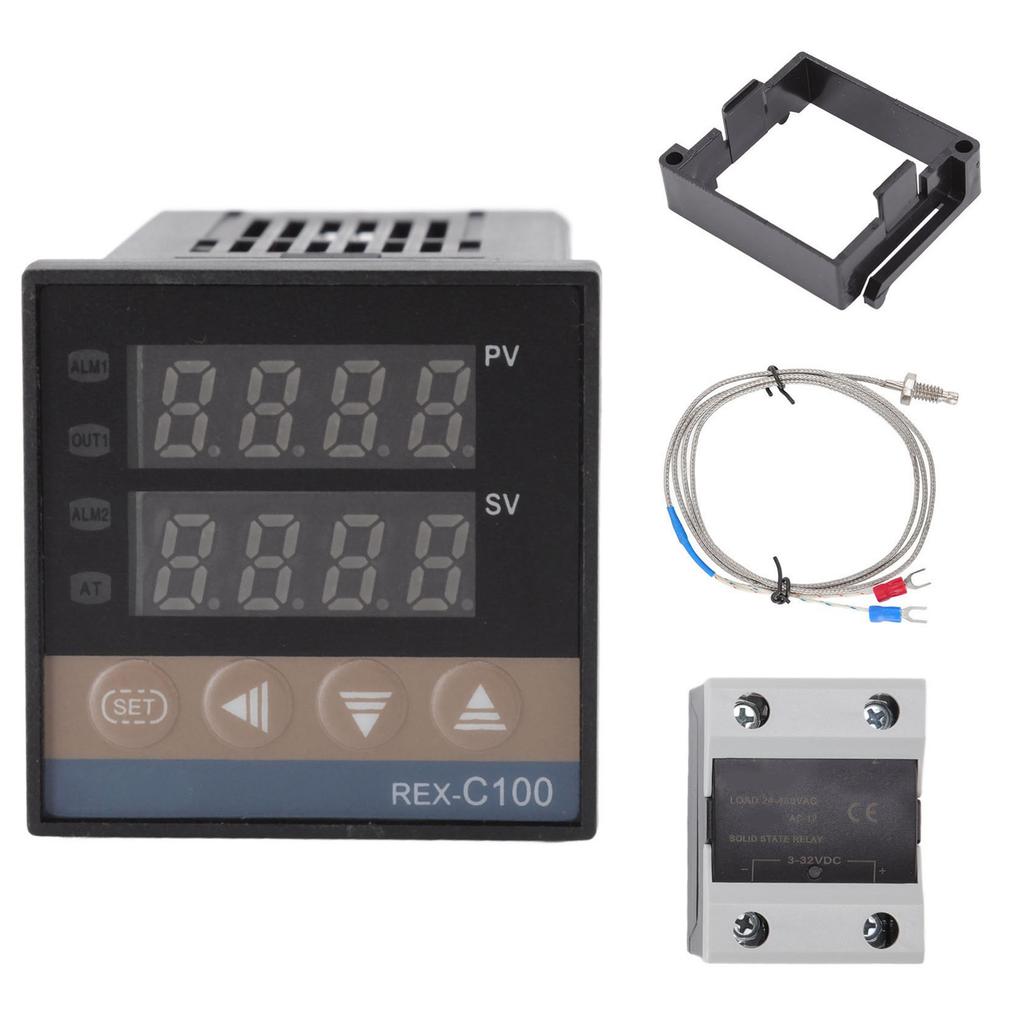

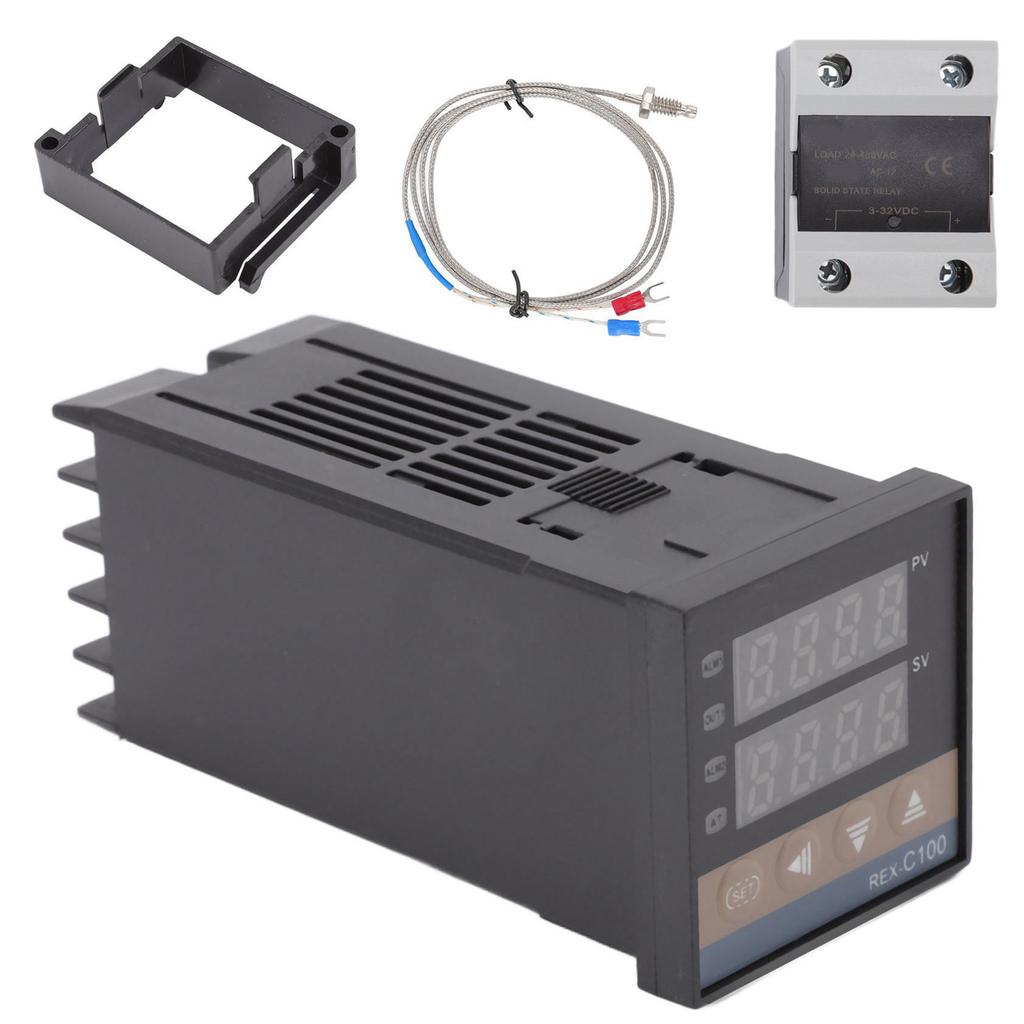

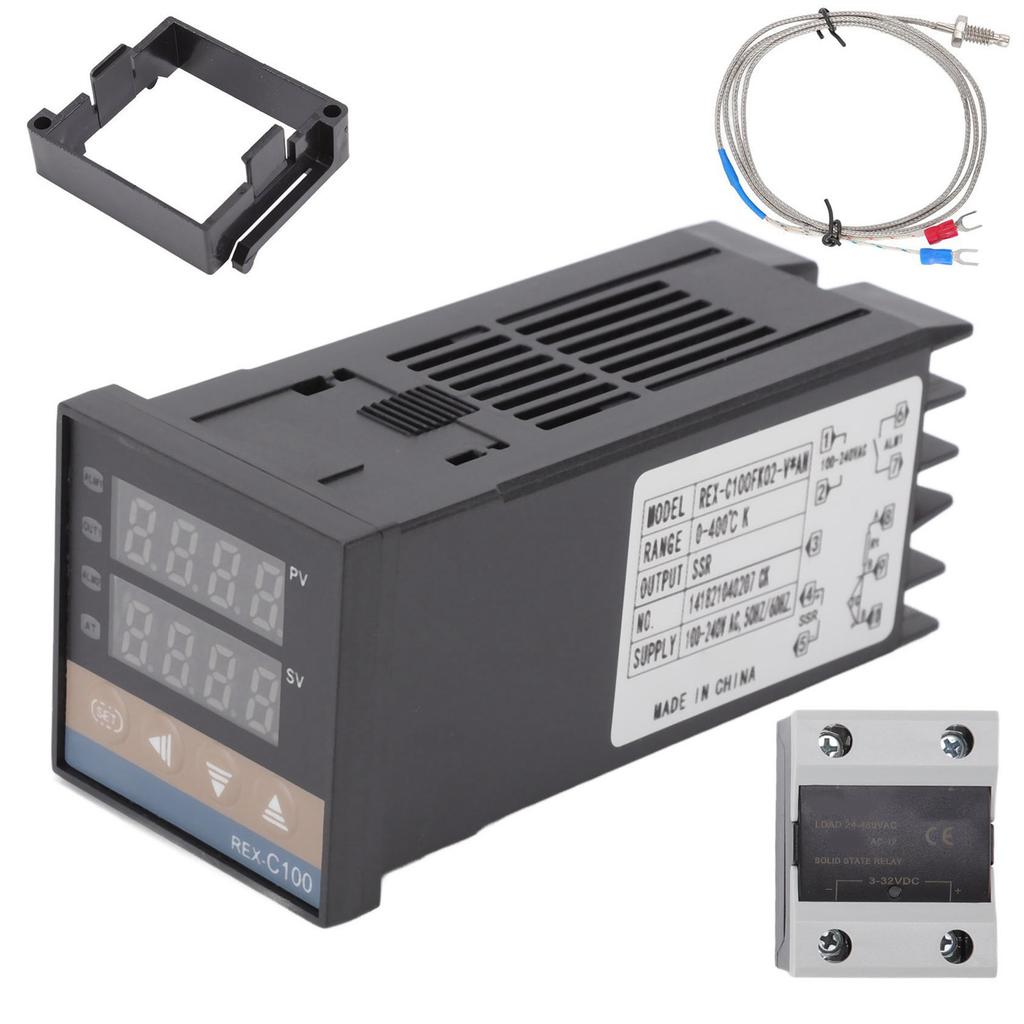

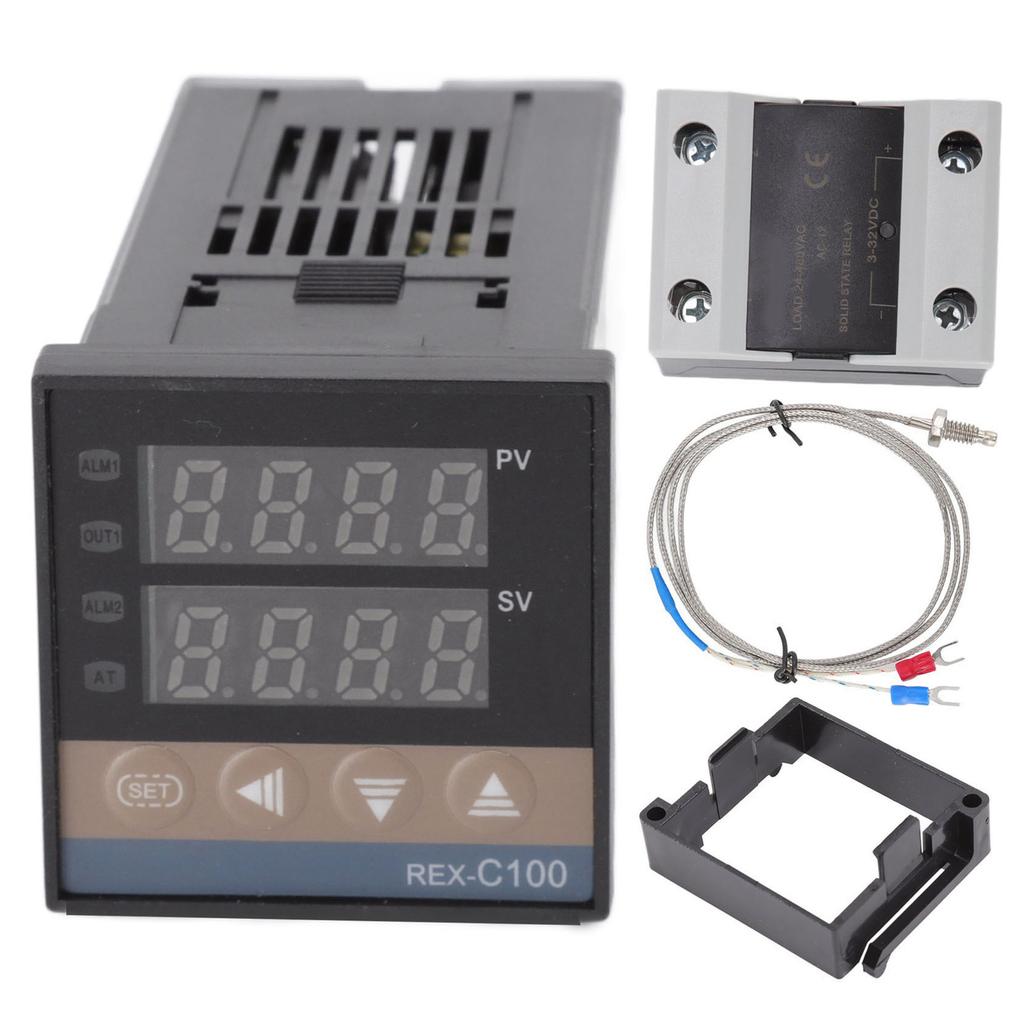

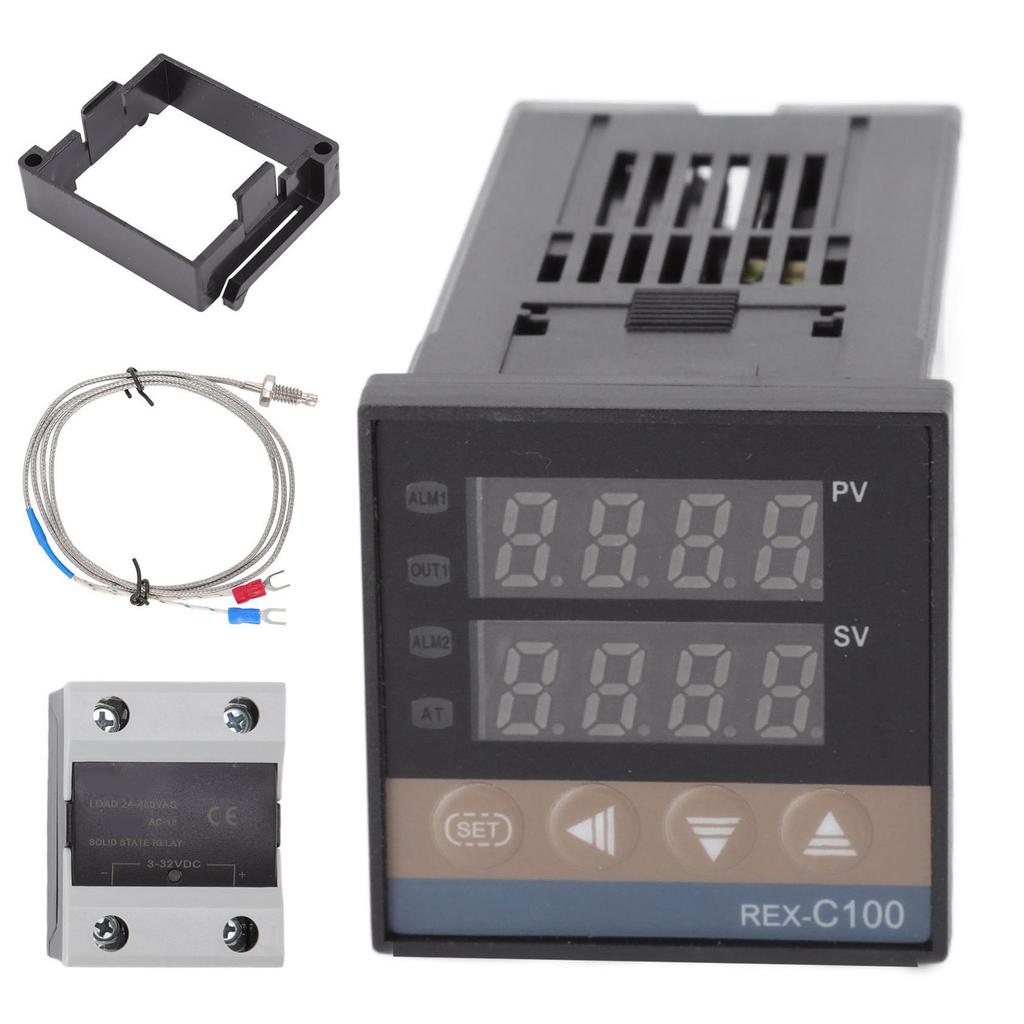

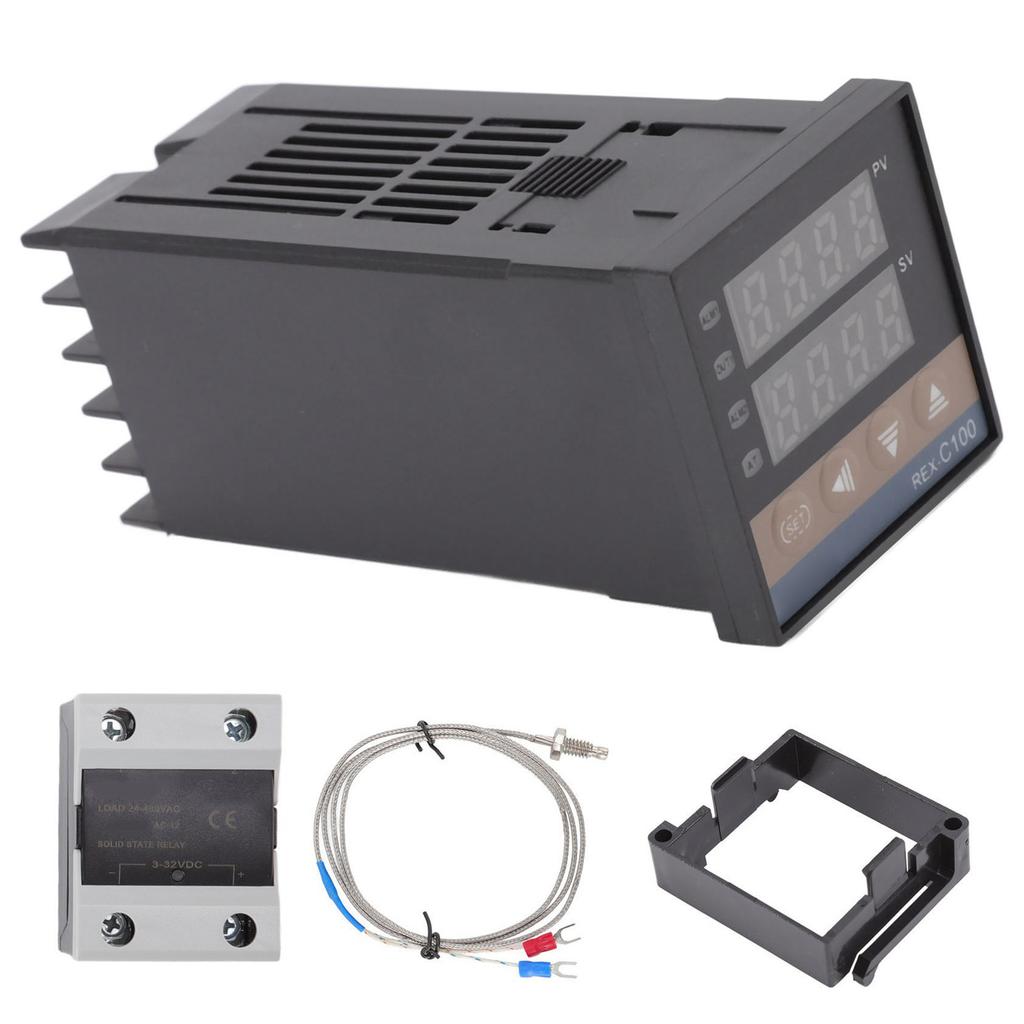

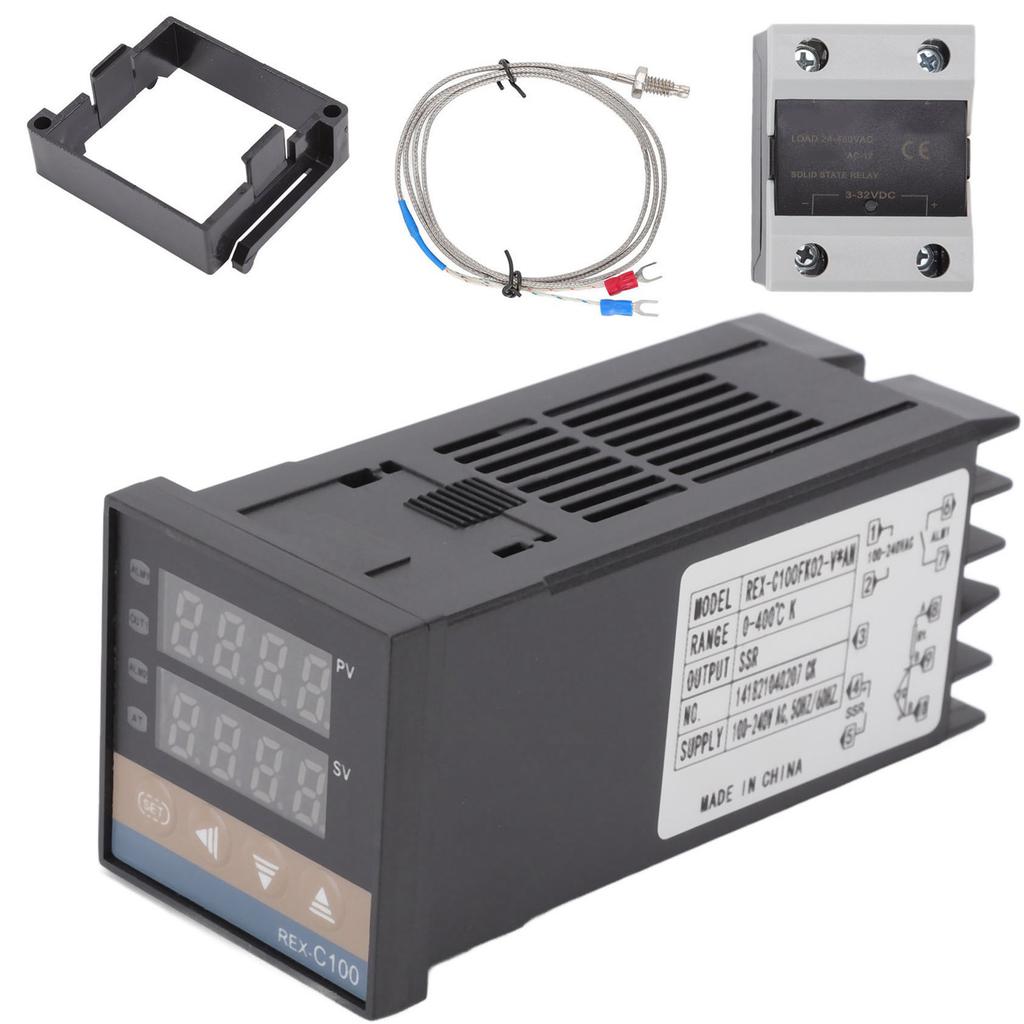

1 x PID Thermostat Temperature Controller1 x Thermocouple1 x Relay Module1 x Thermostat Bracket1 x Chinese and English Manual
Note:
Please allow some error due to manual measurement.
