Takasu Sangyo Local Ceiling Recessed Ventilator Panel White Model (Grid Type) Number TK-180NS

---------------------------------------------------------------------- 【Voltage Compatibility】 When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction. 【Plug Type】 Our products use Japanese plug types (A or B type). Please use a conversion adapter if necessary. 【Important Note on Transformers and Adapters】 A transformer adjusts voltage to match your device’s requirements. A conversion adapter only changes the plug shape and does not adjust voltage. Using only a conversion adapter without a transformer may result in damage to the product. 【Liability】 We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer. ----------------------------------------------------------------------

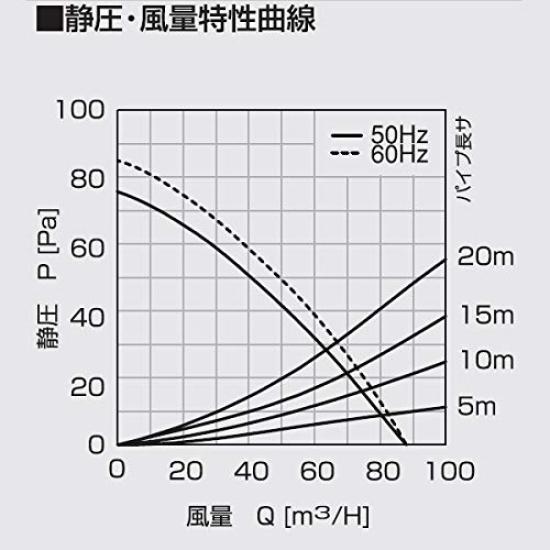

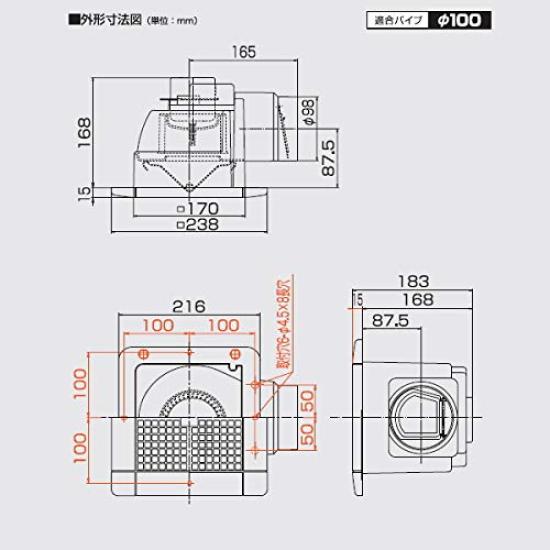

Sirocco fan Quick-connect terminal connection Opening dimensions: 175 x 175 mm Compatible pipe: φ100 For forced exhaust Material: Resin Low noise design Condenser motor One-touch spring mounting panel Duct connection port for external discharge of condensation water Slide-on/off duct connection port Stepped structure duct connection port for easy taping Equipped with wind pressure type backflow prevention valve Main installation locations: Living room, bathroom, dressing room, toilet, office, store Characteristics table Rated voltage (V): 100 Rated frequency (Hz): 50, 60 Rated power (W): 11.1 (50Hz), 11.5 (60Hz) Air volume (m3/h): 88 (50Hz), 88 (60Hz) Noise (db): 29 (50Hz), 29 (60Hz) Weight (kg): 1.3 Shutter type: Wind pressure type *A separate [Strong/Weak] switch is required. *Do not install in hot springs or public baths that use chlorine for sterilization. This may cause a malfunction. [Manufacturer] Takasu Sangyo Co., Ltd. [Manufacturer Part Number] TK-180NS
