Describe:
100 new and high quality
Material:Printed Circuit Board
Interface:44 pins
size:Type A length 5.1cm/2in, width 4.2cm/1.65in; Type B length 5cm/1.96in, width 4.2cm/1.65in; Type C length 5.2cm/2.05in, width 3.7cm/1.46in

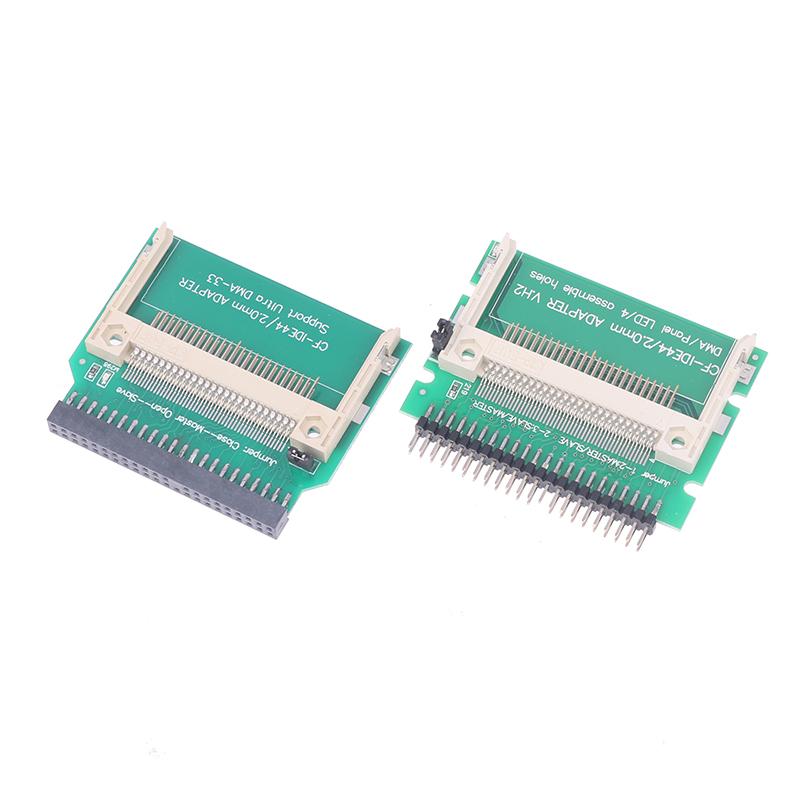

Package Includes:1pc CF To IDE Converter Card
You can use CF to boot from /Windows/Linux, even as an IDE hard drive, but DMA MOD with master/slave jumper is faster
Support single CF card type.
For laptops, convert your CF card to a standard IDE hard drive.
It is suitable for embedded industrial computer, used to store embedded LINUX, WINCE and other operating systems and application program data.
You can also plug directly into your laptop's IDE port. Ease of use.
CF card to 44PIN 2.5-inch IDE hard disk.
The IDE CF (ide-cf) adapter is an adapter that connects a compact flash card to a 2.5-inch host interface. This drive allows the use of a Compact Flash card as a hard drive. This adapter allows any computer with a 2.5" hard drive to be easily converted to use low power and shock resistant CF media.
This product is mainly used in notebooks, turning your CF card into a standard IDE electronic hard disk, used in embedded industrial PCs, to store embedded LINUX, WINCE and other operating systems, applications, and data. It can also be directly inserted into the IDE port of the notebook for use.
The main purpose:
Computer peripheral equipment manufacturers use CF-IDE cards with CF cards to test motherboards, sound cards, graphics cards and other products. In these occasions, the power needs to be turned on/off frequently, and traditional mechanical hard drives are easily damaged. CF card is a kind of electronic hard disk, which is completely different from mechanical hard disk in principle, and it is not easy to be damaged in these occasions.
Portable instruments using embedded X86 or RISC cores usually have IDE interfaces. If the CF card cannot be directly connected to these instruments, you can use this adapter to complete the transfer. Personal computer (PC):These computers usually have an X86 core, which is the main platform used by the card.
tower. Some digital cameras have a CF card interface, and you can access your picture data through this card on the desktop.
Industrial PCs use this card and CF card together to store embedded operating systems such as embedded LINUX or WIN CE. You can also use CF as a mobile hard disk, so that data can be moved freely.
Note:
1. Please allow 5-10mm differences due to manual measurement, thanks.
2. The actual color of the product may be slightly different from the picture, and the website is caused by various factors such as the brightness of the monitor and the brightness of the light.
3.Only supports CF memory card transfer, does not support CF hard disk
