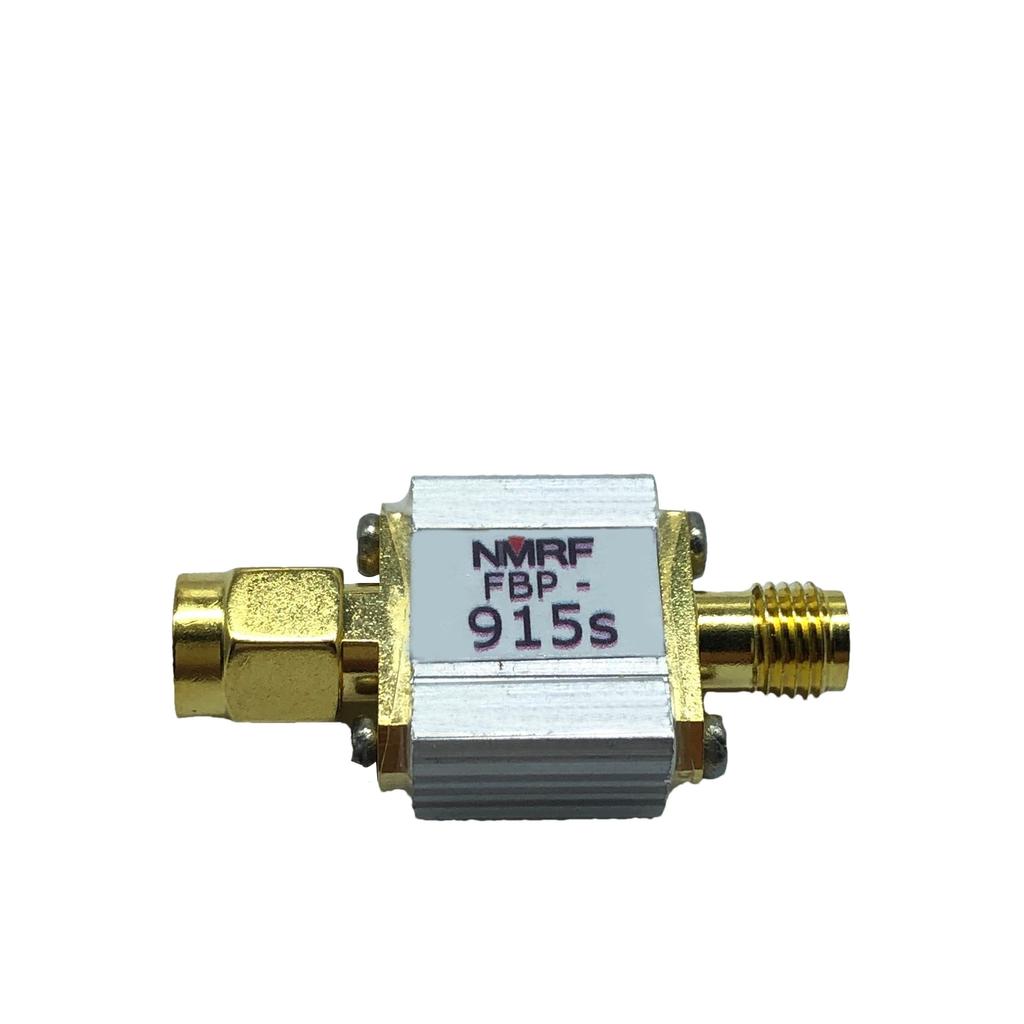

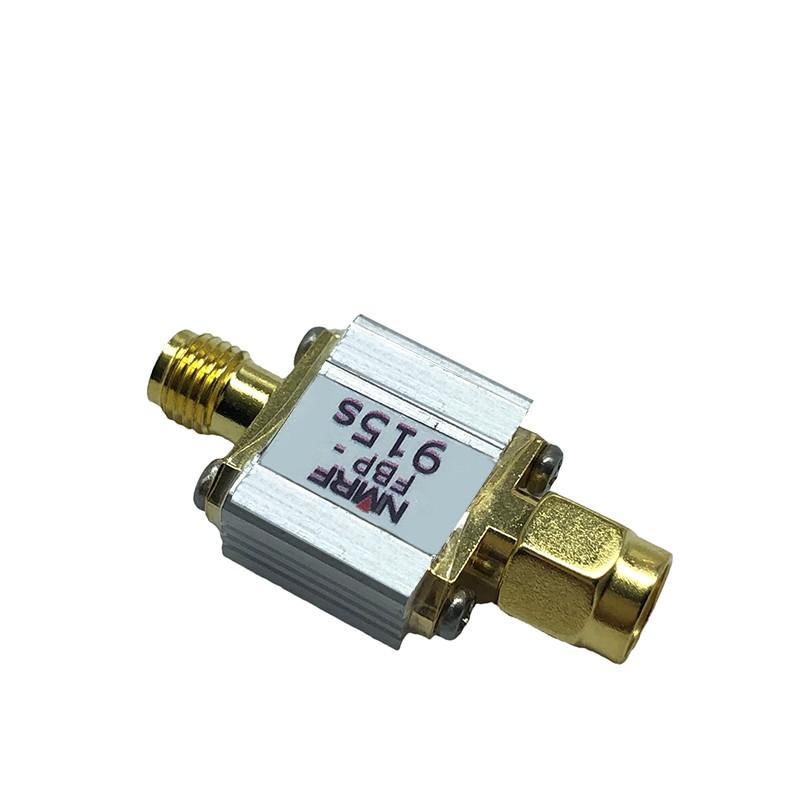

915MHz (902-928) SAW Bandpass Filter 915s For RFID Receiver with SMA Interface

feature: 915MHz RFID Receiver Pass Filter, 902~928MHz, SMA Interface The filter has a 1dB bandwidth of 26MHz and a steep cutoff. The performance optimization of the 915MHz RFID receiver can effectively filter out-of-band signals, reduce noise, and increase dynamic range. feature: 26MHz filter bandwidth, steep cutoff characteristics. The performance of the 915MHz RFID receiver is optimized to effectively filter out-of-band signals, reduce noise and increase dynamic range. Model: FBP-915s Impedance: 50 ohms Center frequency: 915MHz Passband: 902～928MHz Insertion Loss: <2.5 dB Out-of-band isolation: > 40 dB @ 815 MHz and 1015 MHz Maximum load power: 300 mW (25 dBm) Interface: SMA-M, SMA-F Frequency Response Plot (Full Sweep Width: 1000MHz) Frequency response diagram (the span of the yellow line in the figure is 200MHz, the span of the blue line is 1750MHz, the marked point is the 3dB bandwidth, and the ordinate is 10dB/div): Package Included: 1*915MHz receiver bandpass filter
