Kawada M300gt2r Chassis Kit

Product Name: Kawada M300GT2R Chassis Kit

[Brand Introduction]

KAWADA is a renowned Japanese brand specializing in Radio Control (Hobby RC), known for its exceptional technology and quality. KAWADA manufactures high-performance RC cars and parts, providing the best driving experience for RC enthusiasts.

[Detailed Description]

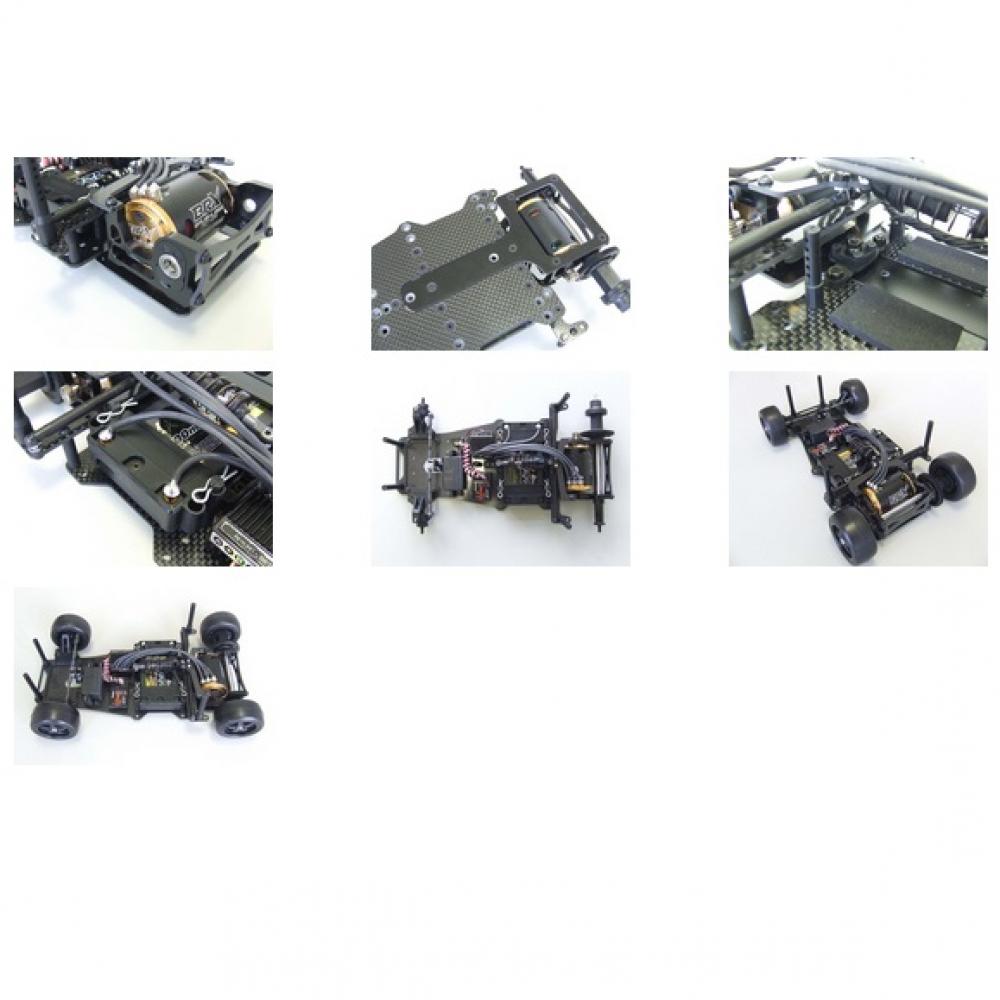

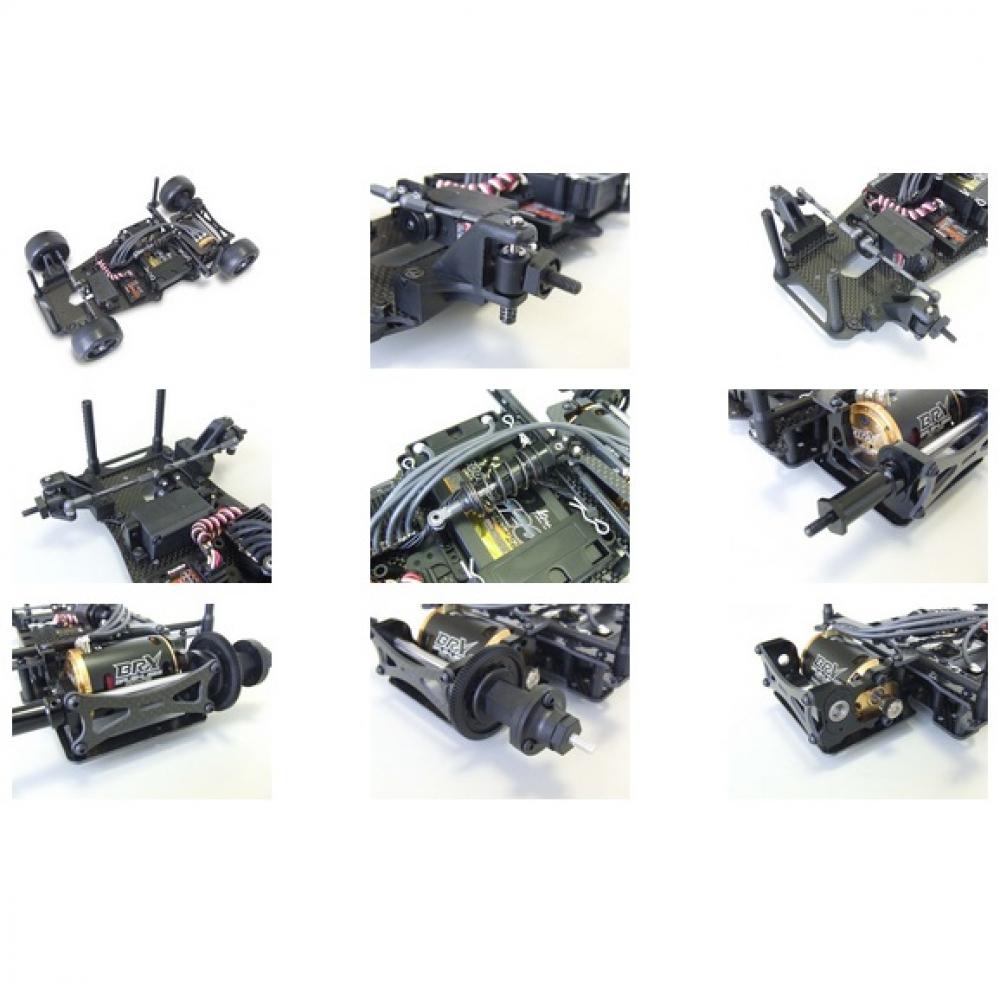

This chassis features a simple structure with Elliot suspension & T-bar system. The highly popular M300GT, designed for easy driving with mini rubber tires, now offers the long-awaited “R” variant with a carbon chassis! While maintaining suitable chassis flex, it enhances pitching rigidity. Thanks to the carbon chassis, known for its stability on high grip surfaces and during high-speed driving, it delivers an upgraded driving performance. Most importantly, the carbon's unique racing appearance satisfies ownership desires.

[Specifications]

■ Overall Length: 275mm

■ Overall Width: Front 161mm, Rear 164mm

■ Tread: Front 136.6mm, Rear 137.4mm

■ Wheelbase: Options of 196mm, 210mm, 225mm

■ Full Weight During Driving: 870g (1S Size Li-Po)

■ Differential Type: Ball Diff (Stainless Shaft)

■ Drive Type: Direct Drive

■ Suspension Type: Front Elliot Suspension, Rear Ball Connect Type

■ Caster Angle: 2 Degrees

■ Camber Angle: 1 Degree

■ Chassis: C-FRP (Carbon)

■ Motor: 540 Type (Sold Separately)

■ Axle Bearings: Full Ball Bearing

■ Motor Mount: Duralumin Material (L/R)

[Usage Instructions]

Essentials for driving: 2-channel pro-set (transmitter, receiver, ESC, servo), 540 size motor, 64 pitch pinion gear, driving battery (1S size, short size, full size, Ni-MH straight pack compatible) and charger, driving tires, inners, wheels (mini size), driving body (for M300GT or mini chassis), diff lube, silicon oil (around 300-400, or 10,000-30,000 grade) required.

[Tools Required for Assembly]

1.5mm, 2.0mm, 2.5mm hex wrenches, small plus screwdriver, minus screwdriver, hobby wrenches (5.5mm, 7mm box wrench), nippers, radio pliers, cutter knife, file, φ3mm drill, caliper, instant glue, lubrication oil, cleaner spray will be necessary for assembly.

[Cautions]

Please read the manual carefully before use and ensure safe operation. Take care to avoid loss or damage to components during assembly.

To request a return or exchange, please note that it is mandatory to provide a video of the unpacking of the package.
