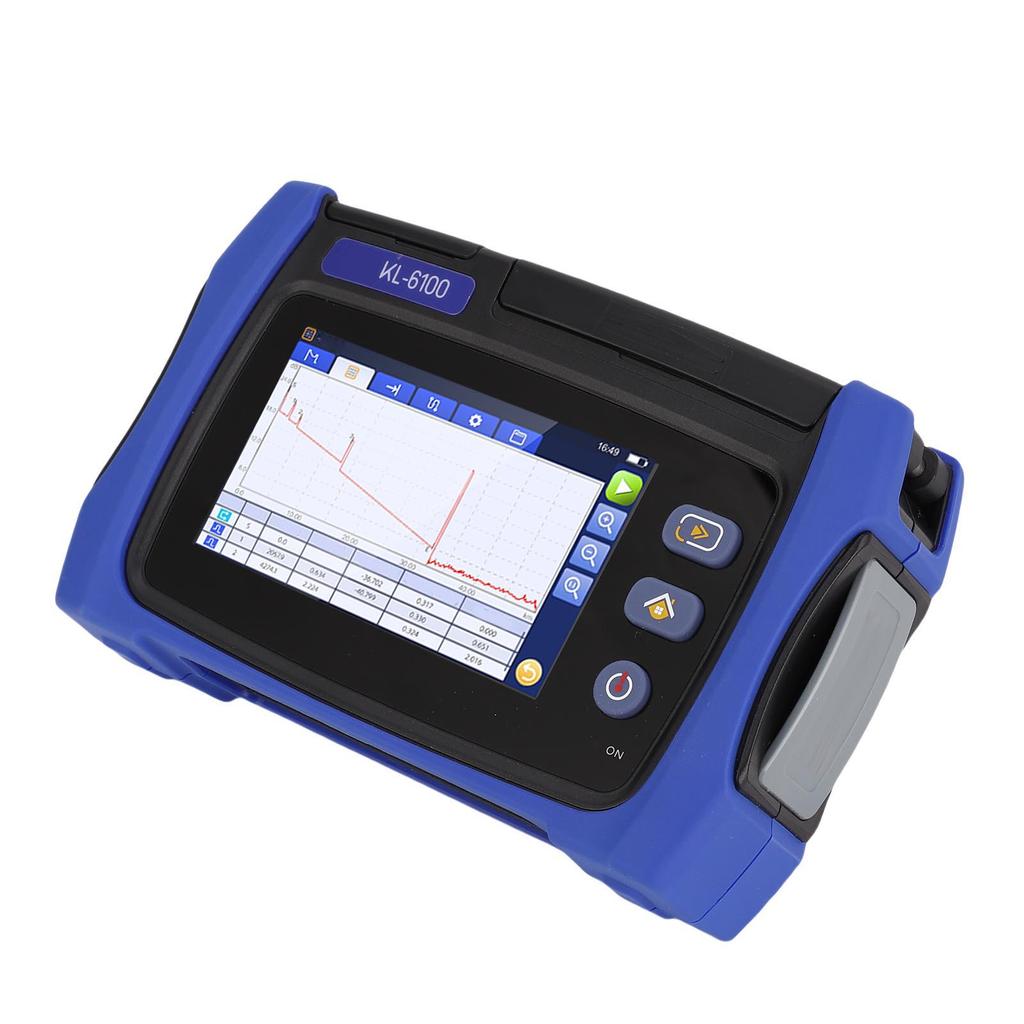

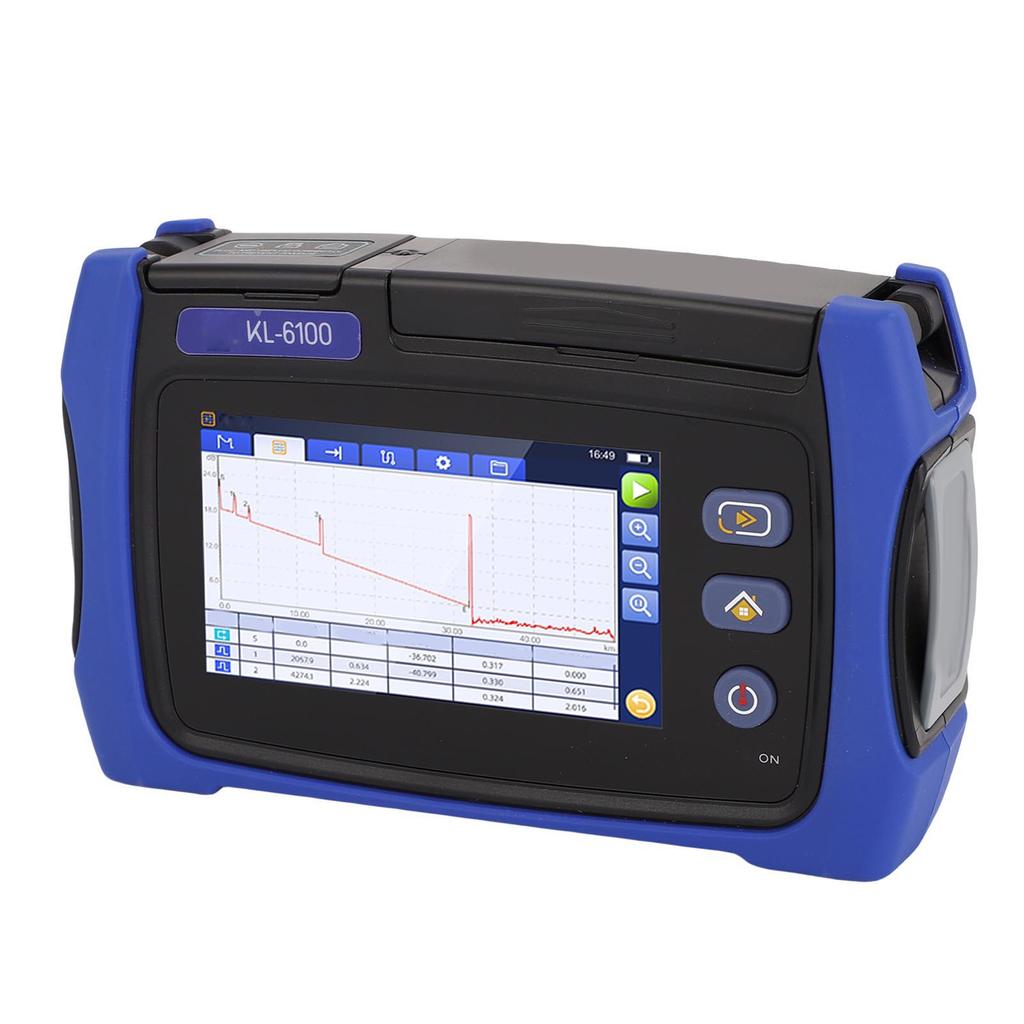

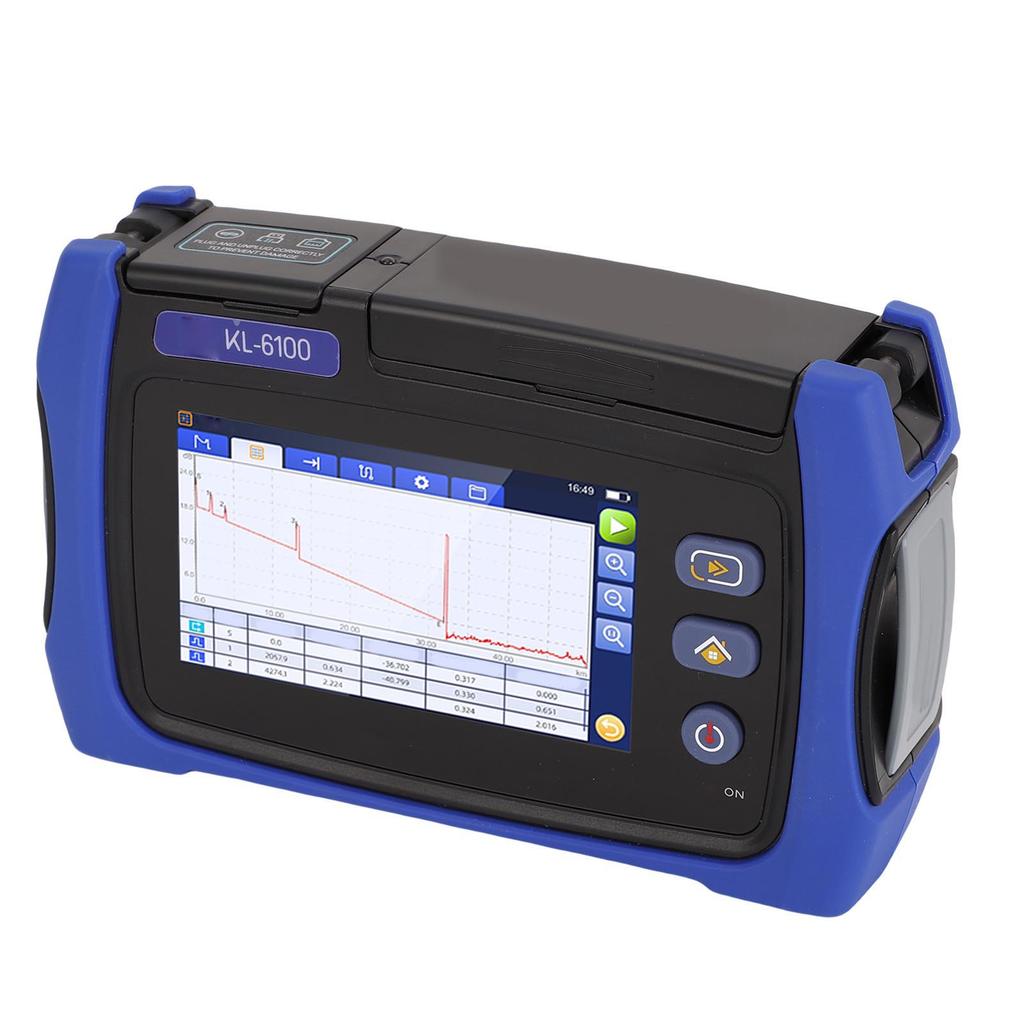

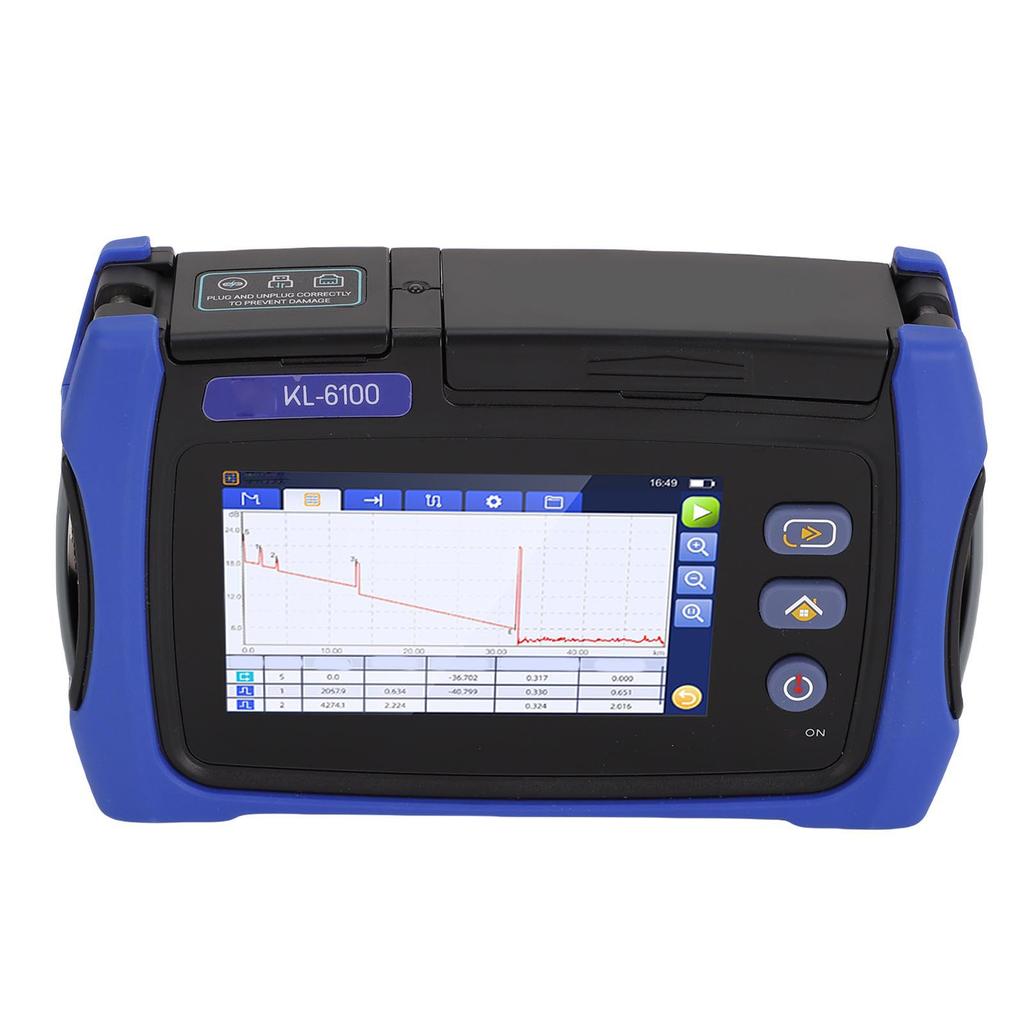

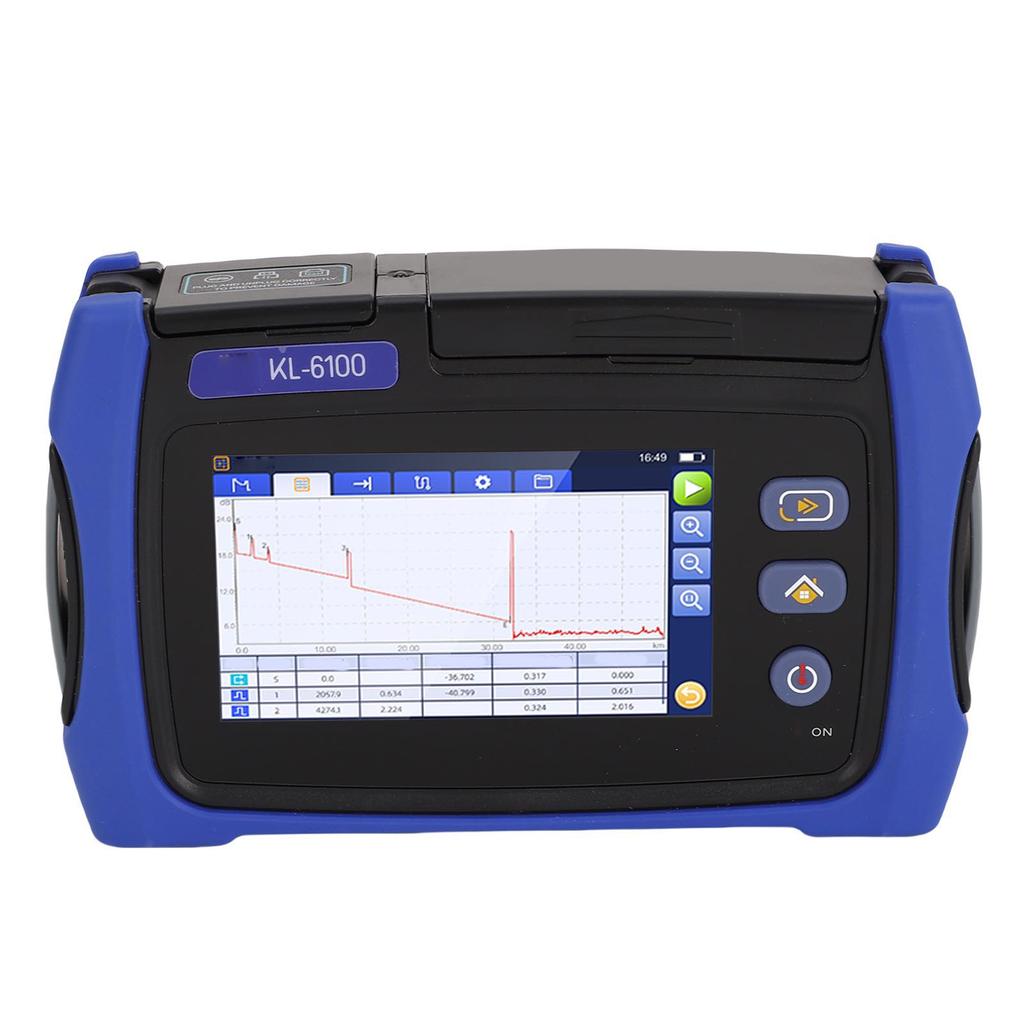

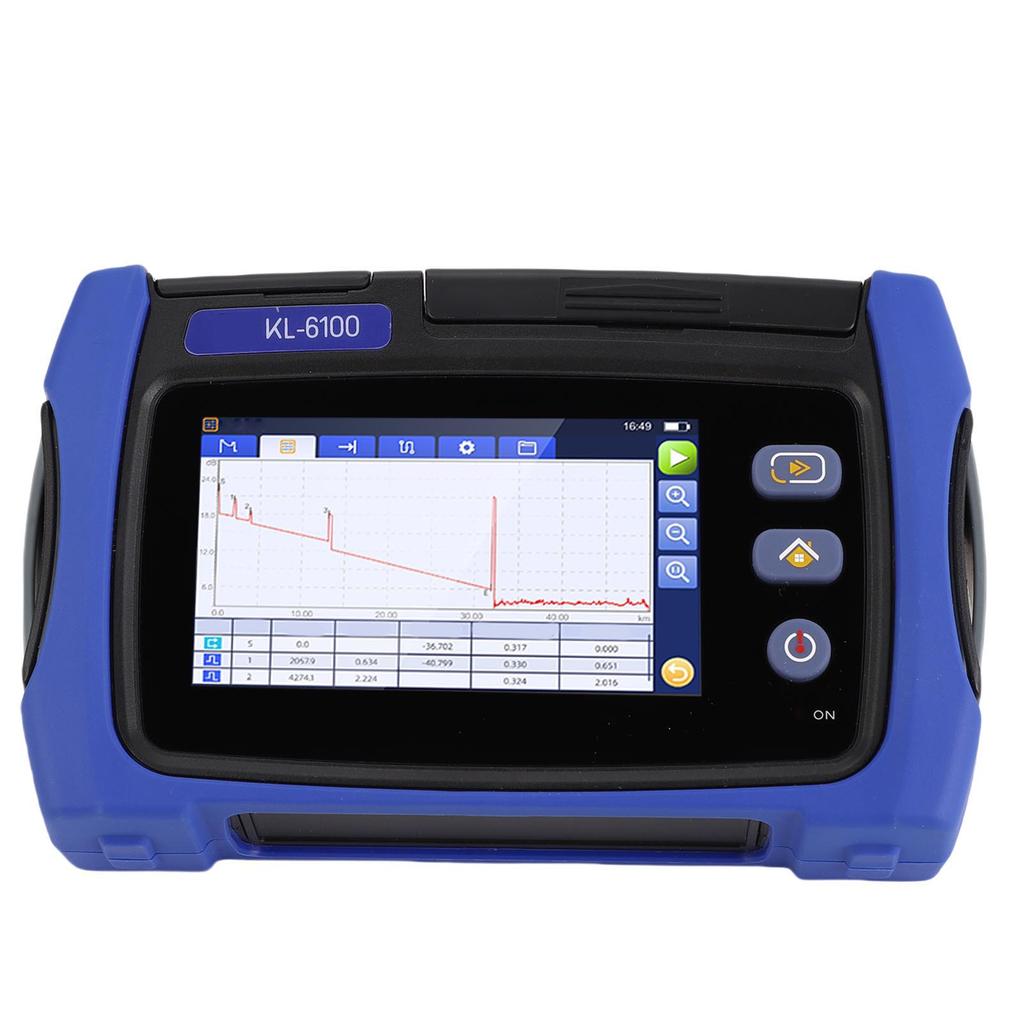

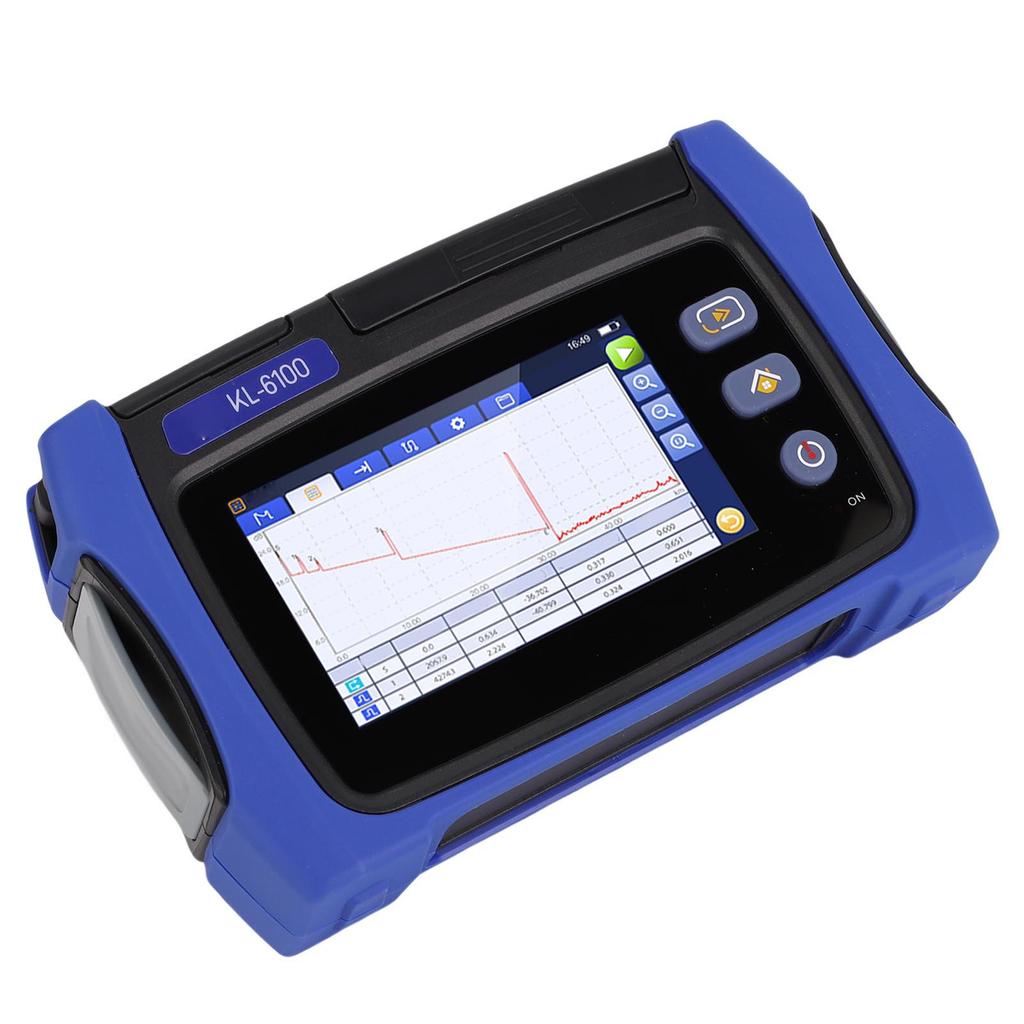

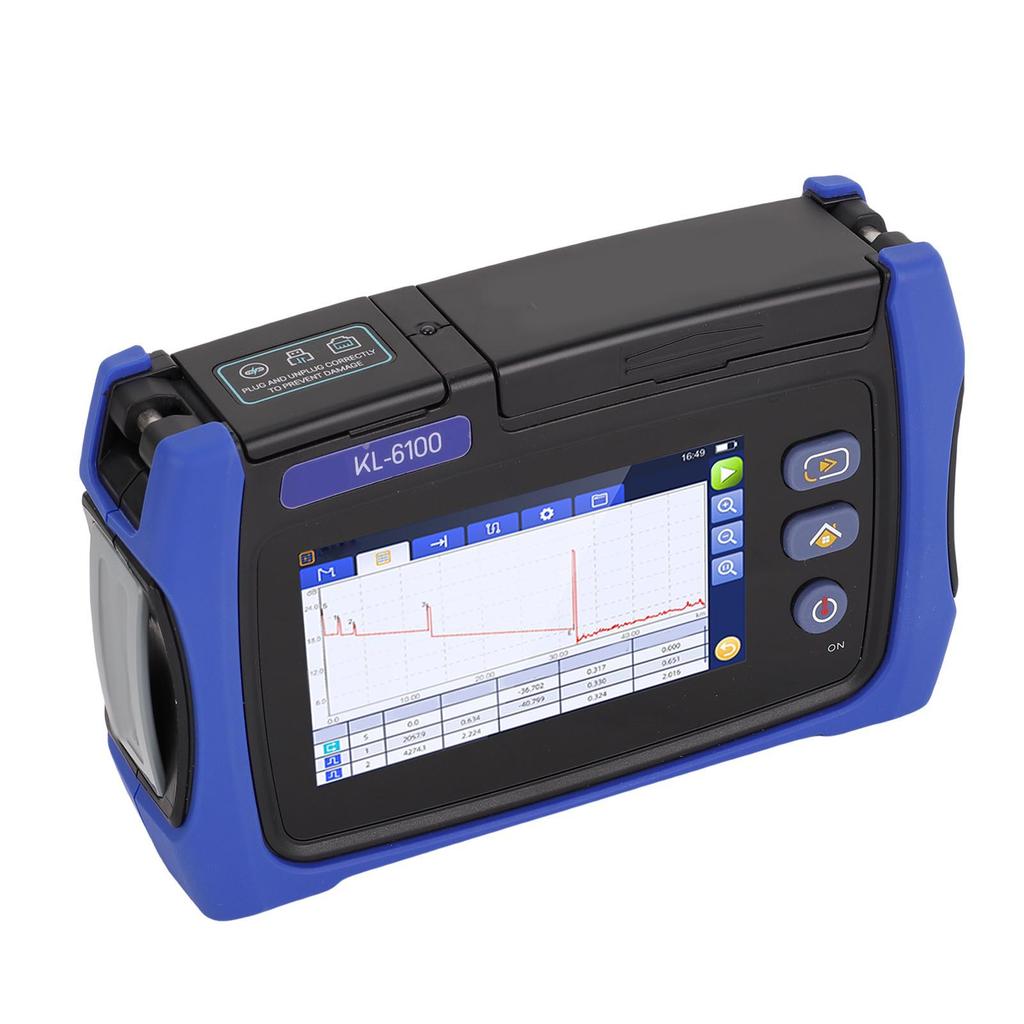

Feature:
1. 4.3in Color Touch Screen: This OTDR optical fiber tester adopts 4.3 inch capacitive touch screen, supports zooming in and out, providing clear display, simple to operate.
2. SOR Format Storage: The optical fiber teste can save SOR format, supports viewing on PC, built in post processing software, results saved as universal SOR format files, can store over 1000 SOR files.
3. Simple Operation: One key measurement makes testing simple, eliminates unnecessary complexity, enables any technician to easily perform testing without having to navigate through layers of menu options.
4. Manual Automatic Mode: You can manually set the collection parameters, such as range or duration, or enable automatic mode based on fiber length and total loss, no need for tedious operation.
5. Accurate Testing: In full automatic mode, the OTDR can test 8x3 meters of fiber jumpers continuous events, accurately test fiber events and losses in short distances.
6. Continuous Observation: Real time mode allows for continuous observation of optical fibers, detecting any changes or faults in real time, particularly useful for maintenance and troubleshooting.
7. Dynamic Event Capturing: The fiber tester can catch dynamic events such as fiber bending, fusion splicing, and connector changes, allows for real time observation of the impact of these events on the signal without interrupting the measurement process.
8. Quick Problem Identification: For longer fiber segments, real time mode can display updated curves to help quickly identify problems. Once an abnormality is detected, technicians can immediately stop testing.
Specification:
Item Type: OTDR Optical Fiber Tester
Material: ABS
OTDR Module:
Model: KL 6100 D1
Wavelength (nm): 1550
Dynamic Range (dB): 24
Event Blind Spot (m): less than 1.5
Attenuation Blind Zone (m): less than 5
Number of Fiber Optic Interfaces: 1 FC UPC
Applicable Fiber: SM
Range (km): 0.5, 1, 2, 5, 10, 20, 35, 50, 75, 100, 150
Pulse Width (ns): 5, 10, 20, 50, 100, 200, 500, 1000, 2000, 10000, 20000
Sampling Points: more than 15000
Sampling Resolution: 0.04m
Distance Measurement Accuracy: + (1m + measurement distance x 2 x 10 5 + sampling resolution)
Loss Accuracy: + 0.03 dB dB
Reflection Accuracy: + 2 dB
OPM:
Wavelength: 800 1650nm
Measurement Range: 850, 1300, 1310, 1490, 1550, 1625, 1650
Measurement Accuracy: 70 6dBm
Display Resolution: <(+ 0.2dB or + 5percent )
Built in Fiber Optic Interface: 0.01dB
Power Meter Interface: FC UPC + 2.5mm universal connector
Wavelength (nm): 1550
SLS:
Output Power: more than 10dBm
Modulation Frequency: CW, 270Hz, 1kHz, 2kHz
Line Safety Level: Class 1M or Class 1
Built in Fiber Optic Interface: OTDR optical port
VFL:
Wavelength (nm): 650
Modulation Mode: CW, CHOP (2 Hz)
Line Safety Level: Class 3R
Fiber Optic Interface: 2.5mm universal connector, suitable for FC, SC, ST
Network Testing Module (Built in Function): Yes
RJ45:
Applicable Ethernet Cable: CAT5, CAT6
Wire Length: 300m
Maximum Sound Transfer Distance: 300m
General Parameters:
Link Diagram: Yes
Distance Unit: km
PC Analysis Software: Yes
Language: English, Chinese, Spanish, French, Portuguese, Russian, Thai, Korean
Fiber Optic Interface: FC UPC (SC UPC optional)
Display Screen: 4.3 inch color LCD display screen (resolution: 800x480)
Interface: Type C charging interface x 1, USB 2.0 x 1, RJ45 x 1
Working Temperature: 10 to 50 celsius (0 to 40 celsius to power supply, 0 to 35 celsius battery charging)
Storage Temperature: 20 to 60 celsius
Altitude: 4000 meters
Humidity: 0 to 90percent RH
Battery: Rechargeable lithium cell, 6000mAh x 1 (Built in), >22Wh
Light: Light strength more than 15000 mcd
Working Hours: 5 hours
Data Storage: Memory: more than 1000 test curve; External Storage: USB
Size (WxHxD): Approx. 179x112x48mm 7.05x4.41x1.89in.

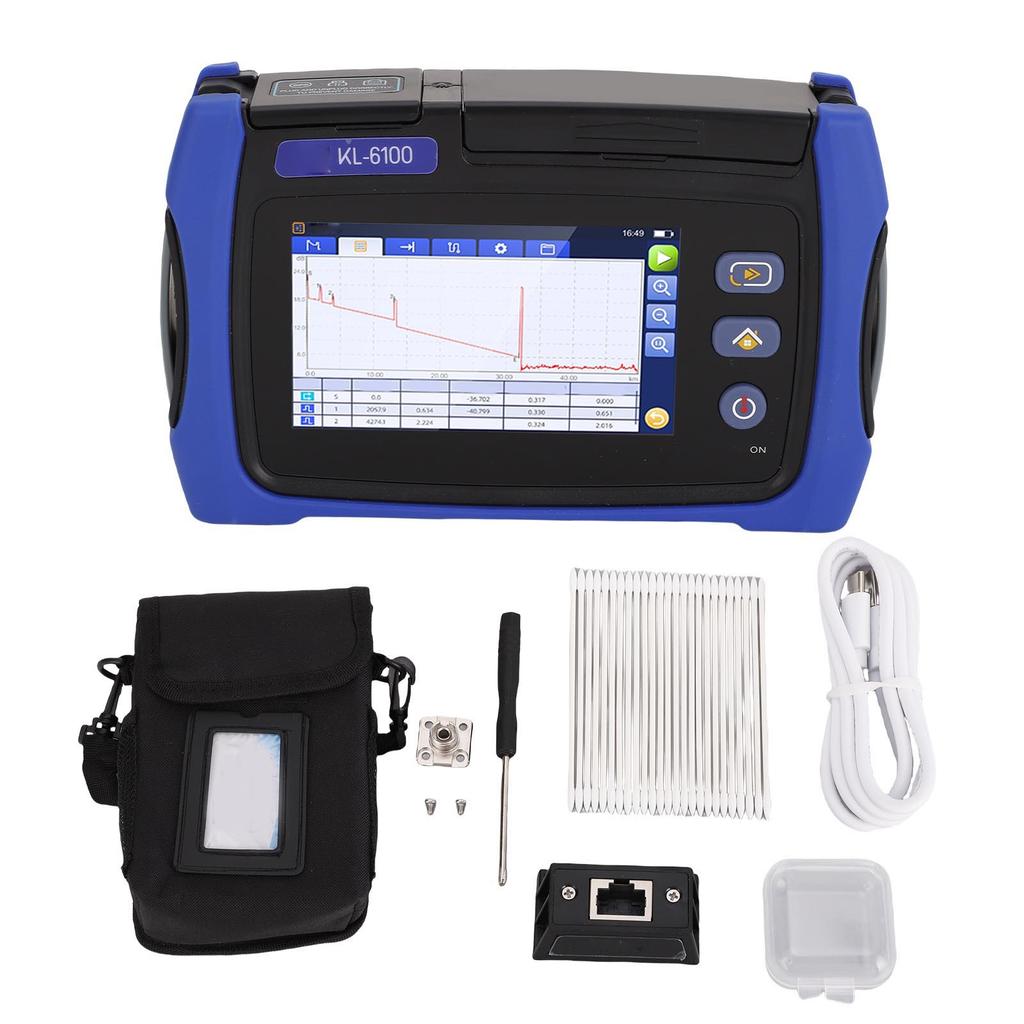

Package List:
1 x Carrying Bag1 x OTDR Host1 x Supply Cord1 x Interface Adapter1 Pack x Cotton Swab1 x Screwdriver1 x RJ45 Module2 x Screw1 x Small Storage Box
