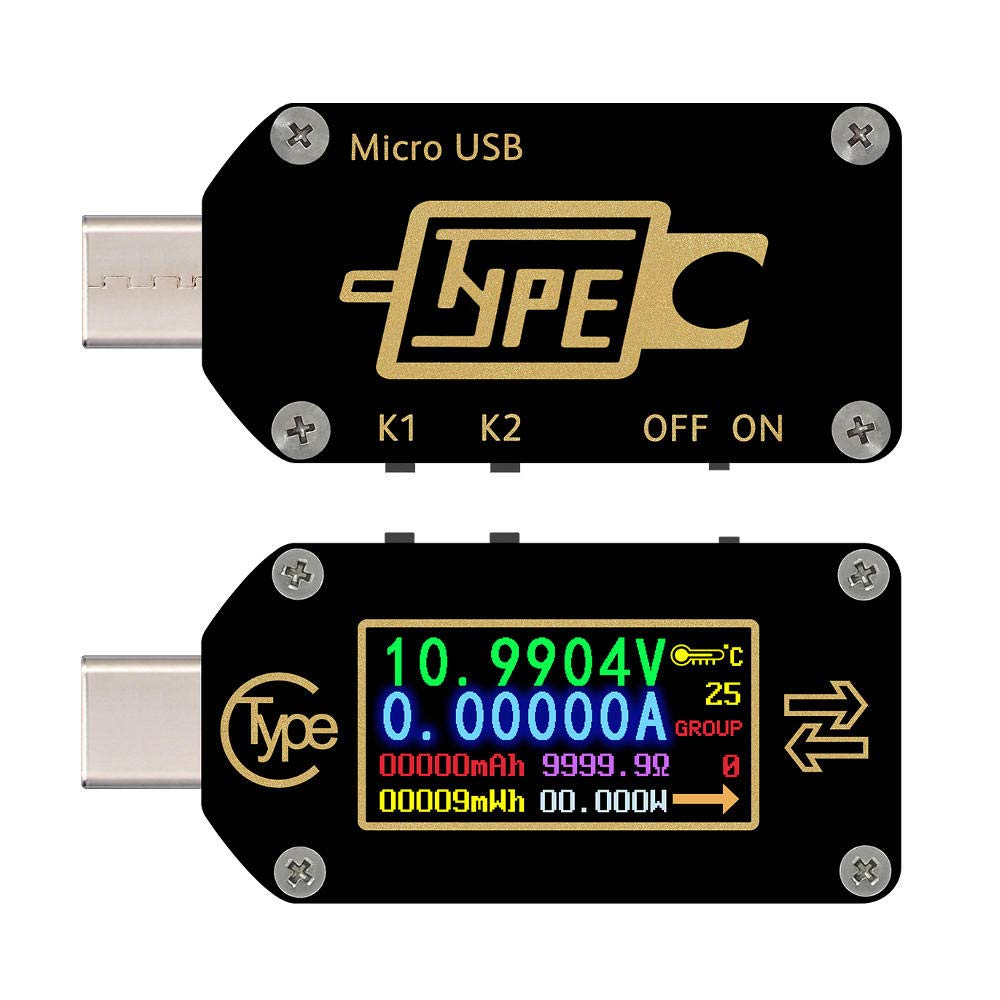

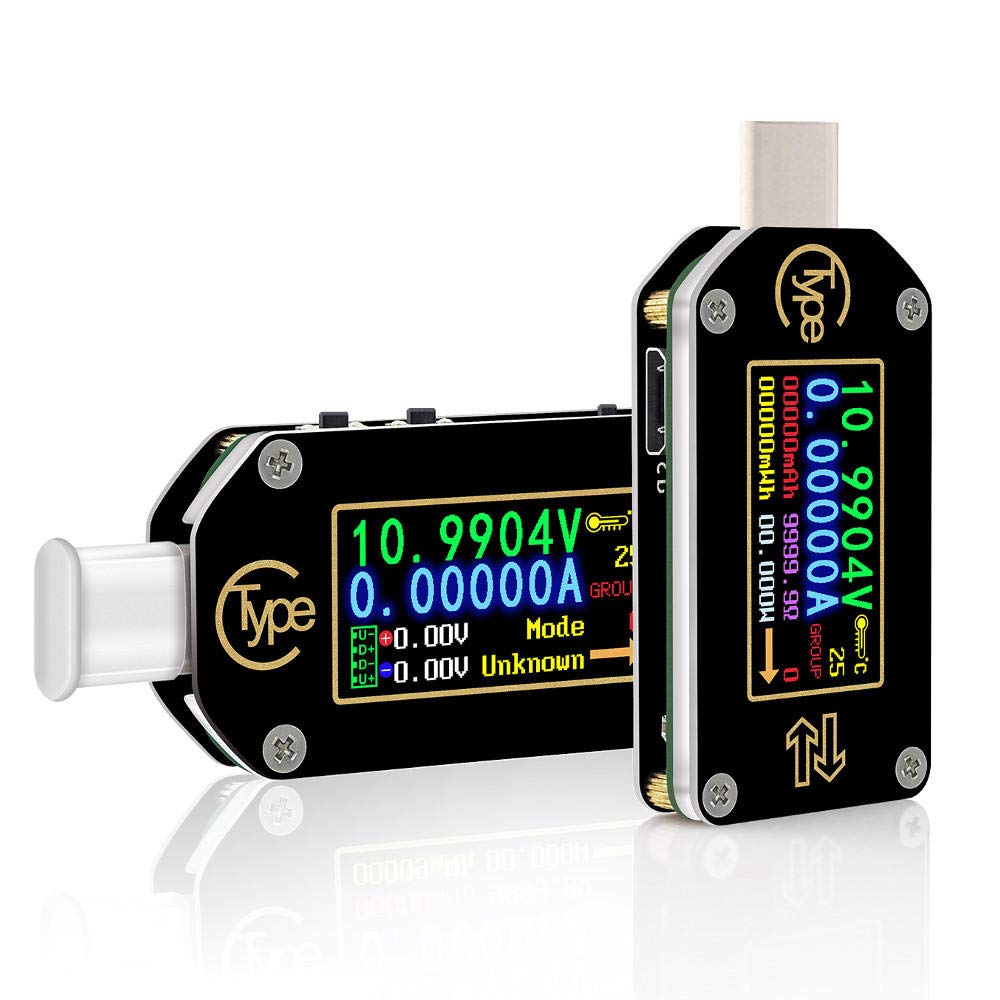

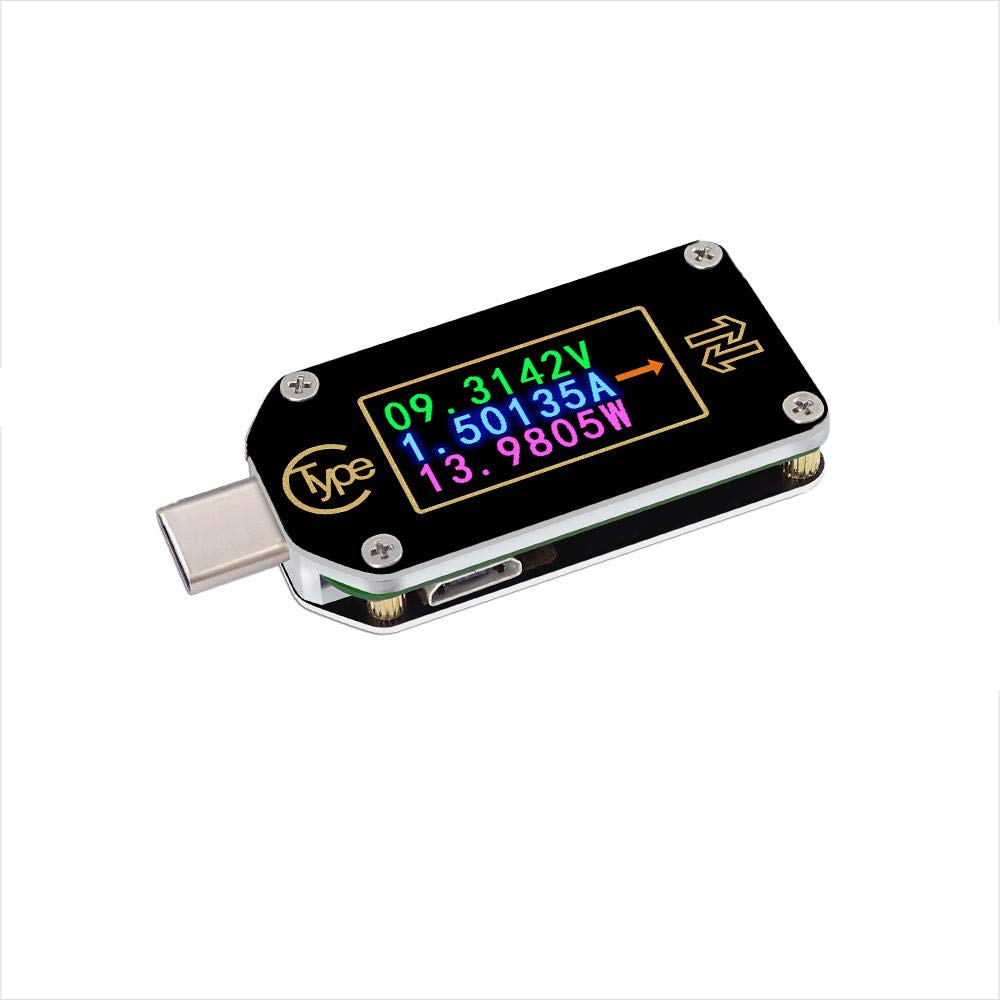

WINGONEER TC66C Bluetooth PD Trigger USB Meter Capacity Meter Measurement Charger APP PC USB Tester Type-C Voltage/Current 2-Way

―🔹―🔹―🔹―🔹―🔹―🔹―🔹―🔹―🔹―🔹―🔹―🔹― 🛫【Certified Store on JOOM】 A Japanese seller delivering high-quality products across borders! 📦【Shipped from Japan】 We pack carefully and deliver promptly and securely. 🔍【Strict Inspection Based on Japanese Quality Standards】 Only carefully selected products of excellent quality are delivered. 📒【Japanese Instruction Manual May Be Included】 We recommend using a text recognition app for translation. 🛍️【Some items may be based on international specifications】 Thank you for your kind understanding in advance. 👍【If you are satisfied with the product, please "Follow" our store and leave a review!】 Your support means a lot to us 💖 ―🔹―🔹―🔹―🔹―🔹―🔹―🔹―🔹―🔹―🔹―🔹―🔹― ⚠️【Attention! Please be sure to read before purchasing】⚠️ Does this product match the conditions below? Please check carefully before placing your order. 🔌【Voltage Compatibility】 This product is designed for use in Japan and operates on 90–110V. Using it with a different voltage may cause malfunction or damage. 🔌【Plug Type】 The plug type is Type A or Type B, which is standard in Japan. You may need a plug adapter for use in other countries. 💡【Important Notes on Transformers and Adapters】 🔻 A transformer adjusts the voltage to match your device's requirements. 🔻 A plug adapter only changes the plug shape and does not convert voltage. 👉 Using only a plug adapter without a transformer may damage the product. 🚫【Disclaimer】 We are not responsible for any damage or malfunction caused by improper use without a transformer. ―🔹―🔹―🔹―🔹―🔹―🔹―🔹―🔹―🔹―🔹―🔹―🔹―

The TC66C adopts a 0.96-inch LCD HD color IPS screen to display the appliance charging status in real time. Human-Computer Interaction Interface See indicators such as voltage, current, capacity, energy, power, equivalent impedance, and temperature at a glance. Supports bidirectional current measurement, forward and reverse current. 6-digit measurement resolution. Requires independent power supply, measurement from 0V, and detection of low-voltage equipment. Offline data storage function. One-key mode for firmware upgrade. Supports wireless connection control via mobile phone APP (Android + IOS) and PC software (TC66C only). Fast load recognition mode: QC2.0, QC3.0, APPLE 2.4A/2.1A/1A/0.5A, Android DCP. Version Description: TC66 (USB communication + hardware PD switch) / TC66C (USB Bluetooth communication + hardware PD switch) is a general version. Adding a PD hardware switch can disconnect the connection between the PD chip and the CC line. This improves compatibility with the load! Parameters: Screen display: 0.96-inch color IPS display Voltage measurement range: 0-30.0000 V Voltage measurement resolution: 0.0001 V (0.1 mV) Current measurement range: 0-5.00000 A Current measurement resolution: 0.00001 A (0.01 mA) Power supply voltage: 3.5-24 V Screen resolution: 160 x 80 Capacity accumulation range: 0-99999 mA Voltage measurement accuracy: ± (0.05 °C ± 10 digits below 23 °C) Energy accumulation range: 0-99999 mWh 999.99 Wh Current measurement accuracy: ± (0.1‰ + 20 digits below 23 °C) Load impedance range: 1 Ω to 9999.9 Ω Power measurement range: 0-150 W Temperature measurement range: 0 °C to 80 °C / 32 °F to 176 °F Refresh rate: 2 Hz Working temperature range: 0-45 °C / 32℉~113℉ Screen auto-off time: 0~9 minutes Dimensions: 49mm x 22mm x 8mm Product weight: Approx. 8g (package 22g) High-speed load recognition mode: QC2.0, QC3.0, APPLE 2.4A/2.1A/1A/DCP, 0.5A, Android SAMSUNG Panel Introduction A: K1 button, short press to switch values or enter submenus. It takes over the interface press function. B: K2 button, long press to enter or exit the menu, short press to notice the menu change. C: PWR button: Power button switch. When connected, it can use the system power supply. When turned off, it can use the isolated power supply. For high-precision low-voltage measurement, it can be switched to OUT and powered on using the micro port. D: PD button: It can disconnect the PD chip and CC line. Package Included: 1 x TC66C USB Multimeter with PD Button
