Features:
* brand new and high quality.
*Good performance: Features low spatter tendency.
*Made of good quality stainless steel, which is resistant to rust and.
*Wide application: Used for welding-resistant 0Cr19Ni9 and 0Cr19Ni11Ti, 201,202, for 301,302,304-resistant stainless steel structure working temperature below 300℃.
*Use: Suitable for AC and DC.
Tips:
*The welding electrodes of 1.0mm and 1.2mm have strict requirements on the current of the welding machine and need to be debugged slowly. Welding of thin plates is not recommended for novices and those who are new to welding, especially under a millimeter. The welding electrodes of 1.0mm and 1.2mm are too thin when welding. It will swing back and forth. Customers with rich welding experience can choose a welding electrode of 1.4mm if they want to weld a thin plate of about 0.5 mm. Please take a look at the current range of the electrode current before ordering to avoid unnecessary trouble for both parties.
*The electrode before welding shall be baked at 300-350℃ for 1 h.
*Use DC power as much as possible, and the current should not be too large.
Specifications:
*Standard: GB/ T983 E308-16 A5.4 E308-16
Diameter 1.0mm length 250mm current 9-22A

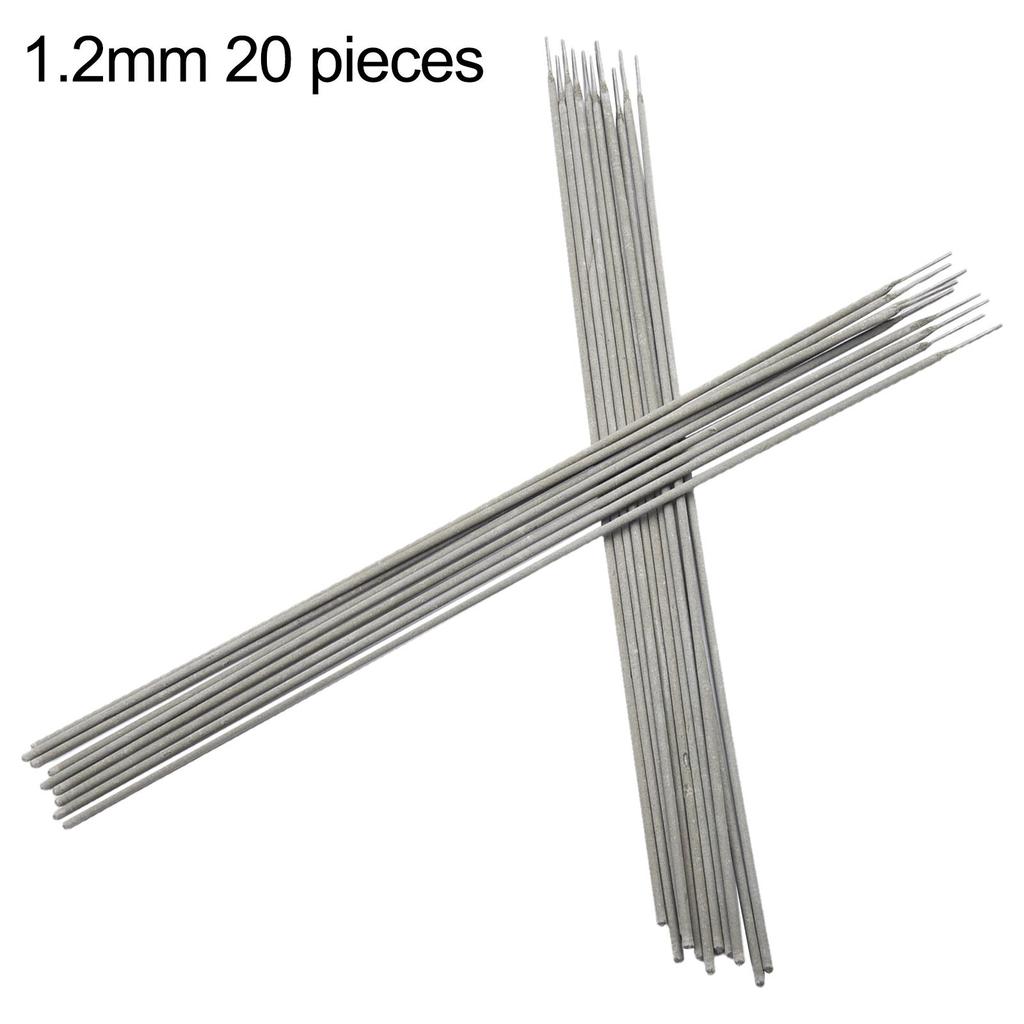

Diameter 1.2mm length 250mm current 13-32A
Diameter 1.4mm length 250mm current 16-40A
Diameter 1.6mm length 250mm current 18-50A
Diameter 1.8mm length 250mm current 20-55A
Diameter: 2.0mm Length 250-300mm Current: 25-70A
Diameter: 2.5mm Length 300-350mm Current: 50-90A
Diameter: 3.2mm Length 300-350mm Current: 70-120A
Diameter: 4.0mm Length 350mm Current: 90-150A
*Quantity:20pcs
Package Contents:
20*Welding rod
Notes:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
