Fluke Digital Multimeter (Official Japanese Product) 115

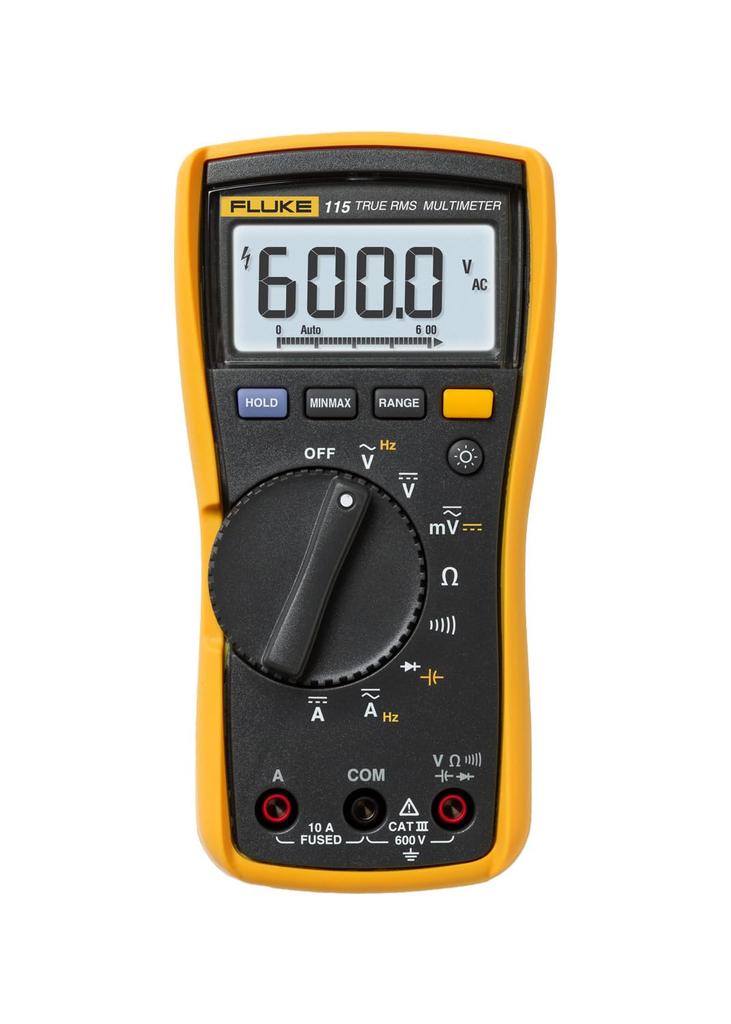

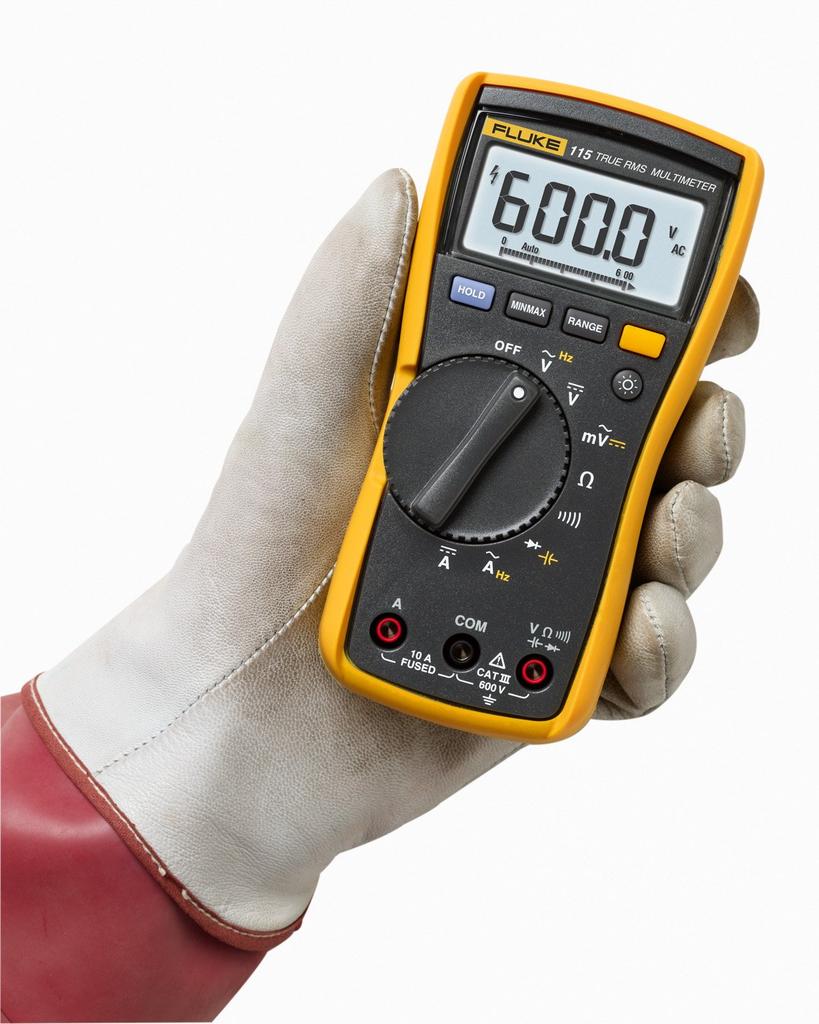

Designed by electricians. Engineered by Fluke. The Fluke 115 true-rms digital multimeter delivers superior performance for general-purpose electrical and electronic testing requirements. Its simple operation, compact design, and ease of use make it ideal for quick verification and field service applications.

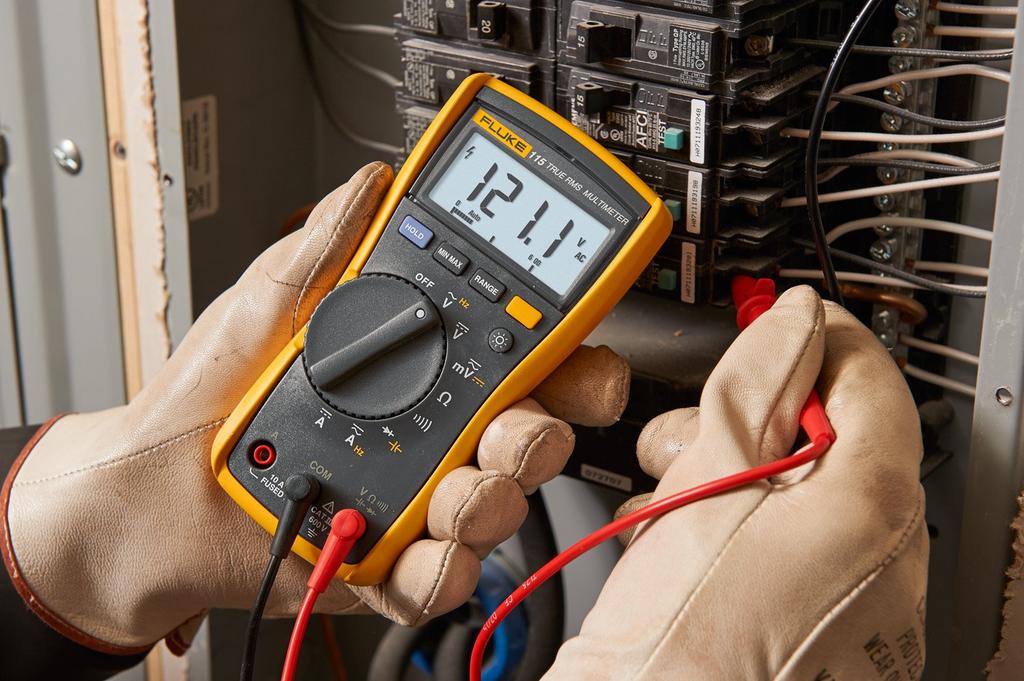

The Fluke 115 displays true-rms voltage and current readings with 6,000 count resolution to test diodes, frequency, continuity, and capacitance, and displays minimum, maximum, and average readings to record signal fluctuations. A large white LED backlight helps you work in low light. An easy-to-open battery compartment door simplifies battery changes.

The Fluke 115 multimeter has been independently tested for safe use in CAT III 600V environments.

□ Key Features □ - Large white LED backlight allows for operation in dim light - Resistance and continuity measurements - Frequency and capacitance measurements - 10A AC/DC current measurement (20A overload for up to 30 seconds) - Records minimum, maximum, and average signal fluctuations - CAT III 600V safety rating

□ Specifications □ [Maximum Voltage Between Any Terminal and Ground] 600V [Surge Protection] IEC 61010-1 600V CAT III, 6kV peak at Pollution Degree 2 [Display] Digital: 6,000 counts, updated 4 times per second [Bar Graph] 33 segments, updated 32 times per second [Operating Temperature] -10°C to +50°C [Storage Temperature] -40°C to +60°C [Battery Type] 9V Alkaline (NEDA 1604A/IEC 6LR61) Battery Life: Typical 400 hours without backlight.

Accuracy Specifications DC Millivolts: Range: 600.0 mV | Resolution: 0.1 mV | Accuracy: ± (% of reading + counts): 0.5% + 2 DC Voltage: Range/Resolution: 6.000 V/0.001 V Range/Resolution: 60.00 V/0.01 V Range/Resolution: 600.00 V/0.1 V Accuracy: ± (% of reading + counts): 0.5% + 2 AC Millivolts (True-rms): Range: 600.0 mV Resolution: 0.1 mV Accuracy: 1.0% + 3 (DC, 45Hz to 500Hz), 2.0% + 3 (500Hz to 1kHz) [AC Volts True-rms] *1

Range/Resolution: 6.000 V/0.001 V

Range/Resolution: 60.00 V/0.01 V

Range/Resolution: 600.0 V/0.1 V

Accuracy: 1.0% + 3 (DC, 45 Hz to 500 Hz) | 2.0% + 3 (500 Hz to 1 kHz) [Continuity]

Range: 600Ω

Resolution: 1Ω

Accuracy: Off at 250Ω. Detects opens or shorts for 500μs or longer. [Resistance] _Range/Resolution: 600.0Ω/0.1Ω | Accuracy: 0.9% + 2 _Range/Resolution: 6.000kΩ/0.001kΩ _Range/Resolution: 60.00kΩ/0.01kΩ _Range/Resolution: 600.0kΩ/0.1kΩ _Range/Resolution: | 6.000MΩ/0.001MΩ | Accuracy: 0.9% + 1 _Range/Resolution: 40.00MΩ/0.01MΩ | Accuracy: 5% + 2 [Diode Test] _Range/Resolution: 2.00V/0.001V _Accuracy: 0.9% + 2 [Capacitance] _Range/Resolution: 1000nF/1nF _Range/Resolution: 10.00μF/0.01μF _Range/Resolution: 100.0μF/0.1μF _Range/Resolution: 9999μF/1μF _Range/Resolution: 100μF to 1000μF _Accuracy: 1.9% + 2 _Range/Resolution: > 1000μF _Accuracy: 5% + 20% [LoZ Capacitance] _Range: 1nF to 500μF _Accuracy: 10% + 2 typically [AC Current (Amperes) True RMS (45 to 500Hz)] _Range/Resolution: 6.000A/0.001A _Range/Resolution: 10.00A/0.01A _Accuracy: 1.5% + 3 _Continuous overload 20A up to 30 Up to 2 seconds [DC Current] _Range/Resolution: 6.000A/0.001A _Range/Resolution: 10.00A/0.01A _Accuracy: 1.0% + 3 _Continuous overload of 20A for up to 30 seconds [Hz (Voltage or Current Input)] *2 _Range/Resolution: 99.99Hz/0.01Hz _Range/Resolution: 999.9Hz/0.1Hz _Range/Resolution: 9.999kHz/0.001Hz _Range/Resolution: 50.00kHz/0.01Hz _Accuracy: 0.1% + 2

*1) All AC voltage ranges except Auto V/LoZ are specified from 1 to 100% of the range. Auto V/LoZ is specified from 0.0V. *2) Frequency is AC coupled (AC voltage, 5 to 50 kHz). Frequency is DC coupled (AC current, 45 to 5 kHz).

□ Mechanical/General Specifications□ [Size] 167 x 84 x 46 mm [Weight] 550 g [Warranty] 3 years The Fluke 115 True-RMS Digital Multimeter delivers superior performance for general-purpose electrical and electronic testing requirements. Its simple operation, compact design, and ease of use make it ideal for quick verification and field service applications. The Fluke 115 displays true-rms readings for voltage and current with 6,000 count resolution, tests diodes, frequency, continuity, and capacitance, and displays minimum, maximum, and average readings to record signal fluctuations. Large Color: Yellow Type: Single Unit
