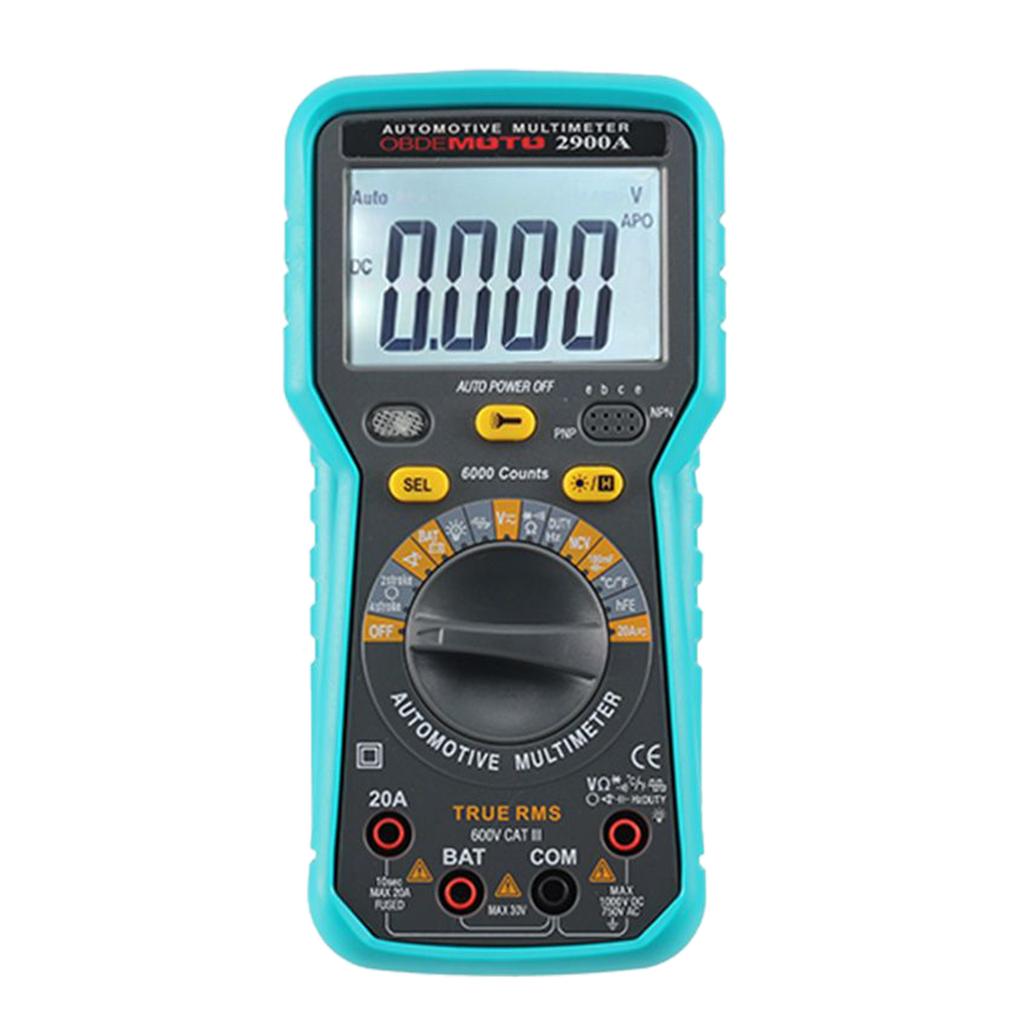

6000 Count LCD Digital Automotive Multimeter True RMS Universal Tester with Flashlight

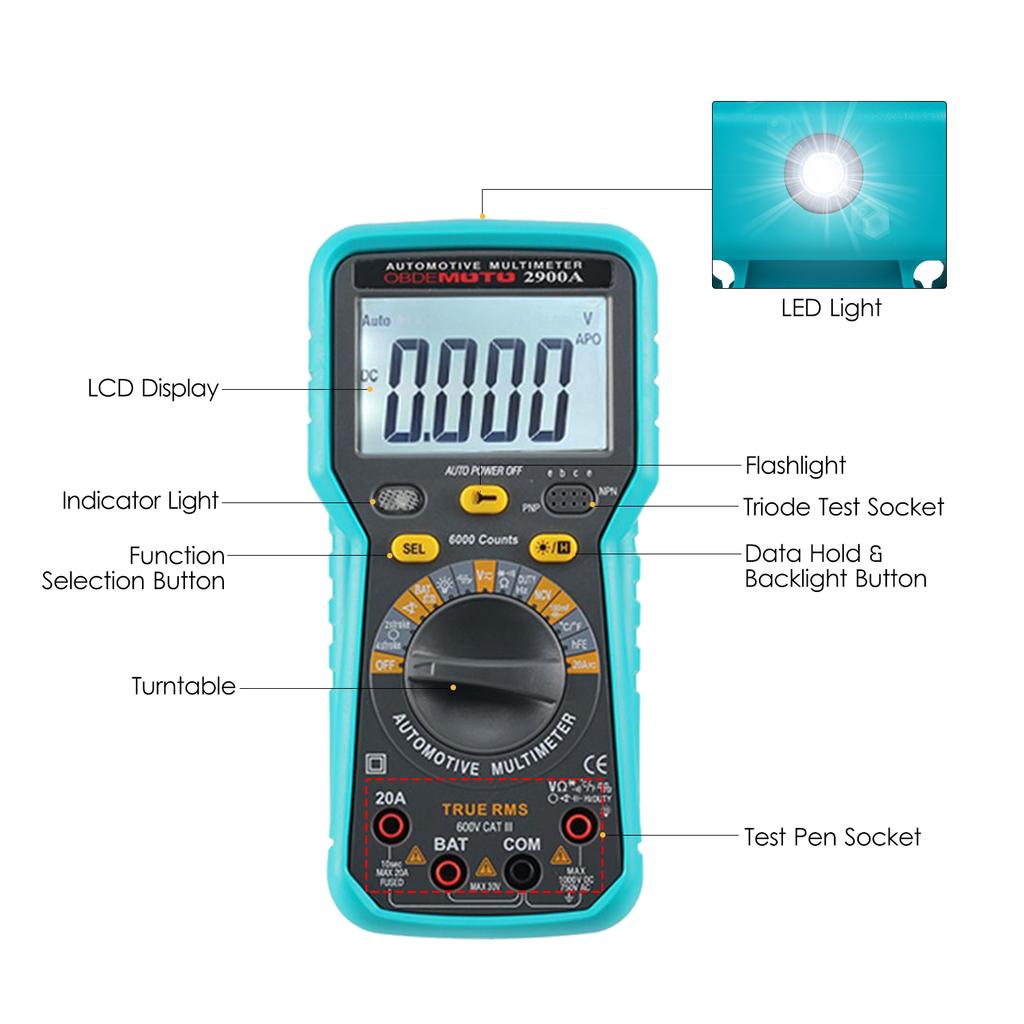

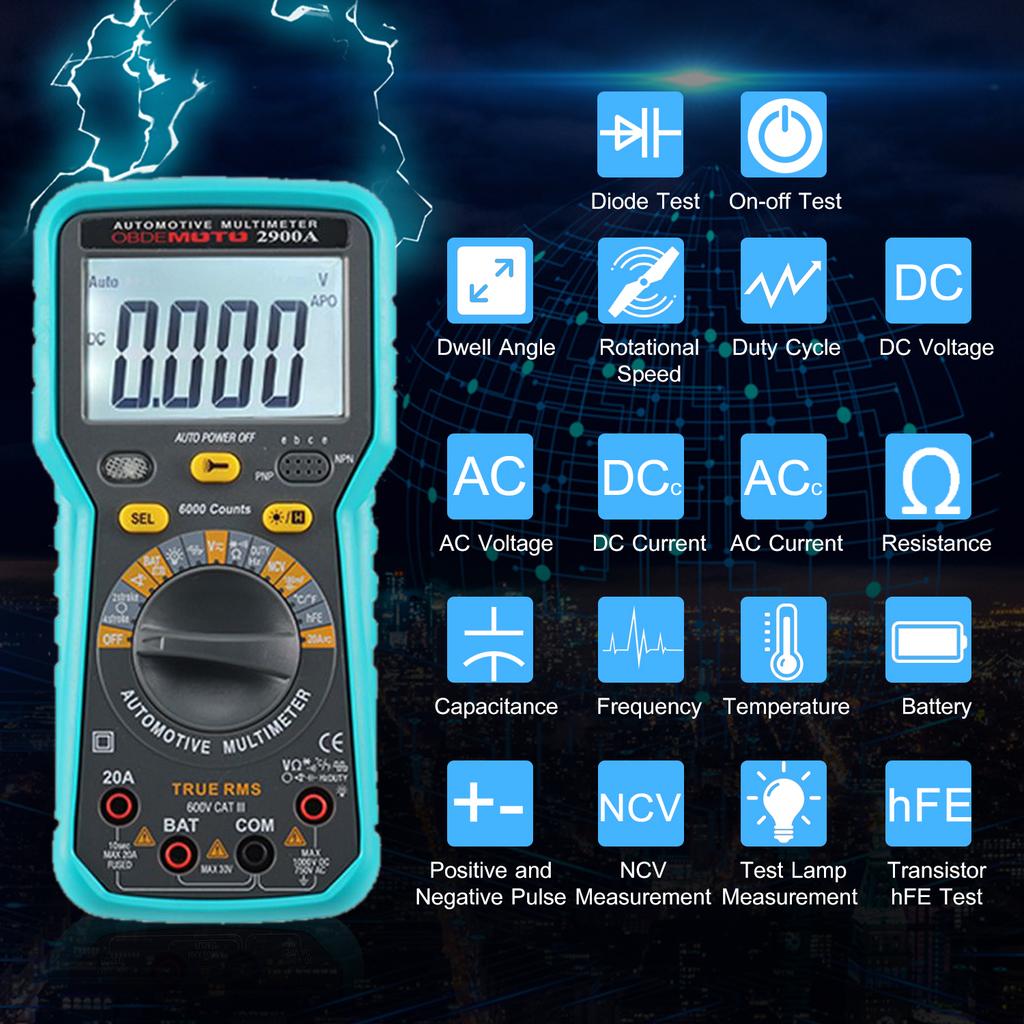

Feature: 1. Multiple Measurement Functions: includes the measurement of dwell angle, rotational speed, duty cycle, DC AC voltage, DC AC current, resistance, capacitance, frequency, temperature, battery, positive and negative pulse, NCV measurement and test lamp measurement, and transistor hFE test, diode test, and on off test. 2. Data Hold Function: locking the measured data for conveniently read and record. 3. More Features: low battery indicator, 15 minutes auto off function, probe pen slot designed and supporting bracket. 4. LCD Display with Backlight Function: 6000 counts clearly full symbol LCD displayed, manual on off the backlight of the multimeter for easily check the readout in the dark environment. 5. Equipped with Protective Cover: in addition to the conservation of the tester, but also can support the tester from multiple angles, convenient for observation. 6. Practical \u0026 Functional Tester: tester uses the latest software and technology, features of automatic calibration, high precision, and good stability, which can be widely used in the testing and maintenance on the vehicle. Specification: The 6000 counts digital automotive multimeter is well designed with convenient operation, accurate reading, true RMS, clear full symbol LCD display and complete functions. It can measure DC AC voltage, DC AC current, resistance, capacitance, frequency, temperature, speed, closing angle, lamp test, positive and negative pulse, crystal diode, triode parameters and circuit on and off, which is very suitable for vehicle maintenance and debugging. Features: Multiple Measurement Functions: includes the measurement of dwell angle, rotational speed, duty cycle, DC AC voltage, DC AC current, resistance, capacitance, frequency, temperature, battery, positive and negative pulse, NCV measurement and test lamp measurement, and transistor hFE test, diode test, and on off test. Data Hold Function: locking the measured data for conveniently read and record. More Features: low battery indicator, 15 minutes auto off function, probe pen slot designed and supporting bracket. LCD Display with Backlight Function: 6000 counts clearly full symbol LCD displayed, manual on off the backlight of the multimeter for easily check the readout in the dark environment. Equipped with Protective Cover: in addition to the conservation of the tester, but also can support the tester from multiple angles, convenient for observation. Practical & Functional Tester: tester uses the latest software and technology, features of automatic calibration, high precision, and good stability, which can be widely used in the testing and maintenance on the vehicle. Specifications: Material: ABS Maximum Display: 5,999 (6,000 display) Dwell Angle Measurement Range: 1CYL: 0 180 degrees , 4CYL: 0 90 degrees , 6CYL: 0 60 degrees , 8CYL: 0 45 degrees Accuracy: + (1.2percent +2) Rotational Speed Measurement Range: 500 15000rpm Rotational Speed Accuracy: + (1.2percent +2) Duty Cycle Measurement Range: 0 100percent Duty Cycle Accuracy: + (1.2percent +2) DC Voltage: 6V 60V 600V+ (0.5percent +3), 1000V+ (0.8percent +3) AC Voltage(TRMS): 6V 60V 600V+ (0.8percent +3), 750V+ (1.2percent +3) DC Current: 6mA 60mA 600mA+ (1.2percent +3), 20A+ (2.0percent +5) AC Current(TRMS): 6mA 60mA 600mA+ (1.2percent +3), 20A+ (2percent +5) Resistance: 600 Ohm + (0.8percent +3), 6K Ohm 60K Ohm 600K Ohm 6M Ohm + (0.8percent +2),60M Ohm + (1.0percent +5) Capacitance: 6nF 60nF+ (5percent +3), 600nF 6uF 60uF 600uF+ (3percent +3), 6mF 60mF 100mF+ (5percent +3) Temperature:

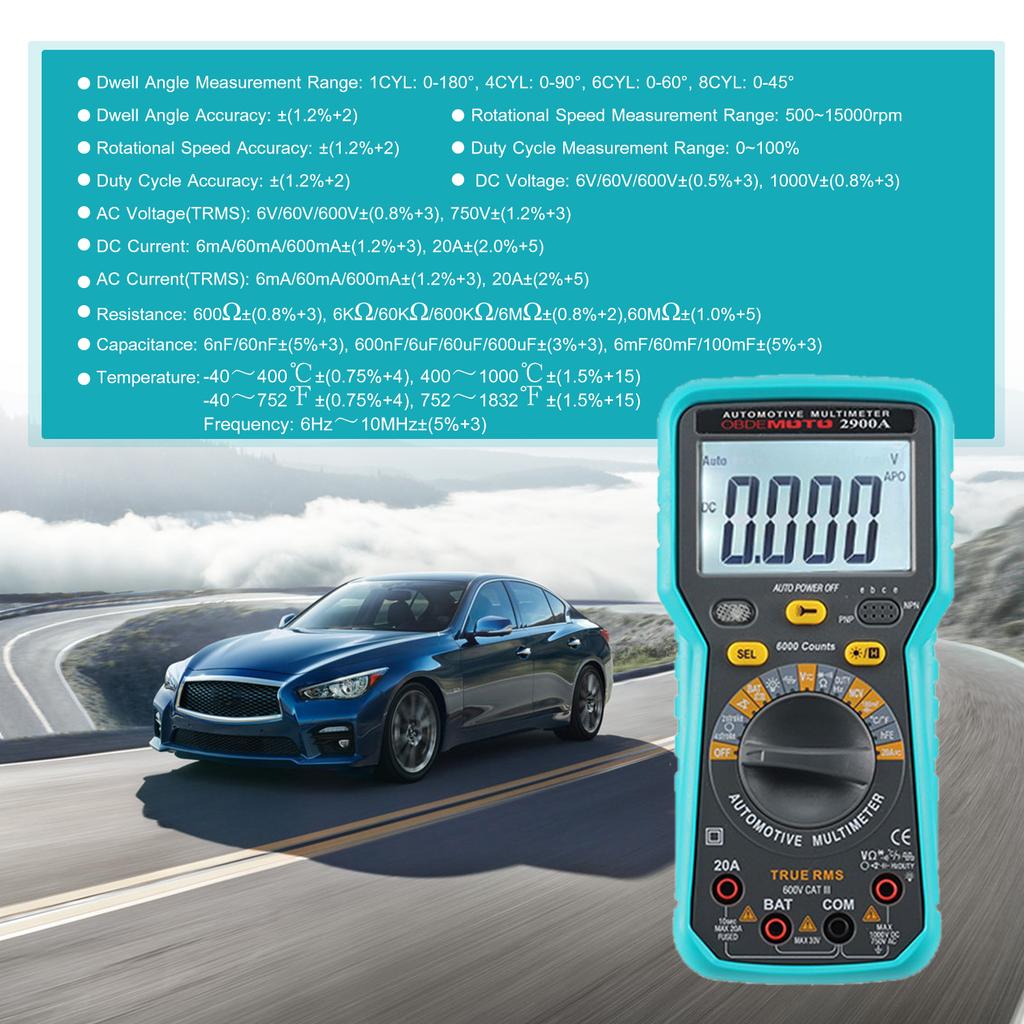

40 400 celsius + (0.75percent +4), 400 1000 celsius + (1.5percent +15)

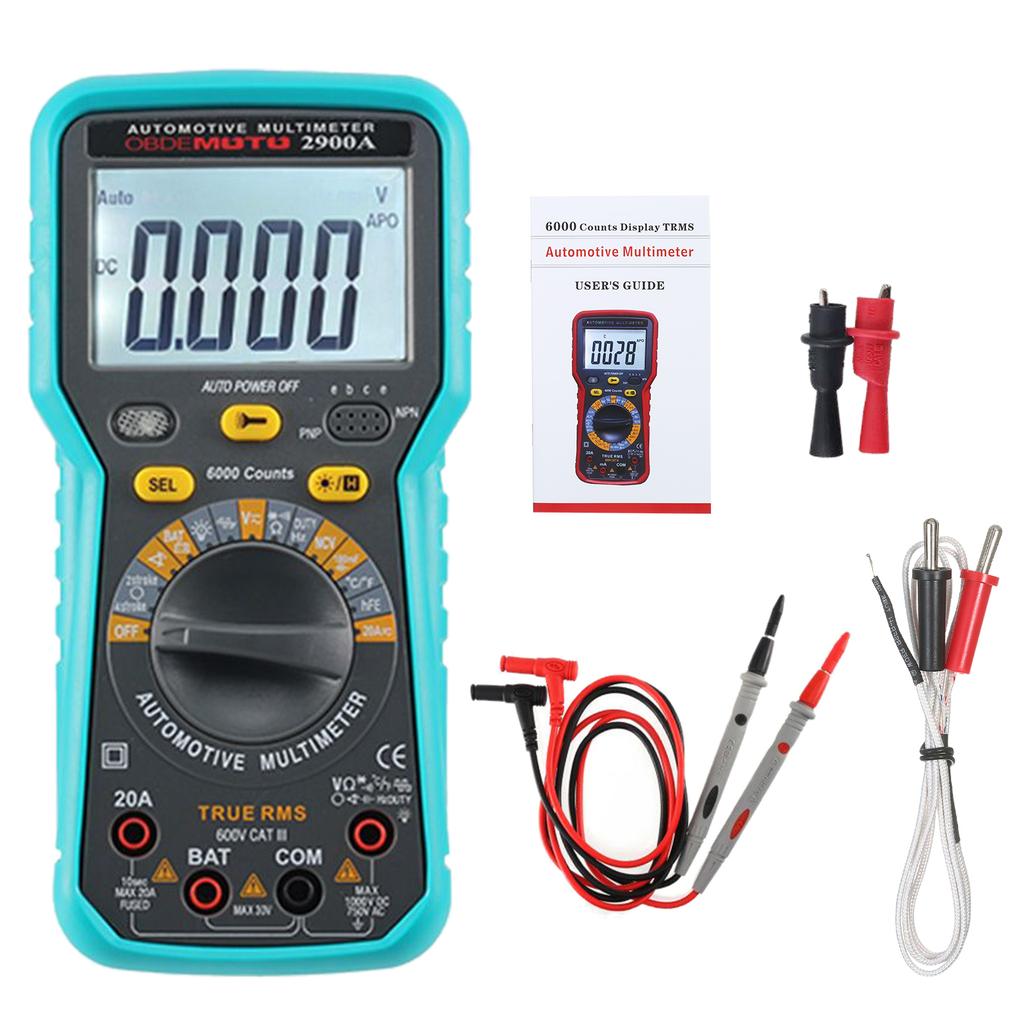

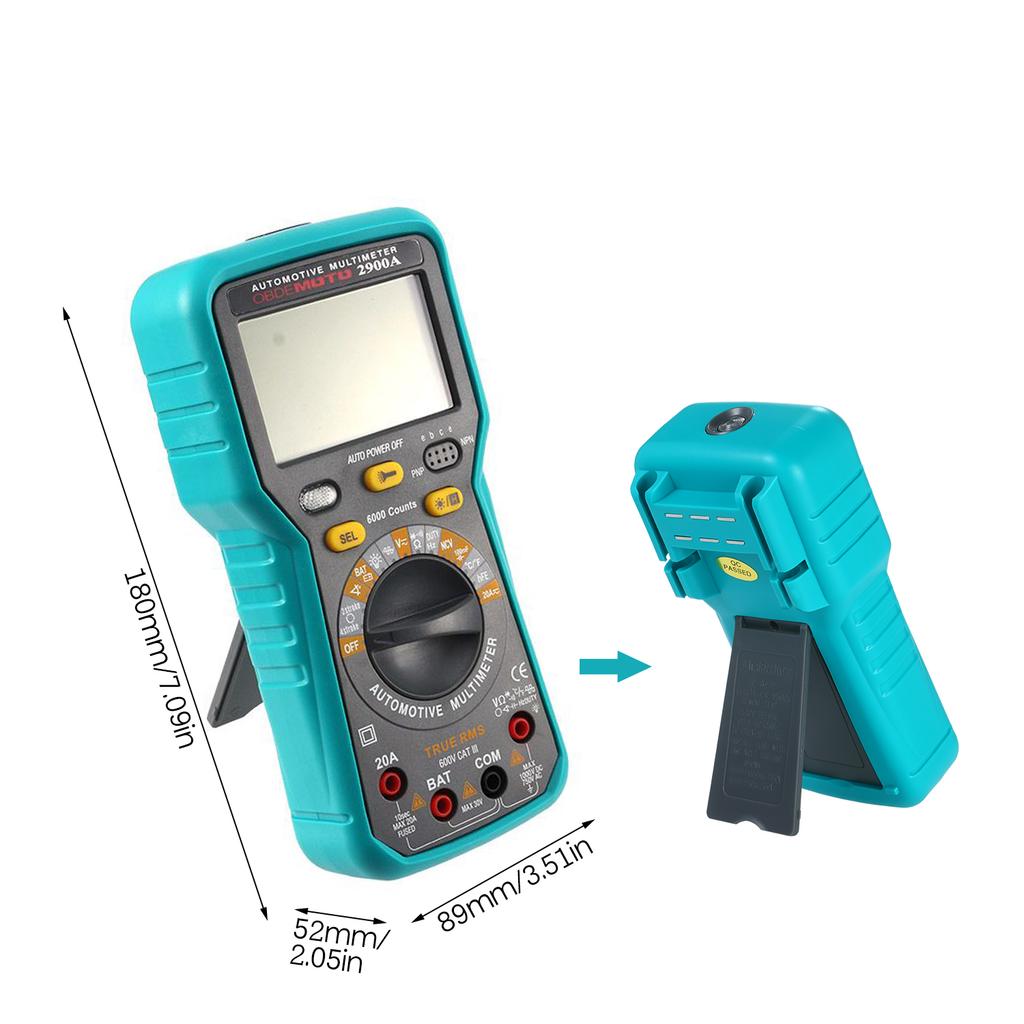

40 752 Fahrenheit + (0.75percent +4), 752 1832 Fahrenheit + (1.5percent +15) Frequency: 6Hz 10MHz+ (5percent +3) Auto Power off: 15 minutes Diode Test: Yes hFE Test: Yes Continuity Testing: Yes Backlight: Yes Data Hold: Yes Range Select: Yes Over Range Indication: Yes Full Symbol Display: Yes Full Automatic: Yes RPM: 2 strokes, 4 strokes, the same function as MST 1000 True RMS: Yes Flashlight: Yes Working Environment: 0 40 celsius , <85percent RH Storage Environment: 10 50 celsius , <85percent RH Guaranteed Accuracy Environment: 23 celsius + 5 celsius , <75 Power Supply: 1 * 9V 6F22 battery (NOT included) LCD Size: 63 * 40mm Item Size: 180 * 89 * 52mm 7.09 * 3.51 * 2.05in Item Weight: 306g 10.79oz Package Weight: 518g 18.27oz Package Size: 21 * 15 * 5.5cm 8.27 * 5.91 * 2.16in Packing List: 1 * Digital Multimeter 2 * Test with Clip 1 * Simple K type Thermocouple 1 * Ignition Probe 1 * Manual (English) Package List: 1 * Digital Multimeter 2 * Test with Clip 1 * Simple K type Thermocouple 1 * Ignition Probe 1 * Manual (English)
