【Voltage Compatibility】
When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.
【Plug Type】
Our products use Japanese plug types (A or B type).
Please use a conversion adapter if necessary.
【Important Note on Transformers and Adapters】
A transformer adjusts voltage to match your device’s requirements.
A conversion adapter only changes the plug shape and does not adjust voltage.
Using only a conversion adapter without a transformer may result in damage to the product.
【Liability】
We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer.
----------------------------------------------------------------------
Including the headband, it weighs just 72.5g, making it the lightest Fenix headlamp.
It has a maximum output of 500 lumens and a maximum illumination distance of 125 meters, which is approximately twice the reach of the previous model.

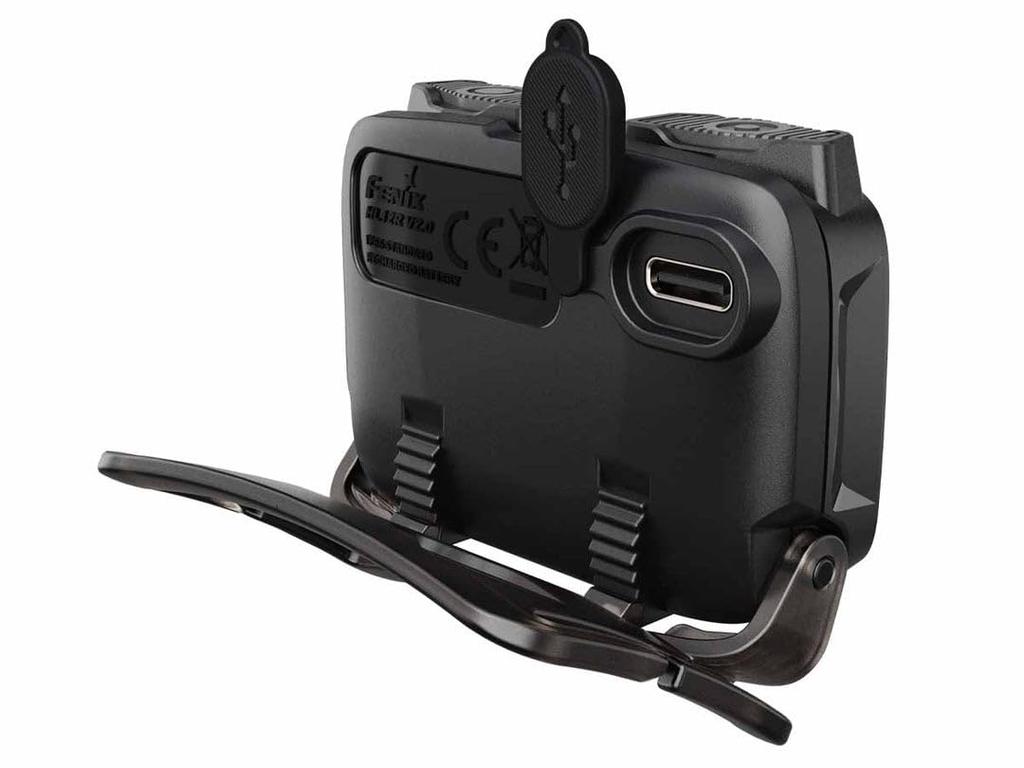

Supports USB Type-C charging, allowing for easy recharging anywhere.
The thick headband provides a comfortable fit even when used for long periods of time, and the dust and water resistance is IP66 rated, so it can withstand sudden rain.
With six lighting modes, including white and red, this lightweight headlamp is perfect for beginners to hiking, running, and other outdoor activities.
is built-in and cannot be removed.

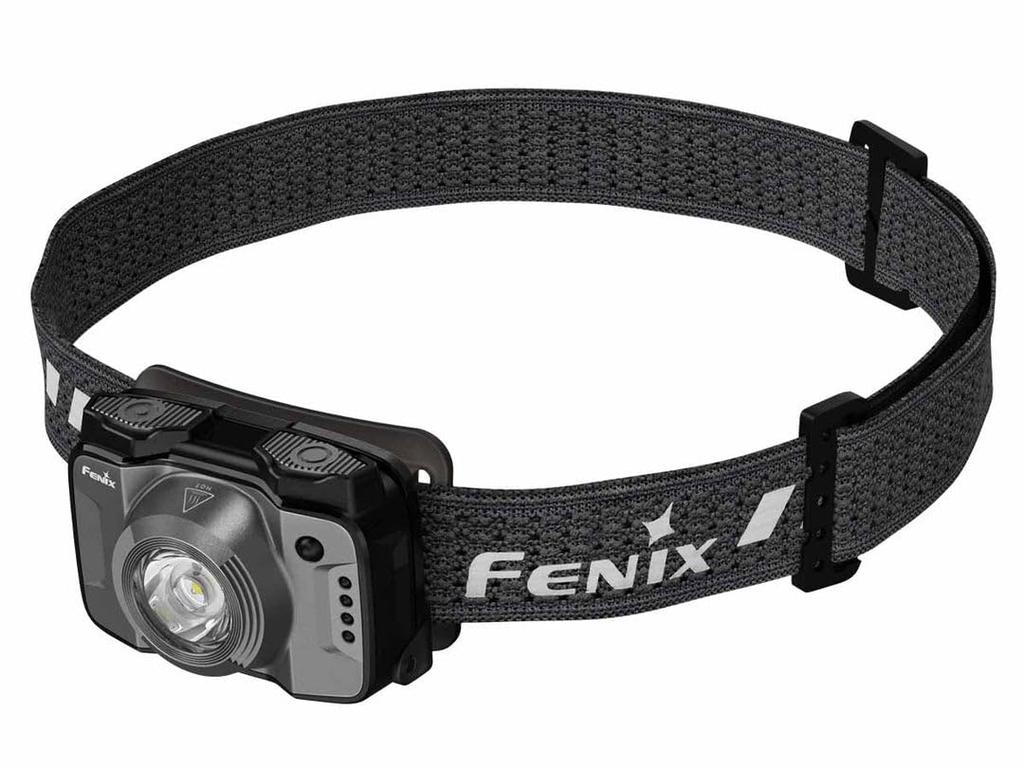

The Fenix HL12R V2.0 is a rechargeable headlamp designed for users who need lightweight, reliable lighting. It weighs just 72.5g including the headband, making it the lightest Fenix headlamp ever. It boasts a maximum 500 lumens and a maximum beam distance of 125 meters, nearly double the reach of its predecessor. USB Type-C charging allows for convenient recharging on the go. The thick headband provides a comfortable fit even during extended use, and its IP66-rated dust and water resistance means it can withstand sudden rain showers. With six lighting modes, including white and red, this lightweight headlamp is ideal for hiking, running, and beginners alike.
■Specifications
Maximum luminous flux: 500 lumens
Maximum beam distance: 125 meters
Maximum burn time: 112 hours
Lighting modes: White light (4 levels), red light, red flashing
LED Type: 1x Luminus SST20 white LED, 1x 2835 red LED
Lens material: Polycarbonate
Color temperature: about 6000-6500K
Size: 56mm wide x 40mm high x 31.9mm deep
Weight: Approx. 72.5g (including headband)
: Built-in 950mAh rechargeable
Accessories: USB Type-C charging cable
Warranty: Limited Lifetime Warranty by Fenix Lighting USA
■Other features
- Equipped with two types of LEDs: white and red (lifespan 50,000 hours)
- Red light is best for reading and preserving night vision

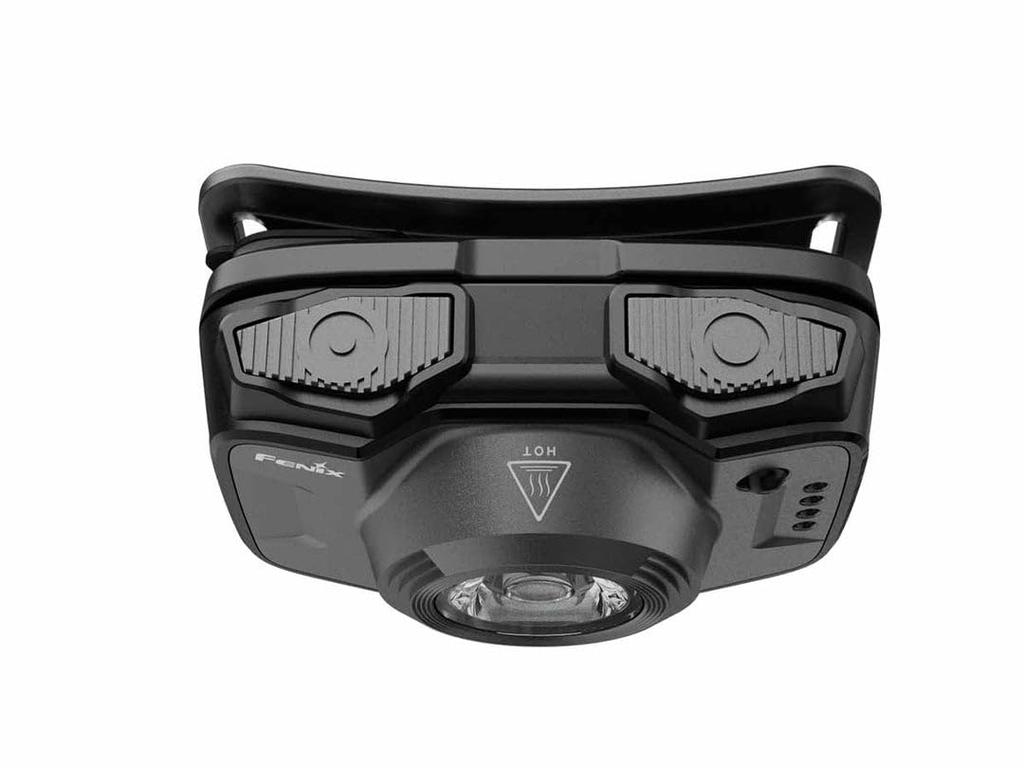

-Dual top switches allow for intuitive operation
- Comes with an electronic lock function to prevent accidental lighting
- Supports fast charging via USB Type-C port
The front case is made of high-quality aluminum alloy for excellent durability and heat dissipation.
Q1: What LED is used in the HL12R V2.0? Does Fenix offer LED replacement service?
The HL12R V2.0 uses one Luminus SST20 white LED and one 2835 red LED, each with a lifespan of 50,000 hours. At this time, Fenix does not offer an LED replacement service, and replacing the LEDs yourself is not recommended as it may adversely affect product performance and may even damage the product.
Q2: What is the operating voltage of the HL12R V2.0?
→ The operating voltage is 2.8 to 4.5V. The restricted operating voltage range is 2.8 to 6.0V.
Q3: What is the color temperature of the HL12R V2.0?
→ 6000 to 6500K.
Q4: Is the HL12R V2.0 rechargeable? How long does it take to charge?
→ Yes. The HL12R V2.0's built-in 950mAh battery can be charged via a USB Type-C charging port. While charging, the charging status is displayed by a flashing indicator. Normally, it takes about 2.5 hours to fully charge from a completely discharged state when using a 5V/1A or higher charging adapter.
Q5: Can the HL12R V2.0 be used in bad weather such as rain or sandstorms?
→ The HL12R V2.0 is IP66 rated for protection, making it suitable for use in all weather conditions. It can withstand heavy rain and splashes of water, and is fully protected from dust and foreign objects.
Q6: Why is the HL12R V2.0 and its indicator flashing?
→ If the battery is low, the light or indicator may flash or may not light up. Please charge the battery. If this does not resolve the issue, please contact your dealer.
Q7: Why does the HL12R V2.0 output power decrease after a period of use and the high power mode becomes unavailable?
→ When the voltage level drops below a predetermined value, the headlamp is programmed to automatically downshift to a lower brightness. When the lowest power is reached, the indicator will flash to remind users to charge the headlamp in time.
Q8: How can I prevent the HL12R V2.0 from malfunctioning?
→ Press and hold both switches simultaneously for 3 seconds to lock or unlock the headlamp and prevent accidental activation.
