Battery Included : No
High-concerned chemical : None
Type : Household Battery Tester
DIY Supplies : Electrical
Origin : Mainland China

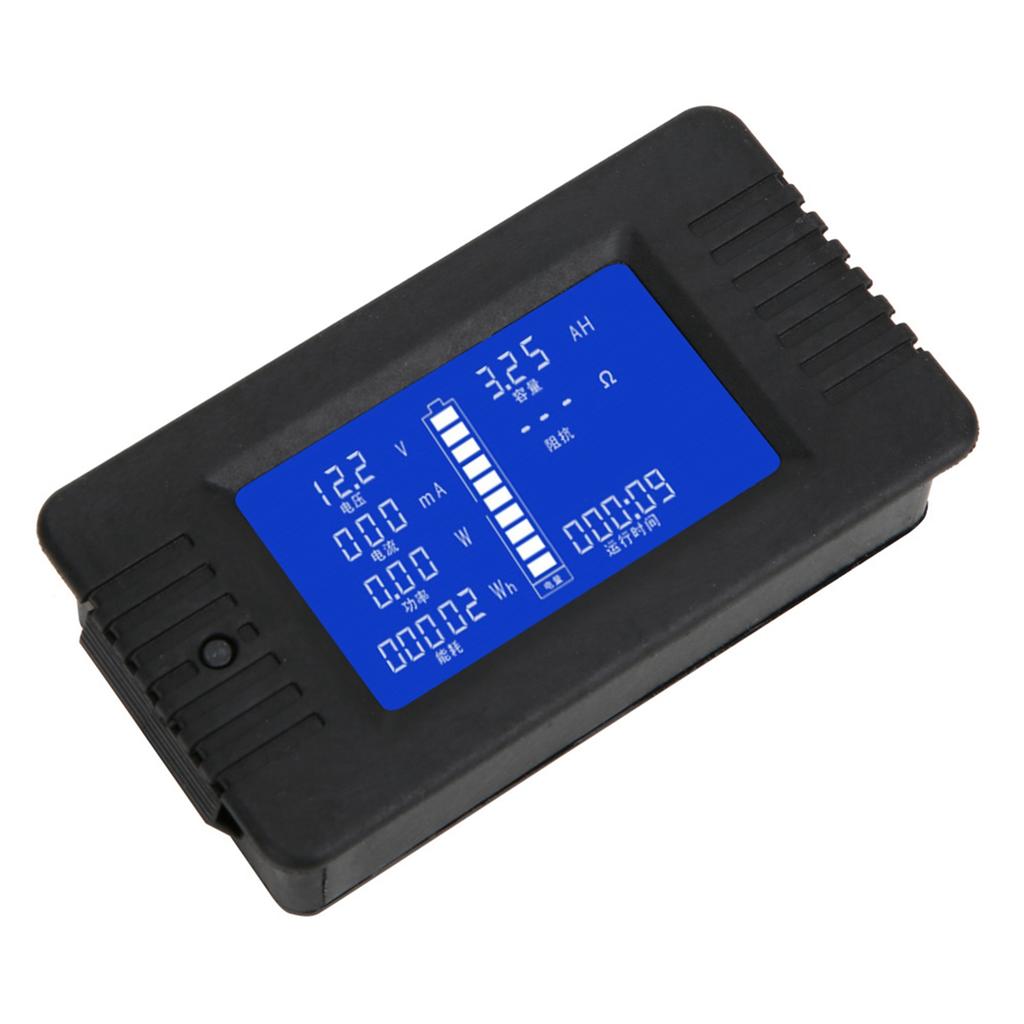

PZEM‑015 Multifunctional Battery Meter Current Voltage Power Energy Capacity Impedance Tester
Feature:
1. The battery tester is mainly used to measure the voltage, discharge current, discharge power, discharge impedance, capacity, remaining power, energy consumption, and running time of various types of batteries, and display measurement data through the LCD.
2. High accurate chip control, good electronics, safe and reliable soldering process.
3. The shell is made of high-strength material, which is elastic and not easy to break.
4. The LCD screen gives you a better visual experience and easier reading.
5. 9 sets of measurement parameters can be displayed simultaneously, and various parameters are clearly visible.
Specification:
Item Type: Multifunctional Battery Meter
1. Voltage:
Measuring Range: 0-200V (Display Format: Minimum Resolution: 0.01V
Starting Voltage: 0.05V
Measurement Accuracy: 1%
2. Current:
Measuring Range: 0-300A,
Display Format: 3. Power:
Measuring Range: 0-60000W
Display Format: Minimum Resolution: 0.01W
Starting Power: 0.2W
Measurement Accuracy: 1%
4. Impedance:
Measuring Range: 0-1000 Ω
Display Format: ‘---’ is displayed when the overrange or current is 0.
Minimum Resolution: 0.1Ω
5. Capacity:
Measuring Range: 0-1000AH
Display Format: Minimum Resolution: 1mAH
Measurement Accuracy: 1%
6. Remaining Battery:
Display: The remaining battery capacity is displayed by the battery symbol, a total of 10 grids, each grid represents 10% of the electricity.
The remaining battery capacity is calculated by the current battery voltage value. Before the test, the full power voltage and cut-off voltage should be preset according to the specifications of the battery used; the voltage per cell = (highest voltage - minimum voltage) / 10.
7. Energy Consumption:
Measuring Range: 0-9999KWh, overflow to zero
Minimum Resolution: 1Wh
Measurement Accuracy: 1%
8. Running Time:
Range: 0-999 Hours (no load is not counted)
Format: 0:00:00-999:59 (overflow to zero)
9. Power Consumption:
Normal Working Status: 0.03-1.2W
Sleep State: 0.5mW-0.5W
The power consumption is related to the value of the test voltage. The higher the voltage, the greater the power consumption.
10. Working Temperature: -20 ° C - + 60 ° C
Package List:
1 x Tester1 x Manual 1 Set of Wires
Note:
The default range of the product is 100A. If you use other ranges, you need to prepare your own diverter.
