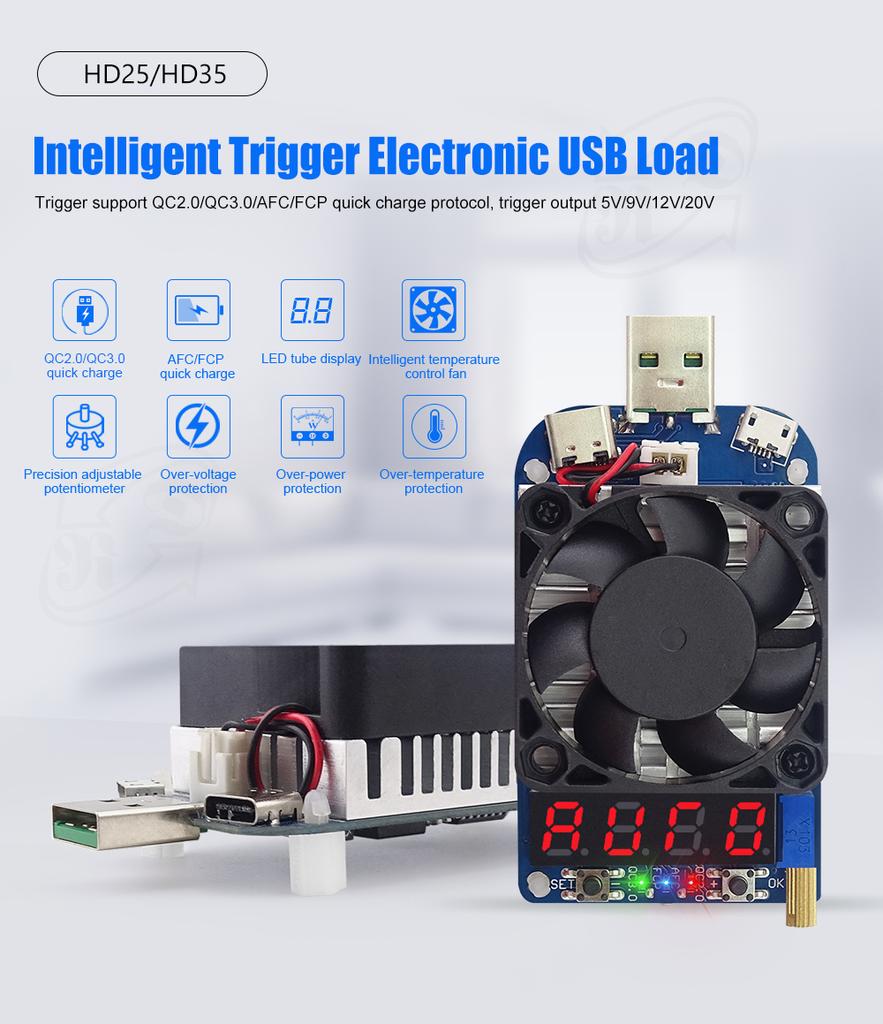

HD35 HD25 Trigger Electronic Load Resistor USB Discharge Battery Tester 35W for QC2.0/3.0 Trigger Adjustable Voltage Current

Battery Included : No High-concerned chemical : None Voltage range : Other Certification : None Origin : Mainland China Model Number : HD35

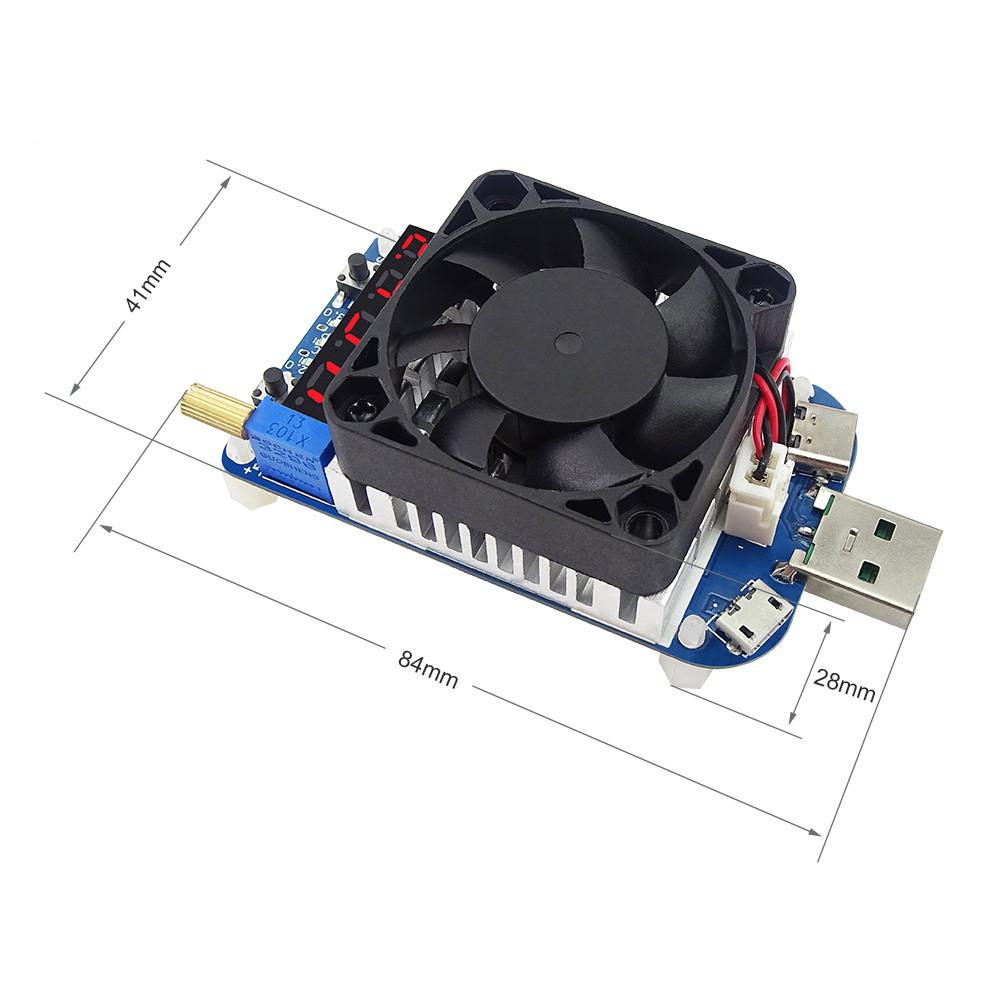

DIY Supplies : Electrical Dimensions : 83.8x41.1x27.9mm (L*W* H) Operating Temperature : -10 degrees~40 degrees Accuracy Class : NO Power Supply : DC Display Type : Digital Only Voltage : DC4-25.0V adjustable current : 0.25-4.00A/5.00A Power : 25w/35W Fan working temperature : 40 ℃

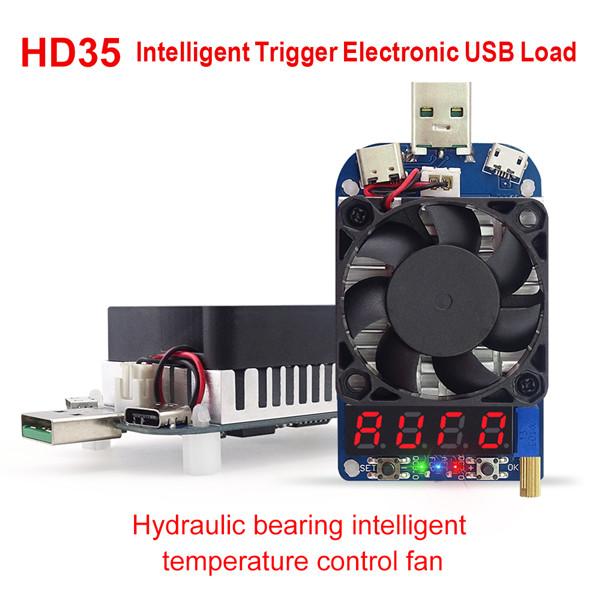

HD35 HD25 Trigger Electronic Load Resistor USB Discharge Battery Tester 35W for QC2.0/3.0 Trigger adjustable Voltage Current 40%offInstructions for USB Intelligent Trigger Electronic Load-Model: HD25/HD35 NOTE: This product has no reverse connection protection, the input polarity cannot be reversed, otherwise the product is permanently damaged and cannot be repaired Technical Parameters: Product Model HD25 HD35 Rated operational voltage DC4-25.0V Max discharging power 25W 35W Rated operational current 0.25-4.00A (when fan don’t work, adjust current from 0.05A ) 0.25-5.00A (when fan don’t work, adjust current from 0.05A ) Fan Speed Oil bearing intelligent temperature control fan，speed 5800±10%RPM Hydraulic bearing intelligent temperature control fan，speed 8000±10%RPM Quick charge trigger mode QC2.0 5V、9V、12V、20V，QC3.0，FCP，AFC9V Constant current resolution ±（1％+3 digits） Heat dispatch method Intelligent temperature control fan + All aluminum fan Working temperature -10℃-40℃ Adjustable potentiometer Precision multiloop adjustable potentiometer Display mode 4 digit LED tube Expansion port Micro USB port、Type-C port Product weight About 52g Product size 84x41x28mm Application Application suggestions: Charger, power supply and other device manufacturers want long-term discharge or batch aging test of products, please choose HD35 (HD25 is not applicable) NOTE: 1, Triigger support  QC2.0 (QC2.0 5V, 9V, 12V and 20V), QC3.0, Huawei FCP, Samsung AFC 9V , not PD triigger  Information :  1, HD25/HD user manual download page :http://www.mediafire.com/folder/2nlrq1yvpfs7q/HD35 2, Youtube video : 3, Customer Feedback  Product Structure

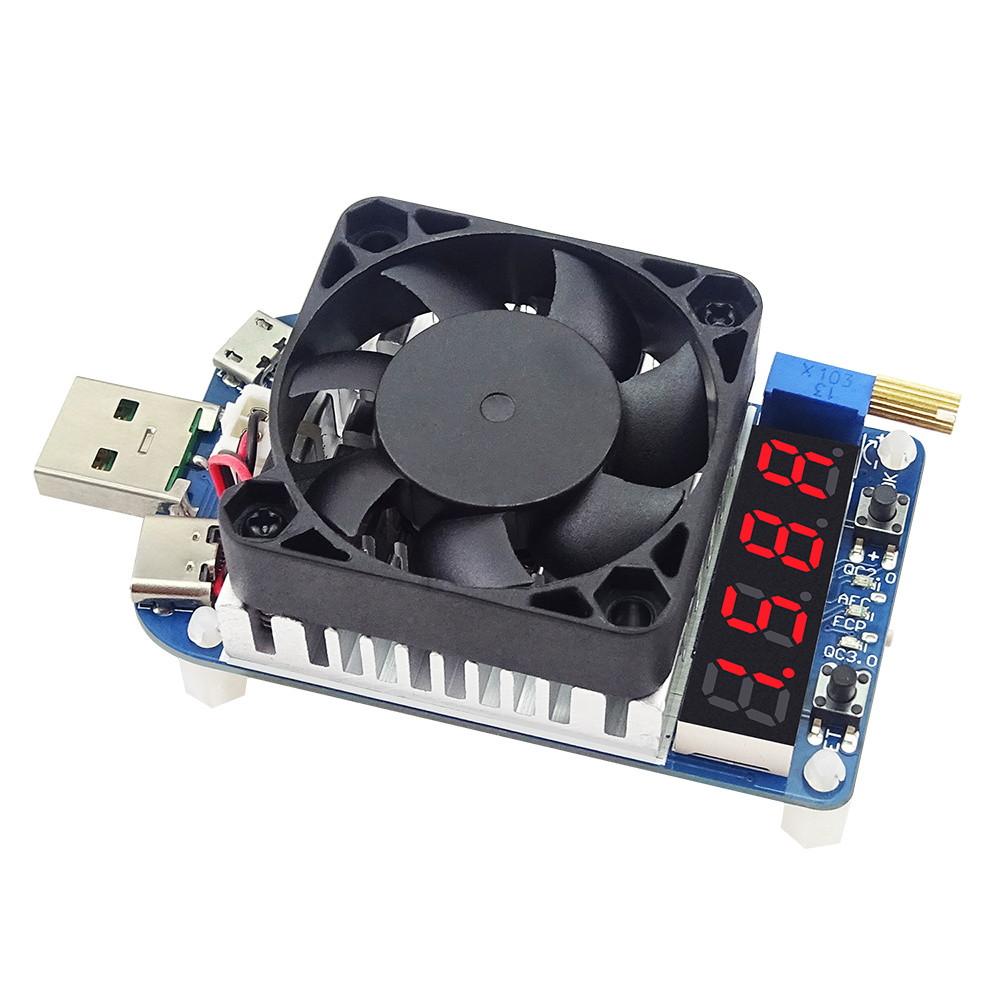

All aluminum heat sink Micro USB port：MAX current 2A, can’t trigger quick charge USB male port : MAX current 5A, can trigger quick charge Type-C port：MAX current 5A, can trigger quick charge (this product don’t support PD trigger) Intelligent temperature control fan Precision multiloop adjustable potentiometer LED display tube OK/+ button (two operation way, long press and short press, have different function at different mode) Red LED QC2.0 indicator Blue LED FCP/AFC indicator Green LED QC3.0 indicator SET/- button (two operation way, long press and short press, have different function at different mode) Two-dimensional code, scan code to check the latest manua Trigger button on the back of products (two operation way, long press and short press, have different function at different mode
