Feature:

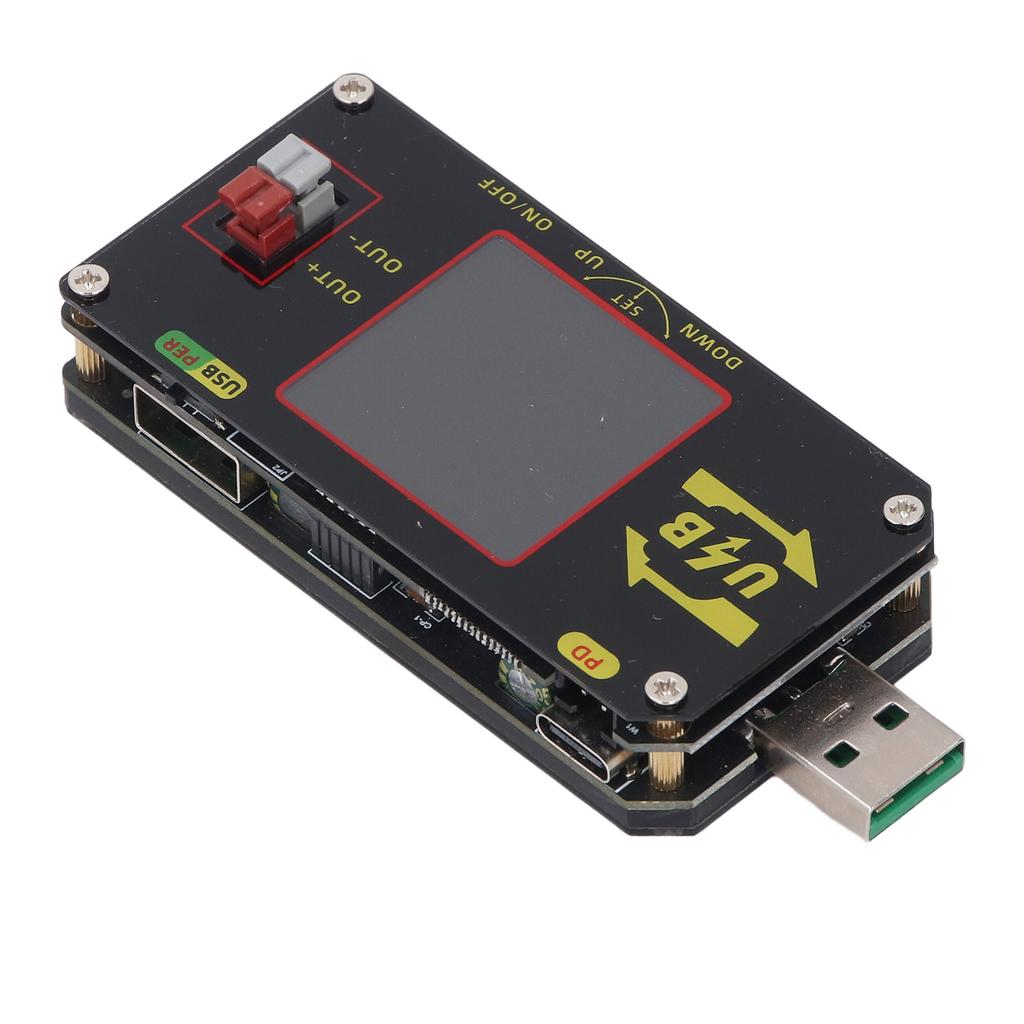

1. [Multi Functional] This USB tester can test voltage, current, capacity, energy, load impedance, temperature, with high accuracy and less error, ensuring reassuring results.
2. [LCD Display] Equipped with a 1.44 inch LCD screen, with a wide viewing angle of 160 degrees and high brightness, allowing you to enjoy vivid and delicate color display images from any angle.
3. [Cable Detection] Supports for E Marker and for DASH cable data reading, with analog data cable and acceleration function, capable of charging and detecting voltage and current directly.
4. [Data Recording] Can record up to 10 sets of measurement data, with battery capacity calculation formulas, multiply the calculation result by 1000 to obtain the battery capacity.
5. [Faster Transfer rate] Using USB3.0 interface and 9 pin design, offering 10X the transfer speed of USB2.0, ensuring faster data transfer and higher energy efficiency.
Specification:

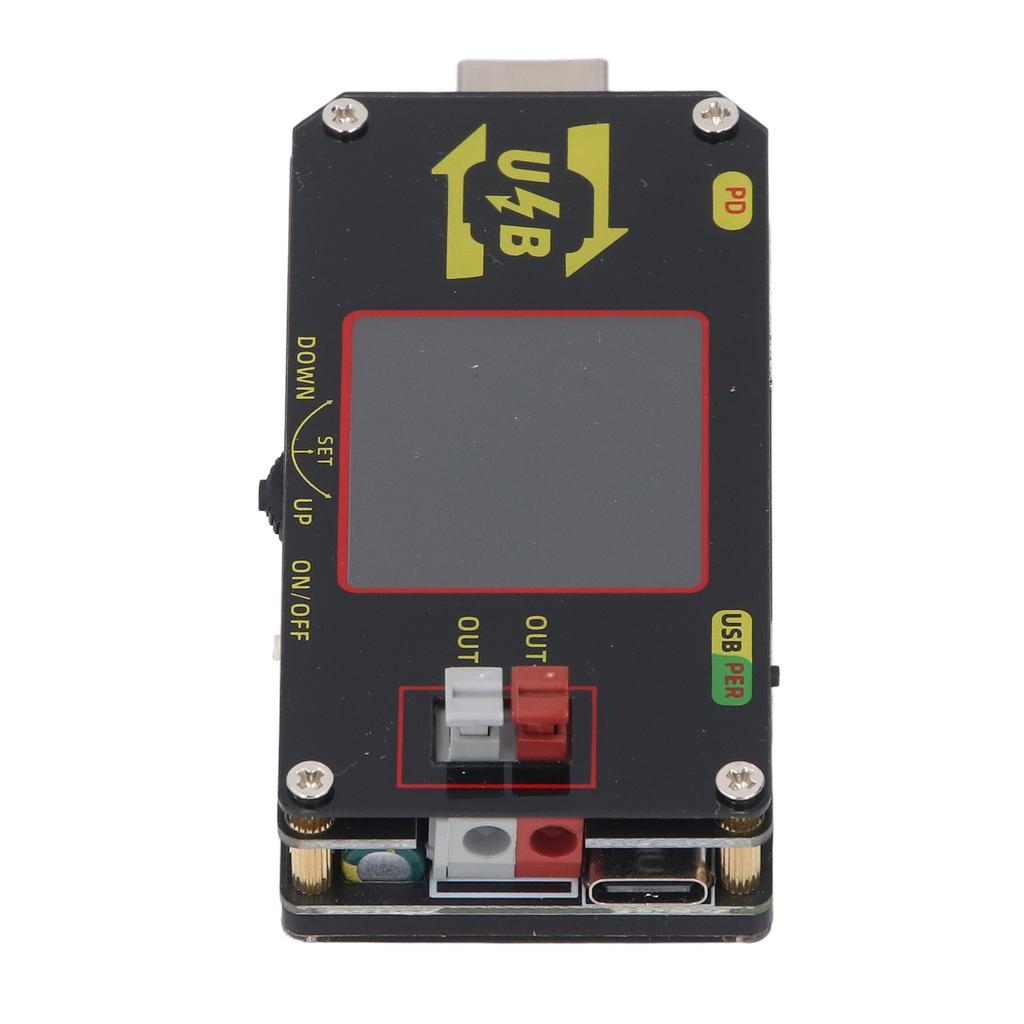

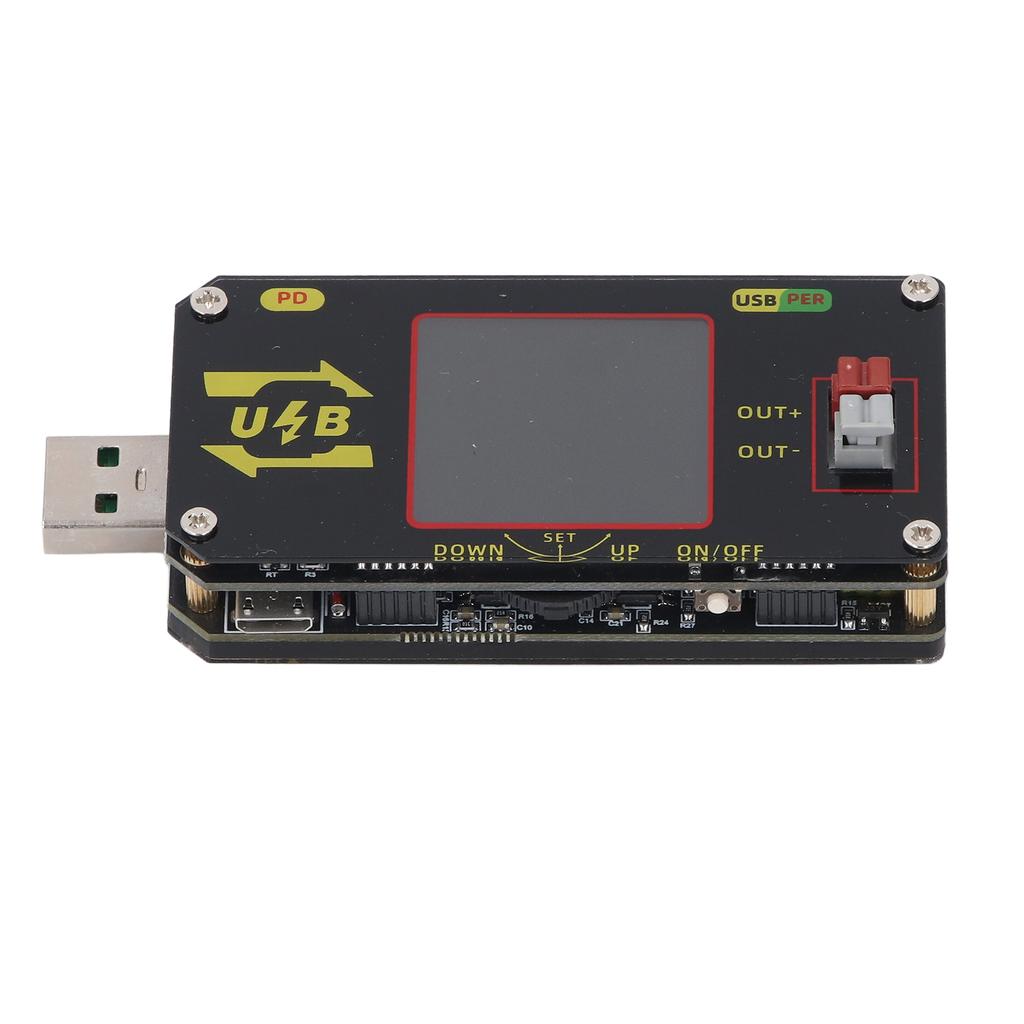

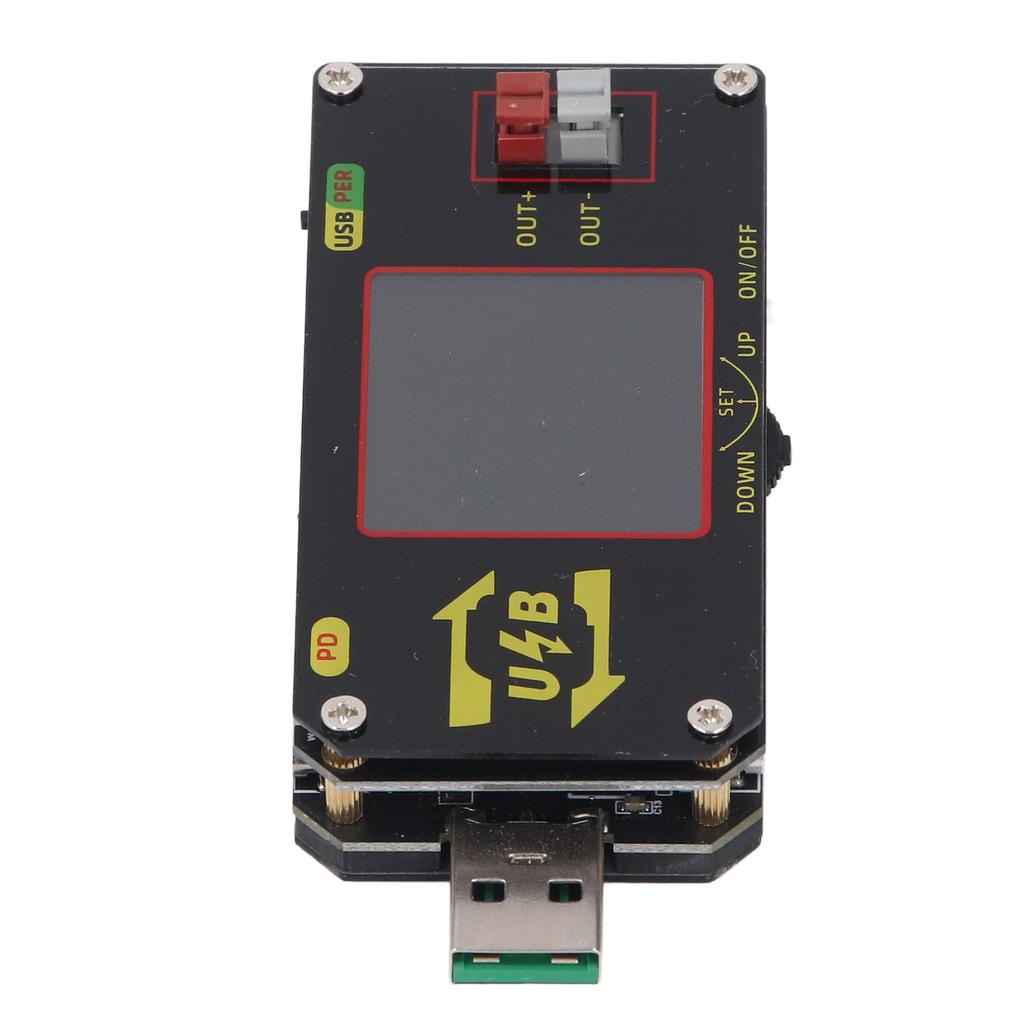

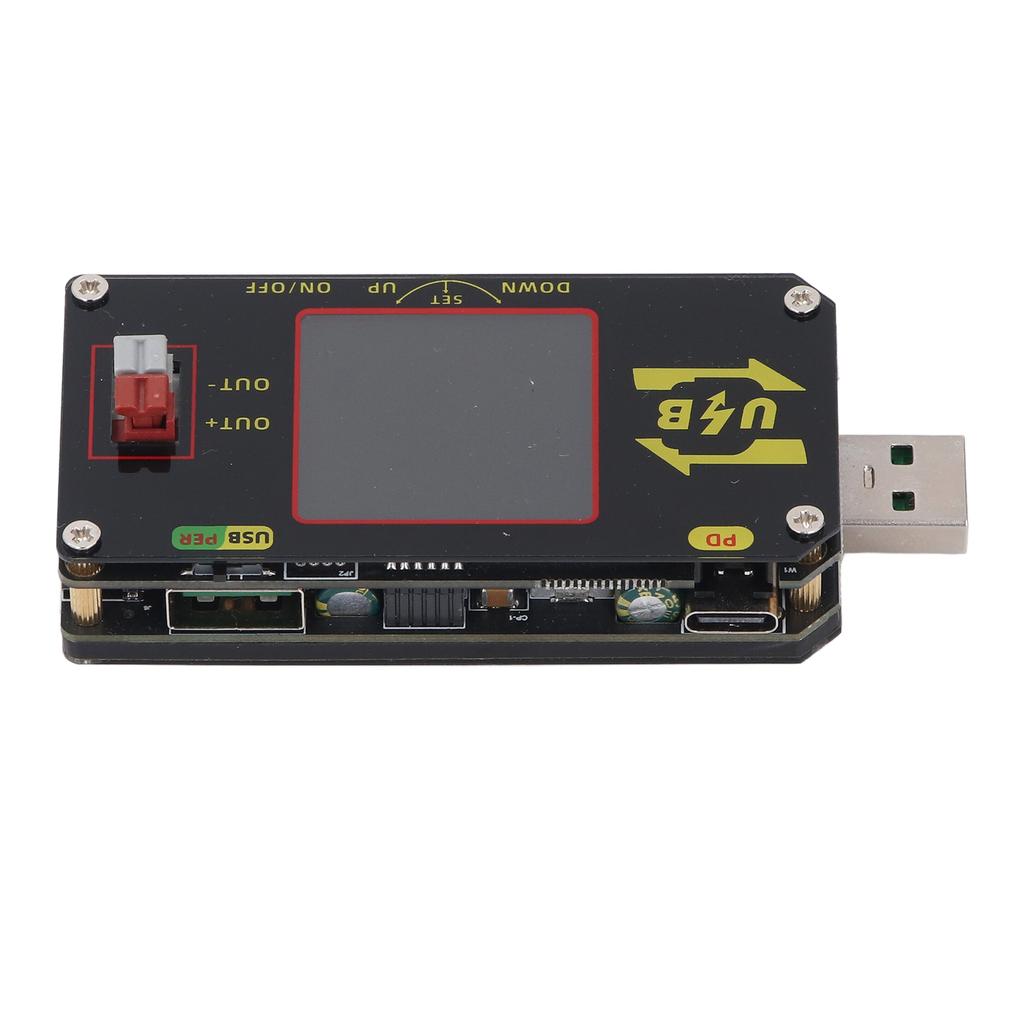

Item Type: USB Tester
Material: ABS
Model: XY UMPD
Measurement Voltage: 3 24.00V
Voltage Measurement Resolution: 0.01V
Voltage Measurement Accuracy: + (0.3percent +1 digit)
Measurement Current: 0 5.000A
Current Measurement Resolution: 0.001A
Current Measurement Accuracy: + (0.5percent +1 digit)
Capacity Measurement Range: 0 99.999Ah
Energy Measurement Range: 0 99.999Wh
Load Impedance Measurement Range: 0.8 9999.9 Ohm
Data Refresh Rate: 4Hz (250ms)
Temperature Measurement Range: 10 celsius 100 celsius (0 Fahrenheit 200 Fahrenheit )
Temperature Measurement Accuracy: + 3 celsius + 6 Fahrenheit
Screen Brightness Settings: 0 5, a total of 6 levels
Delay Shutdown Time: 0 9 minutes
Fast Charging Recognition Modes: QC2.0, QC3.0, for Android DCP
Fast Charging Activation Modes: QC2.0, QC3.0, AFC, Fast Charging Protocol, SCP, PD2.0, PD3.0.

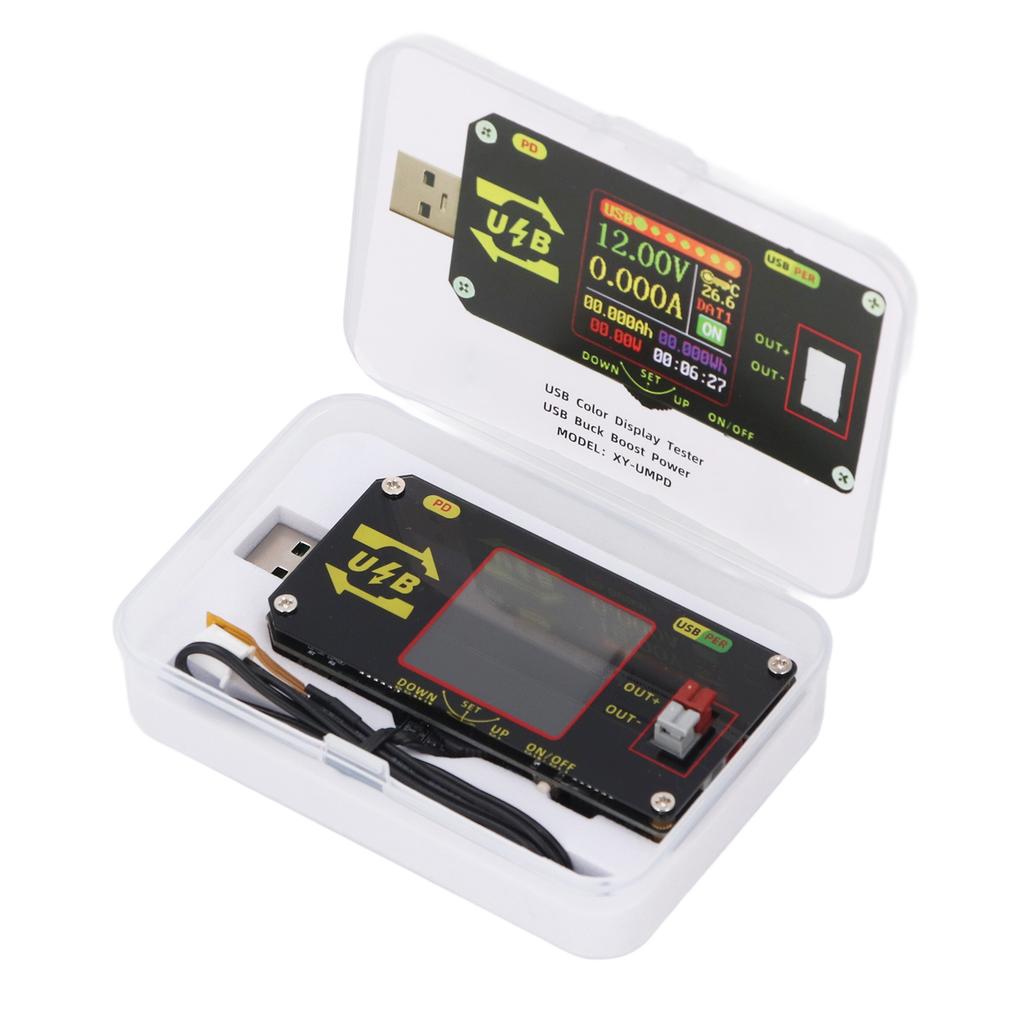

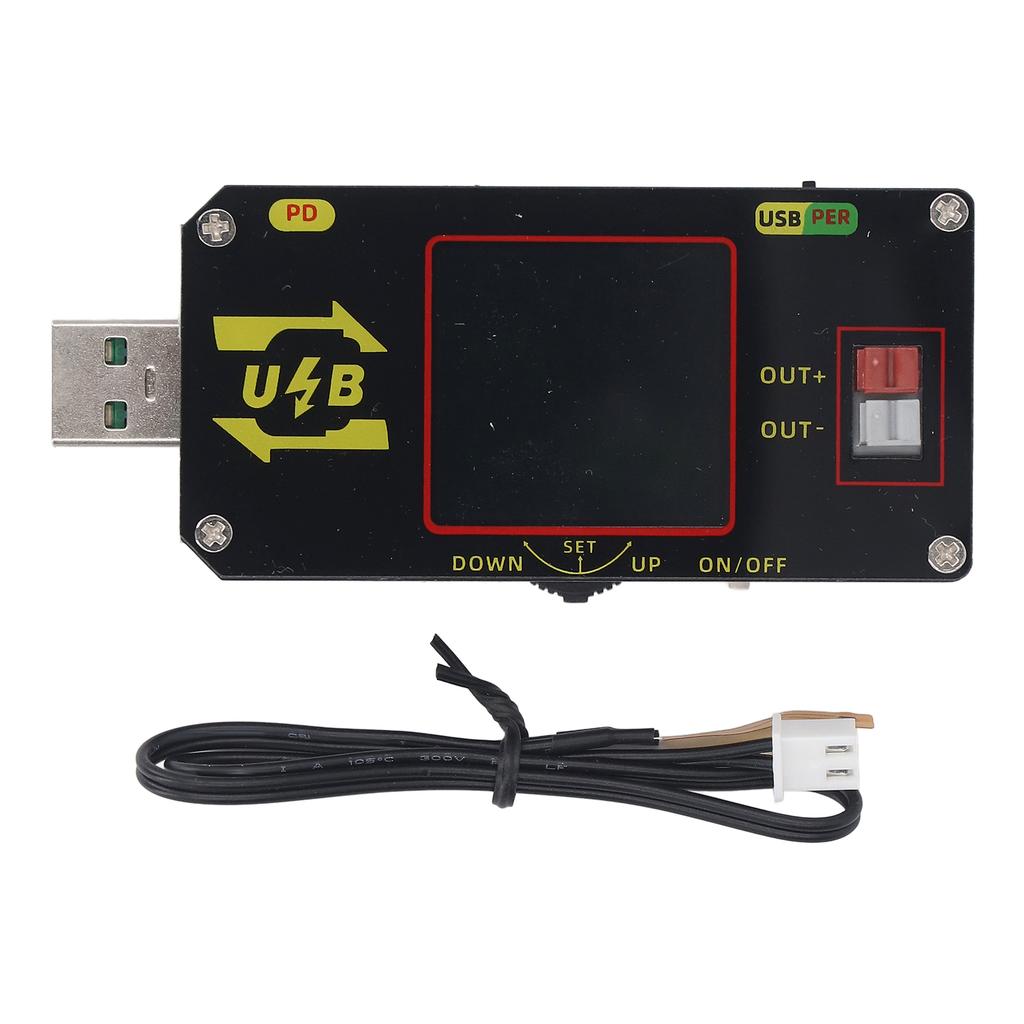

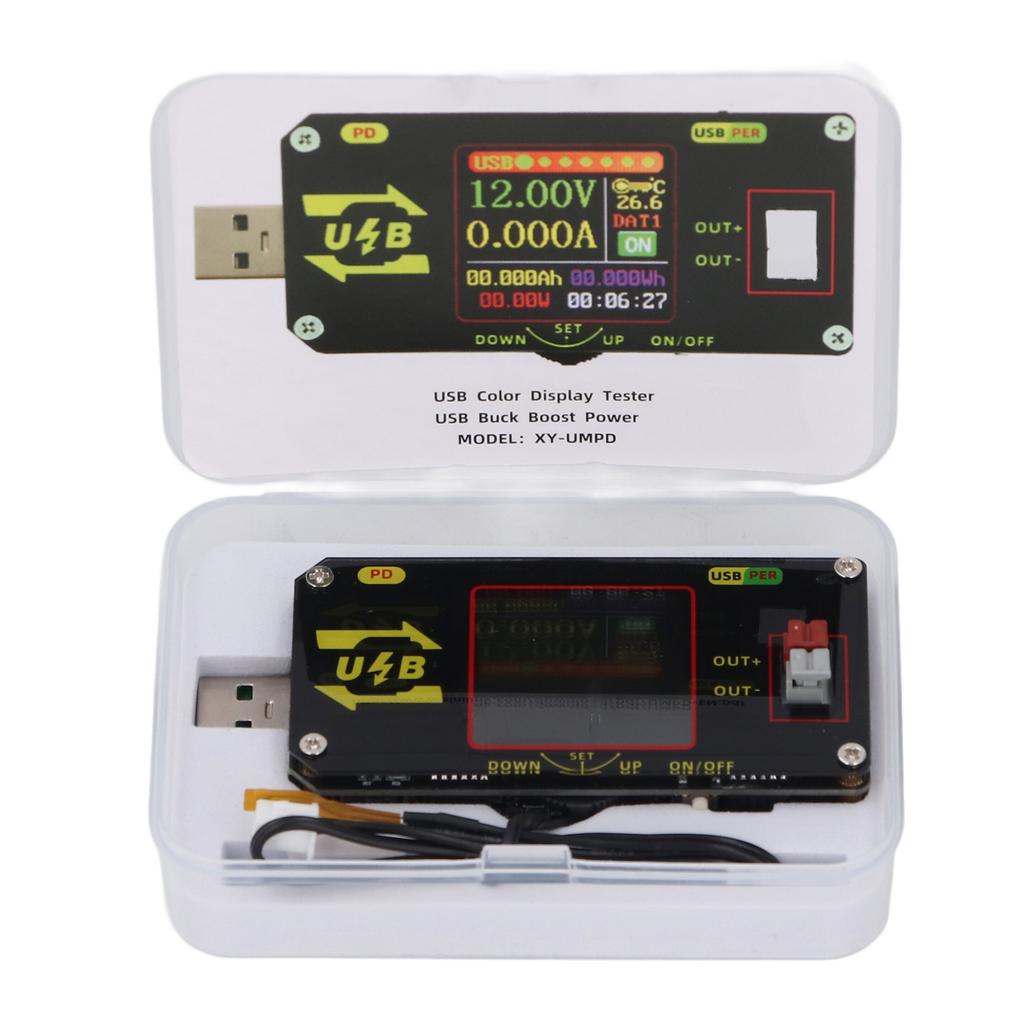

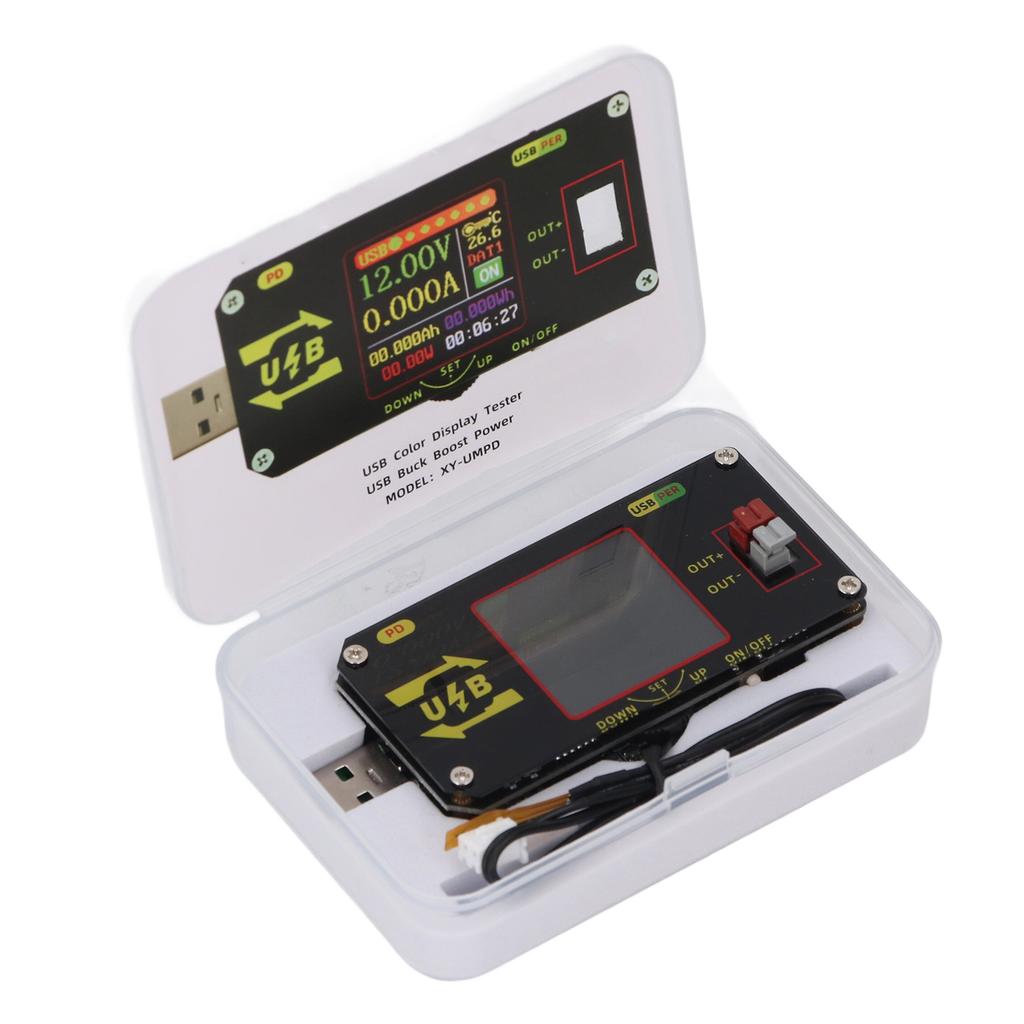

Package List:
1 x USB Tester
1 x Accessory
1 x Instruction Card
1 x Storage Box
