Feature:
1. Equipped with 51MP for MOSS sensor 1 2.33in, with high definition multimedia interface USB 2.0 dual output microscope camera, high resolution, good flatness and contrast.
2. Binocular lens microscope, 45 degree tilt, 360‑degree rotating lens barrel, precise alignment, reduce eye fatigue, and extend observation time.
3. All optical glass components, precise glass lenses, all metal chrome plated mechanical parts, adjustable interpupillary distance, including rubber guards.
4. LED adjustable ring light provides dense and concentrated shadow free lighting, the lighting direction can be changed, variable strength control, and a life span of 100,000 hours.
5. Support for WindowsXP 7 8 10 system, suitable for gemologists, manufacturing engineers, laboratories, technicians and anyone in the electronics and semiconductor industries.
Specification:
Item Type: Microscope Camera Kit
Material: Aluminum Alloy, Alloy, Optical Glass, Rubber
Purpose: This microscope is very suitable for gemologists, manufacturing engineers, laboratories, technicians and anyone in the electronics and semiconductor industries
Remote Control Battery Type: 1 x CR2025 Button Battery (Battery Not Included)
Microscope Parameters:
Head: 360 degree rotation, 45 degree tilt binocular
Eyepiece: 30mm 1.2in super wide area and high eye position WF10X 20MM
Objective Lens Zoom Range: 0.35X 9.0X, using low magnification lens
Working Distance: 4in (100mm)
Diopter Adjustment: + 5dp
Distance Between Pupils: 2 3 16in 2 15 16in (55 75mm)
Disc Diameter: 3 3 4in (95mm)
Lighting: 56LED Ring Lights
Camera Parameters:
Model: HY 1139
Type: High Definition Multimedia Interface USB2.0 Dual Output Camera
Picture Format: Jpg
Image Resolution: 51MP
Video Format: MP4 (For Memory Card)
Video Recording: 1080P 60FPS
High Definition Multimedia Interface Video Resolution: 1920x1080 60FPS (For HD Multimedia Interface)
USB Video Resolution: 1920x1080 at 30FPS; 1280x720 at 30FPS; 640x480 at 30FPS; 320x240 at 30FPS
White Balance: Automatic Manual
Light: Automatic Manual
Exposure: Automatic manual, value can be adjusted
Direction: Left Right, Up Down
Freeze: Support
OSD: English Chinese French Spanish Japanese German
Lines: Different colors, 5 horizontal lines, 5 vertical lines, any position
Image Sensor: 51MP for MOSS sensor 1 2.33 inch
Effective Pixels: 51MP
Pixels Size: 1.335micrometer x 1.335micrometer
Frame Rate: 60fps
Picture Definition: Full HD
Shell: Metal
Lens: C CS
Video Format: MOV
Digital Zoom: Support
Brightness Control: Automatic Manual
Color: R G BA Adjustable
Films and Records: Support
Cursor: Support multi color, adjustable size
Horizontal and vertical lines
Support multi color, 5 horizontal vertical lines, movable
Memory Card Interface: Maximum 64G (Not Included)
High Definition Multimedia Interface: Standard High Definition Multimedia Interface Output (Type A)
USB Interface: Standard USB2.0 Interface (Type B)
LED Parameters:
Lamp Inner Diameter: Approx. 65mm 2.6in
Total Outer Diameter: Approx. 95mm 3.7in
Working Distance: Approx. 27 45mm 1.1 1.8in.

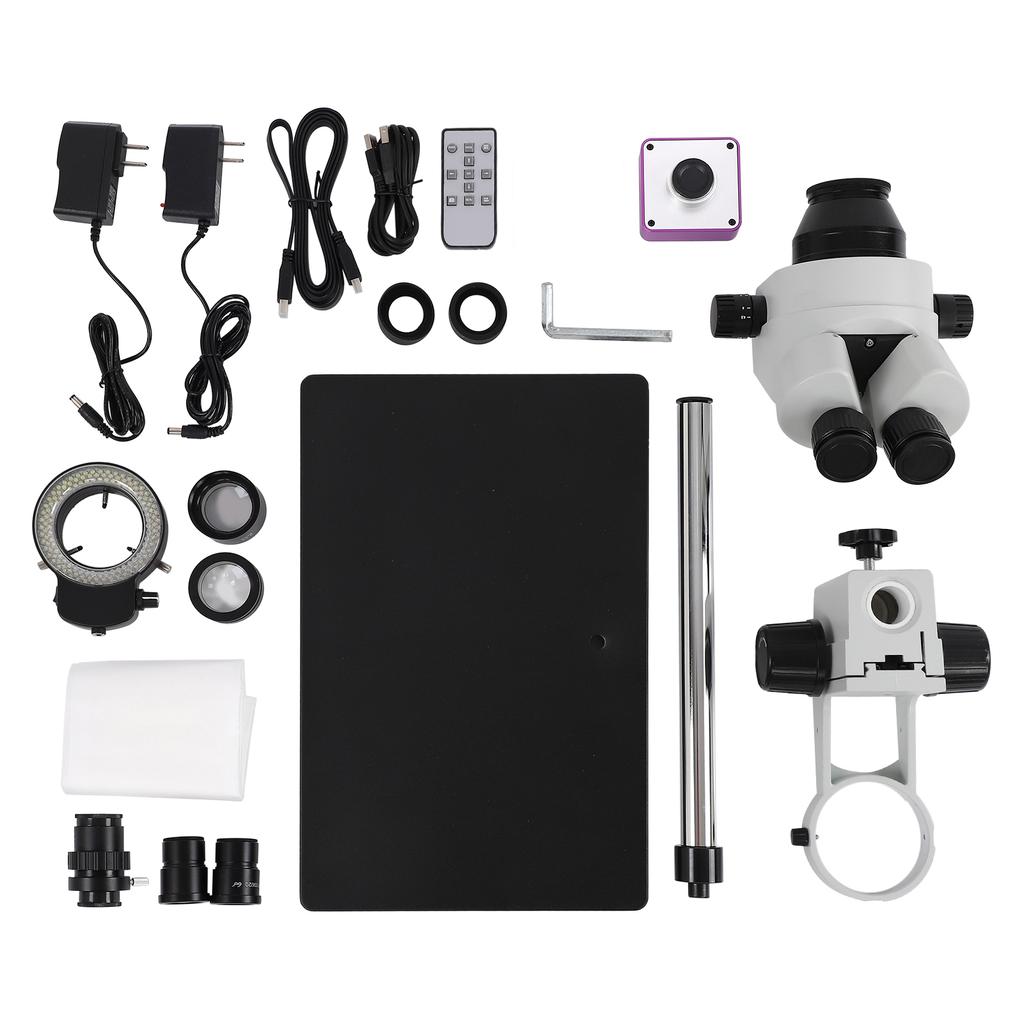

Package List:
1 x Camera1 x Microscope Body1 x Fine Tuner2 x Eyepiece2 x Lens1 x Lens Connector2 x Rubber Gasket1 x Remote Control (Battery Not Included)1 x HD Multimedia Interface Cable1 x USB Cable1 x Software CD1 x LED Light2 x Power Supply1 x Hex Wrench1 x Base1 x Pillar1 x Dust Cover1 x Manual
Note:
1. Please allow 0‑1 inch error due to manual measurement. Thanks for your understanding.2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.3. Do not place the product in an environment that is too corrosive, humid and high temperature.4. Please supply power in accordance with the operating voltage, using other voltages may easily cause fire and product damage.
