Kolemz Battery Monitor Voltage/Coulometer 8-120V for Cars and Motorcycles Wide

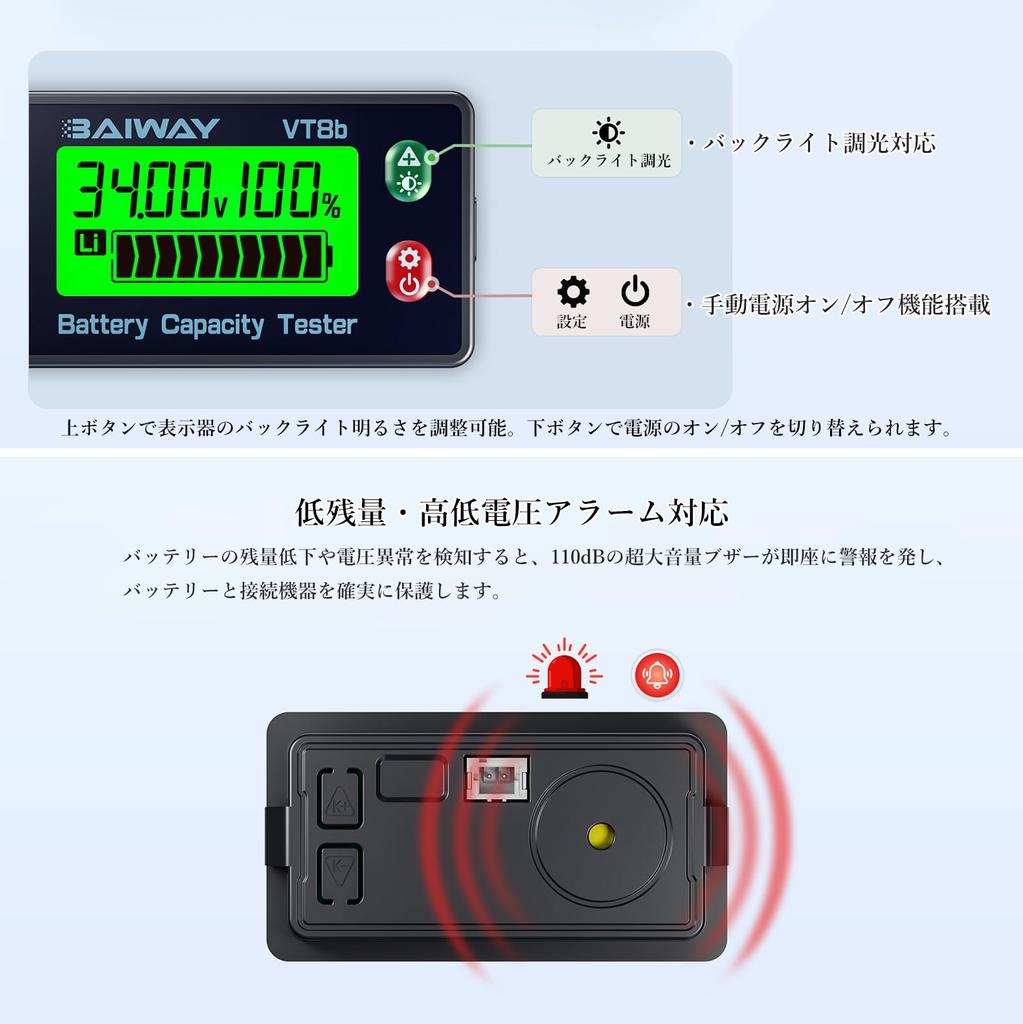

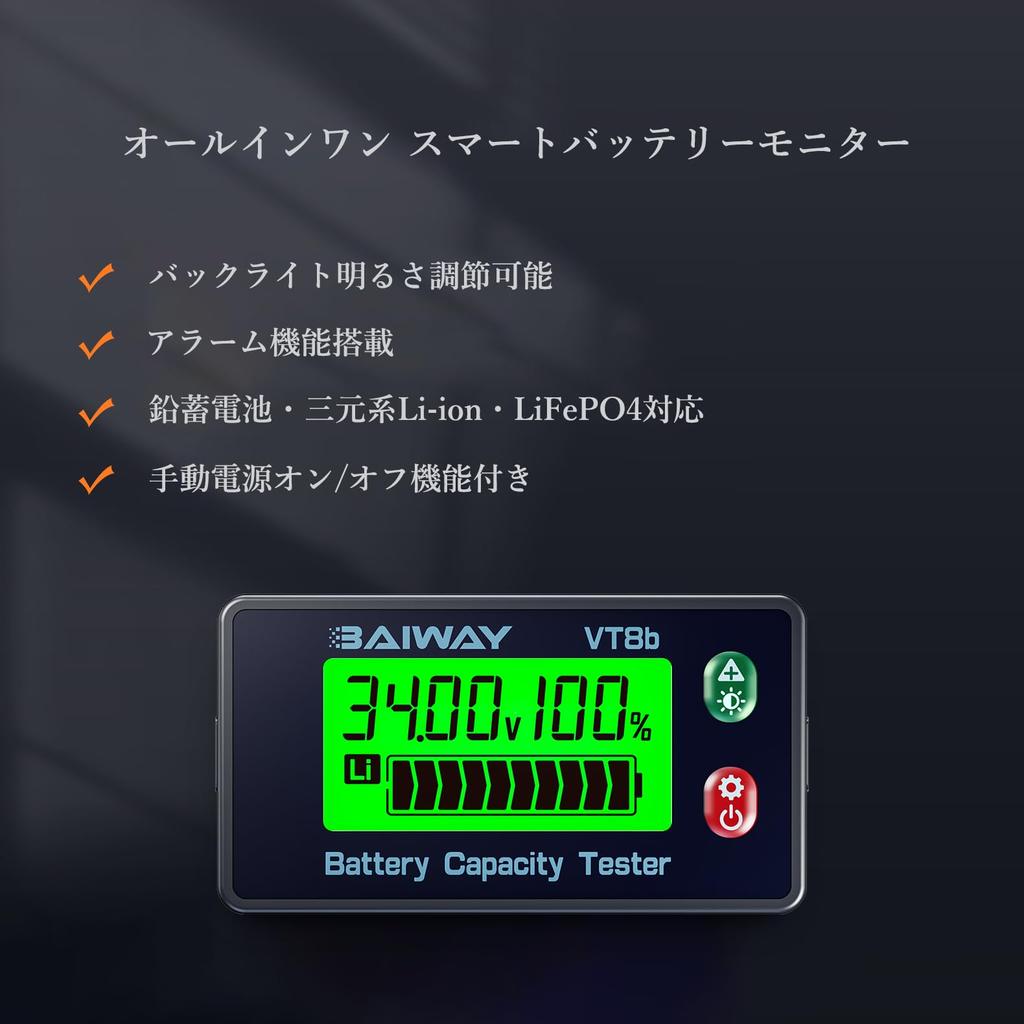

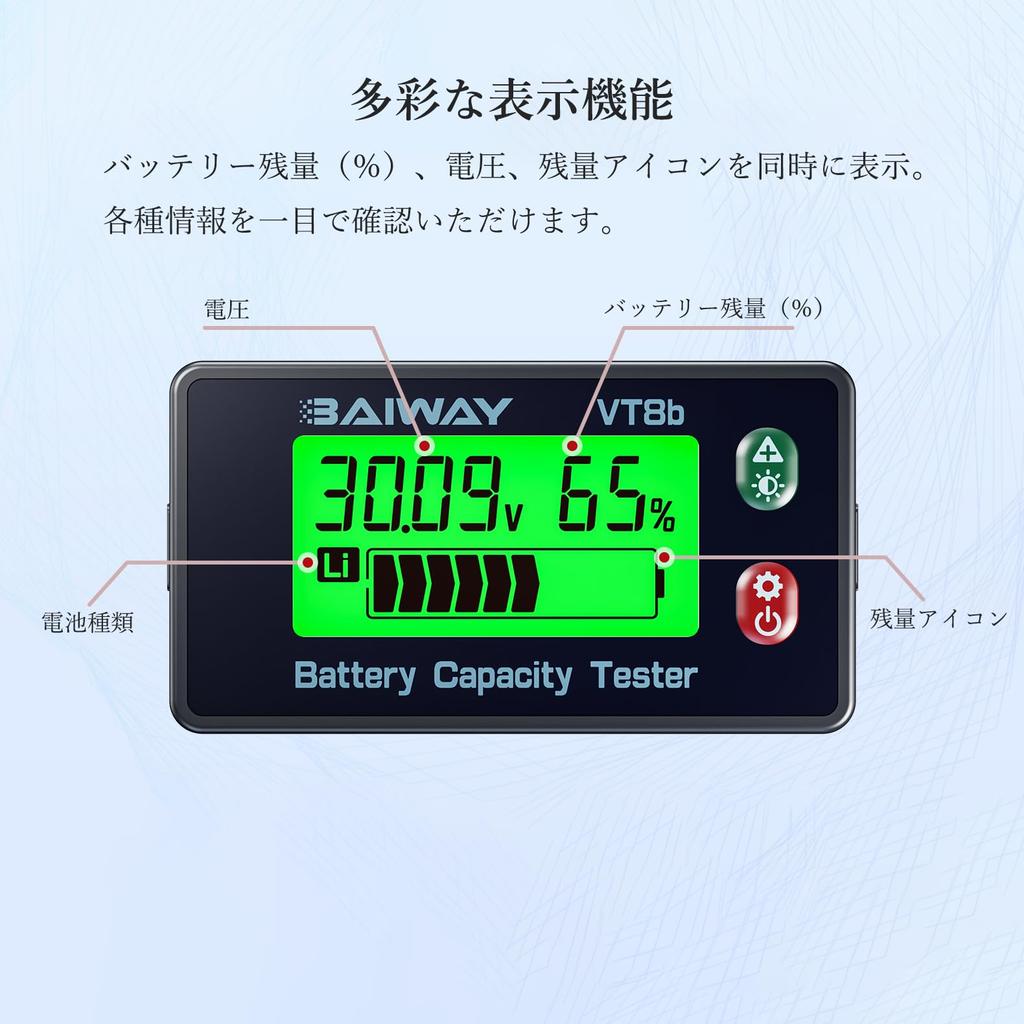

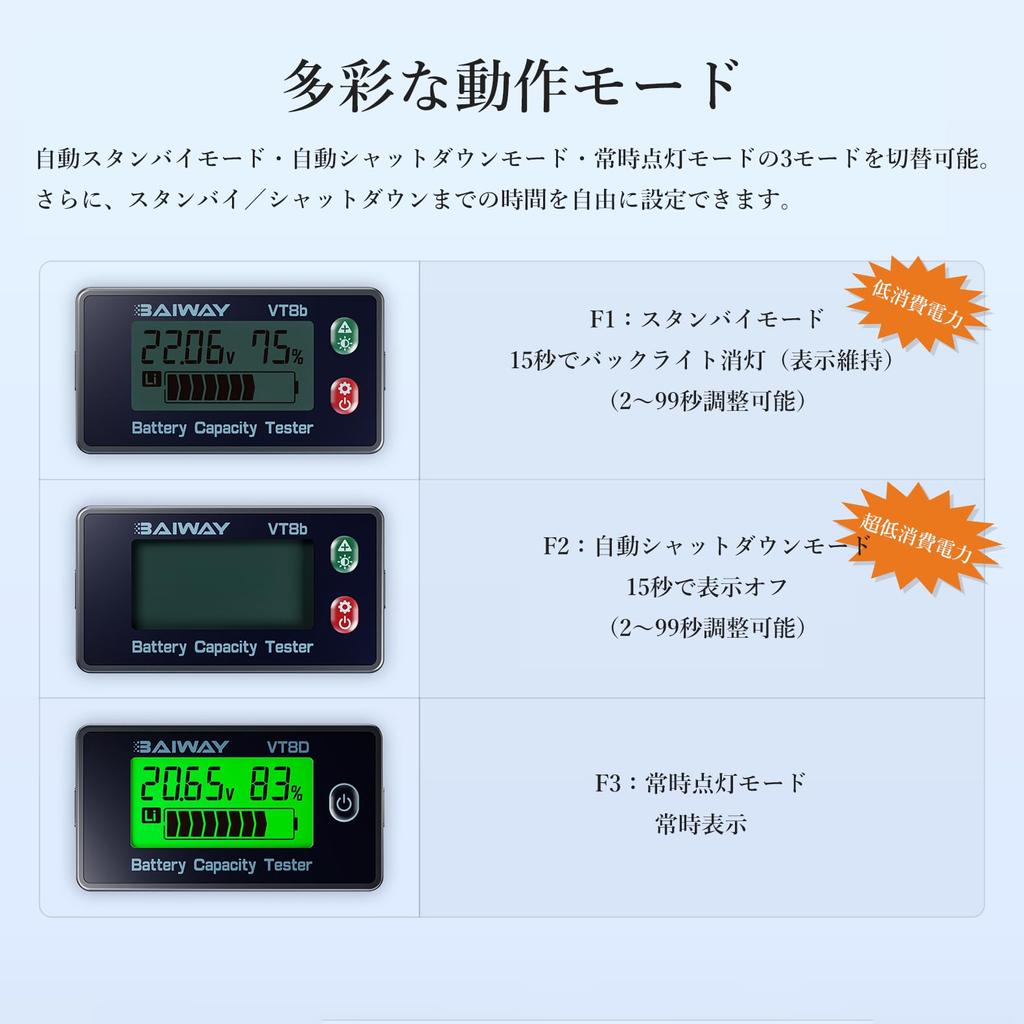

• Wide range of applications: Compatible with lead, lithium ion, and LiFePO4.One unit can be used for a variety of equipment and vehicles, and has excellent compatibility when replacing. • Large, easy-to-read 2-line LCD & multi-display: You can clearly see everything from voltage to remaining capacity % to the type of battery you are using.All important information is available at a glance, making situational judgment easier. • 3 types of backlight modes: Set the backlight behavior to your preference from automatic standby / automatic power off / always on.The standby time can also be finely adjusted from 2 to 99 seconds. • High/Low Voltage/Low Energy Alarm: Configurable alarm function + large buzzer over 110dB protects the battery and equipment from overcharging and overdischarging. • Brightness adjustment & manual power on/off: You can adjust the backlight brightness and power on/off using the up and down buttons. • Low power consumption design: Energy saving of 6~8mA during operation, 1~1.5mA during standby, and 30~60µA during shutdown. • Rugged and lightweight industrial design: Weighs approximately 23.5g and compact size.Stable operation in environments between -10℃ and 60℃.

[Specification details] Model: VT8b Measurement voltage range: 8.0 ~ 120.0V Compatible battery types: Lead acid battery / Lithium ion battery / Lithium iron phosphate battery (LiFePO4) Voltage measurement accuracy: ±0.1% Operating power consumption: 6.0 ~ 8.0 mA Standby power consumption (with display): 1.0 to 1.5 mA Shutdown power consumption: 30 to 60 µA Operating temperature range: -10.0 ~ 60.0℃ Weight: approx. 23.5 g External dimensions: Approximately 61.4 x 33.4 x 14.1 mm (57.2 x 28.6 mm mounting holes are recommended) Display: 2-line large LCD Alarm: High/low voltage/low current alarm, built-in 110dB buzzer Main functions: backlight dimming, manual power on/off, 3 operating modes, backlight display time setting

[Main uses/use scenes] Electric bicycles, electric kickboards, golf carts bike/scooter Industrial equipment, backup power supplies (UPS), solar power generation systems Camper/boat/fishing boat Status monitoring of emergency power supply and storage battery systems

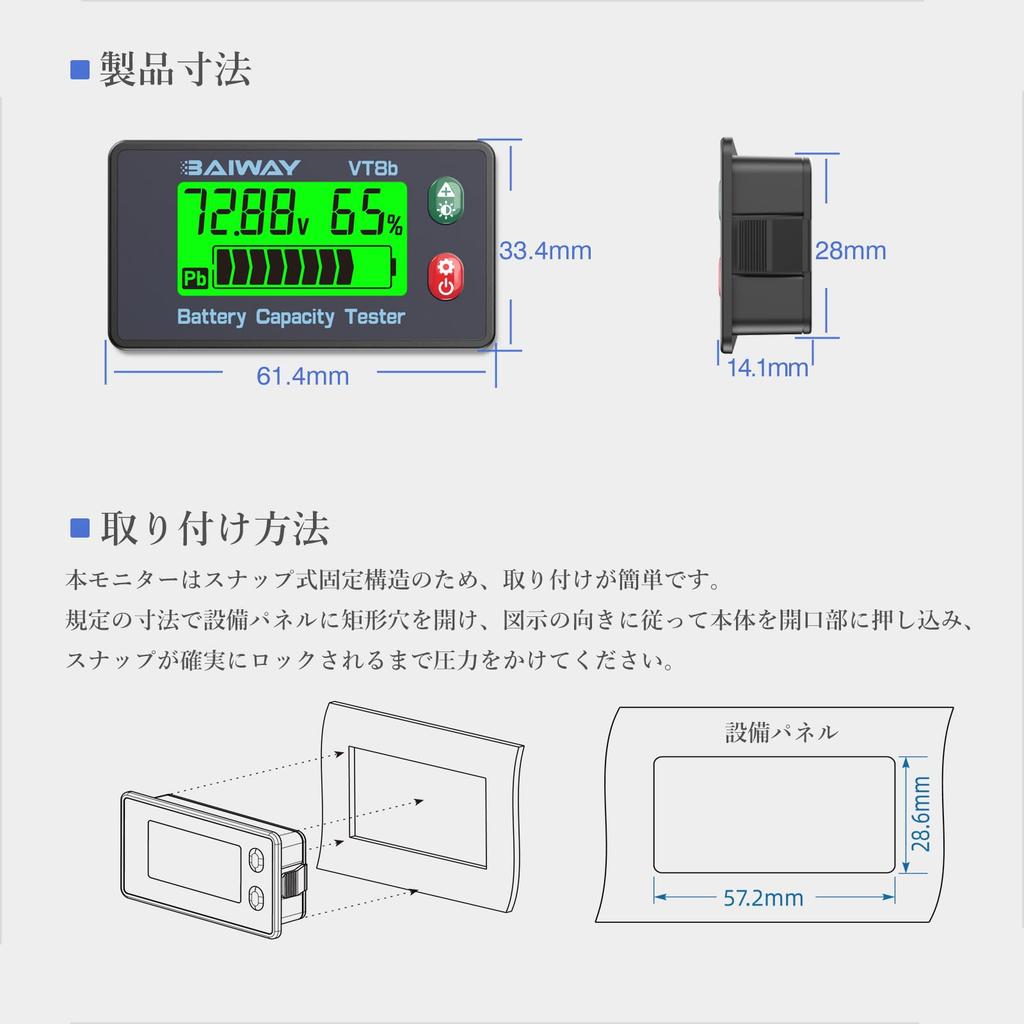

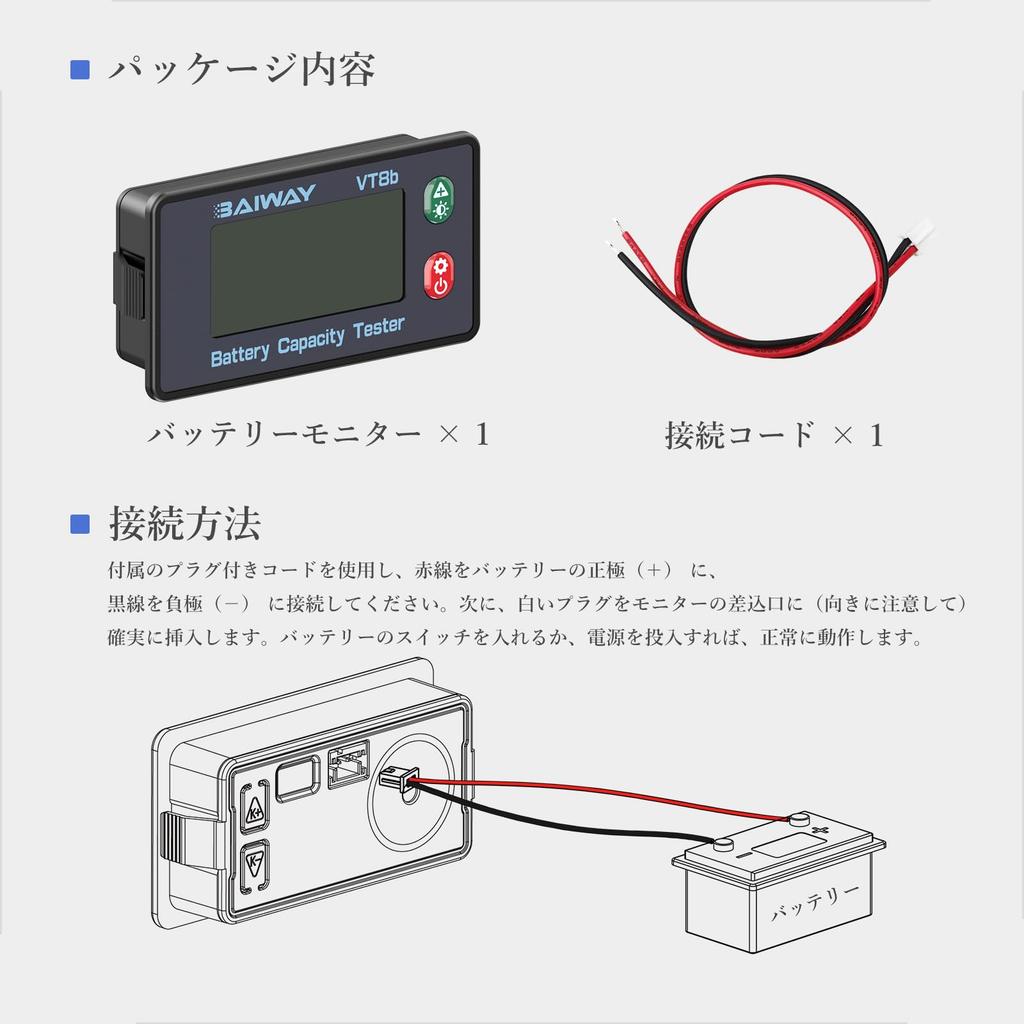

[Installation method] ・Connect the included 2-core cord (red: + pole, black: - pole) to the battery. - Insert the white connector into the back of the main unit in the correct direction. ・Turn on the power or turn on the switch ・Installation: Easy installation by drilling a rectangular hole of the recommended size in the panel and pushing it in until you hear a click.
