Mono Conversion Harness That Connects the Genuine Back Camera for

• This is a conversion harness used for navigation in Toyota vehicles. Used when connecting the genuine dealer option rear camera and an external navigation system.

• Compatible with those connected with a 4P connector on the back side of the navigation unit.

• Can be connected to a type that has a (RCA) back camera input on the outside navigation side.

This is a conversion harness used for Toyota car navigation.

Conversion harness to connect genuine dealer option (DOP) rear camera and external navigation system. This is useful when you want to change the original navigation system to an aftermarket navigation system and use the original rear camera. Compatible with Toyota dealer option navigation systems that are connected to the back of the navigation unit using a 4P connector. Can be connected to a type that has a (RCA) back camera input on the outside navigation side.

Set contents ・Conversion harness ・Instruction manual

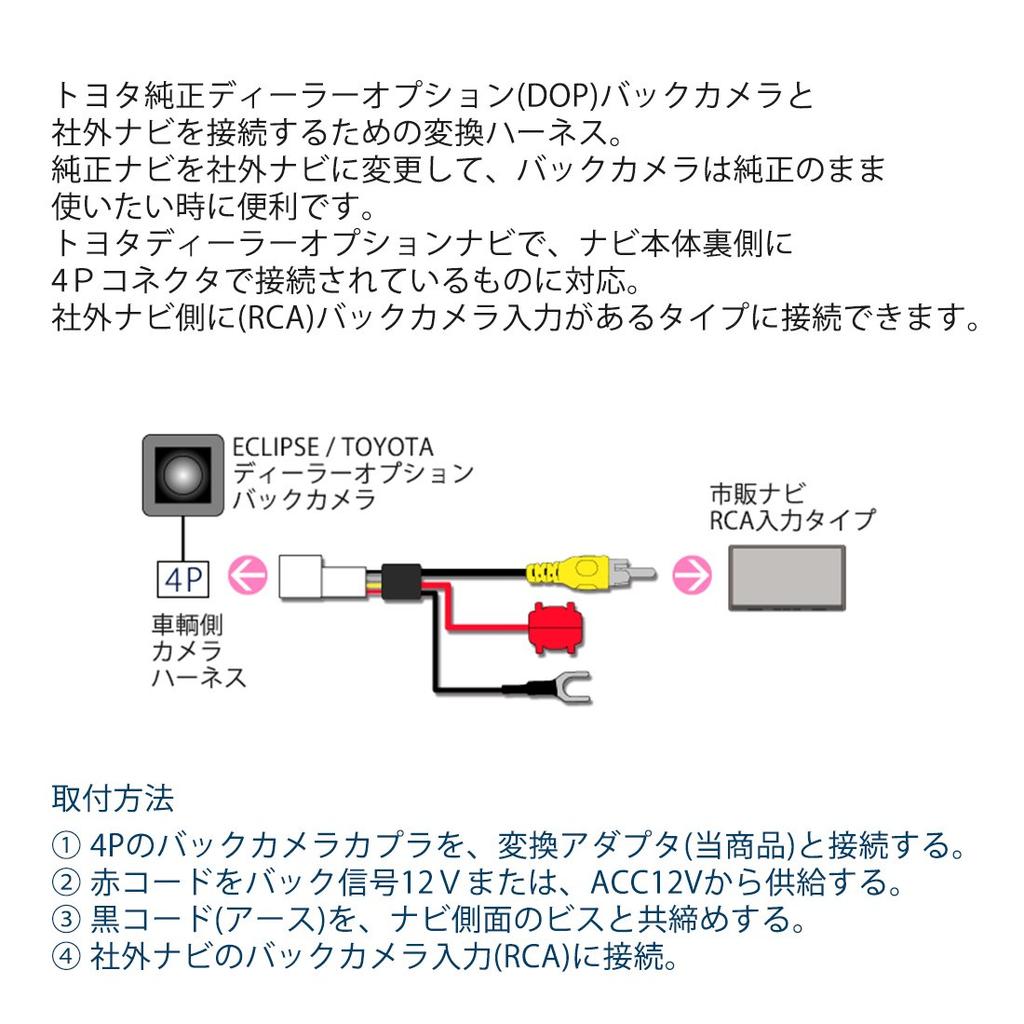

Installation method ① Connect the 4P back camera coupler with the conversion adapter (this product). ② Supply the red code from the back signal 12V or ACC12V. ③ Tighten the black cord (ground) together with the screw on the side of the navigation system. ④ Connect to the back camera input (RCA) of the external navigation system. Please check the instruction manual for details. -----------------------

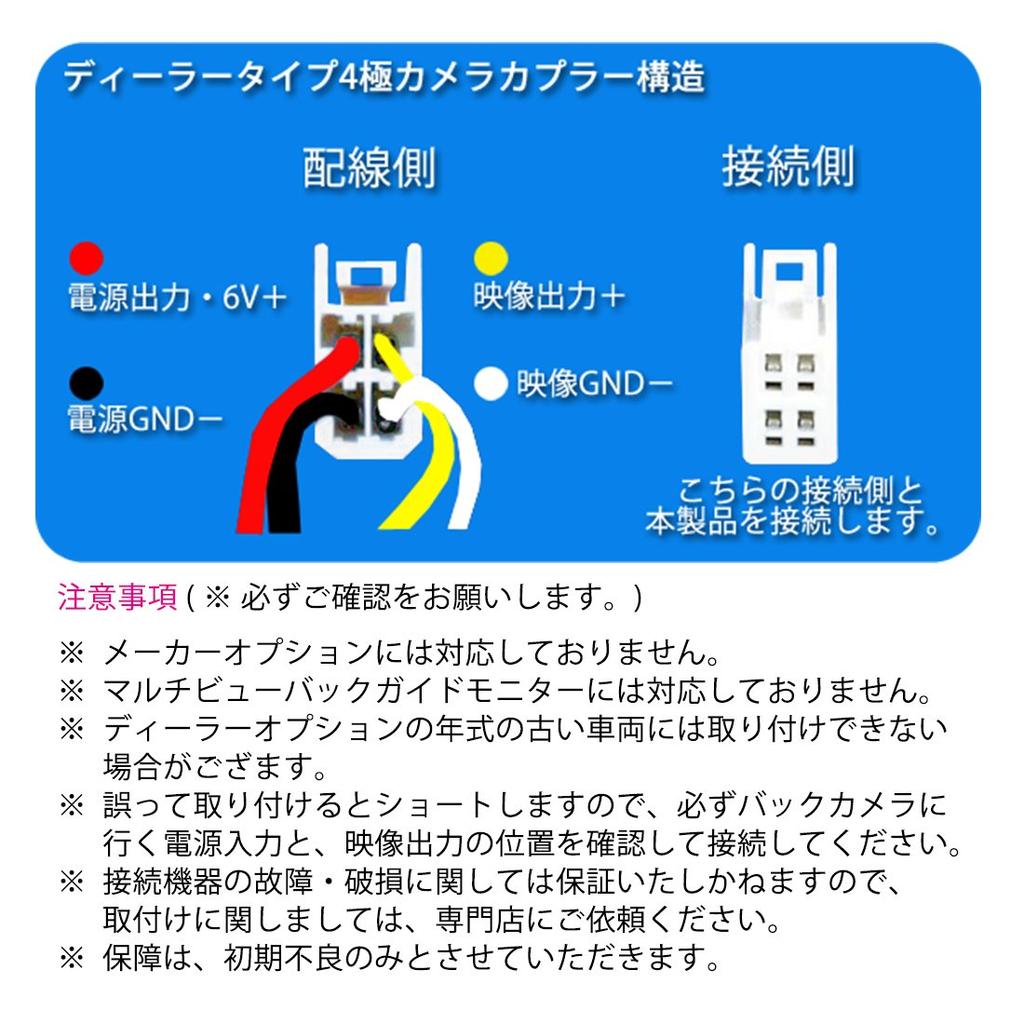

Notes (*Please be sure to check) *Not compatible with manufacturer options. *Multi-view back guide monitor is not supported. *It may not be possible to install it on older vehicles as a dealer option. * If installed incorrectly, it will cause a short circuit, so be sure to check the position of the power input going to the rear camera and the video output before connecting. *We cannot guarantee against failure or damage to connected equipment, so please contact a specialty store for installation. *Guarantee will only cover initial defects.
