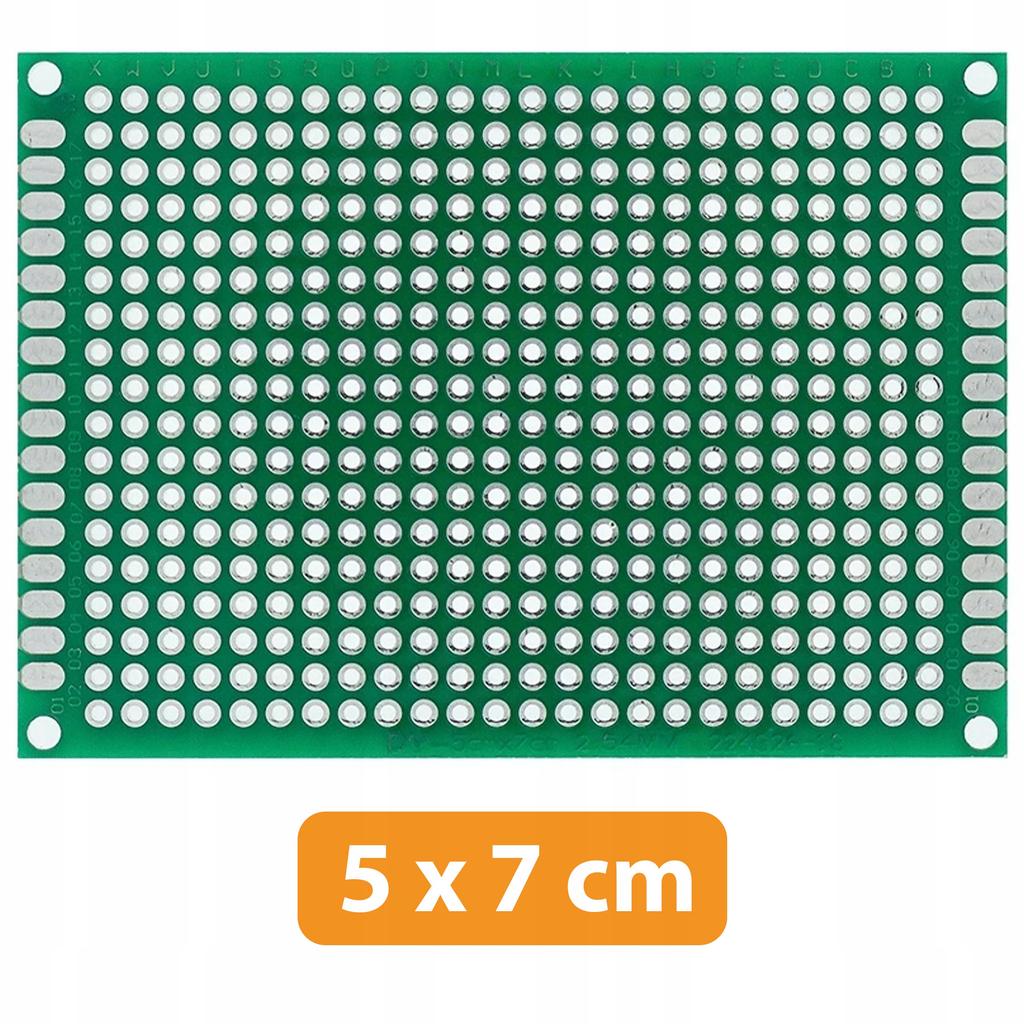

Rosfix Double-Sided Universal Printed Prototype Board 50 x 70 mm (Green)

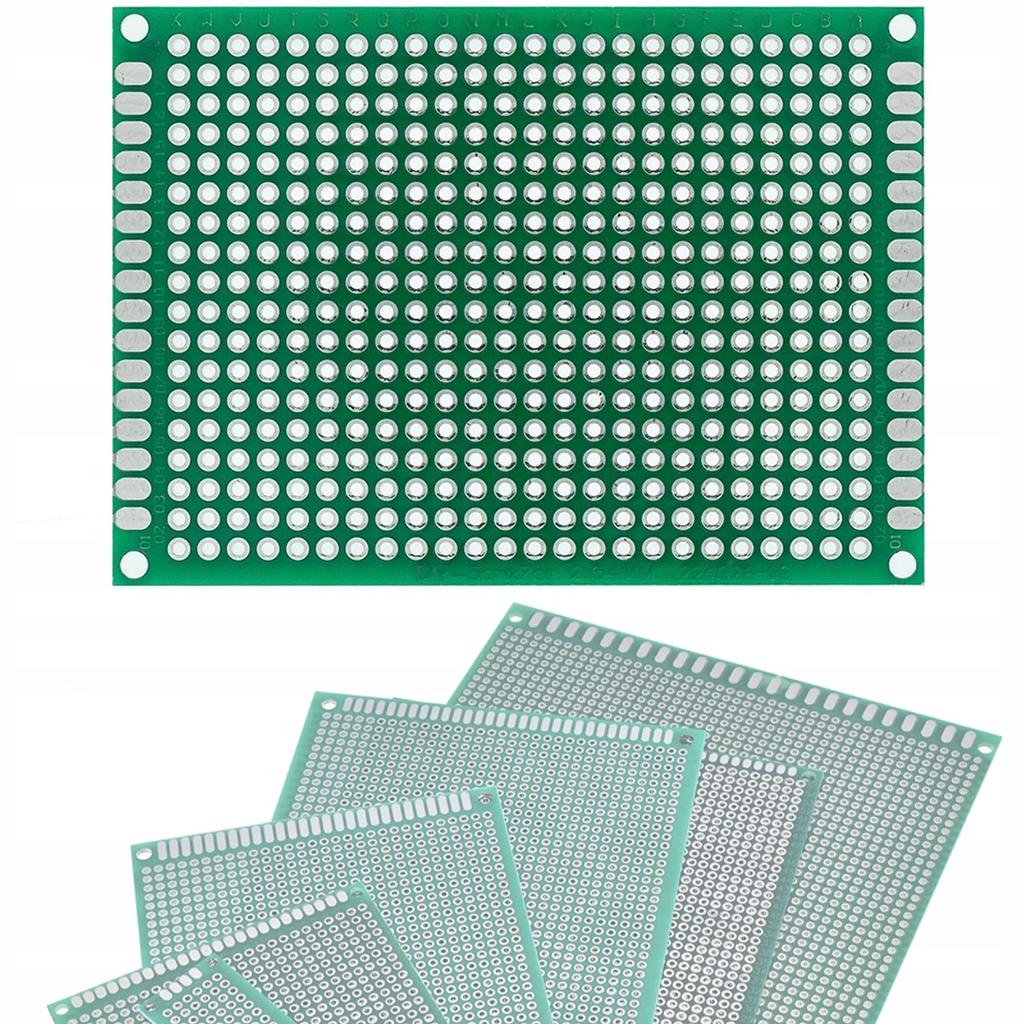

Double-sided universal board with dimensions of 50 x 70 mm, designed for building prototype circuits from through-hole components (THT) such as resistors, capacitors, LEDs and integrated circuits in DIP packages.
The board allows for the assembly of any electronic circuit thanks to its 2.54 mm pitch holes arranged in a rectangular matrix.
The board is equipped with two rows of oval pads on each of the shorter sides, allowing for convenient soldering of thin wires. The metalized holes are not connected by predefined paths, allowing complete freedom in planning the connections between components.
Thin wire (kynar) or insulated stranded wires can be used to make jumpers between the solder pads. Four mounting holes allow for convenient mounting of the board in a prototype device housing or on a stand.
✳️ Application:
Universal boards are ideal for mounting durable electronic circuits using soldering, while breadboards allow for the construction of circuits without soldering, which allows for the reuse of components.
✳️ Specification:
• Dimensions: 50 x 70 mm
• Soldermask Color: Green
• Mounting: Through Hole (THT)
• Hole Raster: 2.54 mm
• Mounting Holes: 4, placed symmetrically in the corners
