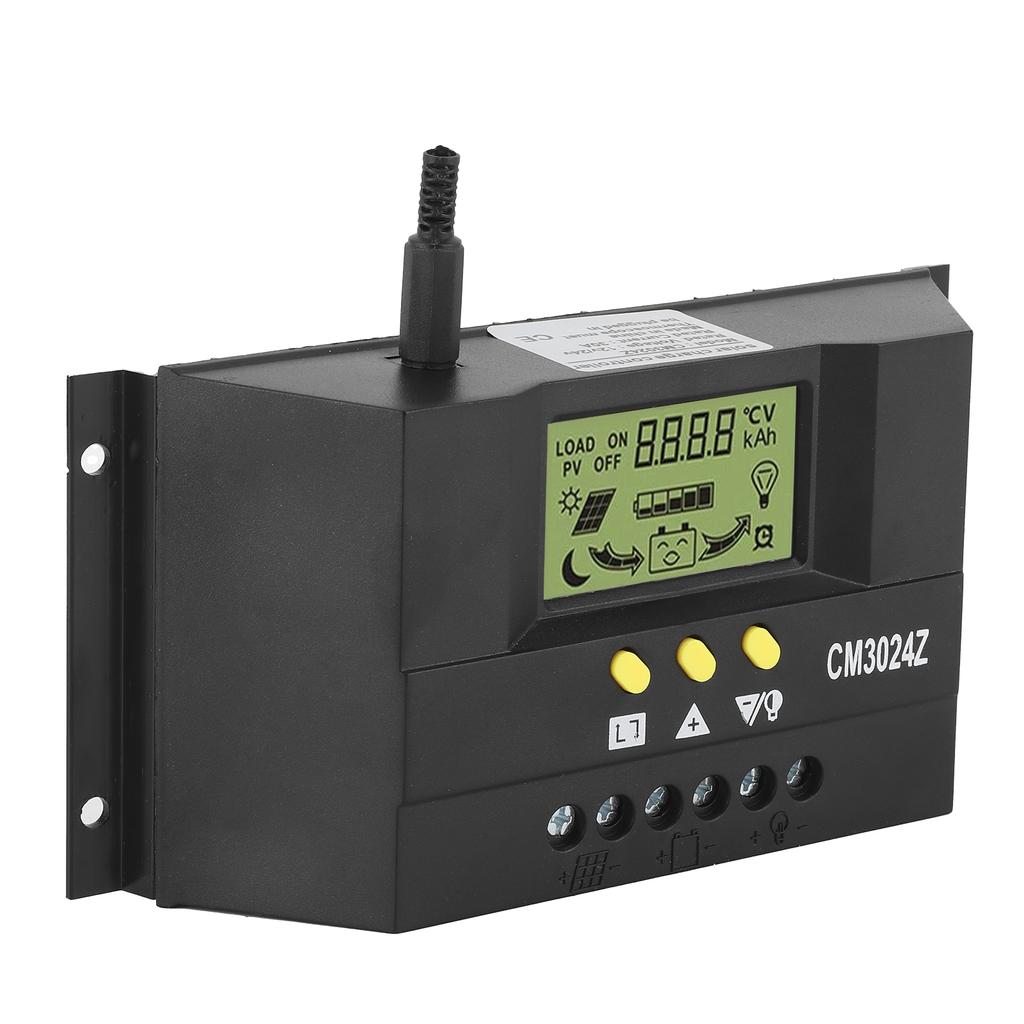

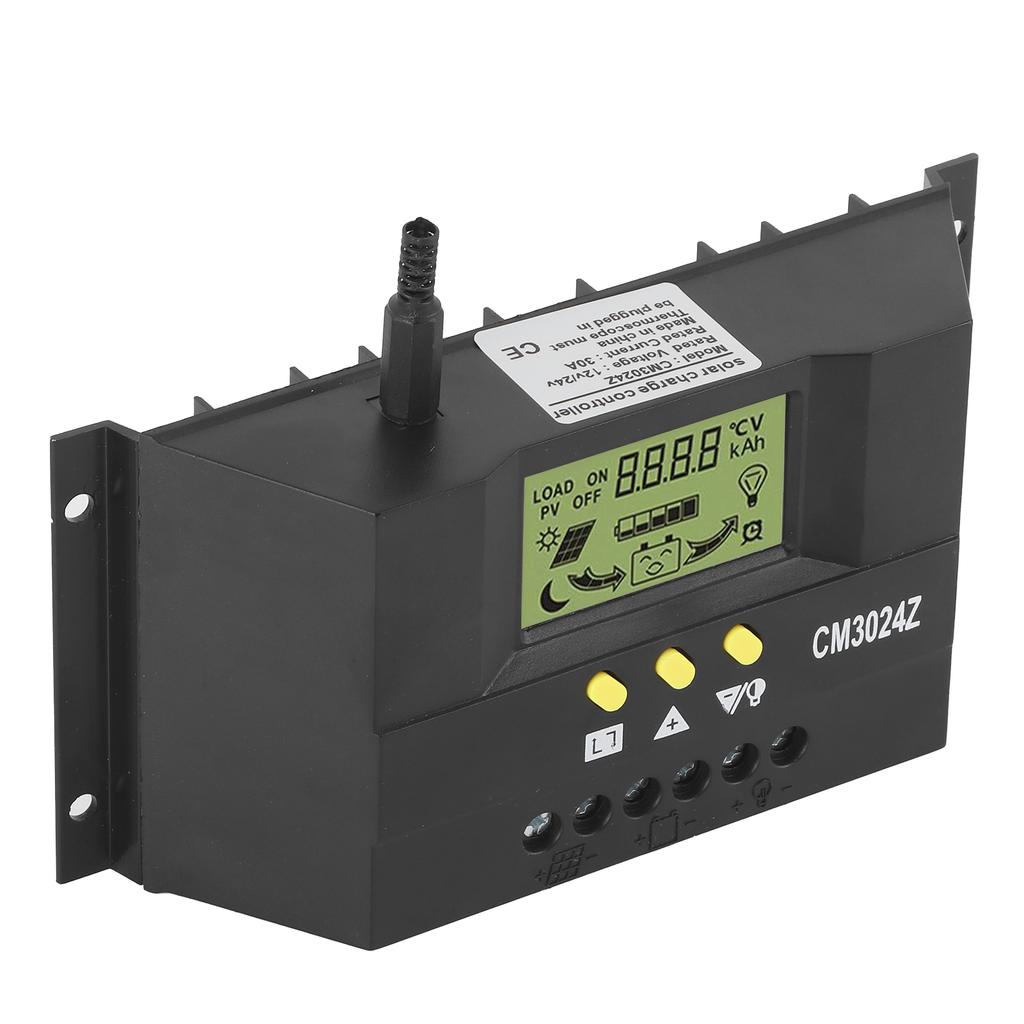

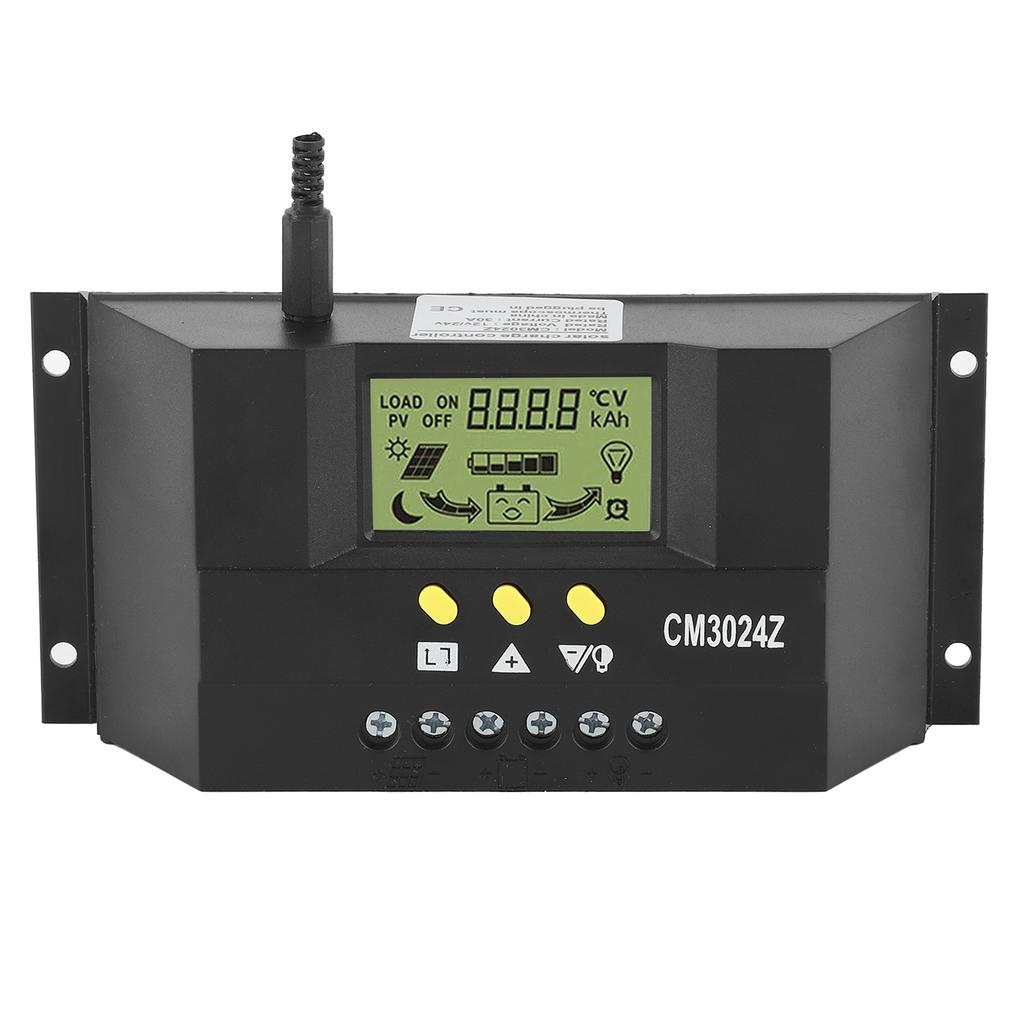

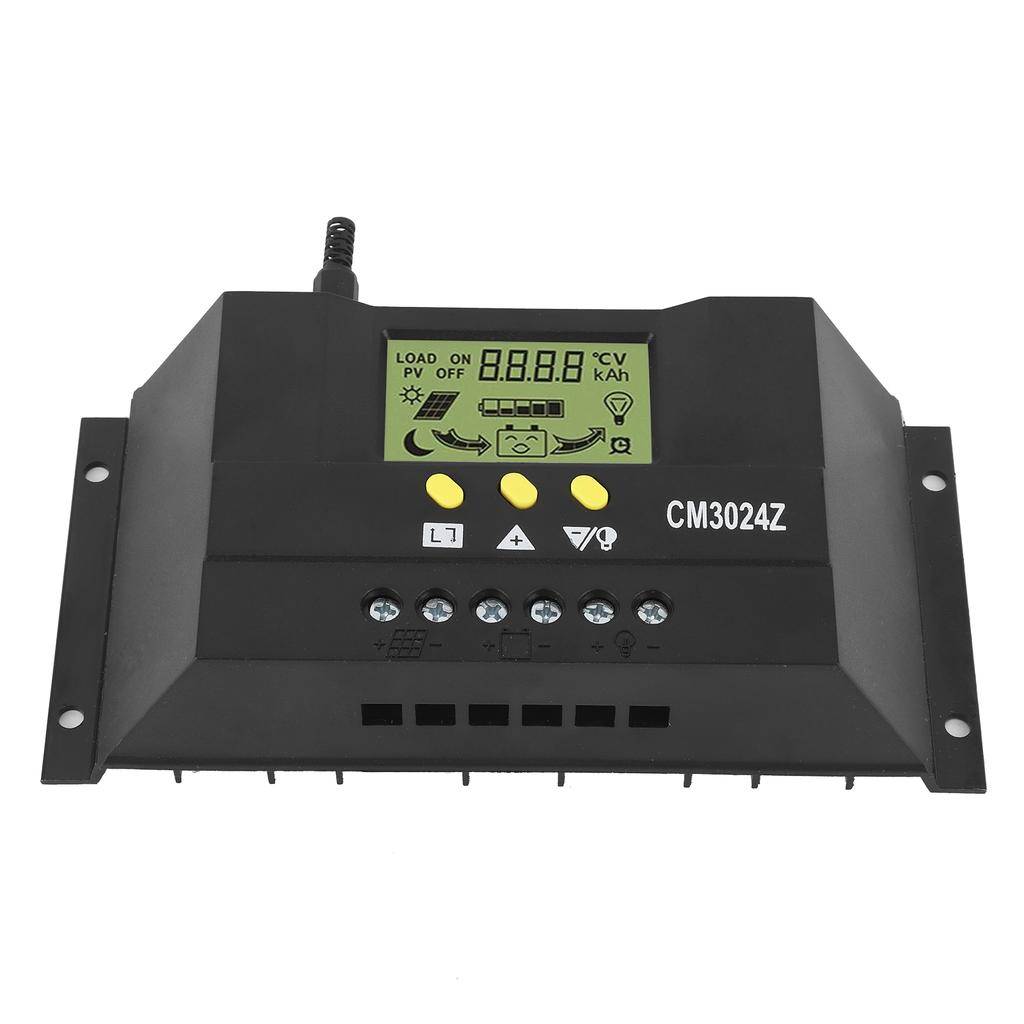

12V 24V 30A Solar Charge Controller Regulator PWM LCD Display for Home Industrial Commercial

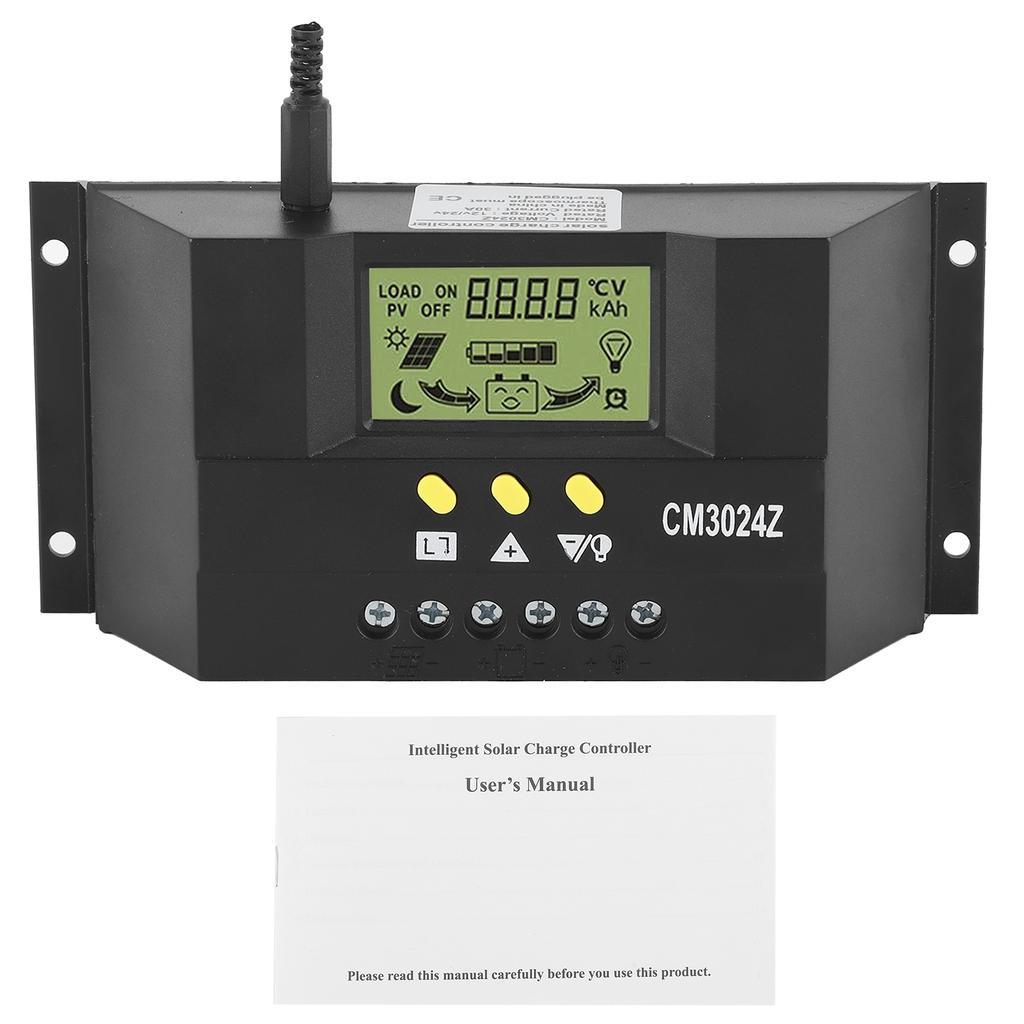

Feature: 1. Dual MOS anti‑backflow circuit, low heat generation. Complete 3‑level smart PWM charging management, high efficiency. 2. Large LCD display with backlight, clearly displays system operating information and indicates status and data, convenient to switch modes and parameter configurations. 3. Adjustable charging and discharging parameters, with power‑off memory function. Automatically recognize the 12V 24V system voltage. 4. Safe to use, built‑in short circuit protection, open circuit protection, reverse connection protection, over current protection. Can be used for home, industry, commercial, etc. 5. There are corresponding icon marks on the wiring terminals, which are used to connect batteries, solar panels and DC loads. Please install it in a well ventilated place. Specification: Item Type: Solar Charge Controller Material: Plastic Rated Voltage: 12V 24V battery voltage Maximum Charge Discharge Current: 30A Solar Panel Input Voltage Range: Maximum 18 450W 36V 900W Charging Mode: PWM Over Voltage Protection: 17V.34V Full Charge Power Off: 13.7V 27.4V Under Voltage Power Off: 10.5V 21V Over Discharge Recover Voltage: 12.2V 24.4V. Package List: 1 x Solar Charge Controller1 x Manual1 x Wire Connector
