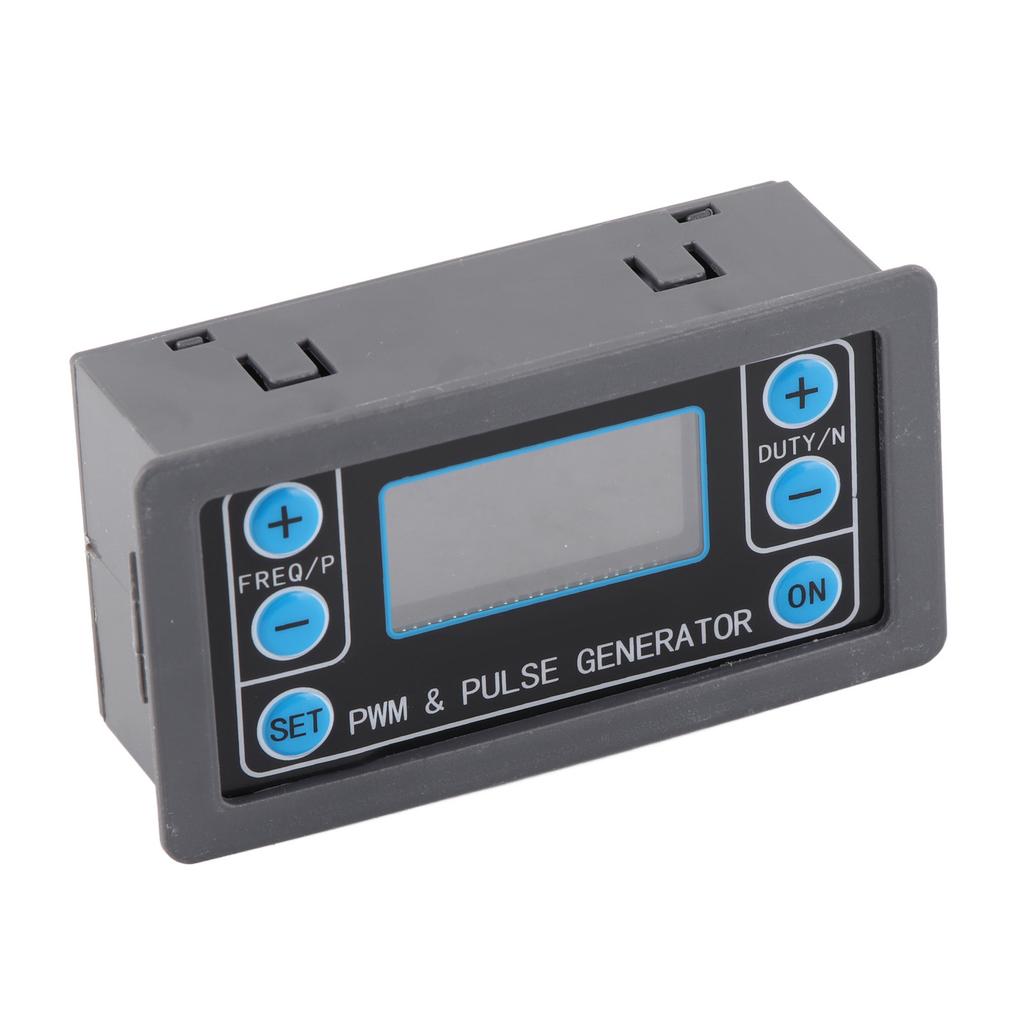

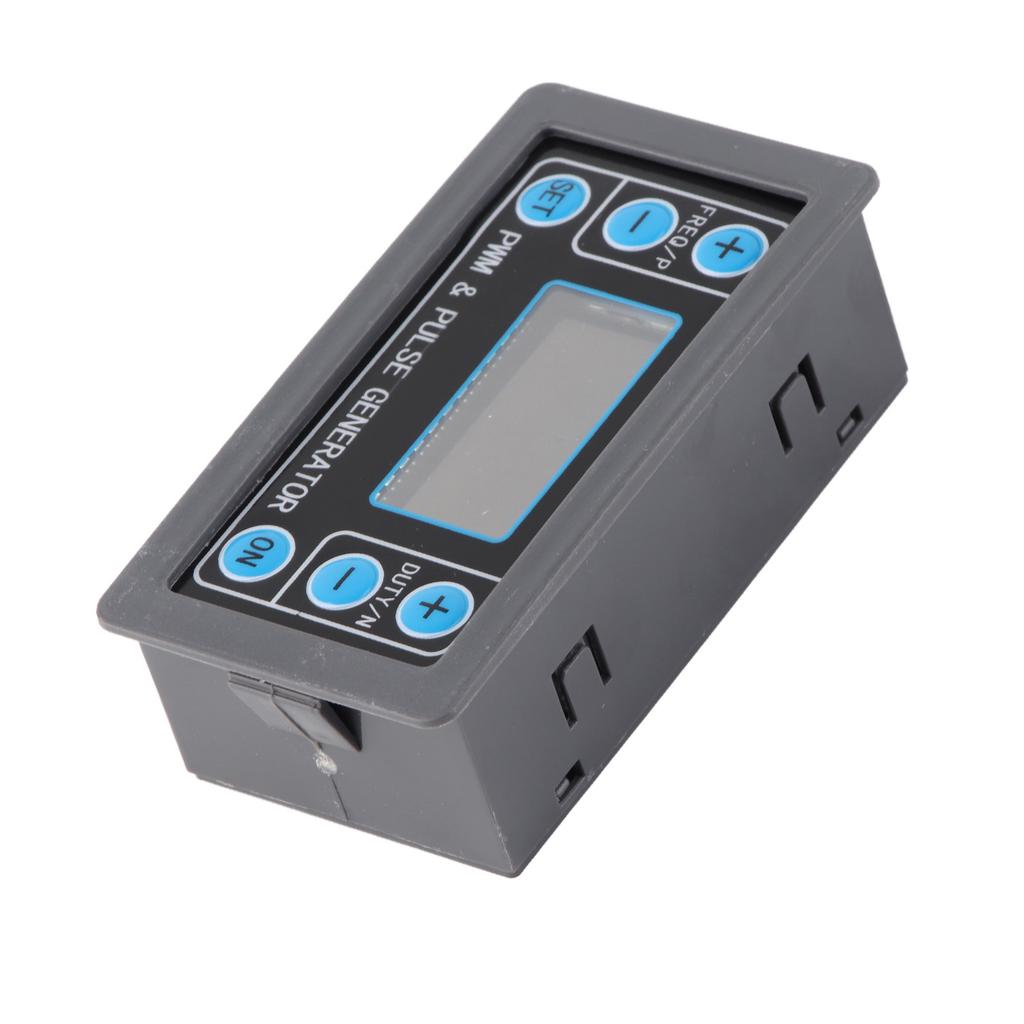

Signal Generator Adjustable Belt Shell 1Hz to 150KHz 3.3V to 30V PWM Board Module

Feature: 1. [Control Signal] Generating a wave rectangular wave signal for controlling a DC motor or a stepper motor driver 2. [Scope of Application] Used for servo motor, stepping motor, electric clamping claw, replacing PLC pulse, etc 3. [Number of Controls] Pulse mode can control the number of pulses, so as to control the number of revolutions of the stepping motor 4. [Parameter] PWM pulse number frequency duty cycle adjustable wave rectangular wave stepper motor turns driver with shell module 5. [Purpose] Can control the opening and closing of equipment, and can be used for switch fatigue test. Power off test to verify the reliability of the equipment Specification: Item Type: Signal Generator Model: ZKPP1K Material: ABS Purpose: Stepper Motor Turns Driver Basic Parameters: Working Voltage: 3.3 30V, with Anti Reverse Connection Protection Frequency Range: 1Hz ~ 150KHz, with an Accuracy of About 1percent Duty Cycle Range: 0100percent , 1percent Step Number of Pulses: 19999, or Infinite (display "" Represents Infinite) Delay Output Time: 0.000s9999s, the Minimum Setting is 1ms Positive and Negative Pulse Width Length: 0.000s9999s, the Minimum Setting is 1ms Signal Carrying Capacity: Less Than 30mA Output Signal Amplitude: the Amplitude is Equal to the Power Supply Voltage. Package List: 1 x Signal Generator1 x Connection Line1 x User Manual[Control Signal] Generating a wave rectangular wave signal for controlling a DC motor or a stepper motor driver [Scope of Application] Used for servo motor, stepping motor, electric clamping claw, replacing PLC pulse, etc [Number of Controls] Pulse mode can control the number of pulses, so as to control the number of revolutions of the stepping motor [Parameter] PWM pulse number frequency duty cycle adjustable wave rectangular wave stepper motor turns driver with shell module [Purpose] Can control the opening and closing of equipment, and can be used for switch fatigue test. Power off test to verify the reliability of the equipment
