Feature:

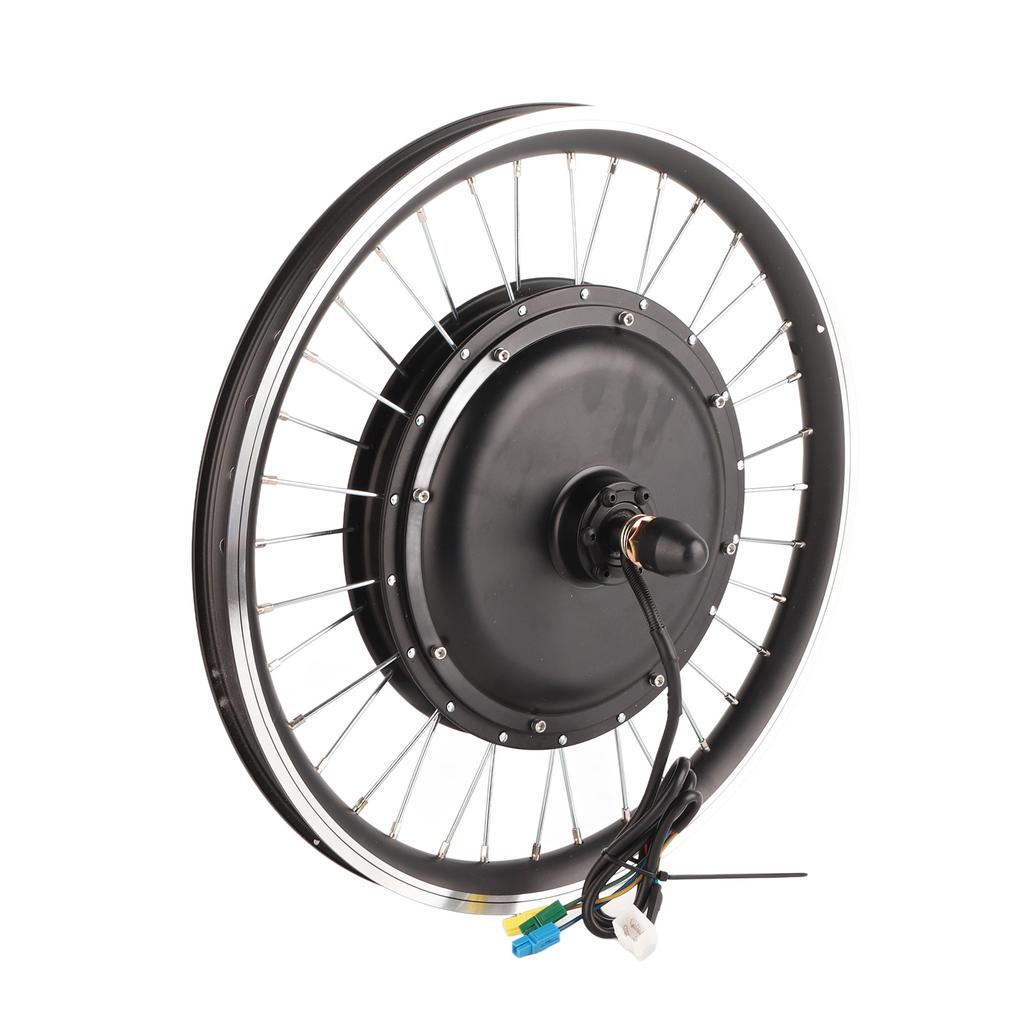

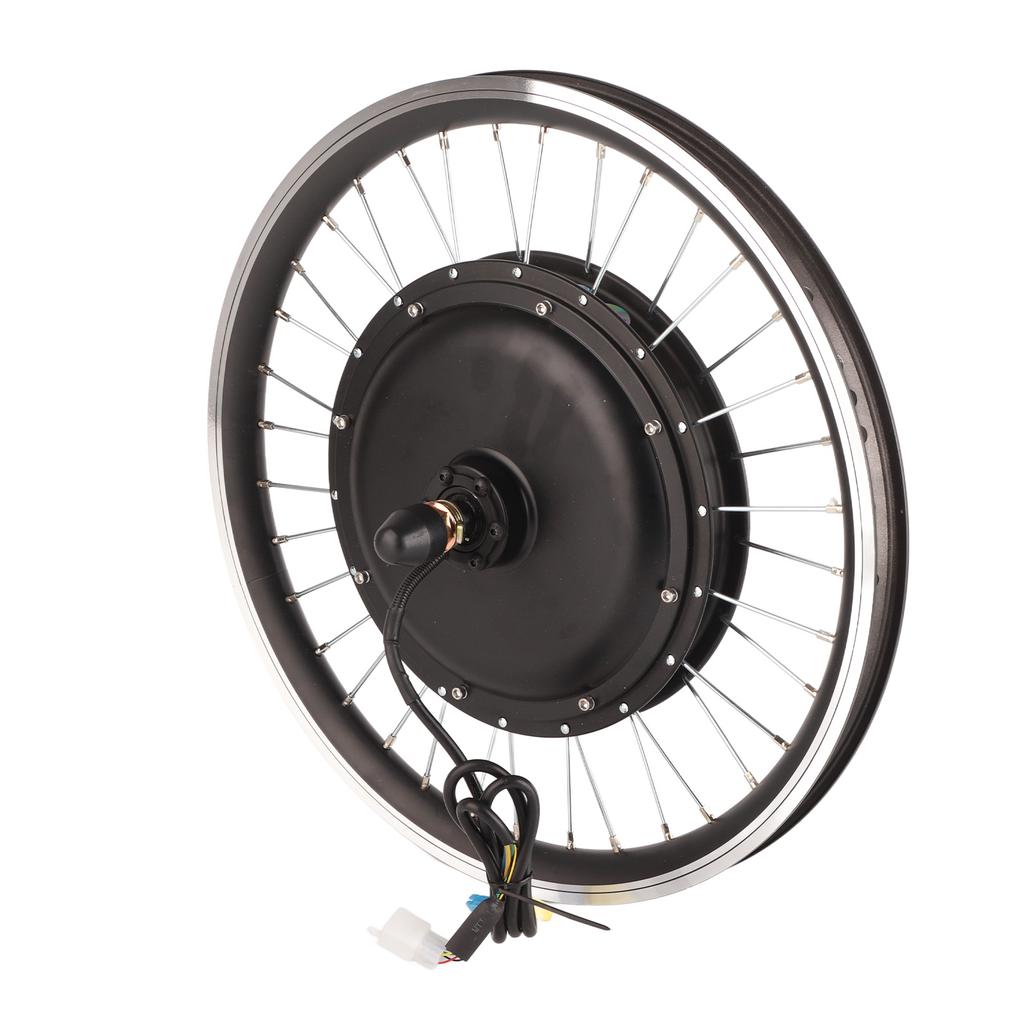

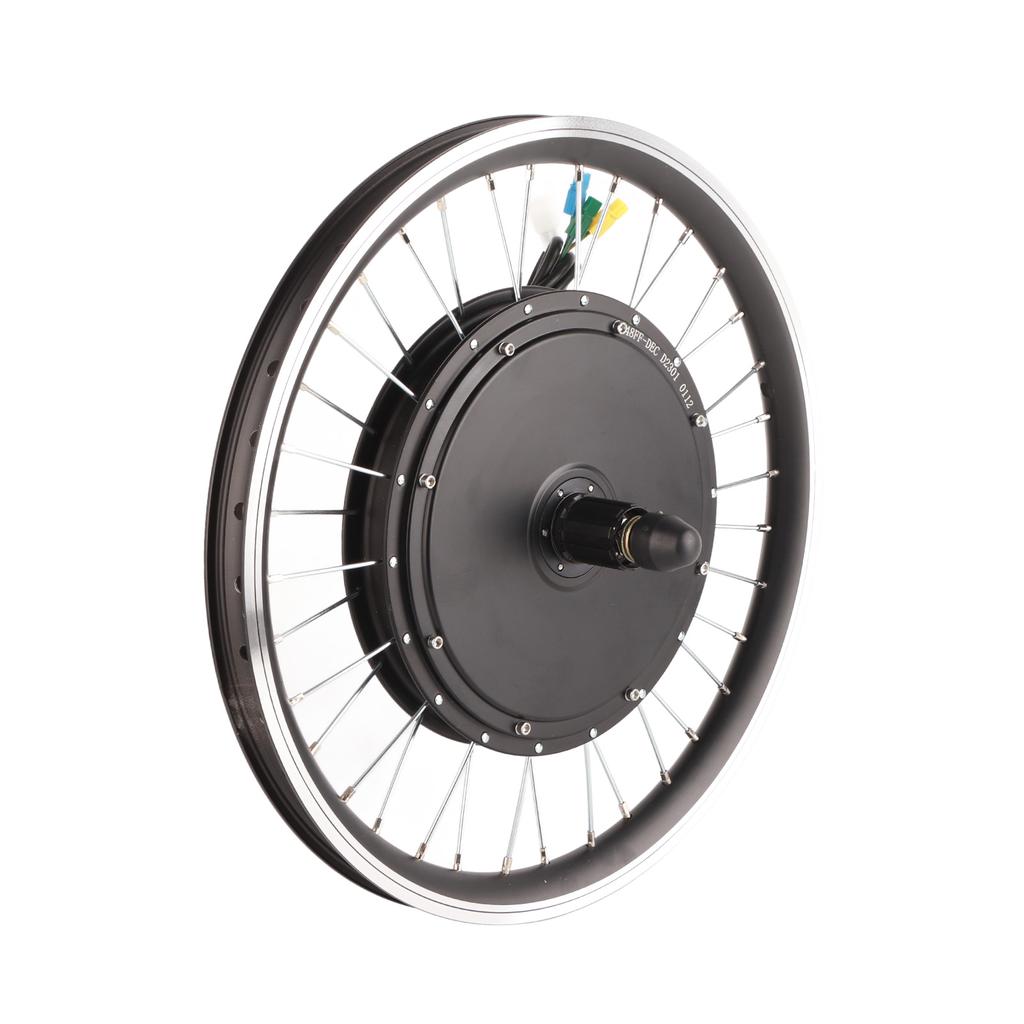

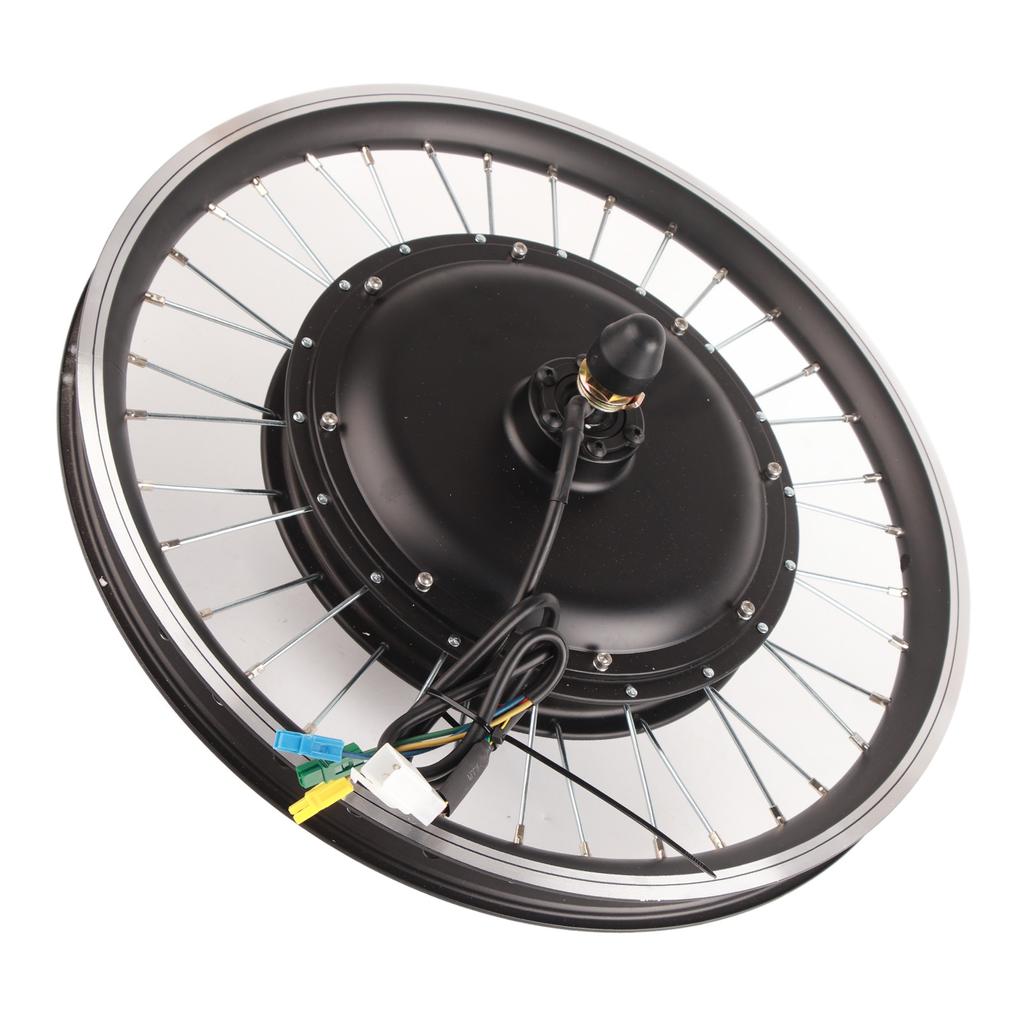

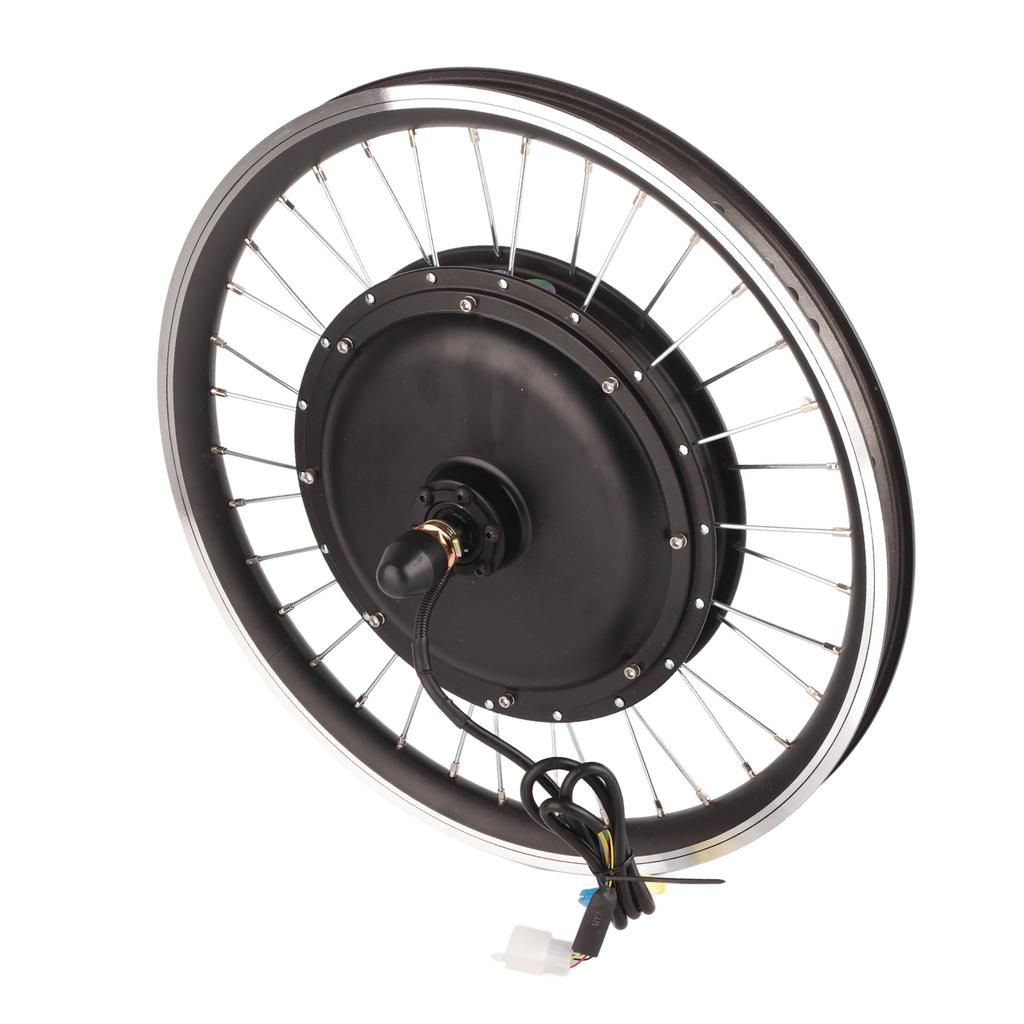

1. Brushless Gear Hub DC Motor: The brushless gear hub DC motor is made of aluminum alloy rim and processed with fine craftsmanship, which effectively enhances the edge of the rim, looks light and high end atmosphere, has strong bearing capacity, and is far more comfortable than other types of motors, realizes noise free operation, and allows you to fully enjoy riding.
2. Controller Housin and Display Meter: The controller housing is made of metal with a grooved design, which protects the internal circuits from thermal overload due to good heat dissipation. The display meter is made of ABS plastic material, which is light, strong and durable, with fine workmanship, good toughness and waterproof performance, providing better protection for the internal circuit and making it more durable.
3. Multifunctional LCD?S866 Display Meter: The LCD?S866 display meter has a variety of functions, and the LCD backlight display can clearly display the status and data. When riding a bicycle, the product will display many useful data on your bicycle, such as battery display, speed display, battery indicator, fault Indication, total mileage, single mileage, current speed, average speed, maximum speed, gear display, etc.
4. Wide Range of Applications: 48V 1000W rear drive 20 inch motor wheel kit suitable for bicycle, mountain bike, lithium battery modified rear drive cassette flywheel electric bike, DIY electric bike, electric bike, electric scooter, folding bike, etc; easy to maintain, electric bike, moped, mountain bike modified conversion motor, high efficiency, greatly improve riding fun, suitable for cyclists who like challenges.
5. Bicycle Lithium Battery Conversion Kit: Bicycle lithium battery conversion 20 inch rear drive kit includes 48V 1000W rear drive 20 inch motor wheel + 30A controller + LCD S866 display instrument + 130X thumb throttle + D12 power assist sensor + power off brake lever + controller package + manual.
Specification:
Item Type: Rear Wheel Electric Bicycle Conversion Kit
Material: Stainless Steel + Aluminum Alloy + ABS Plastic
Product Size:
Controller Box Size: Approx. 148x83x42mm 5.8x3.3x1.7in
Display Size: Approx. 80x48mm 3.1x1.9in

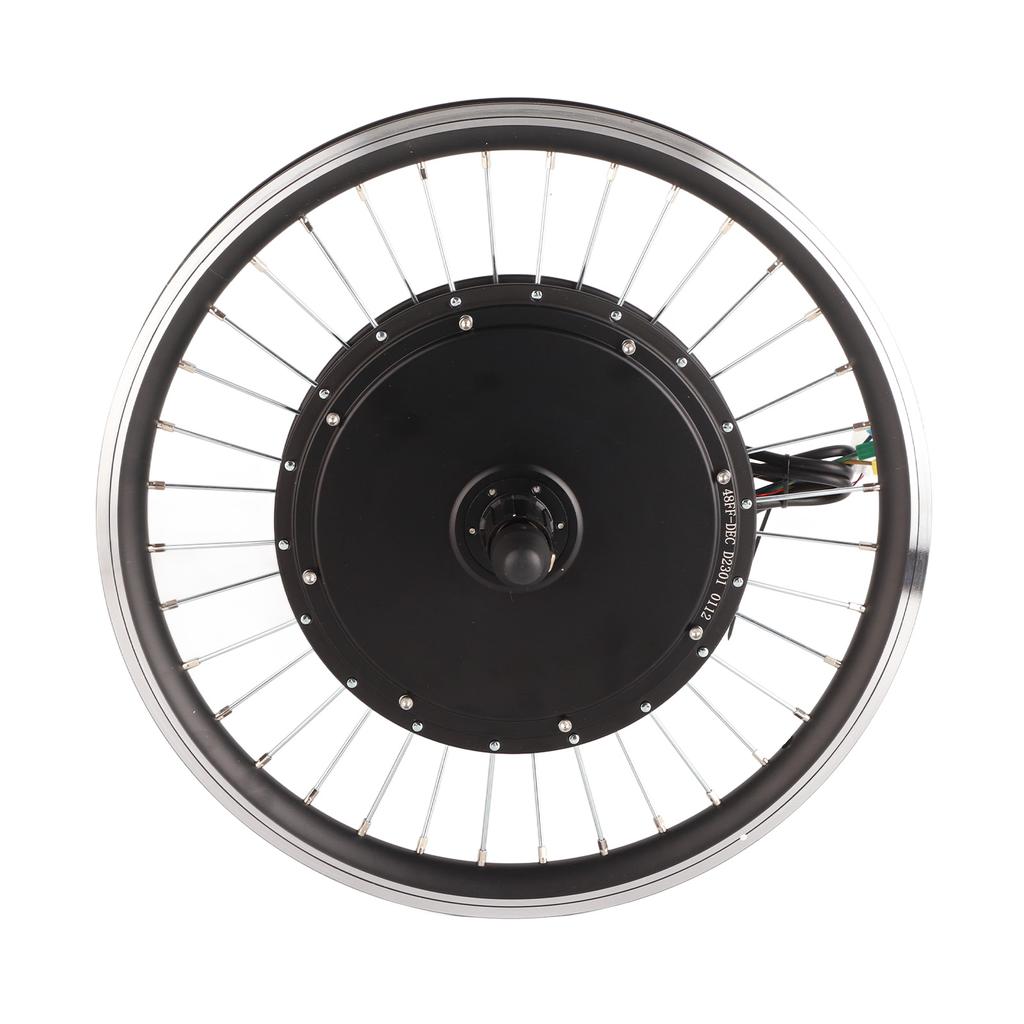

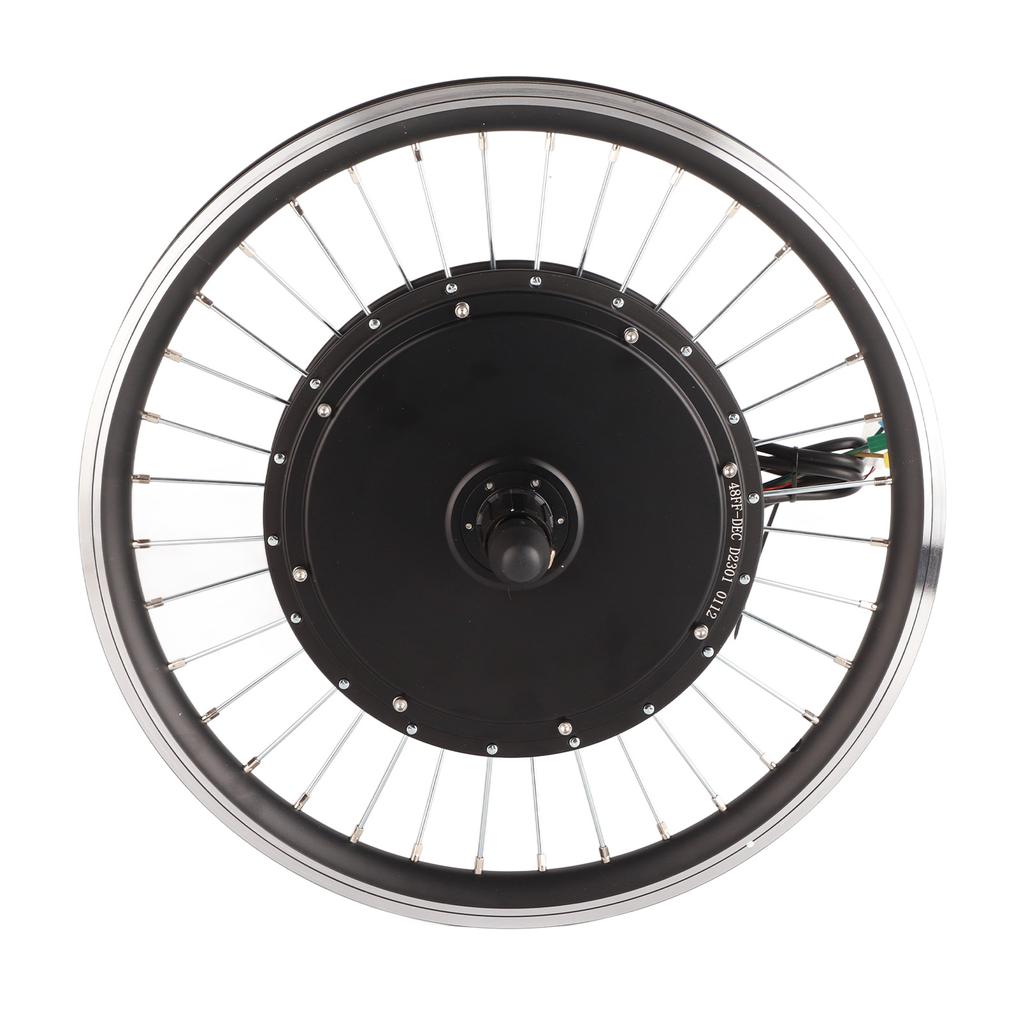

Motor Wheel Type: Rear Drive Motor Wheel
Motor Rated Voltage: 48V
Motor Rated Power: 1000W
Motor Speed: about 3545kmh
Motor Speed: 325331 RPM
Motor Torque (N.M): 57.559 N.M
Motor opening Size (mm): Approx. 142mm 5.6in
Motor Matching Controller Current: 30A
Motor Rim: P25D
Motor Torque Arm: M 14
Brake Disc for Motor: 160mm 6.3in
Motor Brake Type: V Brake Disc Brake Universal
Motor Wheel Position: Rear Wheel
Motor Structure: DC Motor
Motor Magnet Height: 30H
Number of Poles of Motor Magnets: 46
Motor Operating Temperature: 20 celsius 45 celsius
Controller Rated Voltage: DC 36V48V
Controller Maximum Current: 30A
Controller Speed Setting: 14.2V
Controller Brake Input: Low Level
Booster: 1:5
Connector Type: Ordinary SM Connector
Controller Wire Color Definition:
1. Yellow, green, blue single big head line: motor phase line
2. Red, white, black, blue, green, yellow double row six line port: motor Hall wire
3. Red and black single big head line: power line
4. Red, blue, black, green and yellow single row five wire port: display meter line (5pin)
5. Black and yellow lines (two): power off brake handle line
6. Red, black, white lines: thumb throttle line (3pin)
7. Brown, black and yellow line: power assist sensor line (3pin)
8. Black and red lines (two): headlight lines
LCDS866 display meter working voltage: DC 24V, 36V, 48V, 60V compatible (meter selection setting)LCDS866 Display Meter Function Description:
1. Display Function: speed display, battery indicator, fault indicator, total mileage, single mileage
2. Control Setting Functions: power switch control, wheel Diameter setting, idle speed automatic sleep time setting, backlight brightness setting, startup mode setting, drive mode setting, voltage level setting, controller limit value setting
3. Communication Protocol: UART
Display all the contents of the screen (full display for 1s after booting)
3.1 Display of battery power and BMS remaining power
3.2 Multifunction display area: total mileage ODO, single mileage TRIP (unit: mile, km), single boot time TIME, battery voltage VOL, DST: battery life
3.3 Speed display area
AVG: Average speed, MAX: Maximum speed, SPEED: Current speed: unit Mph kmh
The speed signal is taken from the Hall signal in the motor and sent to the meter by the controller. (The time of a single Hall cycle, unit: 1MS) The instrument will calculate the real speed according to the wheel Diameter and signal data (the number of magnets required by the motor Hall)
3.4 Vehicle power gear adjustment, 09 digital display and gear bar display..
Package List:

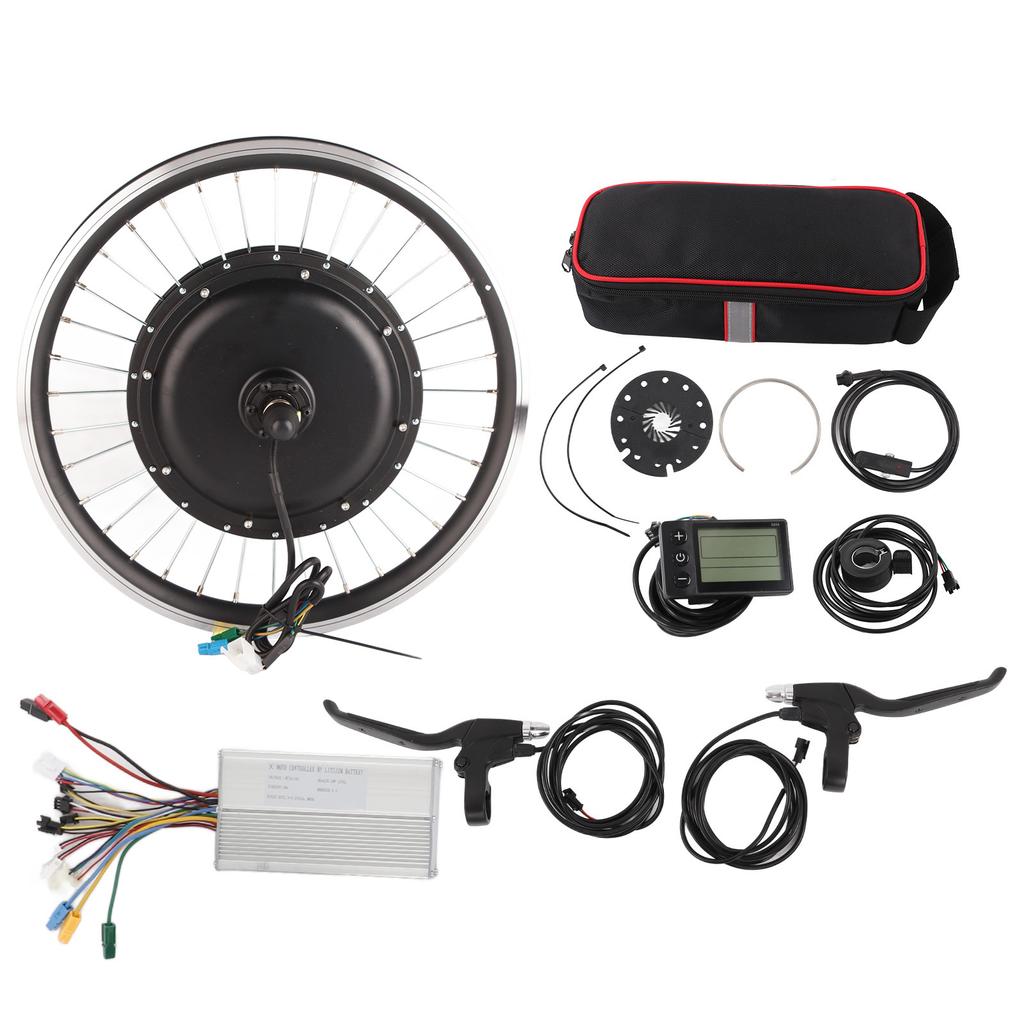

1 x Motor Wheel1 x Controller1 x Dispaly 1 x Dispaly Manual2 x Power off Brake Lever1 x Thumb Throttle1 x D12 Power Assist Sensor Wiring1 x D12 Power Assist Sensor Sheet1 x D12 Power Assist Sensor Ring2 x Cable Ties1 x Controller Bag1 x Manual
Note:
