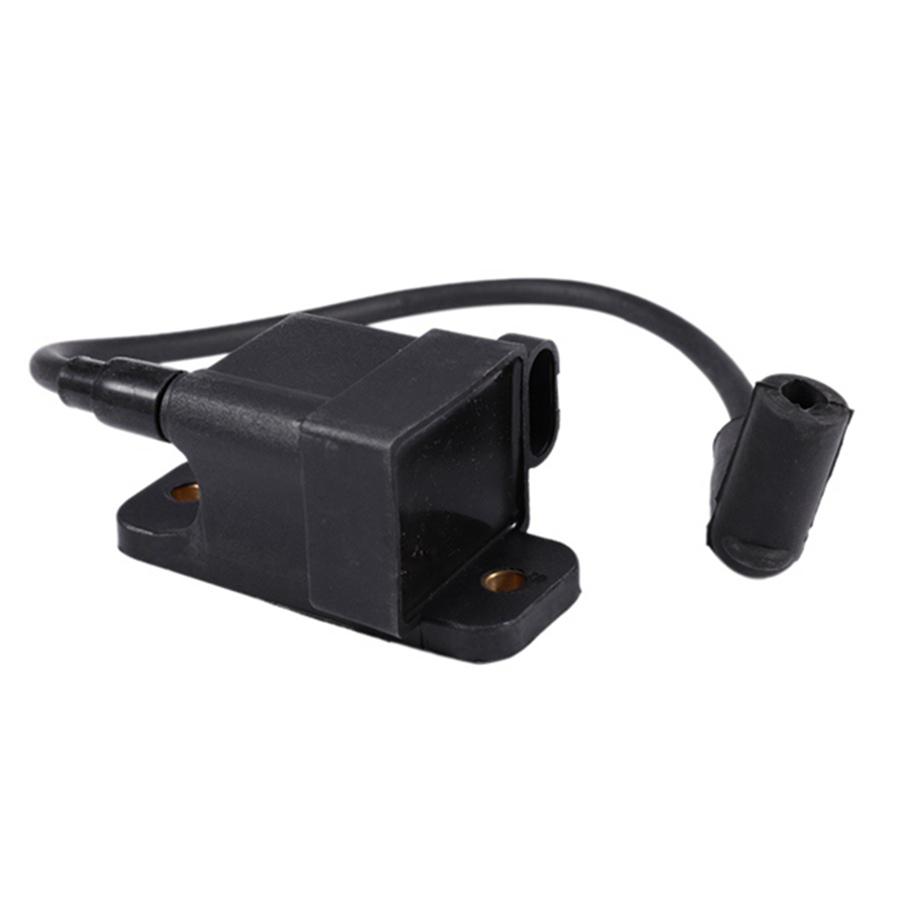

CDM Module Ignition Coil For Mercury 30-300HP Outboard Motor 114-7509 827509A10

This CDM Module replaces all 827509A1, 827509A3, 827509A7, 827509A9, 827509A10 and 827509T4 series CDM Modules

Product Description: High Performace Quality OEM Style. Product ForChrysler, for Force, for Gamefisher, for Mercury ,for CDM Module 2/3/4/6 Cyl OEM:114-7509, 827509A1, 827509A3, 827509A4, 827509A7, 827509A8, 827509A9, 827509A10, 827509T7, AMW-3454 100% brand new and high quality. Material:Plastic Size:Approx. 90x35mm/3.5x1.4inch

Package Includes: 1 Piece CDM Ignition Coil

Please be sure to check your part or model number to ensure this is the correct CDM module for your unit. Also, please note this may replace multiple part numbers

INSTALLATION 1. Disconnect and clean all engine and battery ground wires. 2. Disconnect the old CDM Module and remove the high tension coil wire from the spark plug. 3. Unbolt and remove the old CDM Module. (Note the direction of the spark plug wire). 4. Apply a light amount of dielectric grease to the seal area of the wire connector from the engine harness. 5. Apply a light amount of dielectric grease to the outside of the new spark plug wire and thread the spark plug wire into the new CDM Module. 6. Bolt the new CDM Module onto the engine (orient the new CDM Module so that the spark plug wire is pointed in the same direction as the original). 7. Plug in the connector from the wire harness into the new CDM Module and connect the spark plug wire to the spark plug.
