Features:

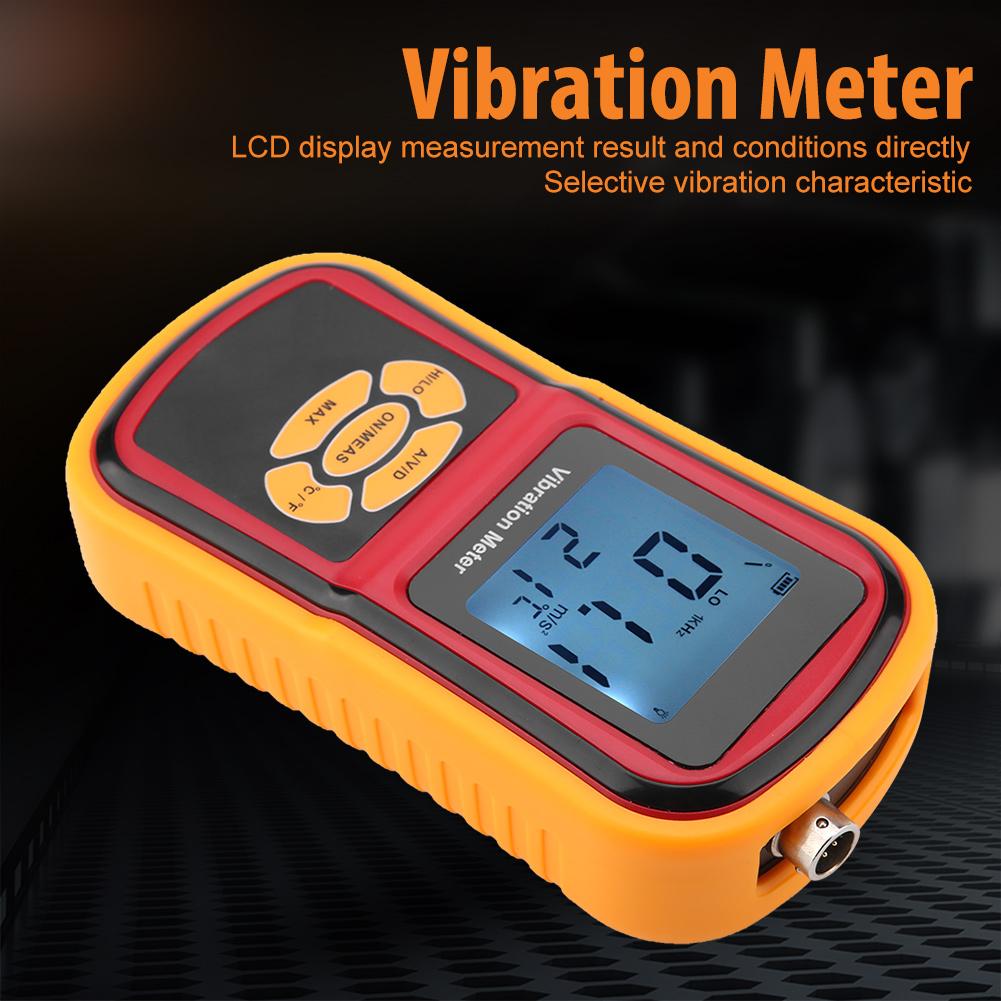

1. LCD display measurement result and conditions directly
2. Selective vibration characteristic
3. Using vibration sensor make it more accurate to measure

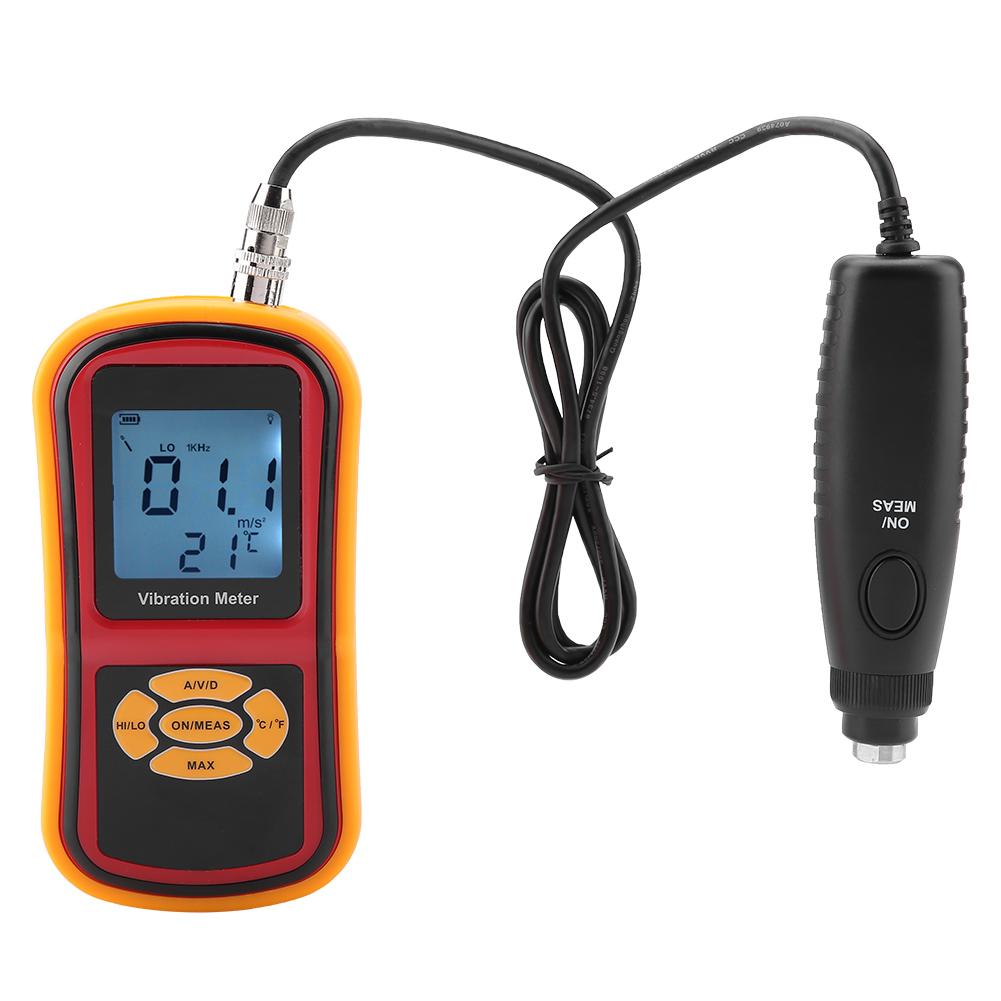

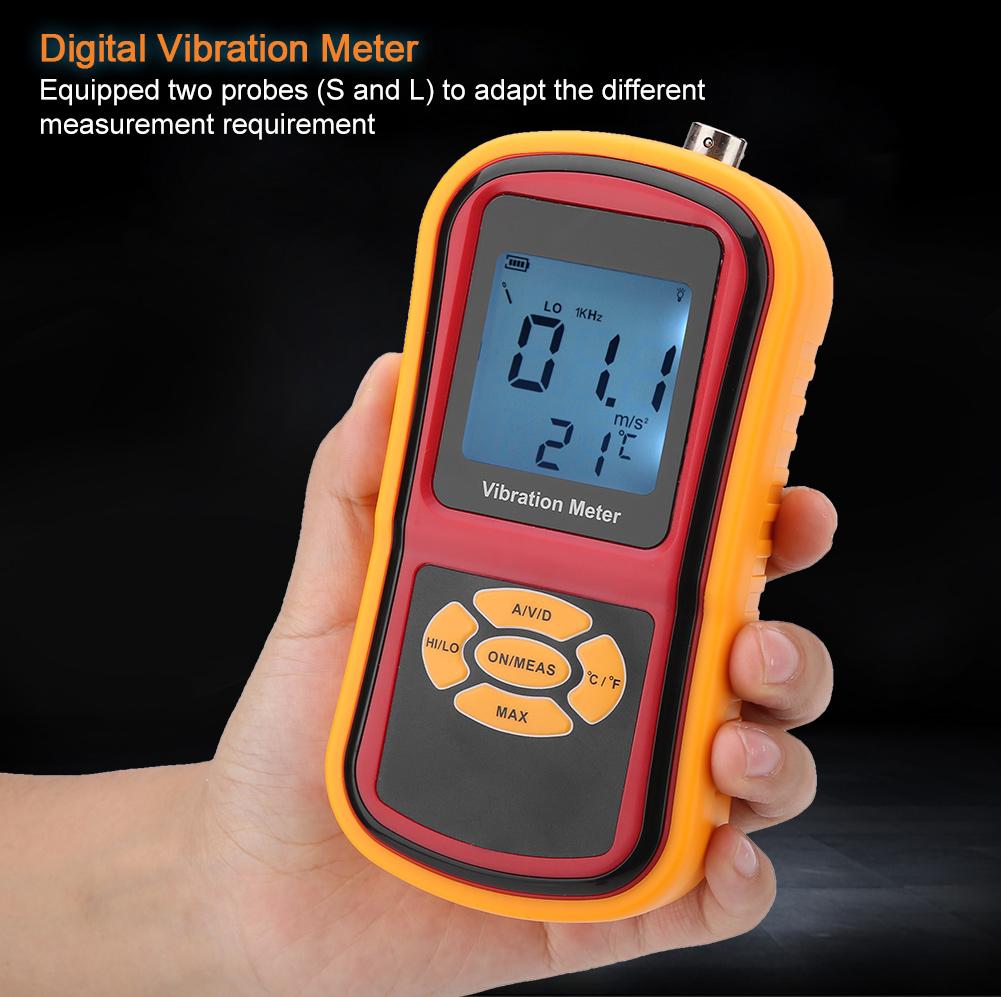

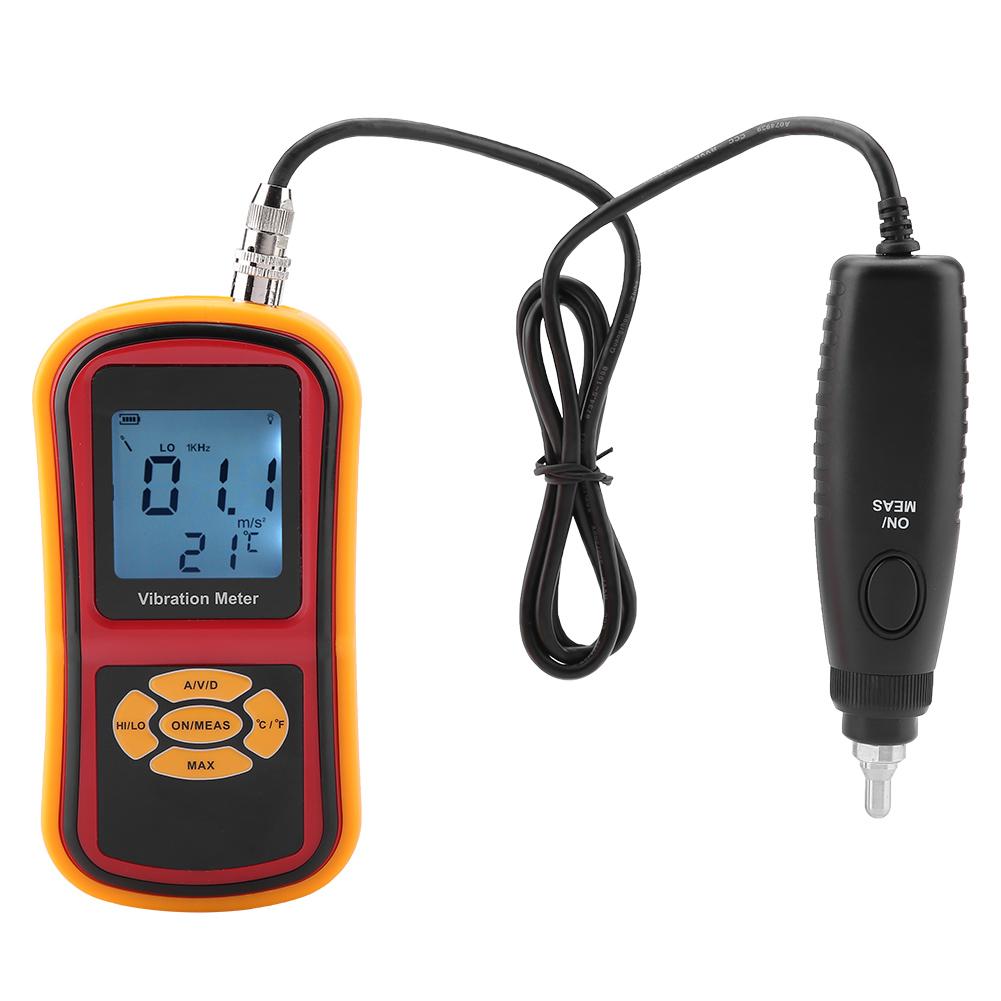

4. Equipped two probes (S and L) to adapt the different measurement requirement
5. Low battery indication, auto turn off function, LCD back light function, maximum value hold function, temperature unit C degrees F degrees selection.
6. Suitable for mechanical watches, motors, fans and bearings
Specification:
Condition: 100percent Brand New
Model: GM63B
Technical parameter
Technical specification
Vibration pickup
Piezoelectric ceramic accelerometer (shear type)
Measurement range of acceleration
0.1
199.9m s
Measurement range of velocity
0.1
199.9mm s rms
Measurement range of displacement
0.001 1.999mm p p Velocity and displacement range is limited by acceleration199.9m s
2
Measurement accuracy
+ 5percent + 2digits
Measurement frequency range of acceleration
10Hz
1KHz (LO) 1KHz
15KHz (HI)
Measurement frequency range of velocity
10Hz
1KHz (LO)
Measurement frequency range of displacement
10Hz
1KHz (LO)
Displays update cycle
1 seconds
LCD display
3 1 2 digits display
Single output
AC output 2 V peak (display full scale) Load impedance 10K Ohm
or more earphones can be connected
Power supply
9V battery
(not included)
Stand by current
less than
15uA
Operating current
less than
25mA
Battery life
20 H continuous use
Auto power off function
Turns off automatically after 60 seconds
LCD backlight function
7 seconds
Operating temperature range
0
40 celsius
Operating humidity range
30
90percent RH
Low battery indication
6.4V+ 0.2V
Temperature range
10 celsius
80 celsius
Temperature accuracy
+ 2 celsius
Weight: Approx. 1104g 38.9oz

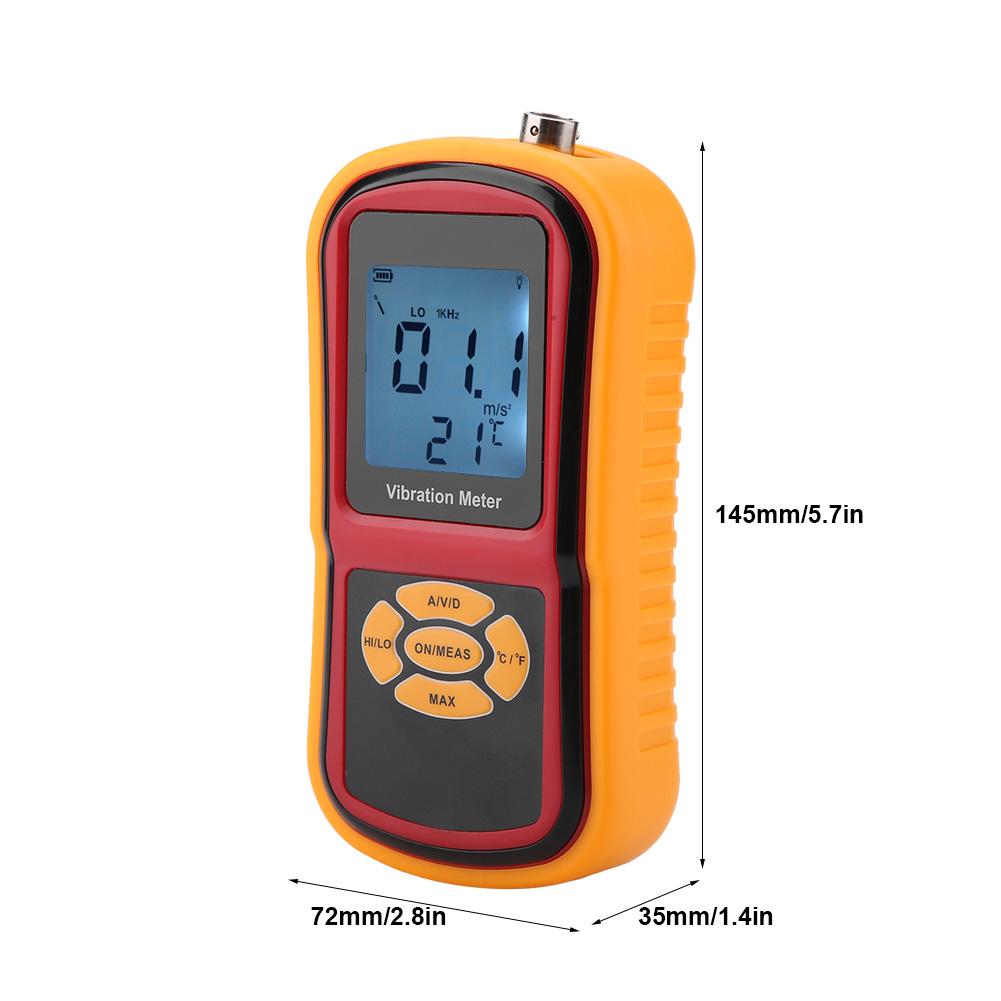

Size: Approx. 72 * 35 * 145mm 2.8 * 1.4 * 5.7in
Package List:

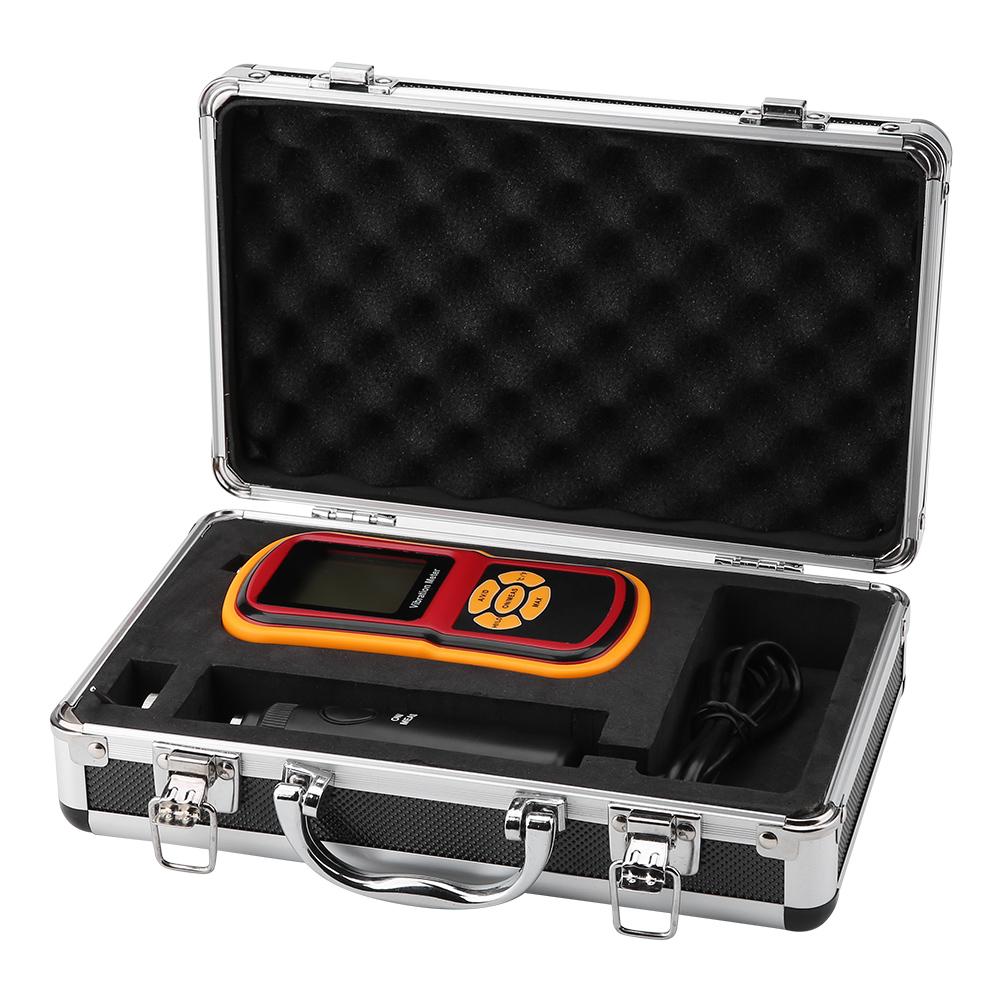

1 Set of Vibration Meter
1 * Box
