Feature:
1. Multi Ports: Including 2 pcs 18PIN phoenix terminal GPIO interface, support 16 channels input and output, with optocoupler isolation function.
2. Support 4 Way POE: With 5 pcs Gigabit Ethernet ports, support 4 way 802.3af standard POE network ports, ensure the security of existing structured wiring and the normal operation of the network, improve efficiency.

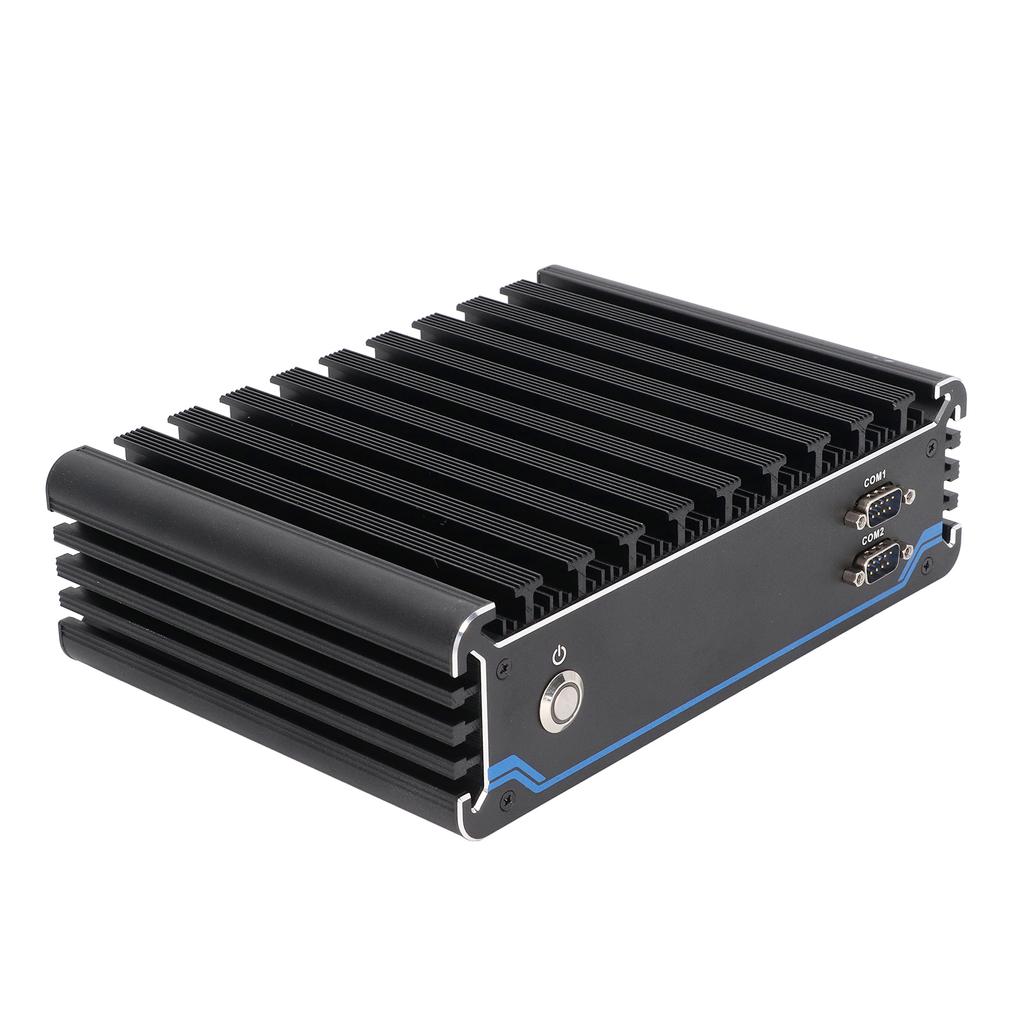

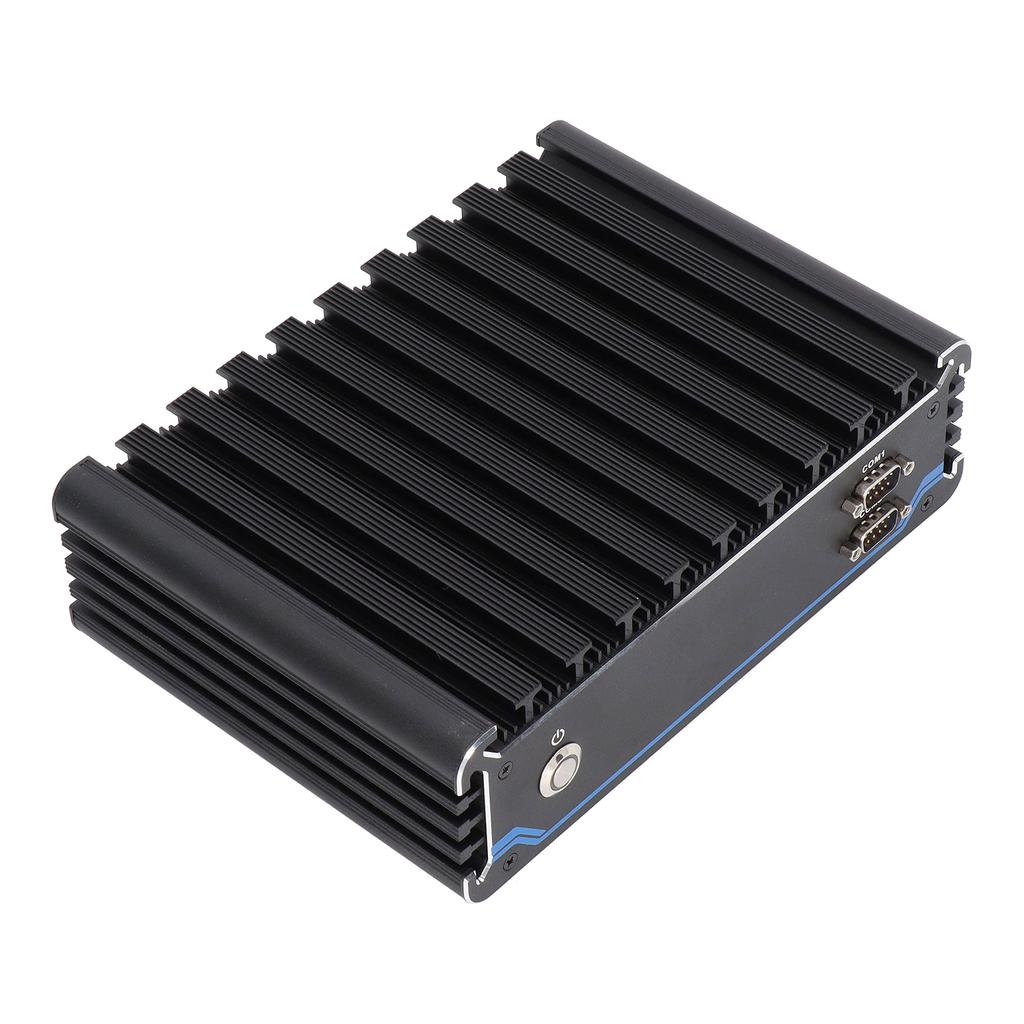

3. Quiet Fanless Cooling: The whole machine has no fan design, dissipate heat with cooling teeth, provide better heat dissipation effect.
4. Aluminum Alloy Case: Adopt all aluminum alloy case, dust proof, shock proof and anti electromagnetic interference, has good durability in harsh environment.
5. Strict Tested: The machine has been strict high temperature aging test after more than 24h, ensuring the excellent performance and long service life of the machine.
Specification:
Item Type: Industrial Computer
Material: Aluminum alloy
Processor: Onboard for Intel Core I5 6200U (Dual cores and 4 threads, main frequency 2.3GHz, for turbo frequency up to 2.8GHz)
CPU Architecture: For Skylake U
BIOS: AMI EFI BIOS
Graphics Chip: Integrated for Intel HD Graphics 510 520 core graphics card
Display Interface: 1 x VGA display interface, 1 x HD multimedia interface

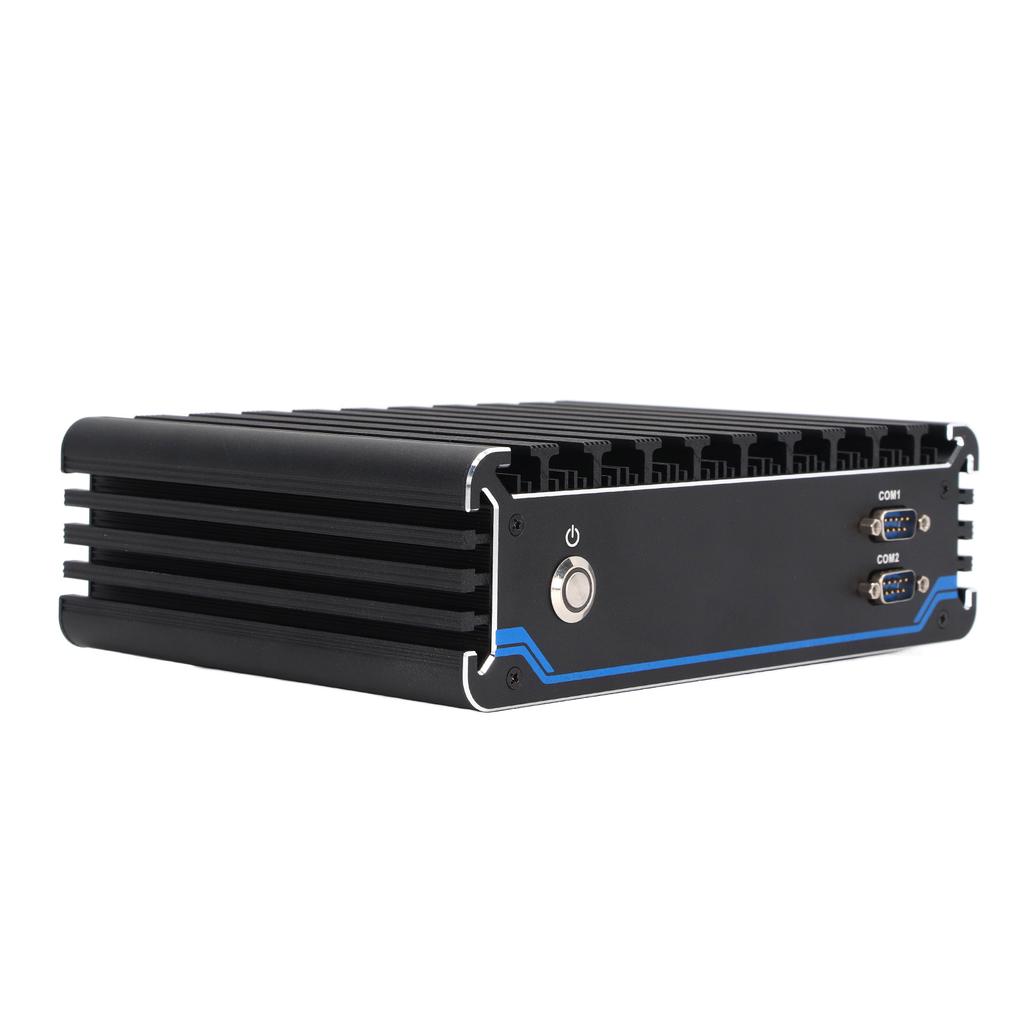

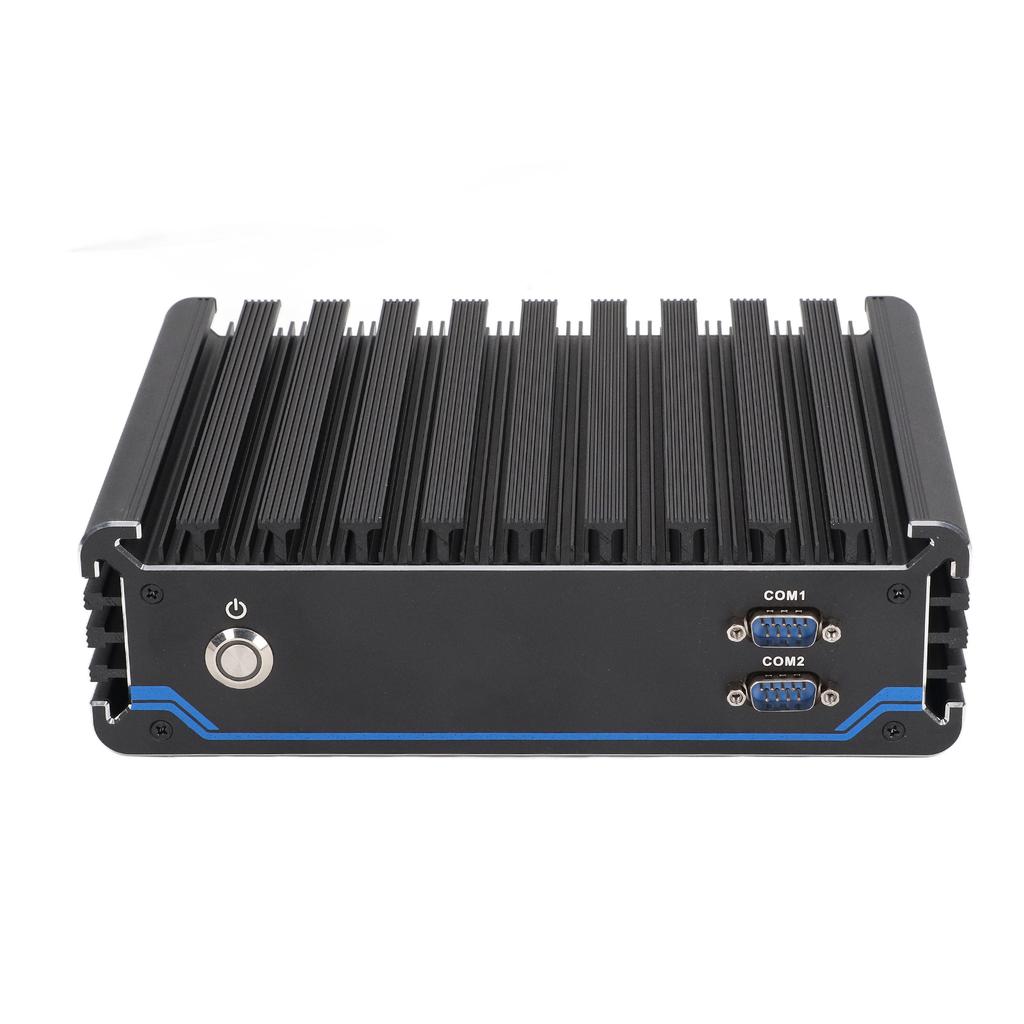

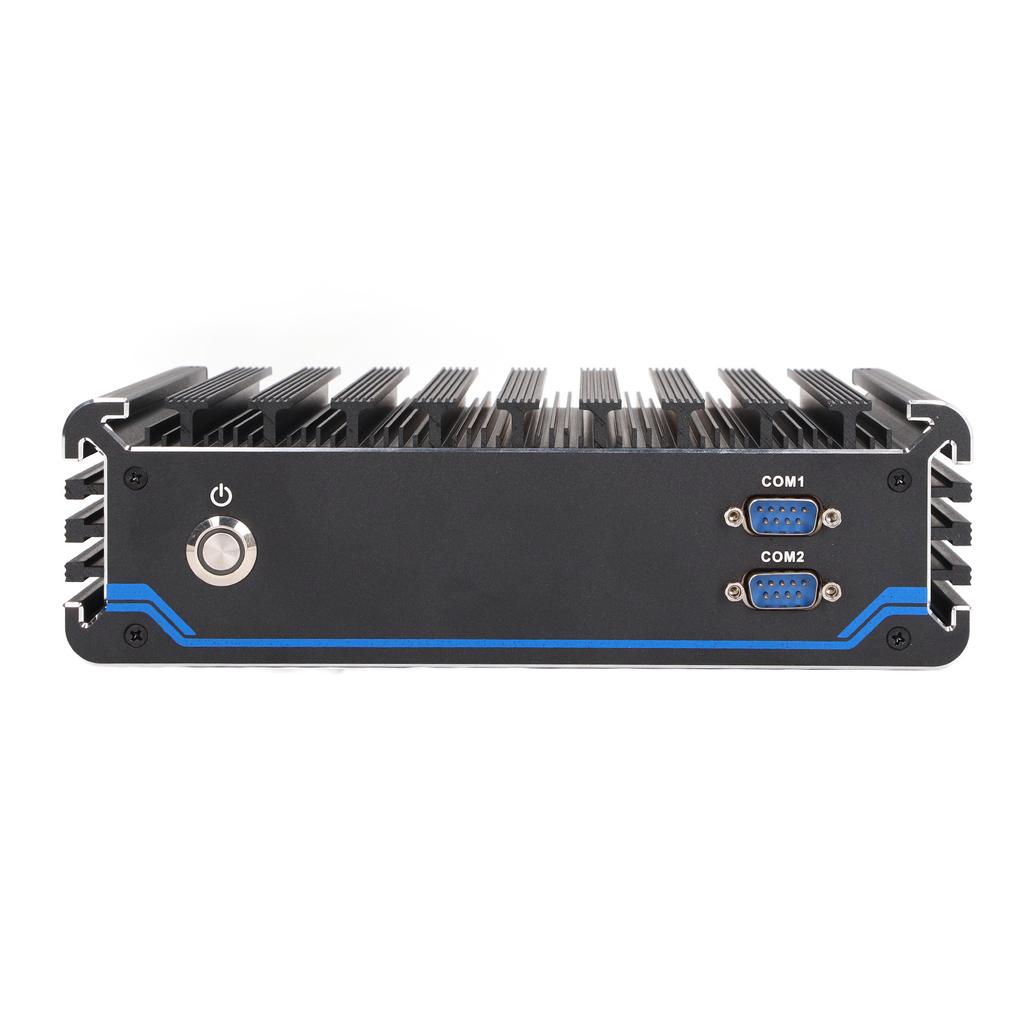

Front Panel I O Ports: 2 x COM ports, 1 x power switch

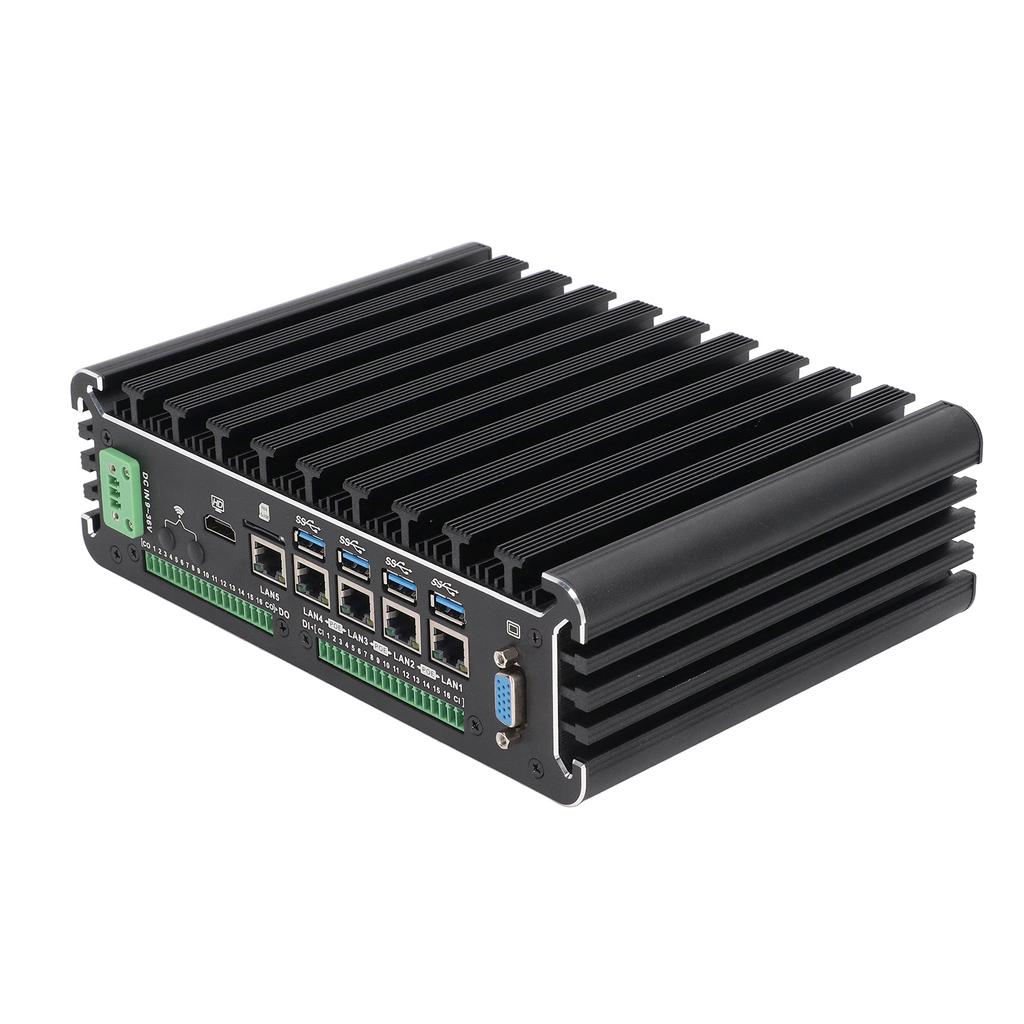

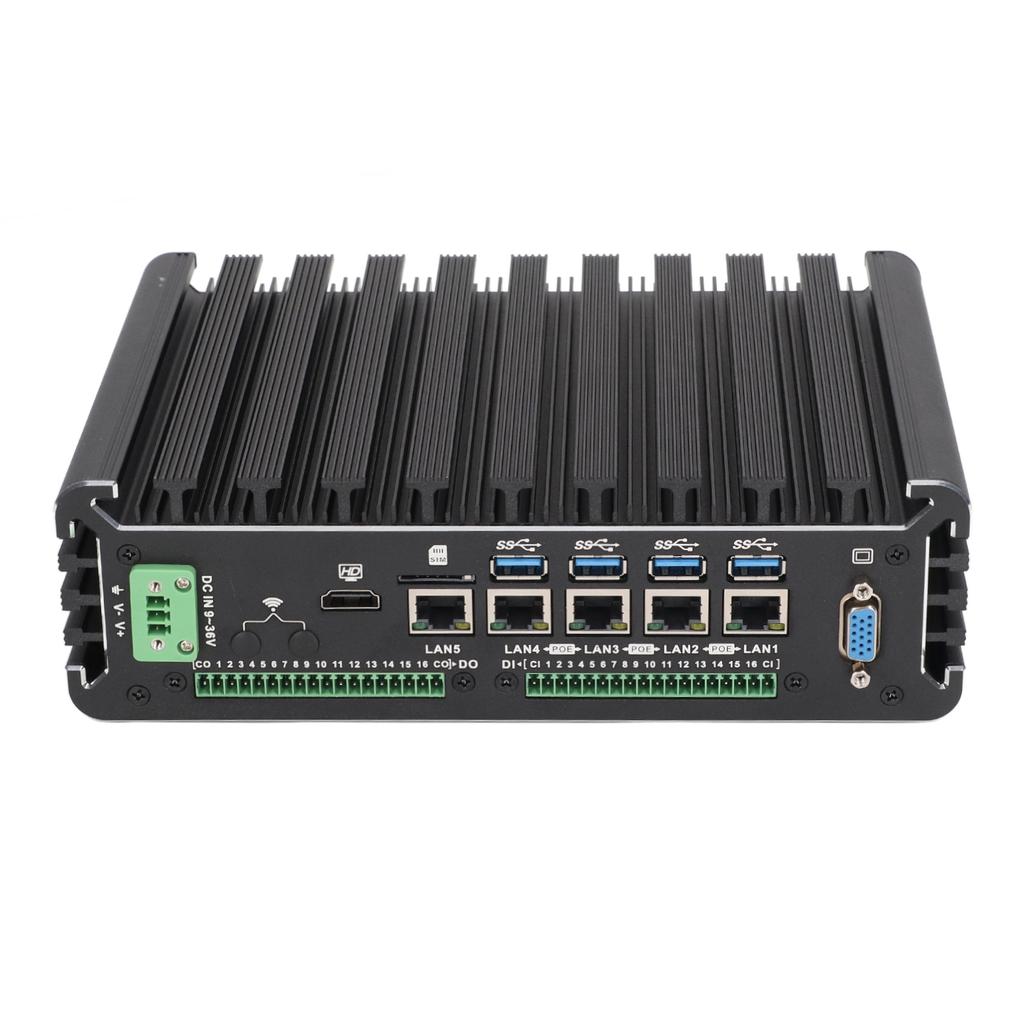

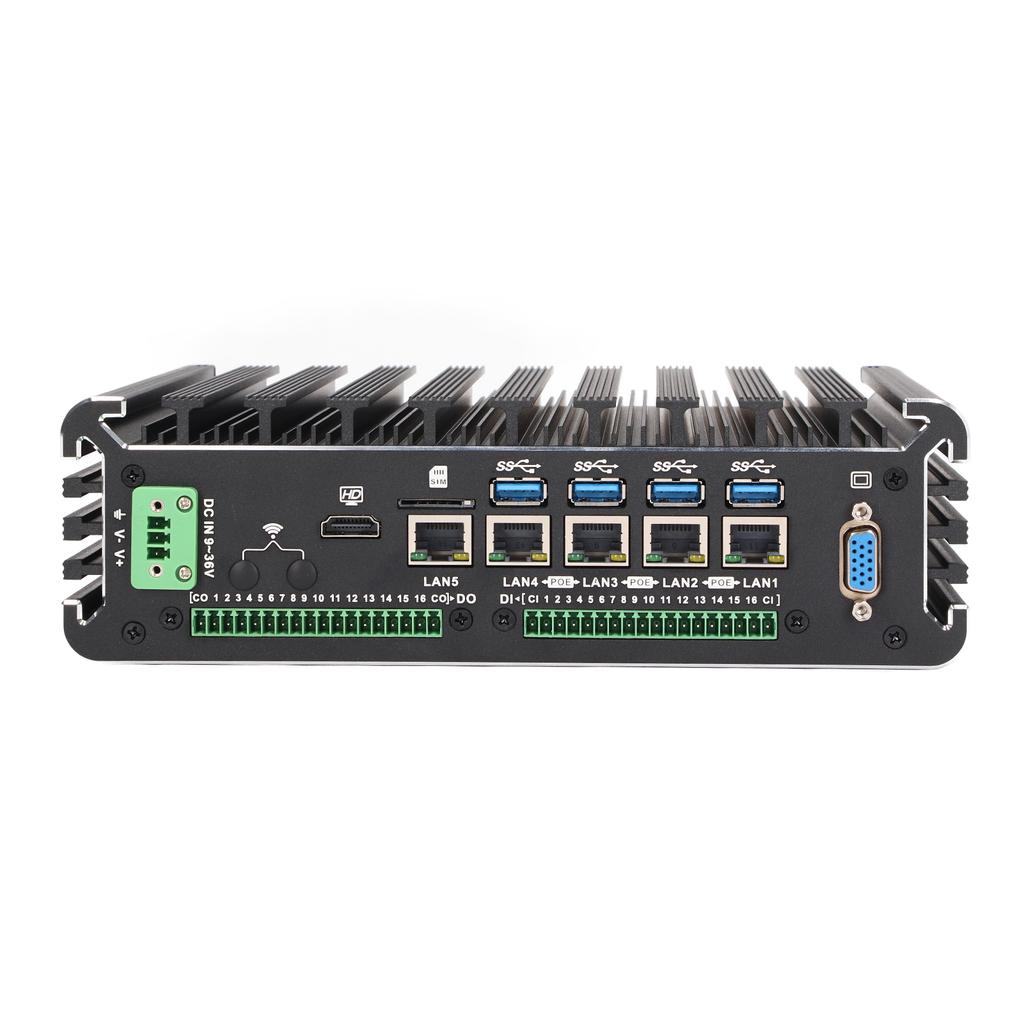

Rear Panel I O Ports: 4 x USB3.0 ports, 1 x VGA port, 1 x HD multimedia interface port, 1 x 2 PIN power supply Phoenix terminal, 5 x for Intel Gigabit Ethernet ports, 2 x 18 PIN Phoenix terminal GPIO ports (with Optocoupler isolation, support 9 36V wide voltage)
Expansion Interface: Support 1 x MINI PCIE slot (optional WIFI 3G 4G), with SIM card holder, support 1 x MINI PCIE slot (support MSATA)
Network Interface: 5 x for Intel i211 AT Gigabit Ethernet interfaces (support 4 way 802.3af standard POE network ports)
Storage Interface: 1 x for MSATA slot, 1 x 2.5in hard disk slot
Input Voltage: Support DC 9 36V wide voltage input
Power Voltage: 100 240V
Other Functions: Power on, timed power on, network wake up, PXE boot, watchdog (level 0 255)
Working Temperature: 20 celsius to +60 celsius (industrial SSD), surface air flow
Working Humidity: 5 95percent non condensing state.

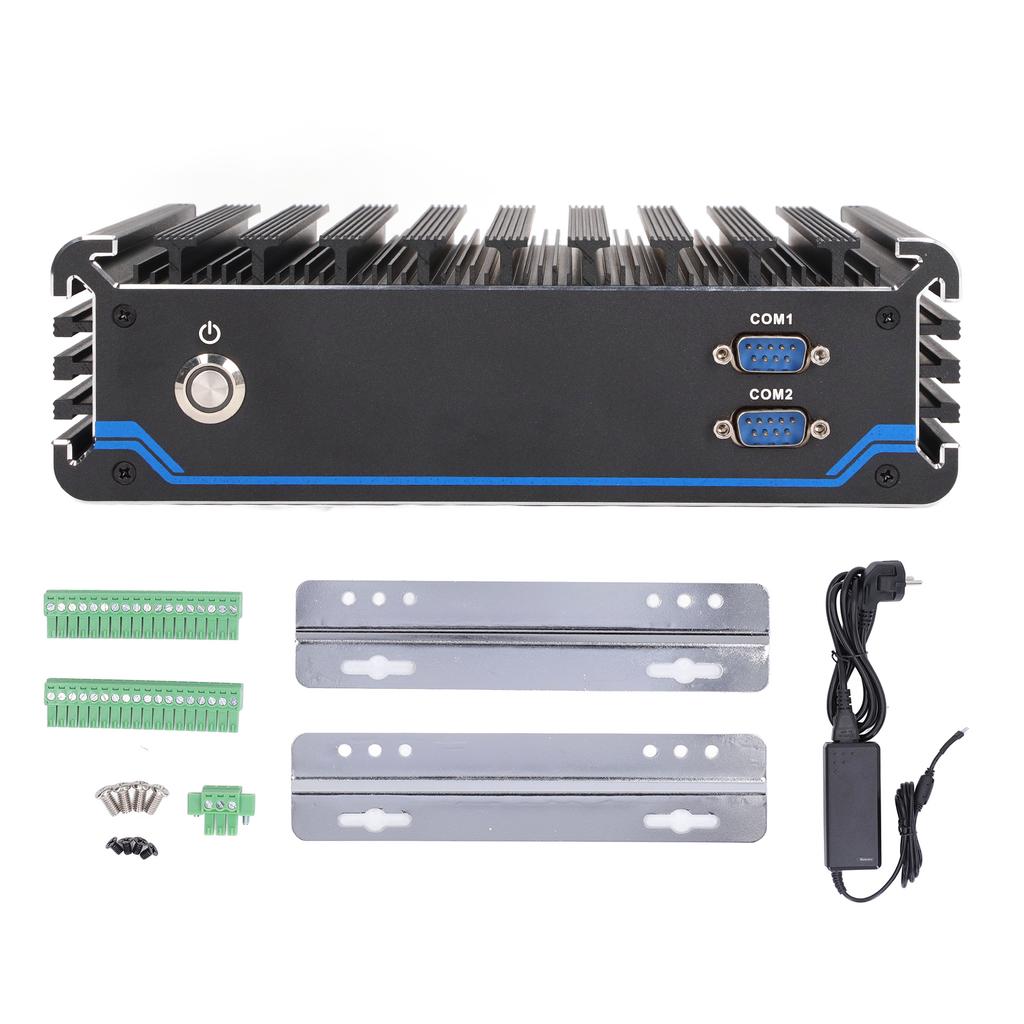

Package List:
1 x
Industrial Computer1 x Power Cable2 x Hanging Bracket8 x Screw3 x Interface Row
