Makita Impact Driver TD173DZB (Black) 18V - Bare Tool

・Adopts Japan’s first “full circumference” ring illumination LED light, optimal balance, a slim head all around, and comfortable operability. *Based on domestic cordless impact drivers as of December 2022, Makita research. Significantly improves visibility during work. Approximately 2.5 times brighter (compared to Makita’s conventional 18V models). Illumination level can be switched between three stages (high/medium/low). *Based on domestic cordless impact drivers as of December 2022, Makita research. Can also be used as a work light. Can be used as simple illumination in “light mode.” Lighting time is approximately 1 hour.

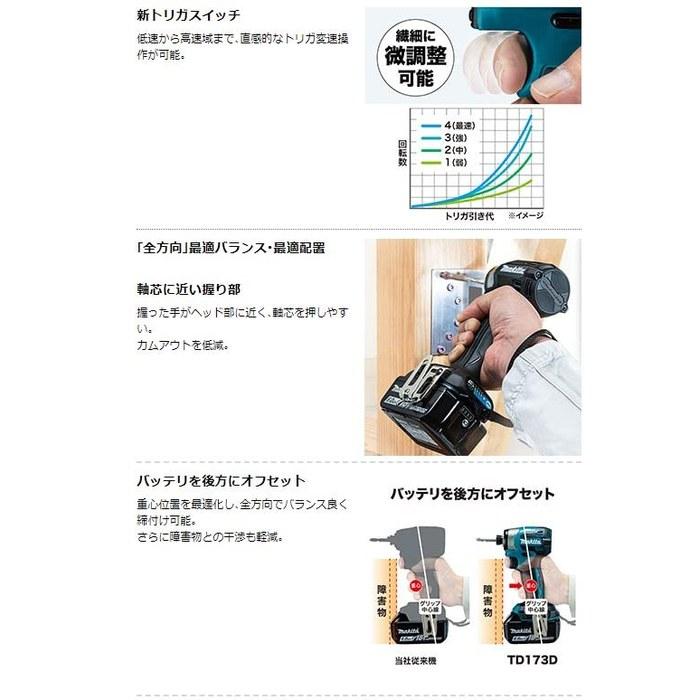

・New trigger switch. Intuitive trigger speed control from low to high speed. Grip close to the axis. The hand holding the tool is close to the head, making it easy to press the axis. Reduces cam-out. Battery offset to the rear. Optimizes the center of gravity for balanced tightening in all directions. Also reduces interference with obstacles. “Rear” positioned, easy-to-see and easy-to-use operation panel. Mode operation and remaining battery capacity can be checked while holding the tool.

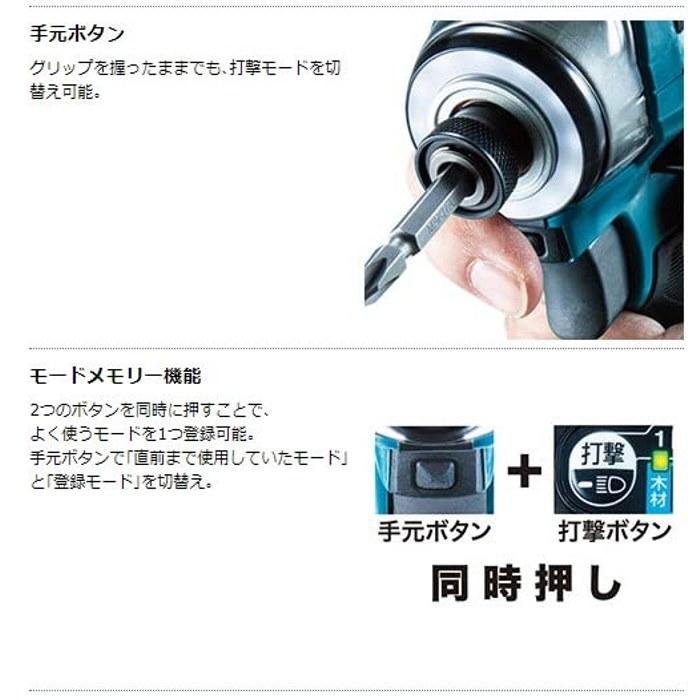

・“Industry’s smallest” bit wobble, adopting double ball bearings. New bit sleeve shape. Ribs are provided on the edge, making it less likely to damage materials even if the sleeve comes into contact with them. *Based on domestic cordless impact drivers as of December 2022, Makita research. Tilting angle approximately 10.5°. Excellent cornering performance reduces cam-out. Comfortable work in corners. Select the optimal mode according to the work. Mode memory function. By pressing two buttons simultaneously, you can register one frequently used mode. Switch between the “mode used last” and the “registered mode” with a button on the handle.

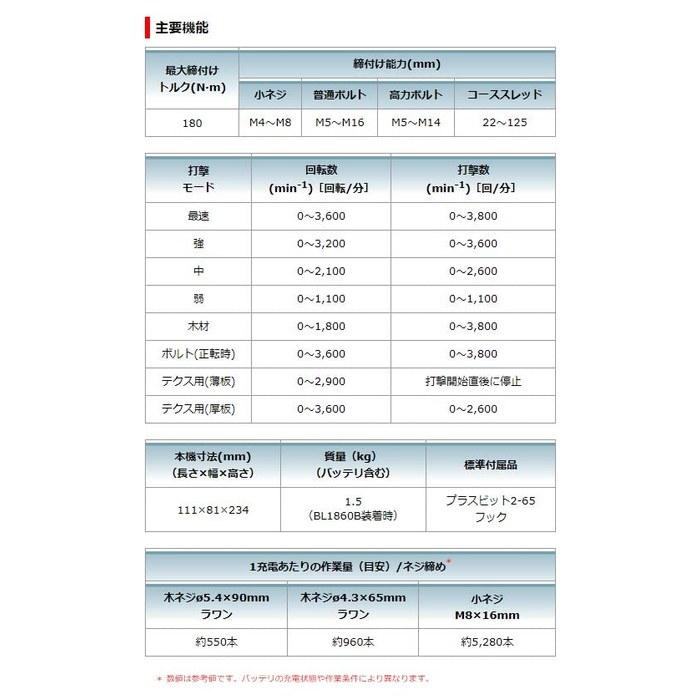

・DC 18V, slide-type Li-ion battery specification. Battery and charger sold separately. Tightening capacity: Small screws M4～M8 / Standard bolts M5～M16 / High-tensile bolts M5～M14 / Wood screws 22～125mm. Maximum tightening torque: 180N・m. Rotation speed [rpm]: Fastest 0～3,600 / Strong 0～3,200 / Medium 0～2,100 / Weak 0～1,100. “Easy” mode rotation speed [rpm]: Wood 0～1,800 / Bolt 0～3,600 / Thin sheet metal 0～2,900 / Thick sheet metal 0～3,600. Impact rate [times/min]: Fastest 0～3,800 Strong 0～3,600 Medium 0～2,600 Weak 0～1,100. “Easy” mode impact rate [times/min]: Wood 0～3,800 / Bolt 0～3,800 / Thin sheet metal Stops immediately after impact starts / Thick sheet metal 0～2,600. Work volume per charge (wood screw, material Lauan φ4.3 × 65mm as a guide): Approximately 960 screws.

・Tool dimensions: Length 111mm × Width 81mm × Height 234mm. Weight: 1.5kg (including battery).

【Voltage Compatibility】 When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.

【Plug Type】 Our products use Japanese plug types (A or B type). Please use a conversion adapter if necessary.

【Important Note on Transformers and Adapters】 A transformer adjusts voltage to match your device's requirements. A conversion adapter only changes the plug shape and does not adjust voltage. Using only a conversion adapter without a transformer may result in damage to the product.

【Liability】 We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer.
