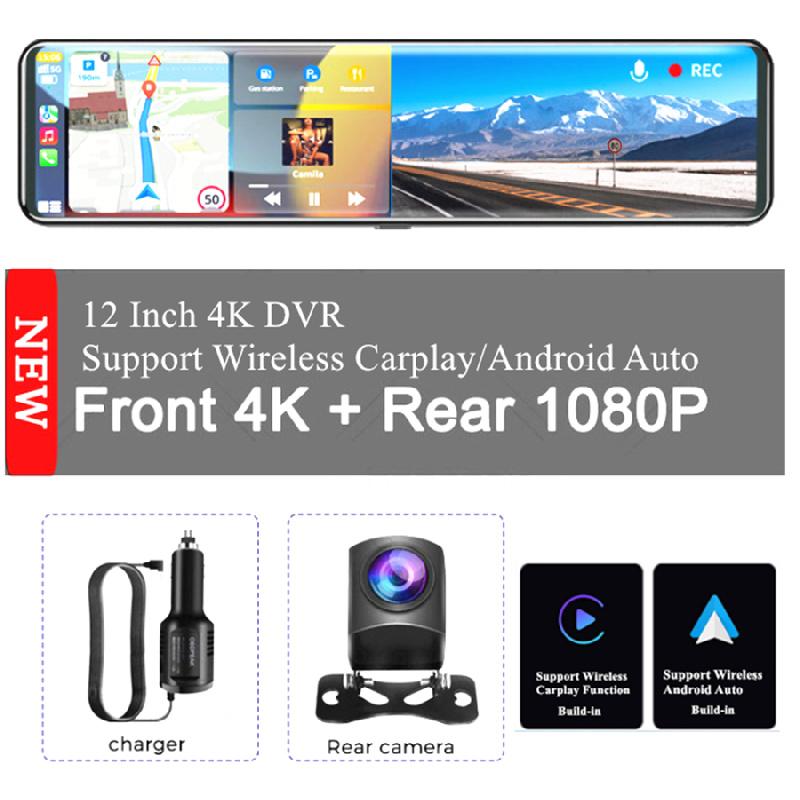

12" IPS Touch Screen Dual-Camera Dash Cam (4K Front + 1080P Rear) - Supports Wireless CarPlay/Android Auto with G-Sensor & FM Transmitter
1. Product Features
12" IPS Touch Screen: No blind spots, delivering clear visuals for operation and real-time video viewing, enhancing driving safety and convenience.
3-Second Fast Cold Boot: Instant startup after ignition, no waiting time, ensuring immediate recording and screen projection functionality.
Dual-Camera High-Definition Recording:
Front camera: 4K 2600P (up to 8 million pixels, true 3840×2160P UHD resolution), capturing distant road details clearly.
Rearview camera: 1080P AHD, ensuring sharp footage of the rear environment; supports simultaneous 4K+1080P recording even during screen projection.
Wireless CarPlay & Android Auto: Seamless screen projection for navigation, calls, and media; maintains dual-camera recording during use, no conflict between functionality.
Siri Voice Control (CarPlay Exclusive): Enables hands-free operation (e.g., sending messages, adjusting media) to keep focus on driving.
One-Pair FM Transmitter: Pair once for automatic subsequent connections; plays audio via the original car audio system, restoring original sound quality for media playback.
Aluminum Super Capacitors (3.8V 30F): Superior to lithium batteries in high/low temperature resistance and safety, ensuring long-term stable operation in extreme vehicle environments.
5GHz High-Speed WiFi: 5x faster video transfer speed than conventional WiFi, with more stable data transmission for quick footage sharing or backup.
H.265 Video Encoding: Saves over 30% storage space compared to H.264, allowing more video recordings with the same TF card capacity (up to 128GB).
Stable Loop Recording: No missing seconds or crashes during long-term use; cyclic storage automatically overwrites old unprotected files to avoid memory full issues.
3-Axis G-Sensor: Detects sudden acceleration, braking, or collisions, automatically locking and protecting accident-related footage from being overwritten by loop recording.
2. Product Specifications
Category Details
Key Components
Main Chip Rackchip RV1126 (4×CA7@1.5GHz, RISC-V MCU@200MHz)
Display MIPI 11.26 inches; Resolution: 1920×440
Touch Panel (TP) Supports 12-inch capacitive screen
DDR (RAM) 32-bit LPDDR3, Max 512MB
Flash Memory SPI NOR 32MB
WiFi & Bluetooth FG6222BSRC/FG6221BSRC (2.4G/5G WiFi + BT4.2)
FM Transmitter QN8027
Super Capacitors 3.8V 30F
Loudspeaker Built-in (8Ω/1.5W); Power amplifier: NS4890
Microphone Built-in (-35dB ±2dB)
Cameras Front: IMX415 sensor (4K 2600P); Rear: AHD 1080P
Gravity Sensor 3-Axis (DA380)
Ports
- TF card slot (SD Socket), supports up to 128GB expansion
- Type-C 16pin right bend 90° (power supply: buck line/car charger DC5V/2.5A)
- 1×GPS 3.5mm Jack (optional accessory, software functions to be developed)
- 1×AHD Rear Camera Jack (2.5mm 4-segment), compatible with auto-reverse
Physical Buttons 1×Power Key, 1×Reset Key, 1×Download Key (behind 3.5mm jack, for easy upgrade)
Software
OS Linux 4.9
UI Built-in UI
Screen Projection Supports Android Auto / CarPlay
ADAS Not supported
Languages Simplified Chinese, Traditional Chinese, English, Japanese, Russian, French, etc.
Encoding Format H.265 / H.264 Video Code
Monitoring Parking Monit
